Rowley NSG10 Operating & Maintenance Instructions

Long & short nose upholstery air stapler
Hide thumbs

Advertisement

Quick Links

Download this manual
Safety, Operation & Maintenance Instructions
Long & Short Nose Upholstery Air Stapler (NSG10 & NS11)
IMPORTANT:
Drop 3 drops of oil into the stapler air inlet
BEFORE fi rst use. See page 2.
Please read the safety, operation and maintenance
instructions BEFORE using the Air Stapler.

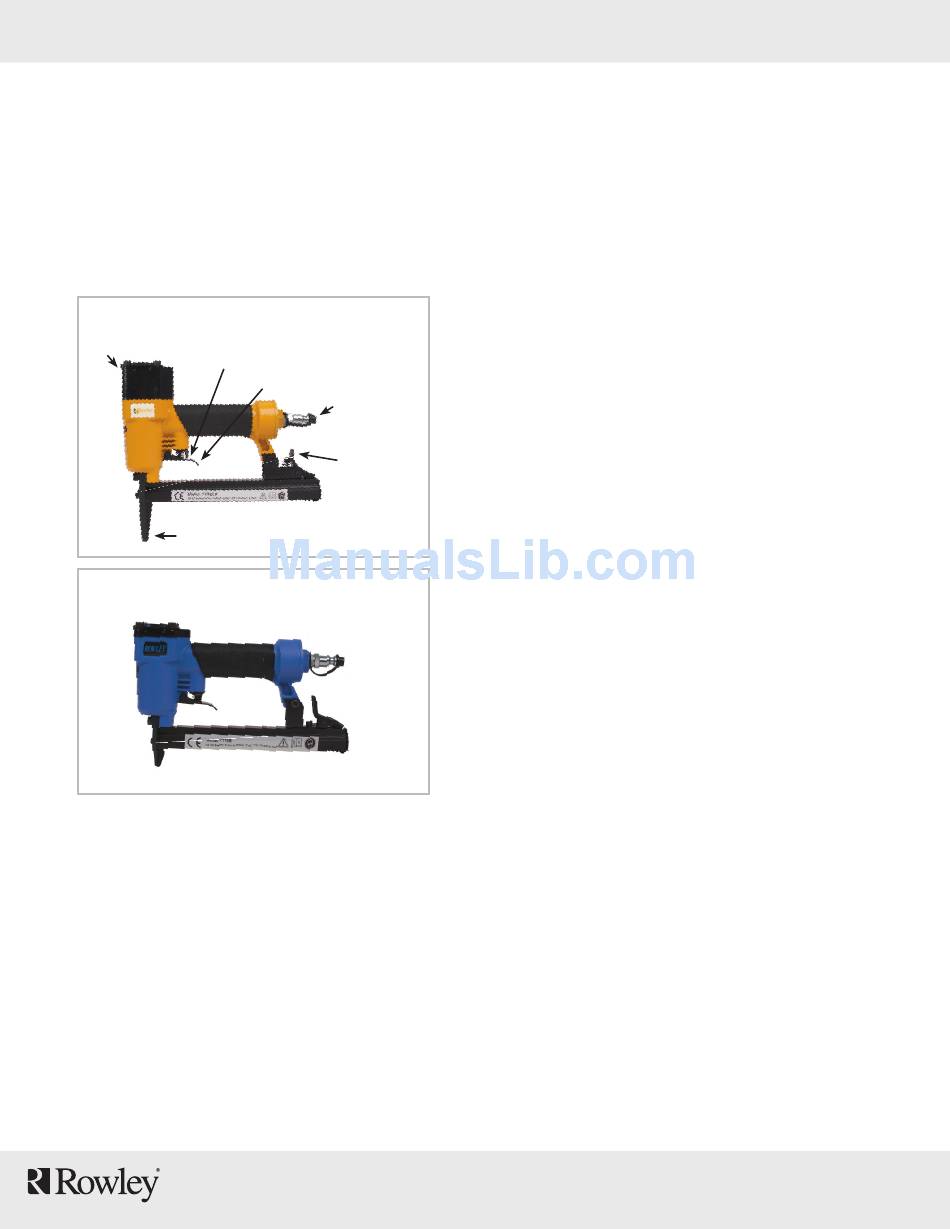

Upholstery Air Stapler (NSG10):
Air Exhaust
Trigger Safety
Fig. 1
Nose (Staple Discharge Area)
Short Nose Upholstery Air Stapler (NS11):
Fig. 2
SPECIFICATIONS:
- Operating air pressure range: 70 ~ 100 psi.
- Fastener type: 22 gauge fi ne wire 71 series staples.
- Fastener leg length range: ¼" to ⅝"
- NSG10 and NS11 staplers use the same fasteners
Rowley Company sells (SKU# NS32/E, NS33/E,
NS34/E, NS35/E).
- House fi tting: ¼" NPT Milton
- Magazine capacity: 160 staples
APPLICATIONS:
- For upholstery: cornice boards, head boards, sofas,
chairs, ottomans, upholstered walls, etc.
- For Window treatment: covering dust boards,
mounting soft treatments to dust boards, etc.
Trigger
Air Inlet
Magazine
Cover Latch
IMPORTANT:
This manual contains safety warnings, operation, maintenance,
parts lists and diagrams. Keep the manual in a safe place for future
reference. The instructions will help you maximize the service life of
your stapler.
Safety Instructions:
1. Do not use oxygen, flammable gas, or any other type of gas as a
power source. Use regulated and filtered compressed air only.
2. Do not use gasoline or any other flammable liquid to clean the tool.
3. Do not exceed the maximum operation air pressure of 100 psi.
4. Always disconnect the tool from the air supply before loading
staples, clearing a jam or servicing.
5. Always disconnect the tool from the air supply when not in
operation. Never leave tool unattended while connected to air
supply.
6. Do not carry tool by hose or move tool by pulling hose. Keep
hose away from heat, oil, solvents and any sharp edges. Replace
any damaged, weak or worn hoses.
7. Do not use tool as a hammer. Do not drop, drag or throw tool. If
tool is dropped, discontinue use and carefully examine for any bent,
cracked or broken parts. Listen for air leaks. Do not use tool until the
damage is repaired.
8. Always wear safety glasses and ear protection when using tool.
9. When connecting tool to air supply, only use a coupling that will
release all air pressure from the tool when disconnected.
10. Do not point the tool at yourself or at any person. Always
assume that the tool is loaded and powered. Never engage in
horseplay.
11. Keep hands, or any body parts away from the stapler nose area
when the tool is connected to the compressed air.
12. Do not drive a staple on top of another staple.
13. Turn the trigger safety so the stapler will not fire accidentally
when connecting or disconnecting tool to compressed air.
14. Always keep firm footing when using tool.
15. Do not modify or disable trigger safety.
16. Do not modify any part of tool.
17. Keep tool out of reach of children.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NSG10 and is the answer not in the manual?

Questions and answers

Related Manuals for Rowley NSG10

Summary of Contents for Rowley NSG10

  • Page 1 Safety, Operation & Maintenance Instructions Long & Short Nose Upholstery Air Stapler (NSG10 & NS11) IMPORTANT: IMPORTANT: Drop 3 drops of oil into the stapler air inlet This manual contains safety warnings, operation, maintenance, parts lists and diagrams. Keep the manual in a safe place for future BEFORE fi rst use.
  • Page 2 OPERATION INSTRUCTIONS: 1) Set up Compressed Air: The following diagram shows a simple compressed air set-up. Connect a filter to air compressor through a straight air hose. Connect the stapler to the filter with a coiled air hose. Straight air hose is ideal for long distances. A coiled air hose gives the user more freedom while using stapler and is safer when the tool is not in use.
  • Page 3 100 psi. 6. After use, always disconnect stapler from air supply and unload the staples. Press latch to open cover Staples: The following Rowley Company staples fit both NSG10 and NS11. Stock # Leg Length Approx. Leg Length NS32/E 1/4"...

  • Page 4: Troubleshooting

    (totally disappears into the stapler body) at the end of the cycle, it is very likely that the washer is worn and need to be replaced. See How to Replace Washer or call Rowley Company. 4. Stapler has an air leak.
  • Page 5 (Fig. 3). 11) Stapler magazine cov- 1. The screw holding the L See How to Replace Pusher and Pusher Spring. Or call Rowley Co. er slides off the stapler. To prevent this problem from happening again, check the screw (Fig. 6, bracket is loose and falls off.
  • Page 6 How to Replace Pusher and Pusher Spring roller into the magazine cover slot (Fig. 11). With use, the pusher and pusher spring will be worn and need to be replaced. Call Rowley Company to order the parts. This end will be connected to the 1.
  • Page 7 See the table below for stock numbers of most replacable parts. Piston Fig. 14 Order Lubricant Syringe (AS65) also. AS65 will be used in the following steps. Washers Bumper Stapler NSG10 NS11 Parts Piston NSG10/P15 NS11/P13 Bumper NSG10/P16 NS11/P14...
  • Page 8 2. Remove the magazine/nose assembly (1) and 5. Pull the piston (1) out. A pair of pliers can be helpful. washers (2) (Fig. 18). Wrap the jaws of a pair of pliers with fabrics and pull the cylinder (2) out with a slight twist. Remove the old bumper (3) from the bottom of the cylinder.

  • Page 9: Cylinder Cover Assembly

    8. Make sure the new washers are clean, free of any 11. Place the exhaust cap on as shown (Fig. 27). debris or cracks. Apply lubricant grease (AS65) around the outer edge of the new rubber washer. Fig. 27 First place the new rubber washer, then the metal washer on the stapler and make sure the washers are oriented properly (See Fig.

  • Page 10: Limited Warranty

    - During the warranty period, replacements or repairs (at period expires, the tool must be returned to Rowley Rowley Co.’s discretion) of the tool will be made free Co. at the customer’s expense. Rowley Company’s discretion) of the tool will be made Company at the customer’s expense.
  • Page 11 PARTS DIAGRAM & LIST FOR NS11: Parts Diagram & List for NS11: # Part Name # Part Name # Part Name # Part Name # Part Name # Part Name 10 O-Ring 2.65X30.2 1 Bolt M5X20 19 Trigger Valve Seat 29 C-Clip 2.5 38 Support 47 Tension Roller...
