Rowley NS10 & NS11 Safety, Operation And Maintenance Instructions

Long & short nose upholstery air stapler
Hide thumbs

Advertisement

Quick Links

Download this manual
Important:
Drop 3 drops of oil into the stapler air inlet BEFORE first use.
See page 2.
Please read the safety, operation and maintenance instructions
BEFORE using the Air Stapler.

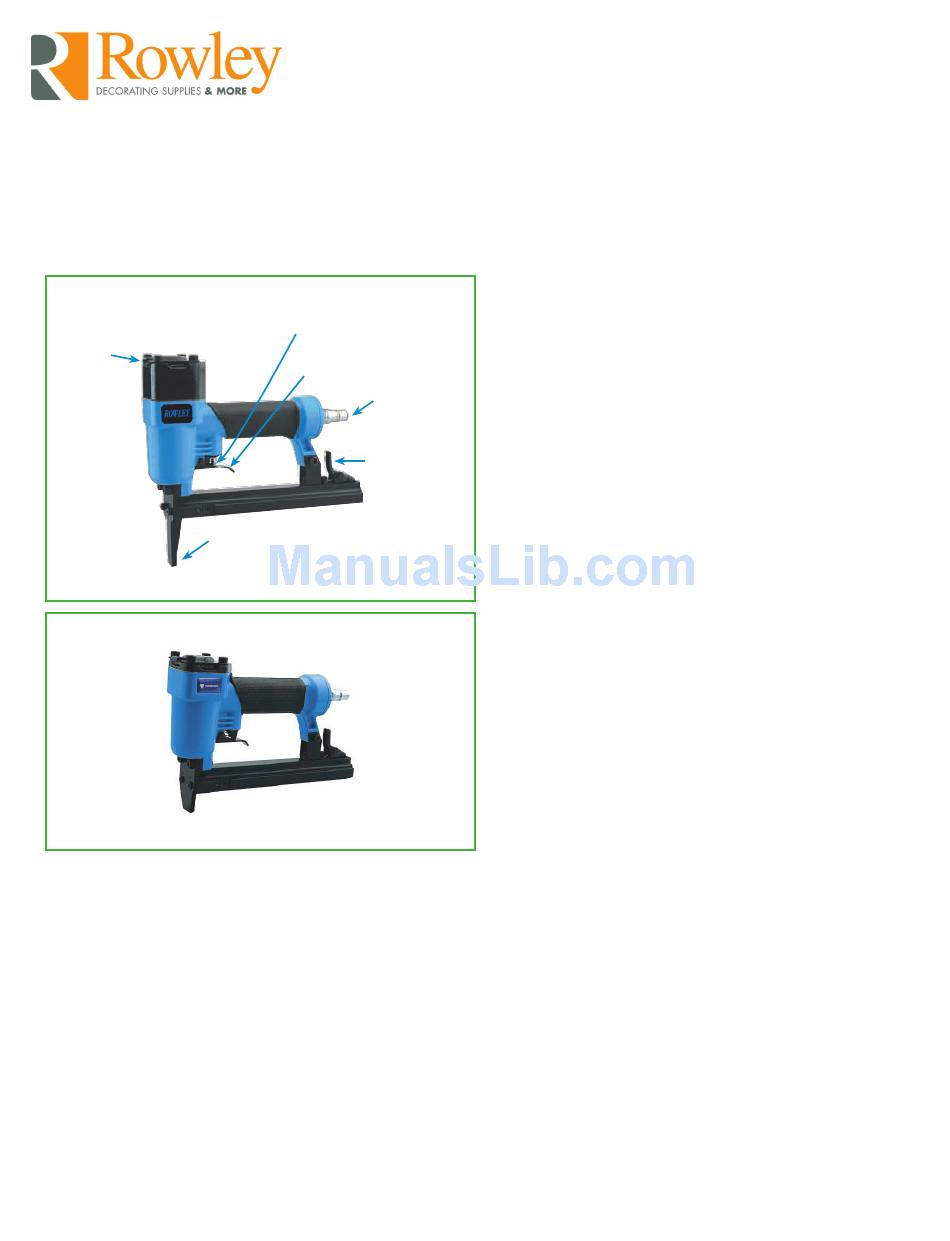

Upholstery Air Stapler (NS10):
Air
Exhaust
Fig. 1
Short Nose Upholstery Air Stapler (NS11)
Fig. 2
Specifications:
•
Operating air pressure range: 70 ~100 psi. • Fastener type:
22 gauge fine wire 71 series staples. • Fastener leg length
range: 1/4" to 5/8".
•
NS10 and NS11 staplers use the same fasteners Rowley Co.
sells (Stock #: NS32, NS33, NS34, NS35).
•
Hose fitting: 1/4" NPT Milton.
•
Magazine capacity: 160 staples
Applications:
•
For upholstery: cornice boards, head boards, sofas, chairs,
ottomans, upholstered walls etc.
•
For Window treatment: covering dust boards, mounting soft
treatments to dust boards etc.
©
2011 Rowley Company, LLC
afety, Operation and Maintenance Instructions For Long &
S
Trigger
Safety
Trigger
Air
Inlet
Magazine
Cover Latch
Nose
(Staple Discharge Area)
Short Nose Upholstery Air Stapler (NS10 & NS11
Important:
This manual contains safety warnings, operation, maintenance,
parts lists and diagrams. Keep the manual in a safe place for future
reference. These instructions will help you maximize the service life
of your stapler
Safety Instructions
1. Do not use oxygen, flammable gas, or any other type
of gas as a power source. Use regulated and filtered
compressed air only.
2. Do not use gasoline or any other flammable liquid to
clean the tool.
3. Do not exceed the maximum operating air pressure of
105 psi.
4. Always disconnect the tool from the air supply before
loading staples, clearing a jam or servicing.
5. Always disconnect the tool from the air supply when
not in operation. Never leave tool unattended while
connected to air supply.
6. Do not carry tool by hose or move tool by pulling hose.
Keep hose away from heat, oil, solvents and any sharp
edges. Replace any damaged, weak or worn hoses.
7. Do not use tool as a hammer. Do not drop, drag or throw
tool. If tool is dropped, discontinue use and carefully
examine for any bent, cracked or broken parts. Listen for
air leaks. Do not use tool until the damage is repaired.
8. Always wear safety glasses and ear protection when using
tool.
9. When connecting tool to air supply, only use a coupling
that will release all air pressure from the tool when
disconnected.
10. Do not point the tool at yourself or at any person. Always
assume that the tool is loaded and powered. Never engage
in horseplay.
11. Keep hands, or any body parts away from the stapler nose
area when the tool is connected to the compressed air.
12. Do not drive a staple on top of another staple.
13. Turn the trigger safety so the stapler will not fire
accidentally when connecting or disconnecting tool to
compressed air.
14. Always keep firm footing when using tool.
15. Do not modify or disable trigger safety.
16. Do not modify any part of tool.
17. Keep tool out of reach of children.
1
I_50
www.RowleyCompany.com
07/11

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS10 & NS11 and is the answer not in the manual?

Questions and answers

Related Manuals for Rowley NS10 & NS11

Summary of Contents for Rowley NS10 & NS11

  • Page 1 (Stock #: NS32, NS33, NS34, NS35). compressed air. • Hose fitting: 1/4” NPT Milton. 14. Always keep firm footing when using tool. • Magazine capacity: 160 staples 15. Do not modify or disable trigger safety. Applications: 16. Do not modify any part of tool. • For upholstery: cornice boards, head boards, sofas, chairs, 17. Keep tool out of reach of children. ottomans, upholstered walls etc. • For Window treatment: covering dust boards, mounting soft treatments to dust boards etc. www.RowleyCompany.com © 2011 Rowley Company, LLC 07/11...
  • Page 2 Operation Instructions: 1) Set Up Compressed Air: The following diagram shows a simple compressed air set-up. Connect a filter to air compressor through a straight air hose. Connect the stapler to the filter with a coiled air hose. Straight air hose is ideal for long distances. A coiled air hose gives the user more freedom while using stapler and is safer when the tool is not in use.
  • Page 3 6. After use, always disconnect stapler from air supply and unload the staples. Insert staples Fig. 7 (legs up) Press latch to open cover Staples: The following Rowley Co. staples fit both NS10 and NS11. Approx. Stock # Leg Length Leg Length NS32 1/4"...

  • Page 4: Troubleshooting

    Teflon® sealing tape around the threads, screw in the inlet plug. If air leaks from other parts of the stapler, call Rowley Co. for further information. Note: A burst of air follows each shooting cycle. This is normal.
  • Page 5 The driver guide (part # 32) is bent or the latch spring 6. Staples jam in the nose tip. (part # 39) is too loose. Call Rowley Co. 9) Stapler has an air leak See corrective action for problem (2).

  • Page 6: Repair And Maintenance Instructions

    With use, the pusher and pusher spring will be worn and 3. Thread the spring behind and around the tension need to be replaced. Call Rowley Co. to order the parts. roller into the magazine cover slot (Fig. 11). This end will be...
  • Page 7 How to Replace Piston and Bumper 6. Hold the pusher firmly in one hand, with the other hand, slightly stretch the spring, bend slightly, and With use, piston may break or hook the spring onto the hook in the magazine cover Piston bend.
  • Page 8 3. Pull the piston out. A pair of pliers can be helpful. The parts removed from NS11: Bolts (1); Exhaust cap The piston may be broken into pieces. Be sure to (2); Cylinder cover assembly (3); Collar (4); Piston (5) remove all the debris.

  • Page 9: Cylinder Cover Assembly

    7. Make sure the new piston is clean. Apply lubricant 10. Place the exhaust cap on as shown (Fig. 29). grease (AS65) to the disk part of the piston, especially around the O-ring. Fig. 29 Grease here 11. Insert the four bolts. Tighten the bolts while Fig.
  • Page 10 How to Replace the Washer 2. Remove the spacer (1) and magazine/nose assembly (2) (Fig. 34). With use, the washer (Fig. 31) on the stapler will wear out and need to be replaced. The stock # of the washer for both NS10 and NS11 is NS10/P18.

  • Page 11: Limited Warranty

    • During the warranty period, replacements or repairs (at period expires, the tool must be returned to Rowley Rowley Co.’s discretion) of the tool will be made free Co. at the customer’s expense. of charge.
  • Page 12 Parts Diagram & List for NS11: # Part Name # Part Name # Part Name # Part Name # Part Name # Part Name 1 Bolt M5X20 10 O-Ring 2.65X30.2 19 Trigger Valve Seat 38 Support 29 C-Clip 2.5 47 Tension Roller 11 Cylinder 39 Latch Spring 2 Exhaust Cap...
