Safety, Operation & Maintenance Instructions
Long & Short Nose Upholstery Air Stapler (NS13LN & NS13)
IMPORTANT:
Drop 1-2 drops of oil into the stapler air inlet
BEFORE first use. See page 3.
Please read the safety, operation and maintenance
instructions BEFORE using the Air Stapler.
Upholstery Air Stapler (NS13LN):
Air Exhaust
Trigger Safety

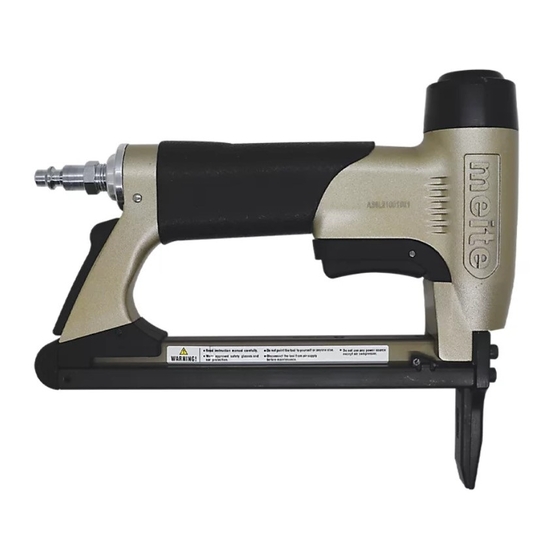

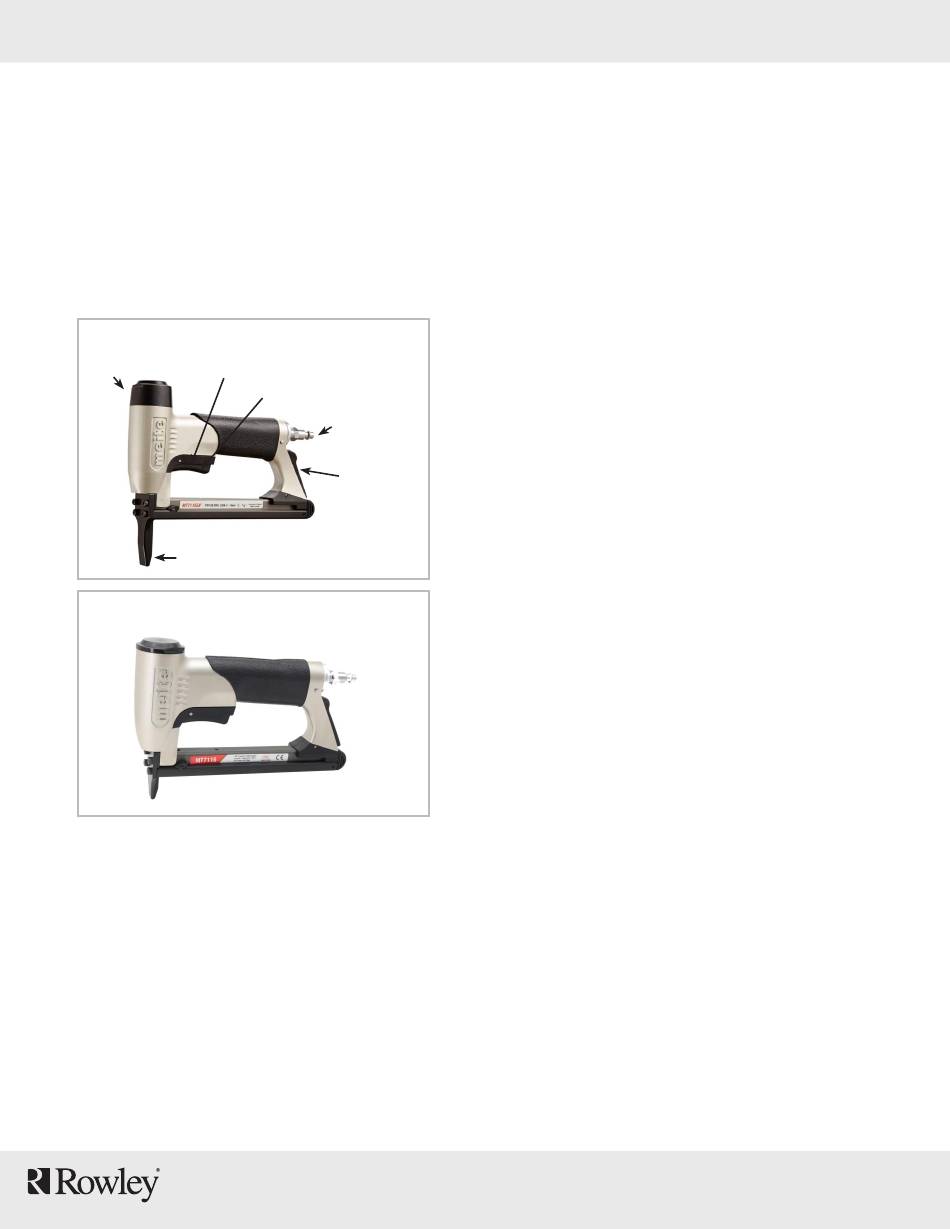

Fig. 1
Nose (Staple Discharge Area)
Short Nose Upholstery Air Stapler (NS13):
Fig. 2
SPECIFICATIONS:
- Operating Power: Compressed air with pressure:
60 ~100 psi. equipped with filter.
- Hose length should be no greater than 16 ft (or 5M).
- Keep all parts clean, dry, no debris, no air leaking.
- Fastener type: 22 gauge fine wire 71 series staples.
- NS13 and NS13LN staplers use the same fasteners
Rowley Company sells (Item #s: NS32/E, NS33/E,
NS34/E, NS35/E).
Trigger
Air Inlet
Magazine
Cover Latch
IMPORTANT:
This manual contains safety warnings, operation, maintenance,
parts lists and diagrams. Keep the manual in a safe place for
future reference. The instructions will help you maximize the
service life of your stapler.
APPLICATIONS:
- For upholstery: cornice boards, head boards, sofas,
chairs, ottomans, upholstered walls, etc.
- For Window treatment: covering dust boards,
mounting soft treatments to dust boards, etc.
SAFETY INSTRUCTIONS:
1. Please read the instruction carefully before use.
2. Always wear ear and eye protector.
3. Do not exceed the maximum operating air pressure of 110
psi (or 8kGf/sqcm).
4. Always disconnect the tool from the air supply before
loading staples, clearing a jam or servicing.
5. Always disconnect the tool from the air supply when not in
operation. Never leave tool unattended while connected to
air supply.
6. Do not point the tool at yourself or at any person.
7. Do not use oxygen, flammable gas, or any other type of gas
as a power source. Use regulated and filtered compressed
air only.
8. Keep hands, or any body parts away from the stapler nose
area when the tool is connected to the compressed air.
9. Keep tool out of reach of children.
1
