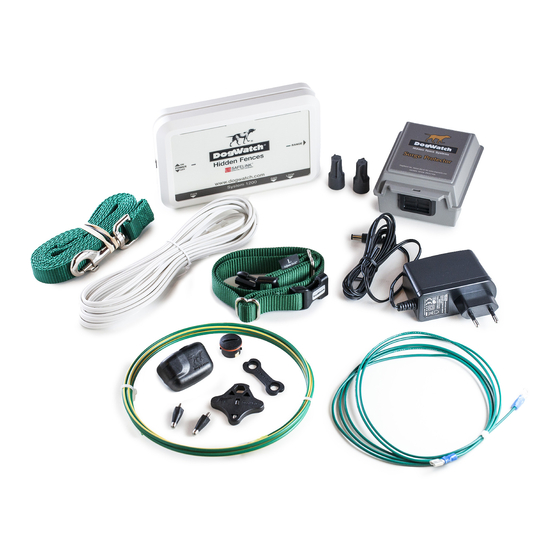

DogWatch System 1200 Installation Manual
Hidden fence systems
Hide thumbs
Also See for System 1200:
- Operating instructions manual (16 pages) ,
- Owner's manual (12 pages) ,
- Operating instructions manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DogWatch System 1200
Summary of Contents for DogWatch System 1200

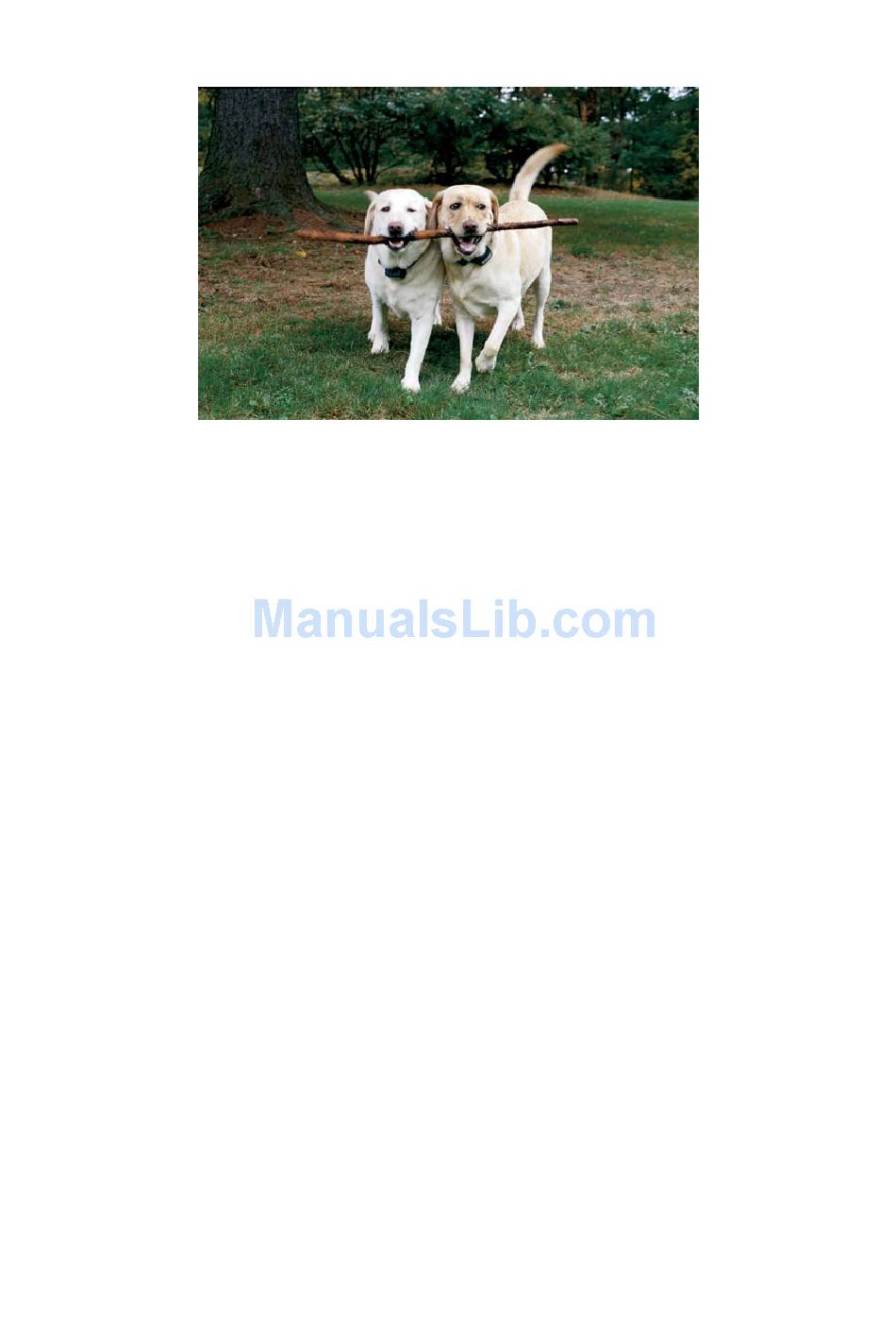

- Page 1 DogWatch Hidden Fence Systems System 1200 & Performance Series Installation Guide...
-
Page 2: Tips For Installation
DogFence, either on our web site or direct and a list of approved alternative batteries is listed in your handbook. DogWatch systems operate on a digitally encoded FM signal and are safe to use with any electrical or radio equipment installed on your property. - Page 3 Diagram to illustrate various installation layouts:- Attaching to fencing. If attaching to a fence use a cable clip or staples to attach the cable to the fence. Try to install the cable midway on the fence if possible (be careful not to pinch the outer jacket of your cable if you are using staples).
-
Page 4: Installation Instructions
Use an angle grinder or disc cutter to cut a slot approx ½” deep and insert the cable into the slot. Make sure the cut is wide enough to comfortably house your wire. Seal the slot with a coloured or clear silicone or driveway sealant. -
Page 5: Surge Protector
SURGE PROTECTOR – Protects the system from lightening strikes. 1. Locate the surge protector outside where the zip wire and green ground wire exit the wall. 2. Bring the wires through the rubber gasket (it will need to be cut) and connect each end of the zip wire (you will need to split the two wires apart) from the transmitter to the inside point of each terminal (two bottom terminals in the surge protector –... - Page 6 6. Testing: Turn the power switch on the red power light will come one and the green loop light will be on and constant. PLEASE NOTE: in the video supplied the green loop light is flashing, since making this video DogWatch have added a software upgrade and the loop light no longer flashes.
-
Page 7: Setting The Range
TRAINING See DogWatch Handbook. 1. You must first set the collar to Audible only as laid out in the DogWatch handbook – Follow the phases through starting with Phase 1 “Audible and “Beep” training. To Set the collar to Audible only take the tester and place it between the locator points (the diagrams below illustrate how to do this). -
Page 8: Adjusting The Collar
Important Additional Info:- In the first few weeks of using your DogWatch hidden fence system it is important that the dog builds up to wearing the collar for prolonged periods (similar to breaking in a new pair of shoes). In the first few weeks the pet should only wear the collar for 2 –... - Page 9 How to Use the Yellow Connectors. Step 1: To join the 2 ends of the cable…… Step 2: Strip back approx ½” of the plastic jacket to expose the stranded copper wire on each cable. Step 3: Twist the 2 ends of the cooper wires together. Step 4: Insert the twisted copper wires into the end of the connector through the small hole.
