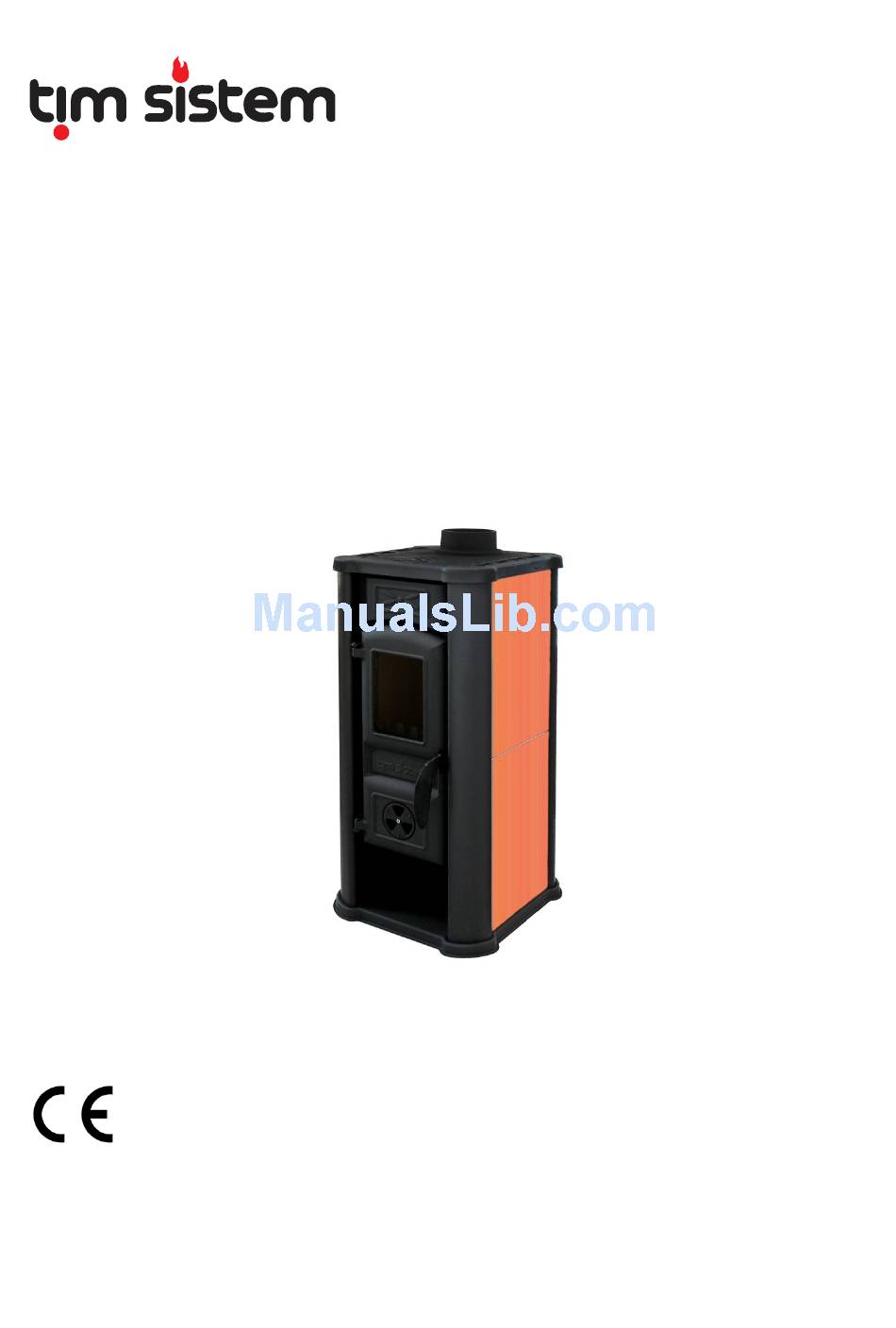

- Page 1 DIANA Owners’s manual INSTALATION, ADJUSTMENT AND OPERATING INSTRUCTION Available in ceramic and metalsheet version. EN 13240...
-
Page 2: Technical Data
INTRODUCTION Congratulations! You have invested in energy efficient and high quality product - DIANA wood burning stove. Your purchase will provide you years of clean and comfortable heating with minimal maintenance. Please read this manual in its entirety. Its purpose is to familiarize you with your stove safe installation, operation and maintenance. - Page 3 APPEARANCE AND PARTS Top plate Fume outlet Secondary air Tertiary air Firebox doors Grid carrier Grid Primary air regulator Ash pan...
- Page 4 DIMENSIONS Ø 120mm 195mm 435mm 785mm 120mm 390mm...
- Page 5 INSTALLING OF WOOD BURNING STOVE Unpacking TIM SISTEM is packing your stove with care so it could be savely transported. However, some damage can occur during transport. When you receive your stove, unpack it carefully, inspecting your stove and all parts for damage. Make sure that all parts are included in the box.
- Page 6 Never burn kiln dried wood, painted or treated wood, solvents, trash, plywood, colored or glossy paper, artificial logs, cardboard, coal, garbage or driftwood. Especially, do not burn coal in this stove CONNECTION TO CHIMNEY After getting familiar with your stove and its part and before you connect it to a chimney, check the quality of the chimey.
-
Page 8: Building A Fire
Warranty is valid from the day of purchase which buyer can prove with verified and signed warranty protocol. Protocol include details about buyers address, date of purchase, signature and stamp of dealer or his service representative. Detailed warranty protocol must be made and verified by TIM SISTEM dealer. Warranty will be acknowledged under following conditions: ...
