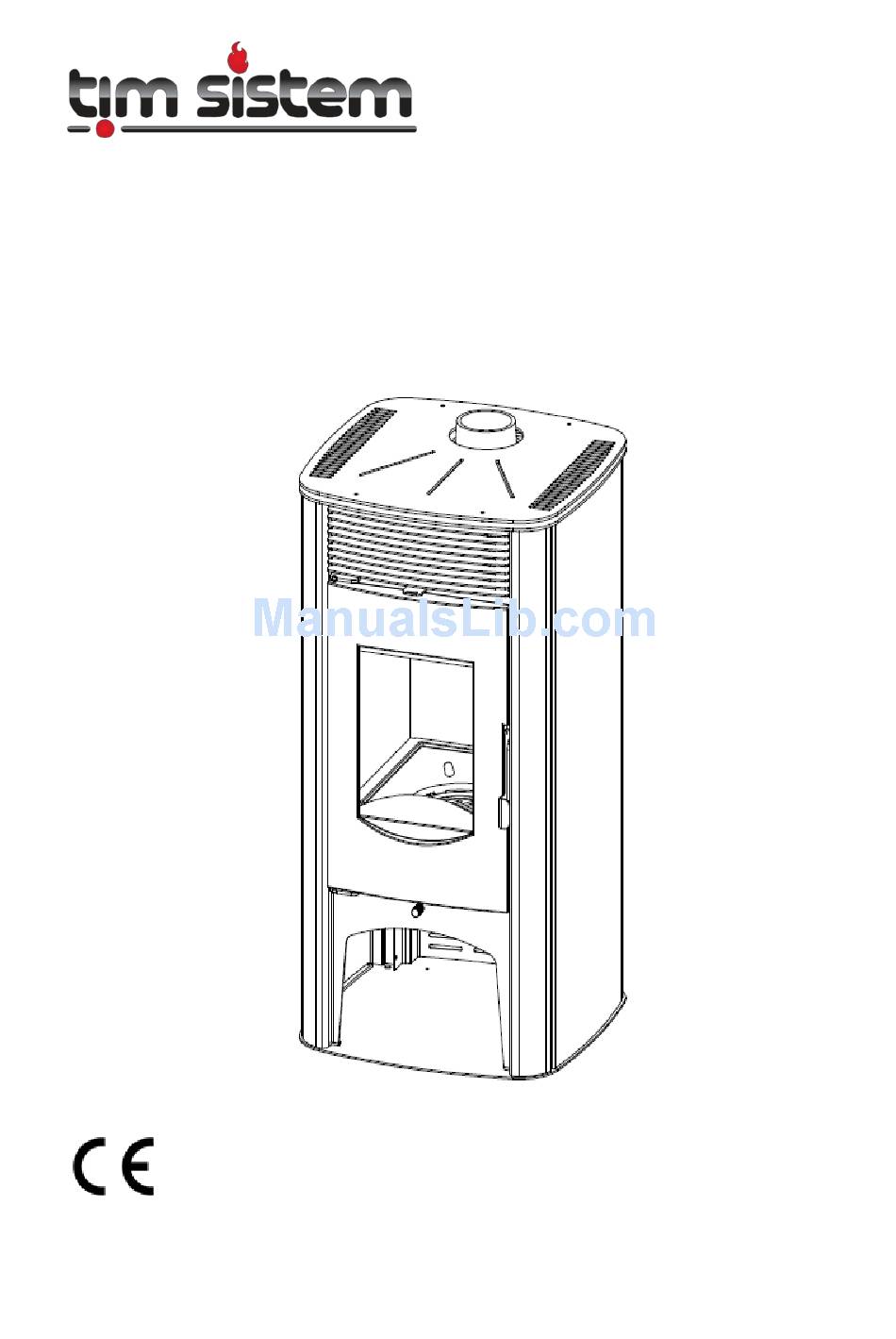

- Page 1 NIKA Owners’s manual INSTALATION, ADJUSTMENT AND OPERATING INSTRUCTION EN 13240...
- Page 2 Dear Customer, We appreciate your trust wested in us and decision to use "TIM SISTEM" product. You have invested in energy-efficient and high-quality product - NIKA wood burning stove. Your purchase will provide you long-term clean and comfortable heating with minimal maintenance.
-
Page 3: Warning Before Use
WARNING BEFORE USE To keep your stove working properly, it is important to read this manual and strictly stick to the instructions for use and handling. For combustion use solid fuels such as wood and wood briquettes. It is forbidden putting explosive devices and materials combustion chamber or the limited thermal furnace. -
Page 4: Description Of The Stove
DESCRIPTION OF THE STOVE NIKA wood burning stove is used for heating rooms and it’s manufactured and tested according to European standard EN 13240. The upper plate of the fireplace is made of steal. Firebox doors are made of cast iron with fireproof glass. -
Page 5: Technical Data
TECHNICAL DATA Name NIKA Solid fuel stove Nominal power 9,03 Efficiency 7,72 Fuel Wood, wood briquets Dimensions of the stove WxLxH 563x564x1048 Dimensions of the fire place WxLxH 360x390x370 Weight Minimum distance from flammable materials Back Side Front 1000 Content CO (reduced on 13% O2) -
Page 6: Dimensions Of The Stove
DIMENSIONS OF THE STOVE... -
Page 7: Installing The Stove
INSTALLING THE STOVE Stove must not be set up near the wooden parts, refrigeration parts, plastic furniture and other flammable materials because during operation (during fuel combustion) it achieves high operating temperature that is distributed on the outside of the furnace. Minimum distance between the stove and the surrounding elements is 50 cm, and the from flamable materials 80 cm. - Page 8 Disadvantages of the chimney (Figure 3): ` 1. The chimney is higher than the top of the roof, a small cross section of the output, 2. Excessive slope 3. A sudden change of direction of the flue channel 4. Stove or some other device connected to the same flue channel, 5.
-
Page 9: Ignition And Lighting
IGNITION AND LIGHTING Before the first firing, wipe all painted surfaces with clean and dry cloth, in order to avoid burning impurity on the oven and creation of unpleasant smells. Start the fire in the stove by following order: • open the fire door, •... - Page 10 Attention! • Do not use organic waste as fuel, food residue, plastic, combustible or explosive materials, which combustion disturbs the proper functioning of the stove and may cause damage and environmental pollution. • Increased ambient temperature can cause poor air circulation (drafts) in the chimney, and in that case is recommended more frequent firing in smaller quantities •...
- Page 11 If there comes to the fire do the following: • Immediately call the fire squad • muffle oxygen supply to the chimney and turn off the stove • Do not insert anything into the chimney and make sure that the fire does not spread to the wooden construction or other combustible materials in its nearby.
- Page 12 II - secondary air control Secondary air regulator set to "max" (Figure 5) during ignition and hold in this position until the establishment of a stable stove operation after insertion of larger pieces of wood or briquettes. After that, depending on what position is the regulator will depend the intensity of the combustion.
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Regular and proper cleaning allows proper operation and long life of the stove. All cleaning the interior or exterior surfaces are always performed in a cold oven. Cleaning exterior surfaces - is done with a soft cloth that will not damage the surface of the stove. -
Page 14: General Recommandation
Glass on a firebox door Wet wood Use a dry wood are getting sooty for a Too much fuel Check a suggested quantity of a while Insufficient draft fuel provided in a user’s manual Closed intake of secundary air Check connection with chimney... - Page 15 ADVICES FOR ENVIRONMENT PROTECTION PACKAGING Packaging material is 100% recyclable. For a waste disposal of, act in accordance with local regulations. Packaging material (plastic bags, polystyrene parts-polystyrene, etc.). Should be kept away from children, as a potential source of danger. Take care of safe removing and disposing of wooden boards because they are connected with nails.
- Page 16 SOLID FUEL STOVE „NIKA“...
- Page 17 List of all Positions on the "NIKA" stove 1. Front 2. Back 3. Lateral side 4. Stand 5. Stove corpus 6. Column 7. Rear side protector 8. Lateral side protector 9. Top plate 10. Lower plate 11. Stove cover assembly 12.
-
Page 18: Warranty
The warranty is valid from the date of purchase, as evidenced by duly completed guarantee certificate, and the shop’s receipt. The warranty for this product is 24 months. TIM SISTEM is obliged to provide spare parts in due time after the stove is no longer produced. This warranty does not cover damage caused by: ... - Page 19 NOTES AND SERVICE CALENDAR __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...
