Getting started

© 2013 Electronics For Imaging
29 May 2013

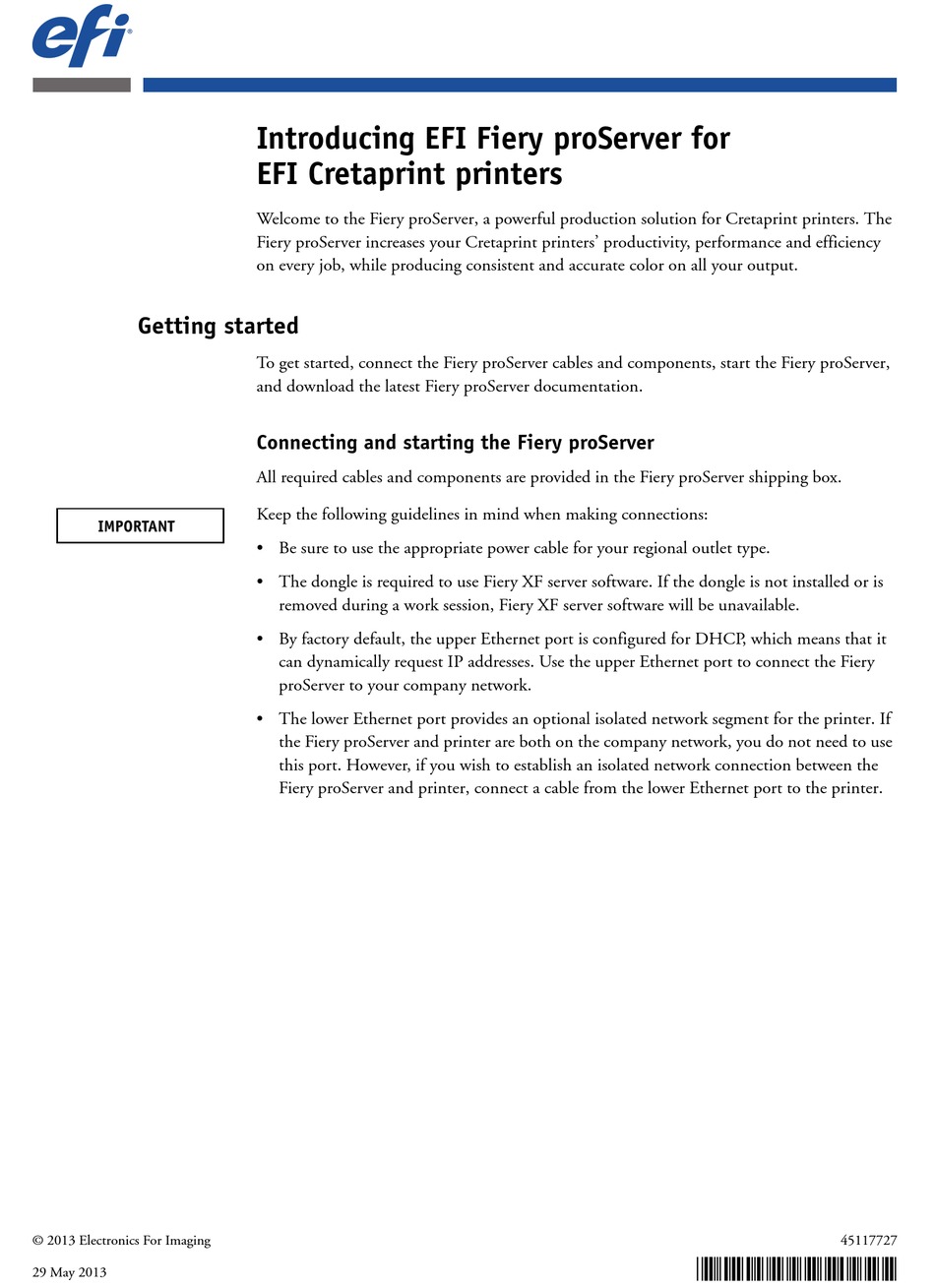

Introducing EFI Fiery proServer for
EFI Cretaprint printers
Welcome to the Fiery proServer, a powerful production solution for Cretaprint printers. The
Fiery proServer increases your Cretaprint printers' productivity, performance and efficiency
on every job, while producing consistent and accurate color on all your output.
To get started, connect the Fiery proServer cables and components, start the Fiery proServer,
and download the latest Fiery proServer documentation.
Connecting and starting the Fiery proServer
All required cables and components are provided in the Fiery proServer shipping box.
Keep the following guidelines in mind when making connections:
• Be sure to use the appropriate power cable for your regional outlet type.
• The dongle is required to use Fiery XF server software. If the dongle is not installed or is
removed during a work session, Fiery XF server software will be unavailable.
• By factory default, the upper Ethernet port is configured for DHCP, which means that it
can dynamically request IP addresses. Use the upper Ethernet port to connect the Fiery
proServer to your company network.
• The lower Ethernet port provides an optional isolated network segment for the printer. If
the Fiery proServer and printer are both on the company network, you do not need to use
this port. However, if you wish to establish an isolated network connection between the
Fiery proServer and printer, connect a cable from the lower Ethernet port to the printer.
45117727
*45117727*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fiery proServer and is the answer not in the manual?

Questions and answers

Related Manuals for EFI Fiery proServer

Summary of Contents for EFI Fiery proServer

  • Page 1: Getting Started

    • The lower Ethernet port provides an optional isolated network segment for the printer. If the Fiery proServer and printer are both on the company network, you do not need to use this port. However, if you wish to establish an isolated network connection between the Fiery proServer and printer, connect a cable from the lower Ethernet port to the printer.
  • Page 2 O CONNECT CABLES AND COMPONENTS AND START THE IERY PRO ERVER 1 Connect the following cables and components to the Fiery proServer: Key: 1 Power cable 2 Network cable (straight-through Ethernet cable) 3 Monitor 4 Keyboard and mouse 5 Printer cable (optional) 6 Fiery XF dongle 2 Move the power switch to the ON ( | ) position.

  • Page 3: Changing The Language Of The Fiery Proserver

    By factory default, the keyboard uses English-language layout. 5 Allow startup to proceed until the Fiery proServer desktop appears on the monitor, and the Fiery XF commands appear on the control panel located on the top front of the Fiery proServer.

  • Page 4: Configuring A Static Ip Address For The Fiery Proserver

    O DOWNLOAD DOCUMENTATION FOR THE IERY PRO ERVER 1 Double-click the Adobe icon on the Fiery proServer desktop to open the Adobe website and download Adobe Reader. You need Adobe Reader in order to access the Fiery proServer documentation, which is provided in PDF format.

  • Page 5: Troubleshooting Problems

    Troubleshooting problems This section describes how to return the Fiery proServer system to an earlier state if the system becomes unresponsive and other troubleshooting remedies do not solve the problem. This process can take up to one hour, depending on the backup medium used and the volume of job data being restored.

  • Page 7: Procedimientos Iniciales

    • El puerto Ethernet inferior proporciona un segmento de red opcional aislado para la impresora. Si tanto el Fiery proServer como la impresora están en la red de la compañía, no necesita utilizar este puerto. Sin embargo, si desea establecer una conexión aislada de red entre el Fiery proServer y la impresora, conecte un cable desde el puerto Ethernet inferior a la impresora.
  • Page 8 ARA CONECTAR CABLES Y COMPONENTES E INICIAR EL IERY PRO ERVER 1 Conecte los siguientes cables y componentes al Fiery proServer: Leyenda: 1 Cable de alimentación 2 Cable de red (cable Ethernet directo) 3 Monitor 4 Teclado y mouse 5 Cable para la impresora (opcional) 6 dongle de Fiery XF 2 Mueva el interruptor de alimentación a la posición de encendido (|).

  • Page 9: Cambio Del Idioma Del Fiery Proserver

    De fábrica por omisión, el teclado utiliza la disposición para idioma inglés. 5 Deje que el proceso de inicio continúe hasta que se muestre el escritorio del Fiery proServer en el monitor y aparezcan los comandos de Fiery XF en el panel de control situado en la parte superior delantera del Fiery proServer.

  • Page 10: Configuración De Una Dirección Ip Fija Para El Fiery Proserver

    IERY PRO ERVER 1 Haga doble clic en el icono Adobe en el escritorio del Fiery proServer para abrir el sitio web de Adobe y descargar Adobe Reader. Necesitará Adobe Reader para poder ver la documentación del Fiery proServer, ya que está en formato PDF.

  • Page 11: Solución De Problemas

    Si devolvió el Fiery proServer a su estado de fábrica, ahora debe instalar la licencia Fiery XF como se describe en la Guía del usuario. Si ha restaurado el Fiery proServer desde una copia de seguridad, la licencia ya está instalada.

  • Page 13: 连接并启动 Fiery Proserver

    适用于 EFI Cretaprint 打印机的 EFI Fiery proServer 简介 欢迎使用 Fiery proServer，这是一款适用于 Cretaprint 打印机的强大生产解决方案。 Fiery proServer 可提高 Cretaprint 打印机每个作业的生产率、性能和效率，同时能在 所有输出中生成一致和精确的色彩。 开始使用之前的准备 要开始使用，请连接 Fiery proServer 电缆和组件，启动 Fiery proServer，下载最新版 本的 Fiery proServer 文档。 连接并启动 Fiery proServer Fiery proServer 装运箱中随附所有必需的电缆和组件。 连接时请牢记以下指导原则： • 确保使用适合您当地电源插座类型的适当电源线。 • 使用 Fiery XF Server 软件时需要连接加密狗。如果未安装加密狗或在工作会话中...
  • Page 14 连接电缆和组件，然后启动 F IERY PRO ERVER 1 将下列电缆和组件连接到 Fiery proServer： 关键接口： 1 电源线 2 网络电缆 （直通式以太网电缆） 3 监视器 4 键盘和鼠标 5 打印机电缆 （可选） 6 Fiery XF 加密狗 2 将电源开关移至 “开” ( | ) 位置。...

  • Page 15: 更改 Fiery Proserver 的语言

    3 按下前面板上的电源按钮。 4 在监视器上以管理员身份登录时，在密码字段中输入 Fiery.1，然后按 Enter 键。 请准确键入 Fiery.1。该密码区分大小写，例如， fiery.1 为无效密码。 注： 在出厂默认设置下，键盘使用英语键盘布局。 5 Fiery proServer 桌面出现在监视器中后才可以继续启动，Fiery XF 命令出现在 Fiery proServer 前上方的控制面板中。 Fiery proServer 需要用大约两分钟的时间来启动。按照屏幕说明完成 Fiery proServer 的初始化。 6 执行以下操作之一： • 如果需要将 Fiery proServer 的语言从英语改为其他语言，跳至第 15 页上的“更改 Fiery proServer 的语言”...

  • Page 16: 为 Fiery Proserver 配置静态 Ip 地址

    作状态。 下载适用于 F 的文档 IERY PRO ERVER 1 双击 Fiery proServer 桌面上的 Adobe 图标，打开 Adobe 网站并下载 Adobe Reader。 您需要安装 Adobe Reader 才能访问以 PDF 格式提供的 Fiery proServer 文档。 2 如果需要，单击 “开始” > “所有程序” > “Internet Explorer” ，打开浏览器窗口。 3 请转至 。 http://help.efi.com/fieryproservercretaprint...
  • Page 17 数据量。 将 F 恢复至之前的状态 IERY PRO ERVER 1 退出 Fiery XF 客户端。 2 使用 Fiery XF Control 关闭 Fiery proServer。 3 插入 System Software 1 DVD。然后，按下前面板上的电源按钮，开启 Fiery proServer。 Windows 将加载安装文件。这将需要几分钟时间。 4 如果您要从备份恢复 Fiery proServer 系统，请插入备份介质。 5 继续按屏幕上的说明操作，直到要求您从下拉列表框中选择一种语言。 这就是引导您完成恢复过程所使用的语言。 6 当询问您要执行的操作时，单击 “从备份或恢复分区恢复” 。...
