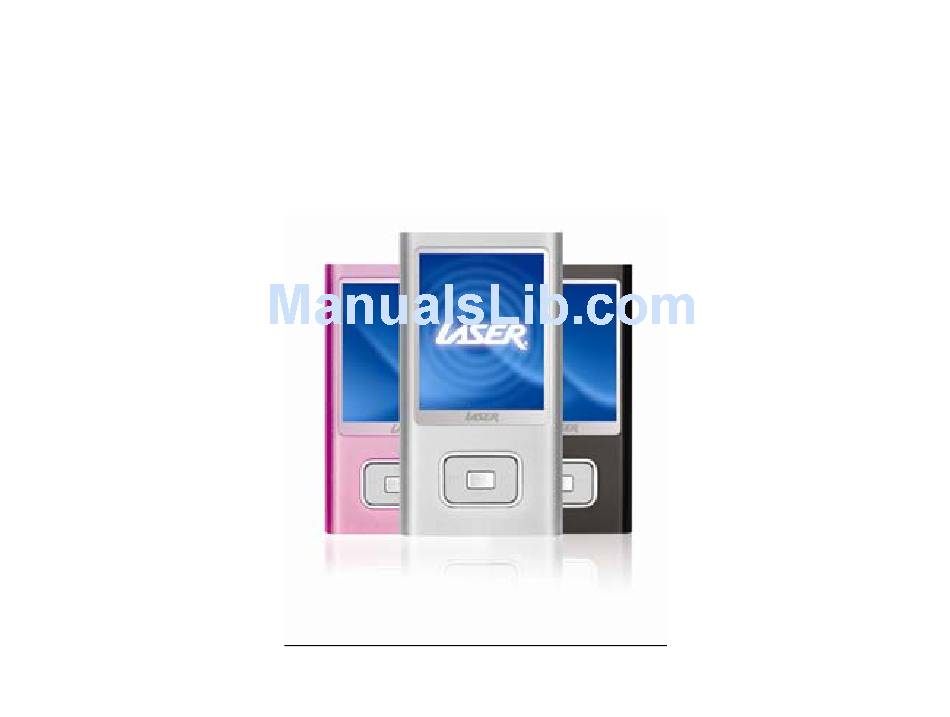

Summary of Contents for Laser MP3 Player
-
Page 2: Table Of Contents
Contents Precautions ········································································································································· Characteristics ···································································································································· About the Player ································································································································ Screen Description ····························································································································· Basic Operation ·································································································································· System Menu ··································································································································· Listen to Music ································································································································ Play the video ··································································································································· Voice REC ······································································································································· Navigation ······································································································································· Photo Browser ·································································································································· FM Tuner ········································································································································· Text ················································································································································ Game Function ·································································································································... - Page 3 Precautions This manual contains important safe measurements and correct operational information, so please read all the information carefully before you use the device in order to avoid any unexpected accidents. Do not put the player in the condition of high temperature, humidity or dust. Do not put the player in high temperature place (over 40℃), especially not in the cars with window closed in summer.
-
Page 4: Precautions
Precautions Do not disconnect the player abruptly during the formatting or uploading and downloading, otherwise, it will cause the program error. We will not be responsible for any obligation for any memory loss caused by product damage, repair or other reasons. Please operate correctly as per the manual. The player, no matter is powered on or not, once connected with the USB port of started computer, can be charged. -
Page 5: Characteristics
Characteristics 2-inch real colored TFT display Multi music formats as MP3, WMA, good timber and real audio frequency display MPEG-4 video format play, full-screen play display, exterior-sound speaker play High-definition JPEG picture browse function Fm Tuner function, can store 20 stations at the most Built-in hi-fi 8 Ohm speaker Digital record Energy-saving setting, brightness adjustable, customerized power off time... -
Page 6: About The Player
About the Player... - Page 7 Screen Description Music Play REC Mode...
-
Page 8: Screen Description
Screen Description Video Play ■ Game ■ Picture Browse/E-Book/Resources Manager... -
Page 9: Basic Operation
Basic Operation Power On/Off Power On: Push the power switch to ON position, long press key for 3 seconds, the player will display the Boot interface and enter the working mode. Power Off: a. In Play state: short press to pause, long press for 3 seconds to power off. - Page 10 Basic Operation Volume Control You should press the “VOL” until the red speaker icon is flashed at the corner of the right side in the screen, then press to adjust the volume. Main Interface After entering the Main Interface, select your desired option among [Music ]/[Video ]/ [FM ]/ [Photo]/[Text]/[Record]/[Navigation]/[Game]/[Settings] circularly pushing...
-
Page 11: System Menu
System Menu Settings In Main Interface, push leftwards or rightwards to select [Settings] option, short press "M" key to enter Setting interface (shown in right bottom), and select the sub-option to be set by pushing Leftwards or rightwards . Display ①Blight time: six options of 5 sec., 10 sec., 15 sec., 20 sec., 30 sec., and always on. - Page 12 System Menu ②About: player storage memory, remain memory and system software version no., these information are read-only, short press [M] key to exit. ③Upgrade Eject out the dialog box in this menu, it reminds you whether to upgrade the firmware, it will exit if no firmware upgrading.
-
Page 13: Listen To Music
Listen to Music Play/Stop In Music Play menu, connect the earphone with player, select the desired song file by pushing leftwards or rightwards key, then short press key to begin the playing, then short press key to pause, operate it circularly. During the playing of music, the interface has real audio frequency display, e.g., for the file with LRC file, behind the frequency is the Synchronous Lyric. - Page 14 Listen to Music function at the third time. It’s unavailable to using repeat function when the music is at pause ation. Long situ press keys for fast ward playing or back ward playing at fast ward the “A” or “A-B” situation. Repeat Mode Once Stop after playing song.
-
Page 15: Play The Video
Listen to Music, Play the video play the video In video paly menu, select the desired video file by pushing leftwards or rightwards key, then short press [M] key to begin the playing, then short press [M] key to pause, operate it circularly. -
Page 16: Voice Rec
Voice REC Voice REC In Main Interface, enter Record state, short press “M” key to start recording, short press to pause recording, short press key to save the recorded file and enter next Record preparation state. Long press [M] key to save the record and exit the REC mode. REC Setup In Stop state of REC mode, long press [M] key to exit the Main interface, and enter [Record] option, adjust the settings among [REC Quality]/[REC Volume]/[CHECK SW]. -
Page 17: Navigation
Resources Manager Navigation Resources manager is one of the function characteristics, it can make you know the inside file type, structure and contents more clearly, for convenient management and search of the file content in classifications . Delete File In Resources Manager, you can select music or video files, long press “VOL” key to display delete Dialog box, select “Yes”... -
Page 18: Photo Browser
Photo, FM Photo In Main Interface, short press MENU key to confirm to enter Picture Browse mode Push Leftwards or rightwards key to select the previous or next picture. Enter FM menu,.Press Mode key to select: Manu,Auto,Mem,Pres,Del Manu: short Press [M] Key to confirm, press leftwards or rightwards to change the frequent manually, long press [M] to exit. - Page 19 Auto: Press [M] to enter, the player will automatically search, after search will display. prese CH XX, Press leftwards or rightwards to select the station. Mem: press [M] key to enter, press leftwards or rightwards to select the stations, press [M] to confirm store, the frequent display on screen will replace the frequent that stored before.
-
Page 20: Text
TEXT Download TXT File Connect the player to computer, select the desired file to download and save the file as TXT format in portable disk. Read File In Main Interface, enter Text option, push leftwards or rightwards key to select the desired file to read, then short press [M] key to read. -
Page 21: Game Function
Game Built-in Intellectual Game: Russian Diamond In System Menu, enter Game mode, short press [M] key to enter Game Setup Interface. Keys Description Russian Diamond is operated in horizontal, short press [M] key to shift between Start and Pause functions, push leftwards or rightwards to control the movement of diamonds. Press [M] to change the shape. -
Page 22: Usb Disk
USB Disk USB Display Mode The player has a high-speed USB2.0 port with the transmission speed of 5M/S, and is a standard USB disk, supports the systems including Windows98 (it needs to install the driver), over Windows2K (it’s unnecessary to install the driver), Mac OS 10.3 and over, Linux Redhat 8.0 and over. -
Page 23: Convert Video File
Convert Video File This player can convert the WMV, RM, AVI, VOB or DAT into AVI video format via the attached video convert software. Click and run the program of “AV Converter.exe”, select your desired video file and AVI video file routine to be generated, shown as follows: Select and set your desired parameters, click [Start to Convert] button, then begin to convert to AVI file. - Page 24 Convert Video File The successfully converted AVI video file can be played in MP4 player. During the operation, enter Video Play menu, select the corresponding file, short press [MODE] key to play in video, long press to exit (the Video Play interface refers to the Screen Description).
-
Page 25: Upgrade Player Firmware
Upgrade Player Firmwar The player can upgrade or resume the damaged player firmware via the tool software in the attached disk. 1. For the first upgrading of computer, insert the drive disk into the CD-ROM of computer, then connect the MP4 player with computer (it requires you to press and hold the key), till it appears the program Installation Interface. - Page 26 Upgrade Player Firmwar 5. Connect the player to PC via USB cable (press and hold the key before the On-line operation), then click [Burnt Firmware] till the Auto Upgrading is achieved.
- Page 27 Upgrade Player Firmwar Note: Firmware upgrade is to improve and optimize the performance of the player. The normal work of the player would not be affected even if the firmware isn’t upgraded. The wrong operation of upgrading firmware would cause the device not to work normally! The firmware upgrade software of this player is not applied to other series of players..
-
Page 28: Troubleshooting
Troubleshooting If the player can not be played normally, please check as follows: Troubles Causes Check whether the player is powered on or not and whether the machine It cannot be turned on program is damaged or not The player is blocked Push the power switch to restart the player Check whether the machine is powered on or not Confirm the volume is not in “0”... -
Page 29: Specifications
Product Specifications Items Specifications LCD display real colored TFT display, Diagram (220*176) Language support Multiple languages Data transmission speed High speed USB2.0 (about 4M Byte/s) Supportable file format Music: MP3, WMA; Record: WAV; Picture: JPEG Supportable video format AVI, RM, VOB, DAT, RMVB (All should be converted) 85dB Max.
