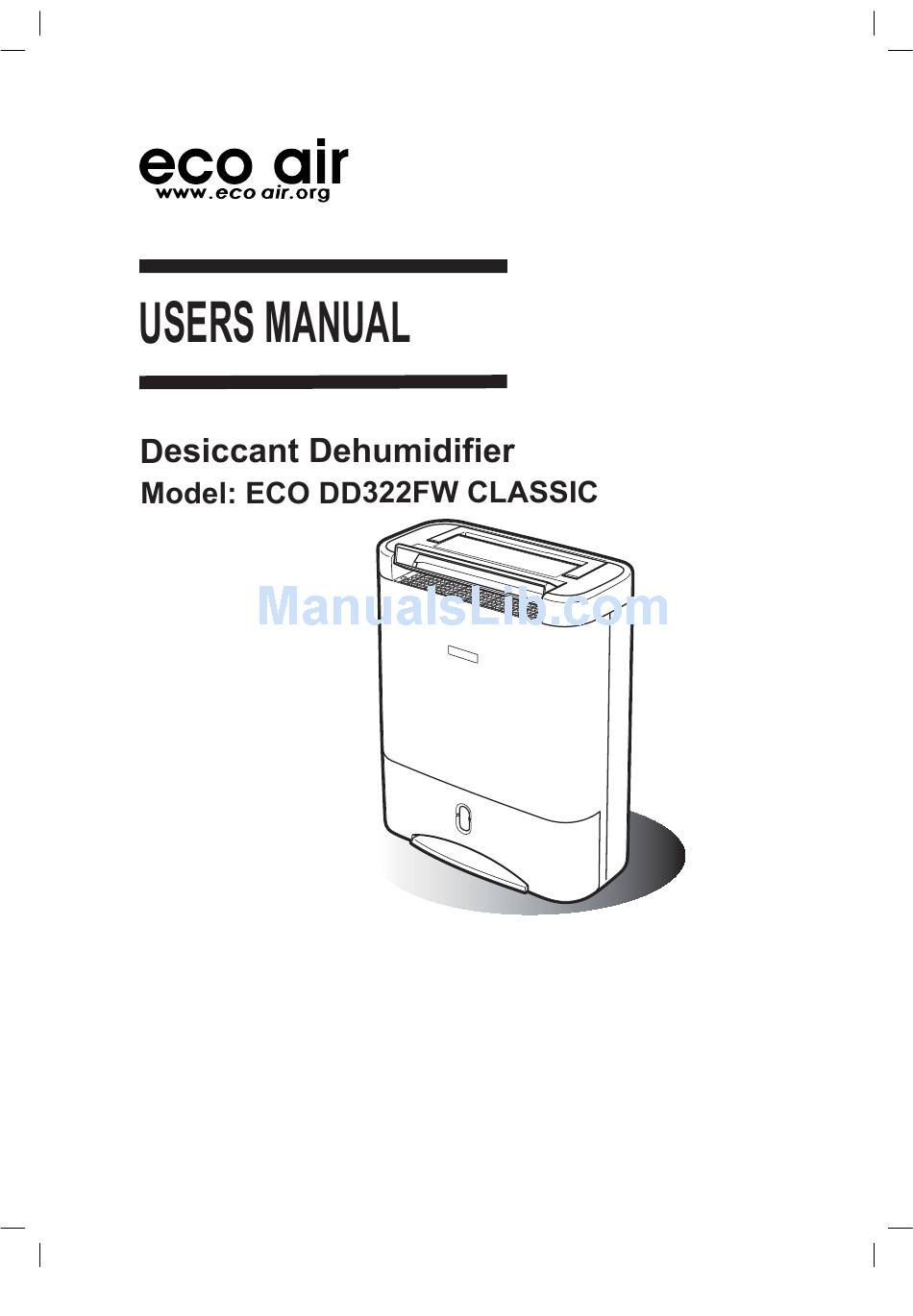

Eco Air ECO DD322FW CLASSIC User Manual

Desiccant dehumidifier
Hide thumbs Also See for ECO DD322FW CLASSIC:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Read This Manual
Inside you will find many helpful hints on how
to use and maintain your dehumidifier properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your dehumidifier. You'll find many
answers to common problems in the chart of
troubleshooting tips. Review the chart of
Troubleshooting Tips before calling your
service engineers.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO DD322FW CLASSIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eco Air ECO DD322FW CLASSIC

Summary of Contents for Eco Air ECO DD322FW CLASSIC

  • Page 1 Read This Manual Inside you will find many helpful hints on how to use and maintain your dehumidifier properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your dehumidifier. You’ll find many answers to common problems in the chart of troubleshooting tips.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. WARNING - This appliance is intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to person or property. When using electrical appliances, basic safety precautions should always be followed: 1.

  • Page 3: Bs Plug Wiring

    BS PLUG WIRING Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE GREEN AND YELLOW - EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1.
  • Page 4 FEATURES • Compressorless dehumidifier - uses desiccant rotor technology • Environmentally friendly with no harmful gasses & quiet in operation • Moisture removal - 10 litres/day (20°C RH60%) • Water tank capacity - 3.5 litres • Electronic louvre • Laundry mode - includes power saving setting for summer use &...

  • Page 5: Product Description

    PRODUCT DESCRIPTION Bucket...

  • Page 6: The Control Panel

    Indicator lights up when the bucket is full of water or incorrectly installed. Timer indicators Function indicators Wide Turbo Front Quiet Saving Auto ON/OFF MODE ECO DD322FW CLASSIC Timer key Louvre Swing Control key Auto Dry Mode key Laundry Mode key Power Key...

  • Page 7: Unit Setup

    UNIT SETUP Place the unit in an upright position on a stable, level surface. (Please ensure unit is not sitting on its own cable) Top above 60cm Please ensure the unit is a safe distance away from a wall or furniture (see the right graphic). Air outlet Air inlet (Back)
  • Page 8 Quiet Saving Auto ON/OFF MODE ECO DD322FW CLASSIC ON and OFF Connect the power plug to the appropriate electrical socket outlet. Press the ON/OFF button to turn the appliance ON. Press the ON/OFF button again to turn the appliance OFF.
  • Page 9 OPERATING INSTRUCTIONS DRY MODE Press the "DRY MODE" Key for automatic dehumidification. Auto Quiet MODE DESCRIPTION To keep the room at a comfortable Relative Humidity (RH) level Auto The unit automatically keeps room humidity at 45~50% RH. The fan speed & heater power are adjusted automatically. To run low fan speed Quiet The unit automatically dehumidifies in low fan speed and...
  • Page 10 OPERATING INSTRUCTIONS AUTO SWING LOUVRE Press the "SWING" Key to select air louvre angle. Wide Front Hold (LED OFF) DESCRIPTION MODE The automatic louvre swings in an upward range of approx 100° FRONT The automatic louvre swings in a front Front range of approx 50°...
  • Page 11 PLEASE NOTE Smell coming from the dehumidifier When you first use the dehumidifier and periodically afterwards you might notice a smell coming from the dehumidifier. This is caused by the Zeolite desiccant material and is not a sign that the dehumidifier is faulty, nor is it harmful to humans or pets. The smell occurs because the Zeolite absorbs odours from items like cigarettes, cosmetics, hair sprays, building materials and new furniture and then when the desiccant is heated the smell is discharged into the room.

  • Page 12: To Empty The Bucket

    TO EMPTY THE BUCKET 1. When the bucket is full, the FULL LED lights up and the unit stops. 2. Do not move the unit or remove the bucket, if the machine is still operating, as water may leak, damage the unit or cause an electric shock. 3.

  • Page 13: Maintenance

    MAINTENANCE Cleaning the unit 1. Turn the appliance OFF, wait for the fan to stop and ensure the plug is removed from the socket outlet. 2. Clean the casing using a soft damp cloth with warm water and mild detergent. Do not use solvents or abrasive materials.

  • Page 14: Troubleshooting

    TROUBLESHOOTING The following conditions are normal: 1. The fan is still running about 2 minutes after turning off the the unit. 2. The unit works within room temperature about 1~40ºC. It may stop operation out of this range or when the air inlet or outlet is covered. (The "CHECK" LED light will illuminate) 3.

  • Page 15: Specifications

    SPECIFICATIONS Model: ECO DD322FW CLASSIC Operating Temperature Range: 1ºC - 40ºC Dehumidifier extraction Rate: 10 Litres/Day(20 C, 60%RH) Bucket Capacity: 3.5 Litres Power: High: 740W / Low:440W Voltage: 220-240V ~ /50Hz Net Weight: 7.8Kg Dimensions: Width 416 x Depth 186 x Height 520 (mm)

  • Page 16: Service And Warranty

    SERVICE AND WARRANTY anship WARRANTY VOID This product has been manufactured to comply with the EC Directives 2006/95/EC and 2004/108/EC. ments Copyright Reserved...
