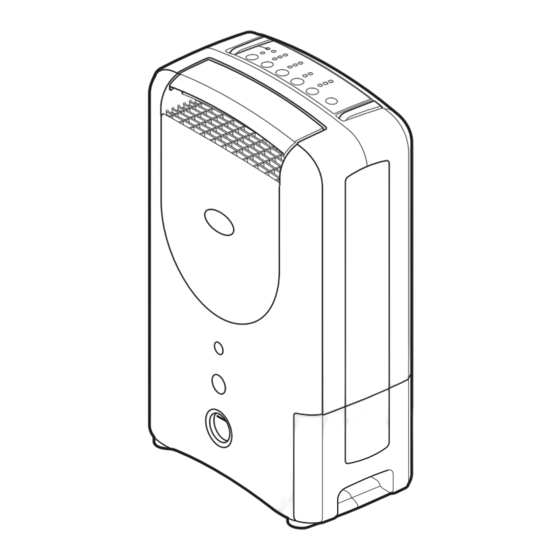

Eco Air ECO-DD122 MK4 User Manual

Eco air desiccant dehumidifier users manual
Hide thumbs

Advertisement

Table of Contents

Read This Manual
Inside you will find many helpful hints on how
to use and maintain your dehumidifier properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your dehumidifier. You'll find many
answers to common problems in the chart of
troubleshooting tips. Review the chart of
Troubleshooting Tips before calling your
service engineers.

Advertisement

Table of Contents
loading

Related Manuals for Eco Air ECO-DD122 MK4

Summary of Contents for Eco Air ECO-DD122 MK4

  • Page 1 Read This Manual Inside you will find many helpful hints on how to use and maintain your dehumidifier properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your dehumidifier. You’ll find many answers to common problems in the chart of troubleshooting tips.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. WARNING - This appliance is intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to person or property. When using electrical appliances, basic safety precautions should always be followed: 1.

  • Page 3: Bs Plug Wiring

    BS PLUG WIRING Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE GREEN AND YELLOW - EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1.
  • Page 4 FEATURES • Compressorless dehumidifier - uses desiccant rotor technology • Environmentally friendly with no harmful gasses & quiet in operation • Moisture removal - 7 litres/day (20°C RH60%) • Water tank capacity - 2 litres • Special silver coating within the filter - kills bacteria on contact, improving the quality of air in your home or office •...

  • Page 5: Product Description

    PRODUCT DESCRIPTION Control panel 3 automatic louvre settings Air outlet Operation light illuminates when running Bucket Plug Hand grip to pull out the bucket Handle Air inlet Air filter (Nano silver) Continuous drain hole Water level indicator (both sides)

  • Page 6: The Control Panel

    THE CONTROL PANEL Ioniser indicator Water Full indicator Indicator lights up when the bucket is full of water or incorrectly installed. Check indicator Indicator lights up when the unit malfunctions. Timer indicators Louvre setting indicators Function indicators Wide 40~45% Front Turbo Quiet 55~60%...

  • Page 7: Unit Setup

    UNIT SETUP Place the unit in an upright position on a stable, flat surface. Please ensure the unit is a safe distance away above 60cm from a wall or furniture (see the right graphic). Air outlet Please keep clothes at a safe distance of 40 cm from air outlet of the unit to prevent water dripping into the unit.
  • Page 8 OPERATING INSTRUCTIONS Wide 40~45% Front Turbo Quiet 55~60% Saving 55~60% IONISER MODE ON and OFF Connect the power plug to the appropriate electrical socket outlet. Press the ON/OFF button to turn the appliance ON. Press the ON/OFF button again to turn the appliance OFF. Note: In the event of a power failure Once the power is restored after a power failure, the appliance will continue to operate at the selected settings prior to the power failure.
  • Page 9 OPERATING INSTRUCTIONS DRY MODE Press the "DRY MODE" Key for automatic dehumidification. Quiet MODE DESCRIPTION To keep the room at a comfortable Relative Humidity (RH) level The unit automatically keeps room humidity 55~60% at 55~60% RH. To run low fan speed Quiet The unit automatically dehumidifies in low fan speed and low noise.
  • Page 10 OPERATING INSTRUCTIONS AUTO SWING LOUVRE Press the "SWING" Key to select air louvre angle. Wide Front Hold (LED OFF) DESCRIPTION MODE The automatic louvre swings in an upward range of approx 100° The automatic louvre swings in a front FRONT Front range of approx 50°...
  • Page 11 PLEASE NOTE Smell coming from the dehumidifier When you first use the dehumidifier and periodically afterwards you might notice a smell coming from the dehumidifier. This is caused by the Zeolite desiccant material and is not a sign that the dehumidifier is faulty, nor is it harmful to humans or pets. The smell occurs because the Zeolite absorbs odours from items like cigarettes, cosmetics, hair sprays, building materials and new furniture and then when the desiccant is heated the smell is discharged into the room.

  • Page 12: To Empty The Bucket

    TO EMPTY THE BUCKET 1. When the bucket is full, the "FULL" LED lights and the unit stops in a few minutes 2. Do not move the unit or remove the bucket, if the machine is still operating, as water may leak, damage the unit or cause an electric shock. 3.

  • Page 13: Maintenance

    MAINTENANCE Cleaning the unit 1. Turn off the unit, wait for the fan to stop and unplug from the power socket. 2. Clean the surface with a soft damp cloth. 3. Dry thoroughly with a tower after cleaning. 4. In order to avoid damage, do not wash the machine with water, or let water drip into the air inlet or outlet.

  • Page 14: Troubleshooting

    TROUBLESHOOTING The following conditions are normal: 1. The fan is still running about 2 minutes after turning off the the unit. 2. The unit works within room temperature about 1~40ºC. It may stop operation out of this range or when the air inlet or outlet is covered. (The "CHECK" LED light will illuminate) 3.

  • Page 15: Specifications

    SPECIFICATIONS Model: ECO-DD122 MK4 Operating Temperature Range: 1ºC - 40ºC Dehumidification: 7 litres / day (20ºC / 60%RH) Water tank capacity: 2 Litres Power: 620W Voltage: 220-240V ~ 50Hz N.W: 6 Kg G.W: 7 Kg Product size: 47.5H x 29W x 17.5D cm...

  • Page 16: Service And Warranty

    ONE (1) YEAR LIMITED WARRANTY Save This Warranty Information Eco Air guarantees this product free from defects in materials and workmanship for a period of one (1) year from the date of purchase. This unit must be operated under conditions as recommended, at voltage indicated on the unit.
