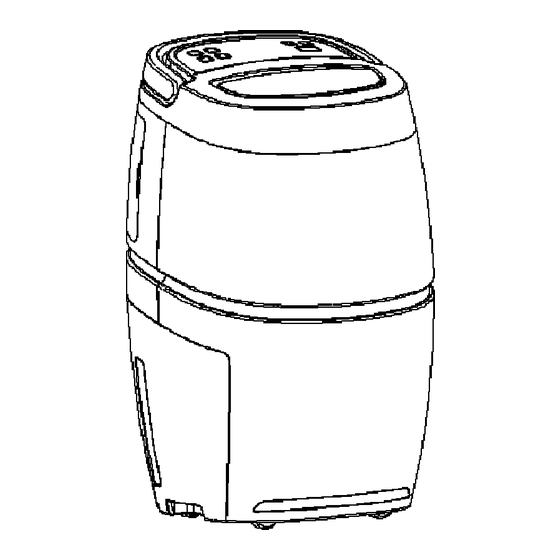

Eco Air ECO20LDK User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USERS MANUAL
Model No.
ECO20LDK
Read This Manual
Inside you will find many helpful hints on how
to use and maintain your dehumidifier properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your dehumidifier. You'll find many
answers to common problems in the chart of
troubleshooting tips. Review the chart of
Troubleshooting Tips before calling your
service engineer.
This dehumidifier may have been selected for quality test,
therefore some condensation may remain.

Advertisement

Table of Contents
loading

Related Manuals for Eco Air ECO20LDK

Summary of Contents for Eco Air ECO20LDK

  • Page 1 Inside you will find many helpful hints on how to use and maintain your dehumidifier properly. Just a little preventative care on your part can ECO20LDK save you a great deal of time and money over the life of your dehumidifier. You'll find many answers to common problems in the chart of troubleshooting tips.
  • Page 2 CONGRATULATIONS on your purchase of the SMART & FRESH ECO20LDK Carbon Filter Dehumidifier You have purchased a high quality dehumidifier capable of extracting humidity of 20 litres per day at 80%RH 30℃. This unique unrivalled dehumidifier is packed full of features that you will find beneficial.
  • Page 3 7) Silent mode on indicator 8) Humidity reading - displays AMBIENT humidity when is on and displays SET humidity is off. (To display SET humidity level, press △▽ button once. Reading when symbol will revert to AMBIENT humidity level after 3 seconds). 9) Dry mode on indicator 10) Ambient room temperature (℃) Page 3...

  • Page 4: Table Of Contents

    Index Safety Precautions……………………………………………..5 BS Plug Wiring………………………………………………….6 Ambient Environment For Operating…………………………7 Components Diagrams ……..…………………………………7 Operating Instructions ……………………………..8 Functions of Control Panel & Key Pads ……………………………………………….…….9 LCD Monitor …………….10-12 Operation of Key Pads- Auto, Manual & Continuous …………………………………..………………….…..12 Timer ……………………………………………..…….……..12 Swing …………………………………………….13 Automatic Defrosting ………………………….……………..13 Protection Of Water Full...

  • Page 5: Safety Precautions

    Safety Precautions ！ Do not install and use the unit before carefully reading this instruction guide. Please retain this manual for product warranty and future reference. 1）Do not place your dehumidifier close to other high 2）Never place unit in or allow contact with water or temperature appliance to avoid fire or damage.

  • Page 6: Bs Plug Wiring

    BS Plug Wiring Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE GREEN AND YELLOW – EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1.

  • Page 7: Ambient Environment For Operating

    Ambient Environment For Operating 1. The appliance is designed to provide an optimum performance within ambient temperature range of 5℃ to 35℃ 2. Operate the unit indoors in your house or office, etc. Never use it in a wet environment such as bathroom or outdoors.

  • Page 8: Operating Instructions

    Operating Instructions FUNCTIONS OF CONTROL PANEL & KEY PADS 1. On / Off: Power On / Off 2. SILENT: Press the button to activate and deactivate SILENT mode 3. CONTI.: Press to dehumidify continuously. (Also used as laundry mode) 4. TIMER: Set Timer ON of OFF 1 – 8 hours 5.

  • Page 9: Lcd Monitor

    LCD MONITOR Fan Speed indicator Water Full indicator Continuous / Laundry mode indicator Timer (1-8 hour) reading Swing function indicator Auto Defrost indicator Silent mode on indicator Humidity reading - displays AMBIENT humidity when is on and displays SET humidity is off.

  • Page 10: Operation Of Key Pads- Auto, Manual & Continuous

    OPERATION OF KEYS PADS Plug into power socket: The unit will beep 3 times, air louvre goes into closed position. MODES 1) AUTO 2) MANUAL 3) CONTINUOUS 1) AUTO MODE Switching on AUTO mode Press ON button to switch on AUTO mode. •...
  • Page 11 2) MANUAL MODE Switching on MANUAL mode Press △▽ button to select desired humidity level. Your humidity level can be selected in frequencies of 5%, ranging from 40% to 80%. • Your dehumidifier will be set at your selected humidity level. (pressing the △...

  • Page 12: Timer

    3) CONTINUOUS MODE Switching on CONTINUOUS mode Press CONT button. will appear on the LCD display. • Your dehumidifier will run continuosly. • The fan will be at high fan speed. Pressing the △▽ symbol or symbol will reset the dehumidifier to the AUTO mode. TIMER: You can set your dehumidifier ON or OFF Timer between 1 –...

  • Page 13: Automatic Defrosting

    AUTOMATIC DEFROSTING: A working cycle: When ambient temperature drops to 16℃ or lower, the compressor may go into Automatic Defrosting mode. The compressor will run for a further 25 minutes then will shut down and goes into defrost mode. The fan blower continues to run for 7 minutes to defrost in a cycle.

  • Page 14: Continuous Drainage

    You can add a Carbon Filter Mesh to enhance the air quality which must be replaced every 3 months To order filters, please ring 020 8459 2458 quoting : ECO20LDK Carbon Filter Mesh or Air Filter. 进...

  • Page 15: Specification

    Specification Model ECO20LDK Power Rated 220-240VAC/50Hz Moisture removal 20 L/D (30℃ RH80%) Dehumidifying Power 360W (30℃ RH80%) Dehumidifying Air Volume L speed:130m H speed: 165m Refrigerant R134a / 160 grams Capacity of Water Tank 4.5L Unit Dimension: 366 (W) × 330 (D) × 590 (H) mm CAUTION 1.

  • Page 16: Service And Warranty

    Service And Warranty TWO (2) YEAR LIMITED WARRANTY Save This Warranty Information EcoAir guarantees this product free from defects in materials and workmanship of the unit (filters are excluded) for a period of two (2) years from the date of purchase. This unit must be operated under conditions as recommended, at voltage indicated on the unit.

  • Page 17: Responsible Disposal & Recycling

    Responsible Disposal & Recycling When your appliance reaches the end of its life, please dispose responsibly. DO NOT: You must not dispose this appliance as unsorted waste or with your domestic household waste. Please observe local regulations for disposal. • Most local authorities have specific collection systems for appliances where disposals are free of charge to the end user.
