Summary of Contents for jWIN JP-177
-

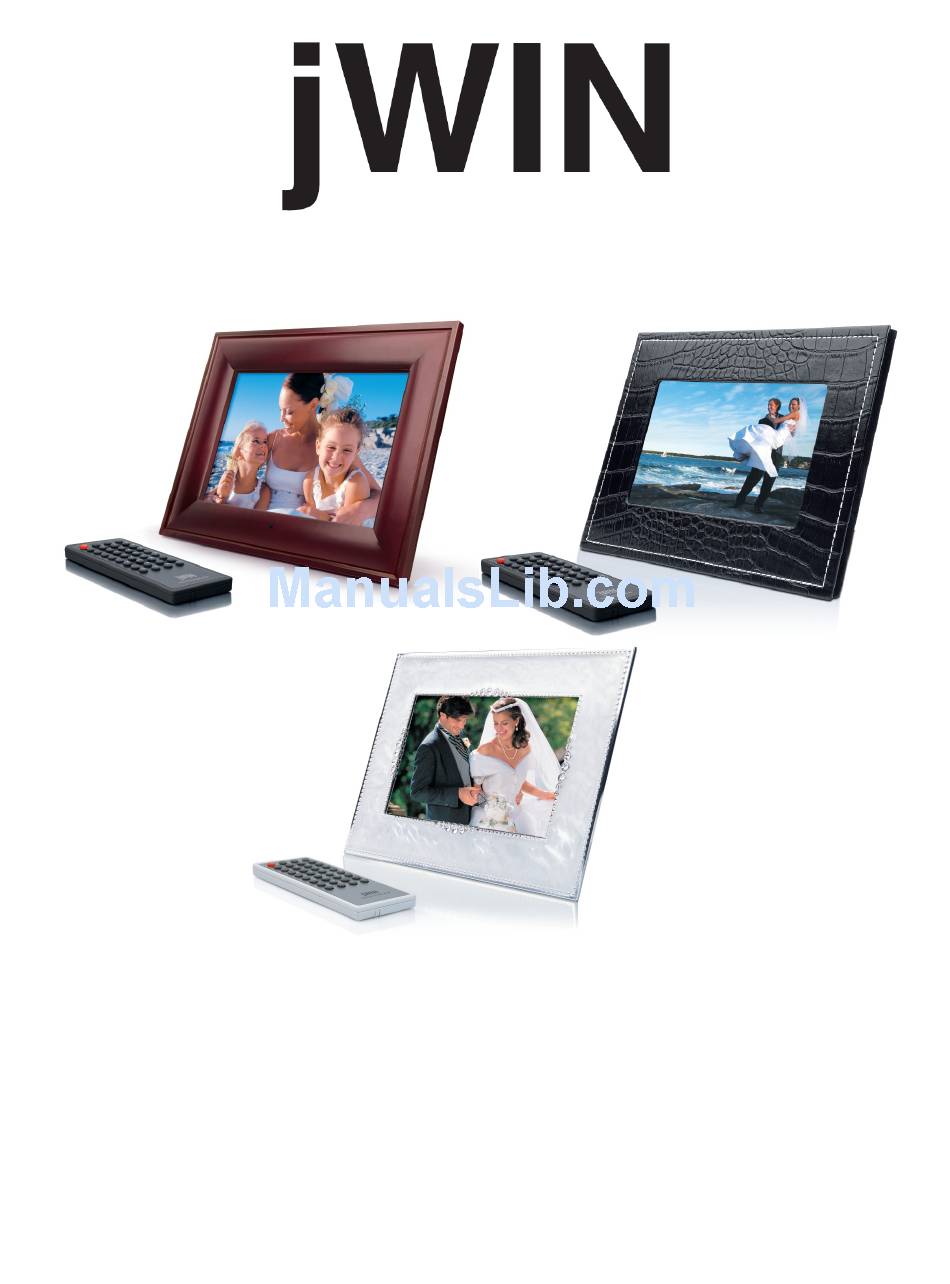

Page 1: Digital Photo Frame
DIGITAL PHOTO FRAME Instruction Manual JP-177, JP-187, JP-197 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com... - Page 2 Digital Photo Frame V10M10_IM_EN_09252007 - 1 - www.jWIN.com...
-
Page 3: User Safety Guide
Digital Photo Frame USER SAFETY GUIDE Instructions on Environmental Protection Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. -
Page 4: Important Safety Instructions
Digital Photo Frame USER SAFETY GUIDE Important Safety Instructions READ INSTRUCTIONS - All safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained in a secure place for future reference. -
Page 5: Additional Safety Instructions
Digital Photo Frame USER SAFETY GUIDE Important Safety Instructions – Continued 11. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service professional when: a. Objects have fallen into, or liquid has been spilled into the appliance’s apertures. -
Page 6: Fcc Notice To U.s. Users
Digital Photo Frame USER SAFETY GUIDE FCC Notice to U.S. Users This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Industry Canada Notice To Canadian Users
Digital Photo Frame V10M10_IM_EN_09252007 USER SAFETY GUIDE Industry Canada Notice to Canadian Users Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. -
Page 8: Getting Started
Digital Photo Frame V10M10_IM_EN_09252007 GETTING STARTED Thank you for purchasing the JP-177 / JP-187 / JP-197. Unpack the unit and make sure all the accessories are put aside so they will not be lost. Digital photo frame with 7” TFT LCD widescreen •... -
Page 9: Location Of Controls
Digital Photo Frame V10M10_IM_EN_09252007 GETTING STARTED Location of Controls - 8 - www.jWIN.com... - Page 10 Digital Photo Frame V10M10_IM_EN_09252007 GETTING STARTED Location of Controls- continued - 9 - www.jWIN.com...
- Page 11 Digital Photo Frame GETTING STARTED Location of Controls- continued 1. Display Screen 2. AV OUT Jack 3. HEADPHONE Jack 4. REMOTE Sensor 5. STAND 6. POWER Button 7. DC 12V INPUT Jack 8. FUNCTION Button 9. UP Button Location of Controls on the Remote V10M10_IM_EN_09252007 10.
-
Page 12: General Setup
Digital Photo Frame GETTING STARTED Location of Controls on the Remote- continued 24. NEXT Button 25. PREV Button General Setup 1. Plug one end of the AC adapter into the AC Jack in the JP- 177, JP-187, or JP-197 and the other end to a standard AC electrical outlet. -
Page 13: Attaching The Stand
Digital Photo Frame GETTING STARTED Connecting to a TV Attaching the Stand Follow these instructions to connect the stand. 1. Connect the Stand to the back of the photo frame as shown. 2. Slide the Stand up or down to adjust the angle. -
Page 14: Operational Instructions
Digital Photo Frame OPERATIONAL INSTRUCTIONS System Setup While in the main menu, press the NAVIGATION buttons to select the Setup option to display setup menu. Press the NAVIGATION buttons to select the desired item. Press the NAVIGATION buttons again to choose from various sub-options for each item on the screen. -
Page 15: Display Setup
Digital Photo Frame OPERATIONAL INSTRUCTIONS Auto play The options of auto play include Display setup • TV output: This option is use to select AV output to TV or TFT panel. • Display type: This option is used to select the Full screen and normal type. -
Page 16: Viewing Photos
Digital Photo Frame V10M10_IM_EN_09252007 OPERATIONAL INSTRUCTIONS Viewing Photos After startup, the main menu will appear on the screen. Use the NAVIGATION [ ] buttons to choose the photo option and press ENTER to select. In the photo menu, the unit will browse pictures automatically one-by-one. -
Page 17: Slide Show
Digital Photo Frame OPERATIONAL INSTRUCTIONS Slide Show Select the Slide Show option for the images to display one-by- one. To rotate pictures in the Slide Show mode use the NAVIGATION buttons as follows: • Vertical (flip vertically) • Horizontal (flip horizontally) •... -
Page 18: Auto Power
Digital Photo Frame OPERATIONAL INSTRUCTIONS Clock In the main menu, press NAVIGATION buttons to select Clock option. Press the ENTER button to confirm. 1. Display: Choose CLOCK to display a clock on screen only or choose CLOCK & CALENDAR to display a calendar with clock on screen. -
Page 19: Remote Control Operation
Digital Photo Frame OPERATIONAL INSTRUCTIONS Remote Control Operation • TFT on/off: Press the TFT ON/OFF Button to turn on backlight of TFT-LCD. Press it again to turn off backlight of TFT-LCD. • Speaker: During playback, press the SPEAKER button to close the speaker or phones output. - Page 20 Digital Photo Frame OPERATIONAL INSTRUCTIONS Remote Control Operation- continued • Menu: Press the MENU button during playback to return the main menu. • Subtitle: Press the SUBTITLE button repeatedly to select subtitle languages or control subtitle on/off. Note: This function is media specific.
-
Page 21: Cleaning The Unit
Digital Photo Frame OPERATIONAL INSTRUCTIONS Remote Control Operation- continued • CLOCK: Display the clock on the screen. • CALENDAR: Display the calendar on the screen. • USB: Display photos directly from USB or change priority of media type selection. • CARD: Display photos directly from a memory card or change priority of media type selection. -
Page 22: Troubleshooting Guide
Digital Photo Frame TROUBLESHOOTING GUIDE No image is shown • AC adapter may not be properly connected. Check to see that connections are correct and secure on the left side of the unit and in the wall outlet. • Be sure the unit is turned ON. Slide the ON/OFF switch to the ON position. -
Page 23: Specifications
Digital Photo Frame SPECIFICATIONS • Solution: Cheertek 952A • LCD Panel o Resolution:480 (RGB) x 234 o TV System: NTSC / PAL o Aspect Ratio: 4:3, 16:9, Letterbox o Diagonal Size: 7” o Viewing Angles: L/R: 50° Up: 30° Dn: 50°... - Page 24 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system.
