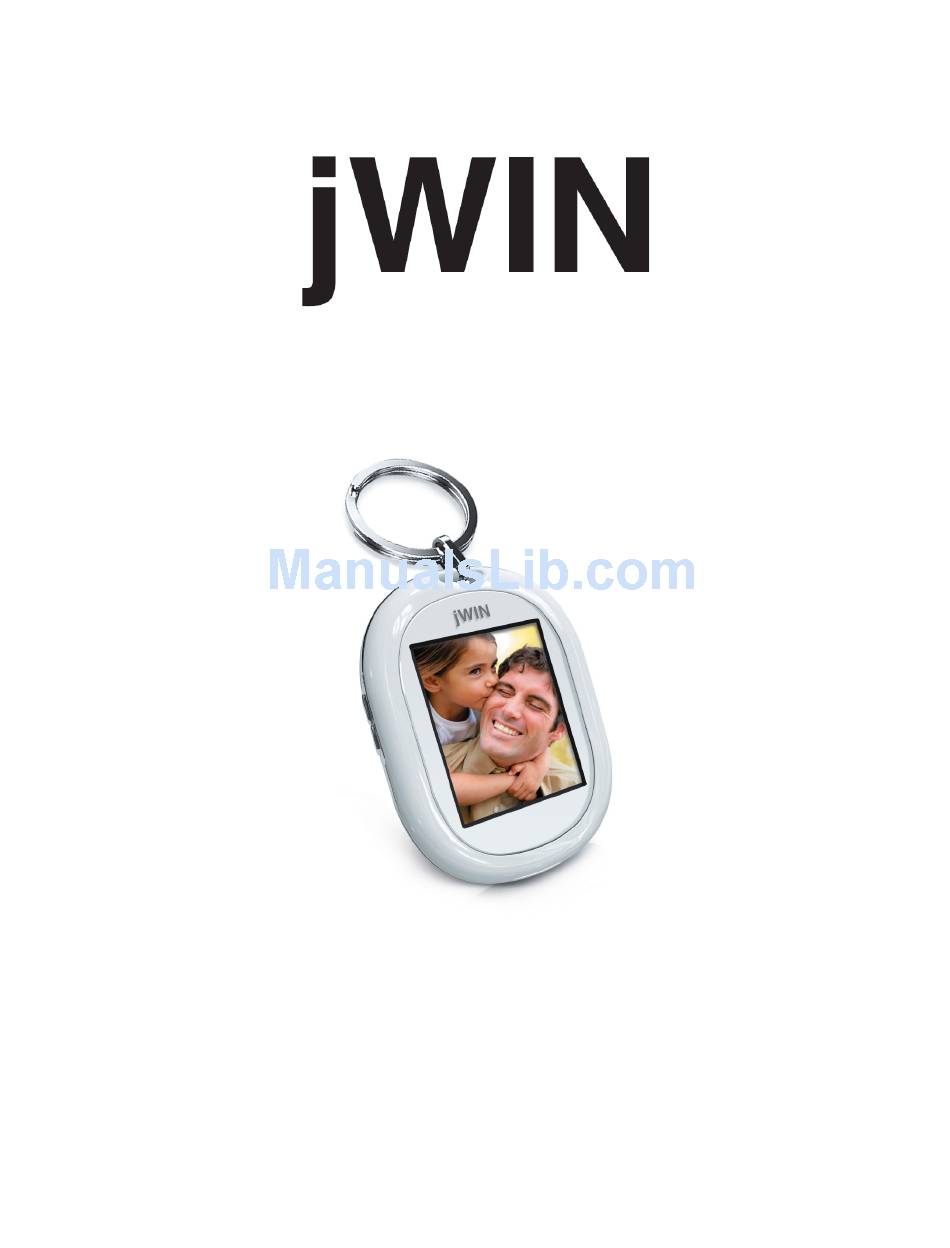

- Page 1 Digital Photo Frame V11M11_IM_EN_03212008 DIGITAL PHOTO FRAME WITH KEYCHAIN Instruction Manual JP-141 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com - 1 - www.jWIN.com...
-
Page 2: User Safety Guide
Never attempt to open the cabinet. Always refer servicing to a qualified technician. FCC regulations state that any change or modification to the equipment, not expressly approved by maker or its authorized parties, could void user’s authority to operate this equipment. V11M11_IM_EN_03212008 - 2 - www.jWIN.com... -
Page 3: Important Safety Instructions
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn causing possible injury to the user and/or damage to the unit. V11M11_IM_EN_03212008 - 3 - www.jWIN.com... -
Page 4: Additional Safety Instructions
EIA (Electronic Industries Alliance) – http://www.eiae.org Additional Safety Instructions • When not in use, keep your device in a safe place where it will not be bent or crushed. V11M11_IM_EN_03212008 - 4 - www.jWIN.com... -
Page 5: Fcc Notice To U.s. Users
Consult the dealer or an experienced radio/TV technician for help. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Refer to 47 CFR Sec. 15.21. V11M11_IM_EN_03212008 - 5 - www.jWIN.com... - Page 6 Declaration of Conformity and that Industry Canada technical specifications were met. It does not imply that Industry Canada (IC) approved this equipment. Refer to Self-Marking 6(f) and RSP 100 Sec. 4. - 6 - www.jWIN.com...
-
Page 7: Getting Started
Digital Photo Frame GETTING STARTED Thank you for purchasing the JP-141. Unpack the unit and make sure all the accessories are put aside so they will not be lost. Digital Photo Frame with 1.8” LCD Screen and Built-in Memory Keychain •... -
Page 8: Location Of Controls
Attach the picture frame to your computer using the USB cable (included). Once connected, the unit will charge automatically. • Fully charge the unit before first use. V11M11_IM_EN_03212008 3. SETUP button 4. Mini-USB port 5. RESET Pinhole - 8 - www.jWIN.com... -
Page 9: Operational Instructions
SETUP button to enter. Select “ON” (“OFF” will stop the function). Press UP or DOWN buttons to choose the slide time interval. There is 01 to 180 seconds available. Press the SETUP button to save the setting. - 9 - www.jWIN.com... -
Page 10: Sleep Time
UP or DOWN buttons to select Delete. Press the SETUP button to enter. Select “Delete One”, and press the SETUP button to confirm and delete the selected image. Select “Delete All” followed by the SETUP button to confirm and delete the all images. - 10 - www.jWIN.com... -
Page 11: Display Side
Contrast (01-10). Press the SETUP button to enter. Light In ON mode, press the SETUP button to enter the main menu, then press the UP or DOWN buttons to select Light (01-10). Press the SETUP button to enter. - 11 - www.jWIN.com... - Page 12 Insert CD-ROM (included) to install program software. Connect the device to a PC using the USB cable (included). Select Update and “USB Connect” will display on the screen. Open the Digital Photo Frame Tool for the following image. - 12 - www.jWIN.com...
- Page 13 Displays the rate of progress. Download Preview Window Downloading Photos to the Digital Photo Frame Select the folder containing the photos to be downloaded. Choose desired photo for download. Crop tool (rectangular box) appears in Download Preview Window Note: Program automatically crops images to fit screen.
- Page 14 • Cut: Follow instructions on screen. Save: Save the images in window D to the Digital Photo Frame PC soft directory. Slide Show: Display the lantern slide with the images in C area. About: Information of the company and device.
-
Page 15: Specifications
Support file type: JPEG, BMP • Inputs & Outputs DC power Input Jack (Mini USB) • Power Sources DC 5V (USB) • Unit Dimensions (W x H x D): 1.88” x 2.6” x 0.49” (47.8mm x 66mm x 12.4mm) V11M11_IM_EN_03212008 - 15 - www.jWIN.com... - Page 16 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by...
