Before using your air conditioner, please read
this manual carefully and keep it for future reference.
INVERTER SPLIT TYPE
ROOM AIR CONDITIONER
-
Read This Manual
Keep this manual where the operator can easily
find them.Inside you will find many helpful hints
on how to use and maintain your air conditioner
properly. Just a little preventative care on your
part can save you a great deal of time and money
over the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
Advertisement
Table of Contents
Related Manuals for Klimaire KSIO
Summary of Contents for Klimaire KSIO

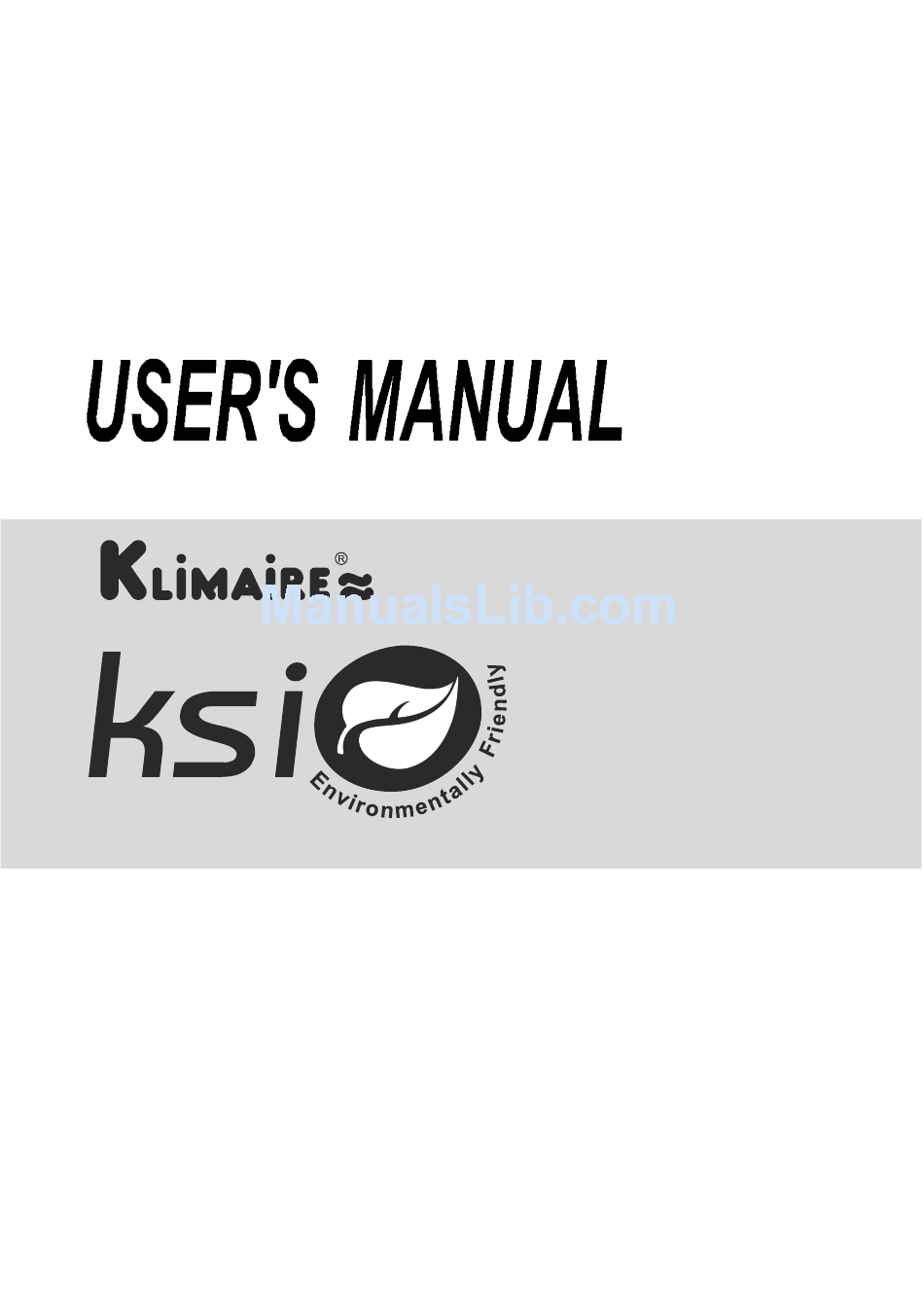

- Page 1 Before using your air conditioner, please read this manual carefully and keep it for future reference. INVERTER SPLIT TYPE ROOM AIR CONDITIONER Read This Manual Keep this manual where the operator can easily find them.Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Warning .............................3 Caution ............................4 NAMES OF PARTS Indoor unit ..........................5 outdoor unit ..........................5 Indication lamp...........................5 OPERATING INSTRUCTIONS Special func tions ........................6 Operating temperature........................7 Manual operation ........................7 Airflow direction control ......................8 How the air conditioner works ....................9 CARE AND MAINTENANCE Before maintenance.. - Page 3 When using this air conditioner in the European countries, please read the following information: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. -
Page 5: Caution
SAFETY PRECAUTIONS CAUTION Never actuate any switches with a wet If the air conditioner is to be used in hand. It may cause an electric shock. conjunction with other heaters, the air Never use the device for any other should be refreshed periodically, otherwise purpose than the intended use. -
Page 6: Names Of Parts Indoor Unit
NAMES OF PARTS Indoor unit Names of parts Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet Horizontal air flow grille Vertical air flow louver(inside) 7. Display panel Outdoor unit 8. Connecting pipe Outdoor unit 9. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Special functions Refrigerant Lea kage De tection With this new technology, the dipsplay area will appear EC and the indication lamps contin ue flashing when the outdoor unit detects refrigerant leakage. Louver Angle M emory Function(optional): Within the scope of safety angle, it will mem orize the open angle o f horizontal louver. If it exceeds, it will memorize the boundry o f safety angle. -
Page 8: Operating Temperature
OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, se e the <<Remote Cont roller Instruction>> packed with the unit f or details. Operating temperature M ode Cooling operati on Heating operation Drying operation Temperature Room temperature 17 C~32 C 0 C~30 C 10 C~3 2 C (62 F~90 F) -
Page 9: Airflow Direction Control
OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly otherwise it might cause discomfort or cause uneven room temperatures. Adjust the horizontal/vertical louver using the remote controller. For some models, the vertical louver can only be adjusted manually. To set the horizontal/vertical air flow direction Perform this function while the unit is in operation. -
Page 10: How The Air Conditioner Works
OPERATING INSTRUCTIONS How the air conditioner works SLEEP operation AUTO operation 7 hour s timer off When you set the air conditioner in AUTO mode, it will automatically select cooling, heating(cooling/heating models only), or fan only operation depending on set temperature and the room temperature. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Care and Maintenance Before mainatenance Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Power supply must be disconnectd before cleaning the indoor unit. CAUTIONS A cloth dampened with cold water may be used on the indoor unit if it is very dirty. -
Page 12: Replacement Of The Air Filter And Air Freshening Filter
CARE AND MAINTENANCE 4. Remove the Air Freshening Filters from its supporting frame (The solution to disassemble may differ from each other for different filters. Refer to Clean the air freshening filter at least once a month, and replace it every 4-5 months. Clean it with vacuum cleaner, then dry it in cool place. -
Page 13: Troubleshooting Tips
TROUBLESHOOTING TIPS Normal function of the air conditioner The following events may occur during normal operation. Protection of the air conditioner. Compressor protection The compressor can't restart for 3-4 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. - Page 14 TROUBLESHOOTING TIPS 7. The air conditioner runs Anti-mildew function after turning off the unit. When turning off the unit under COOL(AUTO COOL, FORCED COOL) and DRY mode, the air conditioner will run function for 7-10 minutes, if turns off on HEAT mode, the unit will Anti-mildew continue operating for about 30 seconds at LOW fan speed, then stop the operation and turn...
-
Page 15: Troubleshooting Guide
TROUBLESHOOTING TIPS Troubleshooting guide The unit may stop operation or continue OPERATION(RUN) indicator or other to run in a safety condition(depending indicators continue flashing. on models). Waiting for about 10 minutes, the fault may be recovered automatically, if not, disconnect the If one of the following code appears on the power and then connect it in again. - Page 16 The Klimaire logo is a registered Trademark of Klimaire Products inc. Copyright 2014 Klimaire Products Inc. 2190 NW 89 Place, Doral, FL 33172 - USA Tel: (305)593-8358 Fax (305) 675-2212 www.klimaire.com sales@klimaire.com The design and specifications are subject to change without prior notice for product...
