2. System Connections

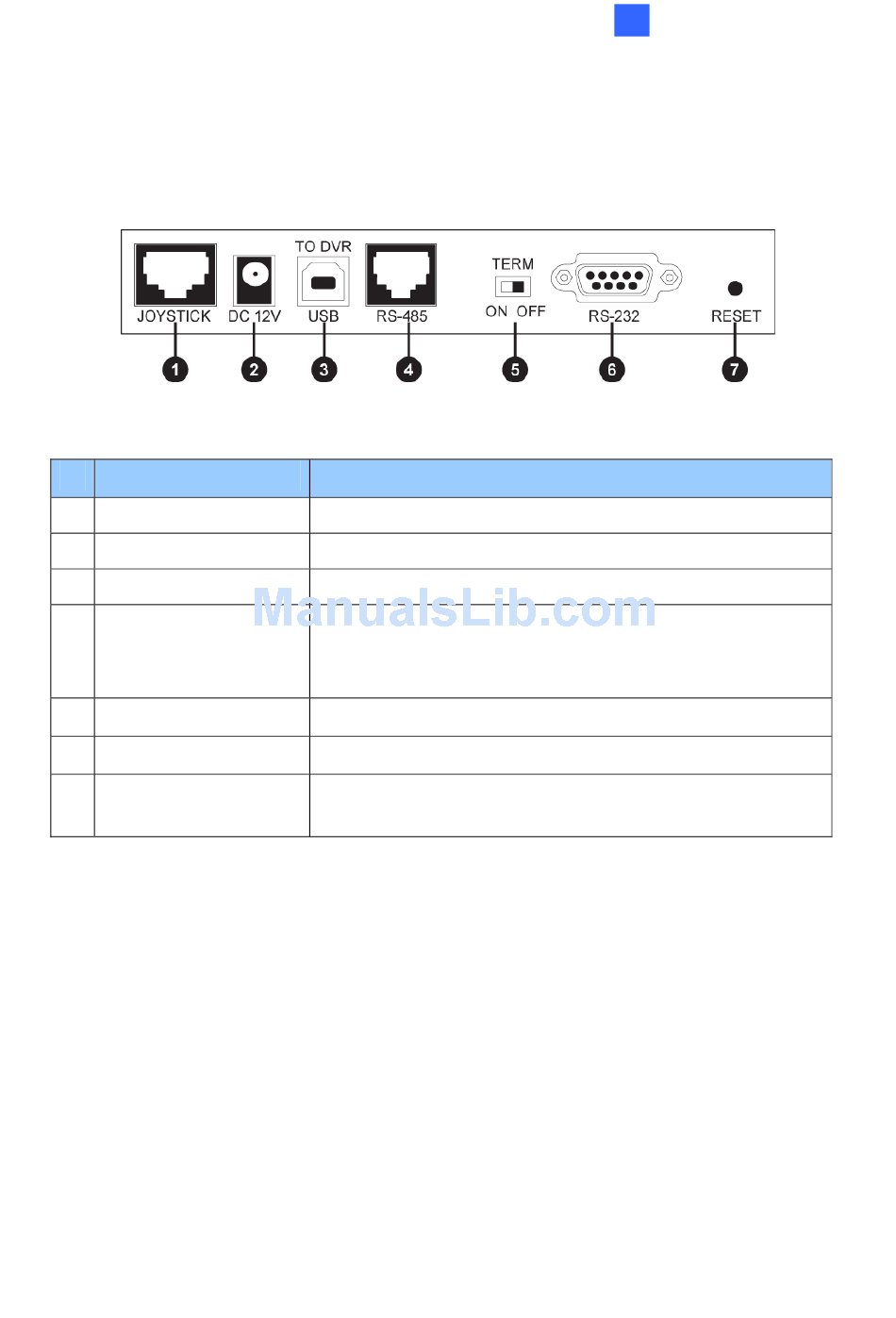

2.1 Rear Panel Overview

No Name
1 Joystick
2 DC 12V
3 USB Port
4 RJ-11 Port (RS-485)
5 Terminal Resistance
6 RS-232
7 Reset
Figure 1
Function
Used for PTZ control.
Connects to the power adaptor.
Connects to GV-System.
The RJ-11 port carries RS-485 signals. Through the wall
terminal block, it can connect up to 16 additional
GV-Systems.
Used in the last daisy-chained GV-System.
Connects to GV-System.
Resets the Keyboard when it does not respond to
commands.
