2.4 Wall Terminal Block

1
6

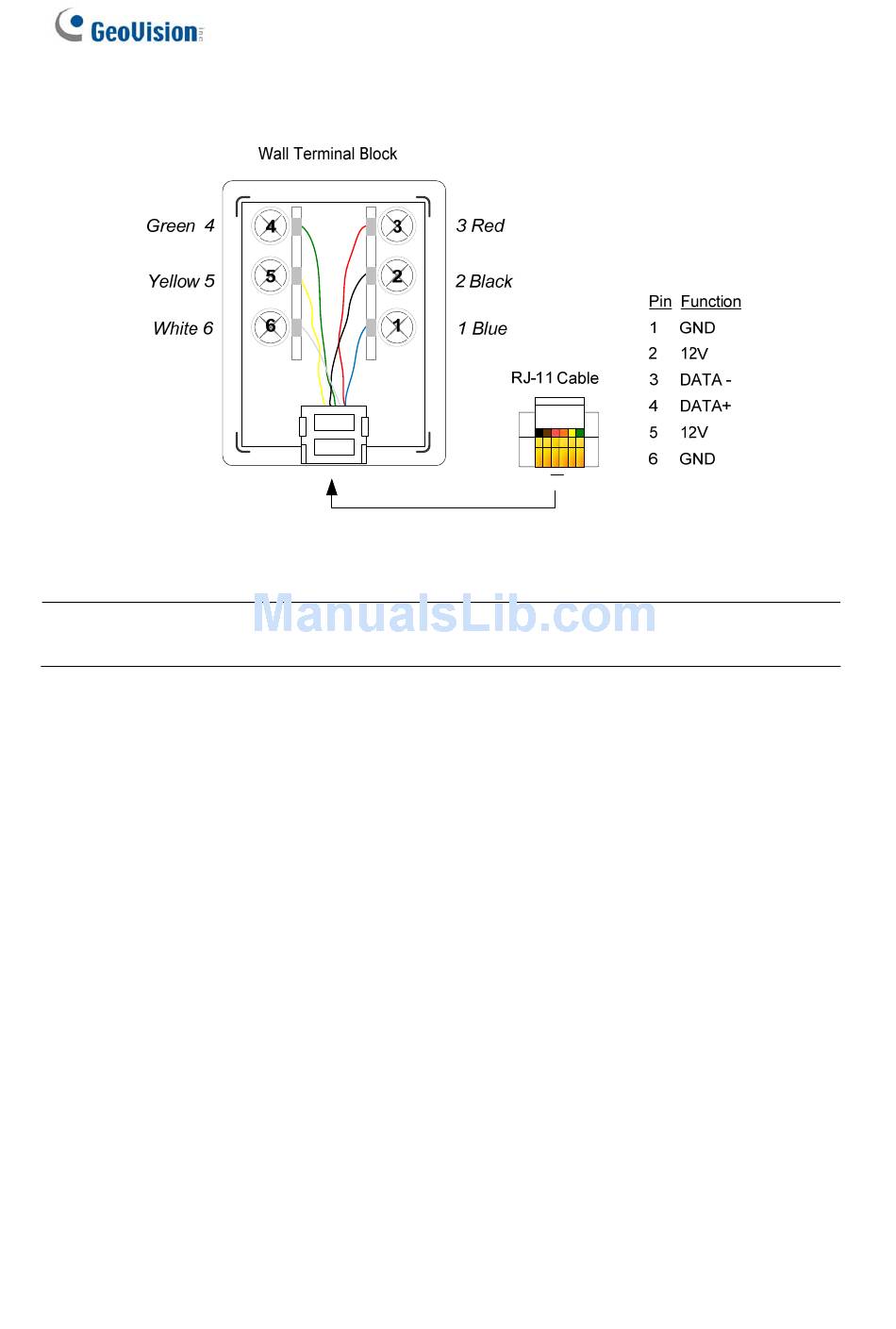

Figure 4
Note: When you are using the wall terminal block for connection, the RS-485 + and
RS-485 - cables should be attached to the terminal screws Pin 4 and Pin 3 respectively.
