Cargo Box Installation Instructions
Cargo Box Installation Instructions
55
IN IN
These instructions are for the installation and use of the Inno carrier system attachment. After reading this manual, keep it in a safe place along with the
installation instructions for the rest of your carrier system.If you have any questions regarding the information in this manual, please contact the service
center listed at the end.
Do not overload your cargo box. Maximum load
capacity varies by vehicle. Check the appropriate
limits for your car in the Fit Guide and your vehicle
owner's manual and determine your maximum
loading capacity with the formula below.
Use the lower of the 2 options below
-
Max load of
OR
vehicle or
cross bar
The Cargo box includes the parts listed below. Verify that they are included with the
carrier you have purchased. In the event any of these is missing, contact our service
center as listed at the end of this manual.
4
Attach the Box to front cross bar with Plate, U-Bolt and Knobs. Make sure that
the ring on the Plate is on the side nearest the side of box.
Plate
Ring
Front
Cross Bar
U-Bolt
Warning
Make sure to tighten the right
and left knobs evenly so that
the U-bolt sits square with the
bar.
If U-bolt is not tightened
correctly, it may allow the box
to come loose.
7
Thread Strap trough two Rings on each side of the box and
fasten. Attach Strap Hooks inside box lid just above Straps.
PRECAUTIONS
Weight of
cargo box
NO.
Parts

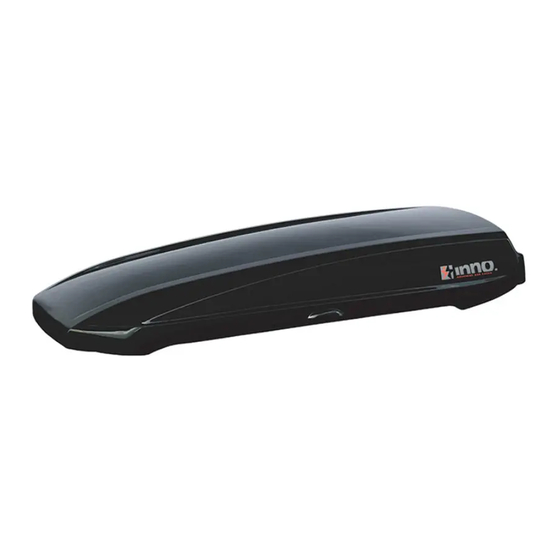

Rooftop Box
Knob
U-Bolt
Plate
Strap
Strap Hook
Hole Covering
Molding
Key
Manual Instruction
Plate
Ring
Rear
Cross Bar
U-Bolt
Cargo Box
U-Bolt
Cross Bar
1
If using an aftermarket base rack system, make sure that it is installed properly
according to the procedures described in the installation instructions for that rack.
CAUTION
The distance between the front and rear crossbars should be at least 60cm ( 2 feet )
Qty
2
1
Temporarily put the Box on cross bars. And
8
push button to open the Box.
4
4
2
2
6
3
2
Adjust the location of the Box to align with holes at A.
2
Rooftop Box
1
A
Front
5
Tighten right and left knobs alternately to secure the Box to cross bar.
Front
U-Bolt
6
Front - Place plugs into the 6 unused holes to seal
Rear - Trim Molding to the proper size and insert into slot.
Front
Plug
U-Bolt
8
Push Box in all directions to make sure that there is no
loosenesss. If you notice any play in the box, retighten 8 Knobs.
Before driving the vehicle, shake the rack in
all directions to ensure that there is no
looseness in any of the mounting knobs and
screws. Retighten any loose knobs or screws.
Insert key, turn clockwise and
B
Cross Bar
Rear
Knob
U-Bolt
Rear
Molding
U-Bolt
Cut Molding to this size.
5735-70195
Knobs
