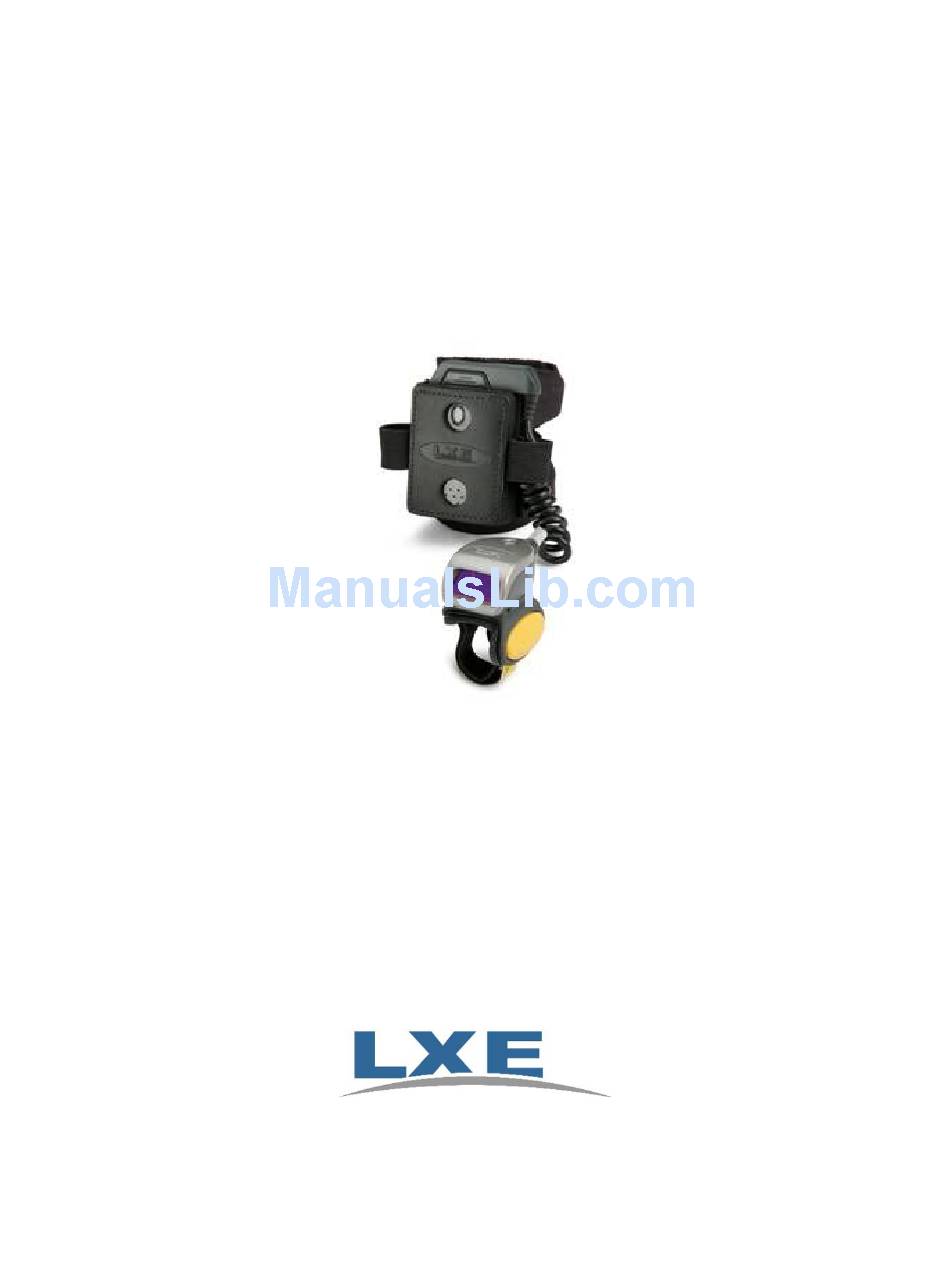

Bluetooth Ring Scanner Guide
Barcodes in this guide must be printed on a 600dpi printer.
The barcodes cannot be scanned from a computer monitor.
Copyright © 2009 by LXE Inc.
All Rights Reserved
E-SW-BLUESCANPG-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-SW-BLUESCANPG-B and is the answer not in the manual?

Questions and answers

Related Manuals for LXE E-SW-BLUESCANPG-B

Summary of Contents for LXE E-SW-BLUESCANPG-B

  • Page 1 Bluetooth Ring Scanner Guide Barcodes in this guide must be printed on a 600dpi printer. The barcodes cannot be scanned from a computer monitor. Copyright © 2009 by LXE Inc. All Rights Reserved E-SW-BLUESCANPG-B...
  • Page 2 Symbol® is a registered trademark of Symbol Technologies. MOTOROLA® and the Stylized M Logo are registered trademarks of Motorola®, Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under license.

  • Page 3: Table Of Contents

    Table of Contents HAPTER NTRODUCTION Barcodes, Ring Scanners and Scanner Engines ................. 1 LXE Tethered Scanners and Mobile Bluetooth Scanners ..............2 Ring Decoder Warnings and Labels ...................... 3 Identify Your Ring Barcode Decoder Type.................... 4 Bluetooth Ring Scanner ......................... 5 Compatible Devices.............................5...
  • Page 4 Getting Help ............................27 Accessories .................................27 HAPTER LUETOOTH ODULE ROGRAMMING ARCODES Introduction............................29 Preparation............................. 29 LXE Programming Barcodes........................ 30 Restore Factory Defaults ..........................30 Module Firmware Version..........................30 Pairing Status ..............................31 Suspend Timeout...............................32 Beep on Reconnect ............................34 Reconnect Interval Timeout..........................35 Reconnect Timeout............................37 Role Switching..............................38 Authentication ..............................39...
  • Page 5 Any Length ..............................106 Code 11 Check Digit Verification ........................106 Transmit Code 11 Check Digits........................107 Code 128................................108 UCC/EAN-128 ..............................108 ISBT-128................................ 110 Lengths for Code 128 ........................... 110 Code 39................................111 Code 39 Check Digit Verification........................ 111 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 6 Transmit UPC-A Check Digit........................138 Transmit UPC-E Check Digit ........................138 Transmit UPC-E1 Check Digit ........................139 Conversions..............................140 Convert UPC-E to UPC-A.........................140 Convert UPC-E1 to UPC-A........................140 Convert EAN-8 to EAN-13 Type ......................141 Preambles..............................142 UPC-A Preamble ............................142 UPC-E Preamble............................143 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 7 Time Delay to Low Power Mode........................182 Time-out between Decodes, Same Symbol ....................183 Trigger Modes ..............................184 Report Version..............................185 Transmit Code ID Character.........................186 Transmit No Code ID Character ........................186 Transmit Symbol Code ID Character......................186 Transmit AIM Code ID Character ......................187 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 8 Length Within Range...........................225 Any Length ..............................225 Code 11 Check Digit Verification........................226 Transmit Code 11 Check Digits........................227 Interleaved 2 of 5 (ITF) ........................228 Set Lengths for I 2 of 5............................228 One Discrete Length (Parameter L1) ......................229 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 9 Composite CC-C .............................254 Composite CC-A/B............................254 Composite TLC-39............................255 UPC Composite Mode ............................256 UCC/EAN Code 128 Emulation Mode ......................257 2D Symbologies........................... 258 PDF417................................258 MicroPDF417 ..............................258 Code 128 Emulation............................259 Data Matrix ..............................260 Data Matrix Inverse............................260 Maxicode................................261 QR Code................................261 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 10 MS4407 ..............................275 Decode Distances in Darkness ........................276 PL4407 ..............................276 PPENDIX BlueCore Device Firmware Update Installation Instruction ............277 Install BlueCore Device Update Wizard and Driver..................277 Update the Module Firmware........................280 ASCII Character Equivalents ......................282 NDEX Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 11 Figure 5-1 Decode Zones – SE955-I000WR Standard Range Laser Ring Scanner .........272 Figure 5-2 Imager Near Focus Decode Distances....................273 Figure 5-3 Imager Far Focus Decode Distances ....................274 Figure 5-4 Imager Toggled Focus Decode Distances..................275 Figure 5-5 Imager Decode Distances in Darkness ...................276 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 12 Table of Contents Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 13: Chapter 1 Introduction

    Bluetooth® Ring Scanner and its tethered ring scanner and ring imager. LXE barcode decoding laser engines and barcode decoding imager engines are designed to read, decode and collect barcoded data from any nearby compatible barcode label that is visible and on printed media.

  • Page 14: Lxe Tethered Scanners And Mobile Bluetooth Scanners

    This guide does not include the barcodes to be used when programming tethered scanners connected to a COM port or serial port on LXE Bluetooth enabled mobile devices or their cradles/docks, the LXE 8300 and 8500 scanner series specifically, or Bluetooth mobile scanners /imagers with trigger handles.

  • Page 15: Ring Decoder Warnings And Labels

    Momentary exposure to a Class 2 laser is not known to be harmful. Figure 1-2 Ring Scanner Caution Label – Class 2 Laser Scanner E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 16: Identify Your Ring Barcode Decoder Type

    Figure 1-3 Ring Imager (L) and Ring Scanner (R) Figure 1-4 Ring Imager (L) and Ring Scanner (R) Apertures Imager – Illumination LEDs Beam Aperture Imager – Clear Glass Lens Laser Scanner – Red Glass Lens Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 17: Bluetooth Ring Scanner

    The scan engine manufacturer may offer more barcodes and parameter options than are contained in this guide. Please note that the barcodes in this guide are only those supported by LXE and the imagers or scanners linked to LXE mobile devices that LXE manufactures or supports. If you need assistance when using the barcodes in this guide, please contact your LXE representative.

  • Page 18: Components

    The Bluetooth Module ring scanner and ring imager connectors are not interchangeable with the ring scanner and ring imager connectors designed for the HX2 or the HX3 mobile device. Figure 1-6 Components - Module Battery Compartment Latch Speaker I/O Port: Ring Device Cable Connection Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 19: Ring Imager / Ring Scanner

    1D and 2D barcodes. The type of barcodes scanned successfully depends on the scan type of the tethered ring device. After pairing with an LXE mobile device, it can then send the collected barcode data to the specific Bluetooth enabled LXE mobile device for processing.

  • Page 20: Battery

    LnkB00440fd01020 - Sample Figure 1-10 Sample MX8 Bluetooth Address (MAC ID) Barcode Label Locate the barcode label, similar to the one shown above, attached to the LXE Bluetooth capable mobile device. It may be on any side of the device.

  • Page 21: Bluetooth Module Assembly

    Do not use a metal object, or extreme force, to remove the cable connector from the module. Assumption: LXE logo on the module protective sleeve is up (visible). Slip the ring cable connector through the ring cable guide on the side of the Bluetooth module sleeve.

  • Page 22: Adjusting The Ring Device Strap

    The ring scanner has a built-in quick disconnect designed for occasional safety hazards. The quick disconnect is not intended for daily removal of the ring scanner. Short low tone beep, Long low tone beep, Long high tone beep Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 23: Assembled

    Introduction Assembled Worn on left hand, on back of hand Worn on right hand, on back of wrist Figure 1-11 Bluetooth Ring Scanner Assembled E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 24: Status Led And Beep Indicators

    Bluetooth Ring Scanner, refer to the MX8 User’s Guide for MX8 LED and beep explanations. See the following sections Bluetooth Module Status LED and Beep Indicators and Bluetooth Ring Imager and Ring Scanner LED. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 25: Bluetooth Module Status Led And Beep Indicators

    Short low tone beep Short high tone beep Slow blink, 0.25 sec. Successful Connection (When “Beep on Connect” duration every 4.0 sec. is enabled. See LXE Programming Barcodes) Short high tone beep Short low tone beep Fast blink, 0.25 sec. Lost Connection (When “Beep on Connect”...

  • Page 26: Bluetooth Ring Imager Led And Ring Scanner Led

    Note: This means the configuration process has failed Slow blink Amber, Four Short high beeps Low Battery in the Bluetooth Module once every .25 sec. Suspend or Off (not tethered or no battery power available in Bluetooth None Module) Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 27: Bluetooth Module Reboot Sequences

    8 hours and remain in standby for approximately 24 hours. Battery Low When a battery low condition exists, LXE recommends the battery be hotswapped with a fully charged battery as soon as possible. The Ring Scanner Amber LED indicates a battery low condition by blinking for .25 seconds every 5 seconds until a Battery Dead condition occurs or the battery is replaced with a fully charged battery.

  • Page 28: Removing / Replacing The Trigger Module

    Do not touch, push on or brace your finger against the scan aperture at any time. LXE recommends that installation or removal of accessories be performed on a clean, well-lit surface. When necessary, protect the work surface, the mobile device, and components from electrostatic discharge.

  • Page 29: Replace

    This quick disconnect function is designed for occasional safety hazards and is not intended for daily removal. A 20 pak of Ring Scanner Finger Straps is available from LXE (8600A401RINGSTRAP). See Accessories. Using the Quick Disconnect Function, grasp the finger strap and pull the finger strap out and away from the ring scanner.

  • Page 30: Bluetooth Module Firmware Update

    “BlueCore Device Firmware Update Installation Instruction” in the “Appendix” in this guide for instruction. Bluetooth Module Firmware update cable (8650A051CBLBTUPDATE) Firmware update file (contact your LXE representative to obtain the latest Bluetooth Module firmware update file). A Bluetooth Module and a fully charged battery.

  • Page 31: Troubleshooting

    If this event occurs the utility on the PC indicates that the firmware upgrade was not successful. This condition can be recovered by repeating the firmware update procedure. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 32: How To

    Print the page on white paper using a 600dpi laser printer (or equivalent). LXE recommends printing the page containing the Reset and Cancel barcodes as well as the page containing the A – F and 0 – 9 number barcodes.

  • Page 33: Figure 1-17 Scanning A 2D Barcode

    Note: Whether there are beeps in conjunction with scan and decode functions is dependent on the application currently running in the LXE Bluetooth capable mobile device. Beeps are emitted by the Bluetooth module, not the ring device. Note: Decrease decode time by disabling unused barcode types.

  • Page 34: Troubleshooting

    Sounds are emitted by the Bluetooth Ring Scanner Module. Beep After Good Decode Audible scan progress indicators are generated by the scanner driver on LXE mobile devices (i.e. HX2), not the tethered ring decoder engine. Use the Windows CE Control Panel options to set up the mobile device audible indicators.

  • Page 35: Factors That May Impact Scanner Performance

    Code 39. The use of Code 128 or other more complex symbologies will almost always result in a reduction in maximum read distance. LXE will not support scanner maximum distances (from Decode Zones) when symbologies other than Code 39 are used.

  • Page 36: Pairing Bluetooth Devices

    Open the Bluetooth Devices panel. Tap the Discover button to discover nearby Bluetooth scanners and printers. Identify the scanner you wish to pair with by matching the Friendly name (LXE Scanner – [MAC ID]) with the MAC address label on the scanner. Doubletap the Friendly Name and select Pair as Scanner from the drop-down menu.

  • Page 37: Clear Paired Status

    Clear Paired Status Using the LXE Bluetooth device (e.g. handheld or vehicle mount unit) access the LXEZ Pairing control panel by tapping the Bluetooth icon on the Desktop (or the Taskbar or the Control Panel).

  • Page 38: Bluetooth Module Technical Specifications

    Abrasion Resistance Housing resists normal abrasion from dirty hands. The CF Bluetooth Radio in the LXE Bluetooth Ring Scanner is Bluetooth Special Interest Group (SIG) Qualified, is listed as an EPL (End Product Listing) and with QDID: B011904. Bluetooth Ring Scanner Guide...

  • Page 39: Getting Help

    Introduction Getting Help LXE user and reference guides are now available on one CD and they can also be viewed and downloaded from the LXE website on the ServicePass or PartnerPass / Documentation page. Contact your LXE representative to obtain the LXE Manuals CD or logon information for the LXE website.
  • Page 40 Introduction Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 41: Chapter 2 Bluetooth Module Programming Barcodes

    The scan engine manufacturer may offer more barcodes and options than are contained in this guide. Please note that the barcodes in this guide are only those supported by LXE and the imagers or scanners linked to LXE mobile devices that LXE manufactures or supports. If you need assistance when using the barcodes in this guide, please contact your LXE representative.

  • Page 42: Lxe Programming Barcodes

    Bluetooth Ring Scanner module is fully assembled (battery, ring decoder) and connected to a device with a video display. Scan this barcode, with either the ring scanner or the ring imager, to view the LXE firmware version of the Bluetooth Ring Scanner module on the host device display.

  • Page 43: Pairing Status

    See Also: Role Switching parameter. Troubleshooting The LnkB barcodes on some LXE Bluetooth capable mobile devices are quite small. If you are unsuccessful using the ring imager when scanning a LnkB barcode, change the ring imager’s default Smart Focus Mode to Near Focus by scanning the Enable Near Focus barcode in Chapter 4.

  • Page 44: Suspend Timeout

    After the trigger pull (to wake the module from Suspend) another trigger pull is needed to scan a barcode. Disable Suspend Timeout Set Suspend Timeout to 15 seconds Set Suspend Timeout to 30 seconds Set Suspend Timeout to 1 minute Set Suspend Timeout to 5 minutes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 45 Bluetooth Module Programming Barcodes Set Suspend Timeout 15 minutes Set Suspend Timeout to 30 minutes Set Suspend Timeout to 45 minutes Set Suspend Timeout to 60 minutes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 46: Beep On Reconnect

    LED blinks fast, every 1 second. Scan the Disable Beep on Reconnect to disable audible notification for connect and disconnect. See Also: Reconnect Interval Timeout. Enable Beep on Reconnect Disable Beep on Reconnect Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 47: Reconnect Interval Timeout

    Bluetooth enabled device. See Also: Beep on Reconnect Reconnect Interval Timeout 15 seconds Reconnect Interval Timeout 30 seconds Reconnect Interval Timeout 45 seconds Reconnect Interval Timeout 1 minutes Reconnect Interval Timeout 5 minutes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 48 Bluetooth Module Programming Barcodes Reconnect Interval Timeout 10 minutes Reconnect Interval Timeout 15 minutes Reconnect Interval Timeout 30 minutes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 49: Reconnect Timeout

    When the parameter is set to Off, reconnect attempts will continue until the battery in the Bluetooth module is depleted. See Also: Beep on Reconnect Reconnect Timeout Reconnect Timeout 1 minute Reconnect Timeout 5 minutes Reconnect Timeout 30 minutes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 50: Role Switching

    Parameter Default Value: Enable When Role Switching is enabled and the module has successfully paired with an LXE Bluetooth capable mobile device (e.g. MX8) as a master, the module will perform role switching with the mobile device and become a slave device.

  • Page 51: Authentication

    See Also: Set PIN Code and PIN Code Default Enable Authentication Disable Authentication Encryption Parameter Default Value: Encryption Disabled Encryption is the process of encoding data for transmission between devices to ensure its integrity. Enable Encryption Disable Encryption E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 52: Imager White Leds

    Disabling this parameter does not affect the scan beam or scan beam timer. Note: Enabling Imager White LEDs may reduce module battery life. Scan the appropriate barcode below: Enable Imager White LEDs Disable Imager White LEDs Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 53: Beep Volume

    Bluetooth Module Programming Barcodes Beep Volume Parameter Default Value: High The Bluetooth Module speaker volume can be reset by scanning one of the following barcodes. Volume Off Volume Low Volume Medium Volume High E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 54: Ring Imager Focus Mode

    4 – SE4400 Imager Barcodes is scanned, the Imager Focus Mode setting reverts to Smart Focus Mode after a power cycle. Scan the appropriate barcode below: Ring Imager Smart Focus Mode Ring Imager Far Focus Mode Ring Imager Near Focus Mode Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 55: Enter Friendly Name Or Pin Code

    The PIN Code default value is 16 zeros. To reset the Pin Code back to the default, scan the Set Pin Code barcode and the Pin Code Default barcode only. Set PIN Code Pin Code Default Stop PIN Code setup E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 56: Friendly Name

    When finished entering all characters, scan the Stop Friendly Name setup barcode to end Friendly Name data entry. The Friendly Name default value is “LXE Scanner” + MAC address in Hexadecimal. The Friendly Name can be viewed using LXEZ Pairing on the paired LXE mobile device. Set Friendly Name Stop Friendly Name setup...

  • Page 57: Numbers

    Bluetooth Module Programming Barcodes Numbers Cancel current programming function E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 58 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 59: Lowercase Letters

    Bluetooth Module Programming Barcodes Lowercase Letters Cancel current programming function E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 60 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 61 Bluetooth Module Programming Barcodes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 62 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 63 Bluetooth Module Programming Barcodes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 64 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 65: Uppercase Letters

    Bluetooth Module Programming Barcodes Uppercase Letters Cancel current programming function E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 66 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 67 Bluetooth Module Programming Barcodes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 68 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 69 Bluetooth Module Programming Barcodes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 70 Bluetooth Module Programming Barcodes Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 71: Se955 Laser Barcodes

    MSI Plessey Disabled GS1 DataBar (RSS) Disabled UPC/EAN UPC-A Enabled UPC-E Enabled UPC-E1 Disabled EAN-8 Enabled EAN-13 Enabled Figure 3-1 Supported SE955 Barcode Symbologies The tethered ring scanner does not have beep / audio capability. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 72: Aiming Modes

    Decoding algorithms released by the barcode engine manufacturer often change upon each new release. Programming parameters that were available at one release may not be available upon a later software release. LXE supports the programming barcodes for the specific engines in this guide only.

  • Page 73: Pre-Configured Default Values

    Enable Bookland EAN Disable Decode UPC/EAN Supplementals Ignore Decode UPC/EAN Supplemental Redundancy Transmit UPC-A Check Digit Enable Transmit UPC-E Check Digit Enable Transmit UPC-E1 Check Digit Enable UPC-A Preamble System Character UPC-E Preamble System Character E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 74 Code 93 Disable Length within Set Length(s) for Code 93 Range: 04 – 55 Code 11 Code 11 Disable Length within Set Lengths for Code 11 Range: 04 – 55 Code 11 Check Digit Verification Disable Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 75 Not Supported GS1 DataBar (RSS) GS1 DataBar Omnidirectional (RSS-14) Disable GS1 DataBar Limited (RSS Limited) Disable GS1 DataBar Expanded (RSS Expanded) Disable Convert GS1 DataBar (RSS) to UPC/EAN Disable Composite CC-C Not Supported CC-AB Not Supported E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 76 Not Supported Transmit Time Stamp Not Supported Transmit Sender Not Supported Transmit Addressee Not Supported Transmit Checksum Not Supported Transmit File Size Not Supported Transmit Macro PDF Control Header Not Supported Last Block Marker Not Supported Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 77: Beep On

    SE955 Laser Barcodes SE955 Parameter Default Flush Macro Buffer Not Supported Abort Macro PDF Entry Not Supported Beep on <BEL> This parameter is enabled. There is no corresponding laser scanner programming barcode required. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 78: Frequently Used Barcodes - Se955

    Store the current scanner settings as custom defaults. Once custom default settings are stored, they can be recovered at any time by scanning the Restore Defaults barcode. Restore Defaults Set Factory Defaults Write Custom Defaults Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 79: Configure The Decoder For Barcode Types

    UPC/EAN parameters – such as UPC-A Preamble, UPC/EAN Security Level, etc. Note: Improve decode speed by disabling unused barcode types. Bookland EAN Enable Bookland EAN Disable Bookland EAN Chinese 2 of 5 Enable Chinese 2 of 5 Disable Chinese 2 of 5 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 80: Codabar

    SE955 Laser Barcodes Codabar Enable Codabar Disable Codabar Code 11 Enable Code 11 Disable Code 11 Code 128 Enable Code 128 Disable Code 128 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 81: Code 39

    Trioptic Code 39 symbols always contain 6 characters. Trioptic Code and Code 39 Full ASCII should not be enabled simultaneously. Enable Trioptic Code 39 Disable Trioptic Code 39 Code 93 Enable Code 93 Disable Code 93 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 82: Discrete 2 Of 5

    SE955 Laser Barcodes Discrete 2 of 5 Enable Discrete 2 of 5 Disable Discrete 2 of 5 EAN-13 Enable EAN-13 Disable EAN-13 EAN-8 Enable EAN-8 Disable EAN-8 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 83: Interleaved 2 Of 5

    SE955 Laser Barcodes Interleaved 2 of 5 Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 ISBT 128 Enable ISBT 128 Disable ISBT 128 MSI Plessey Enable MSI (Plessey) Disable MSI (Plessey) E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 84: Ucc/Ean-128

    SE955 Laser Barcodes UCC/EAN-128 Enable UCC/EAN-128 Disable UCC/EAN-128 UPC-A Enable UPC-A Disable UPC-A UPC-E Enable UPC-E Disable UPC-E Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 85: Upc-E1

    SE955 Laser Barcodes UPC-E1 Enable UPC-E1 Disable UPC-E1 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 86: Scanner Parameters - General

    For example, to set an aim duration of 0.5 seconds, scan the barcode above, then scan the “0” and “5” barcodes. If you make an error, or wish to change your selection, scan the Cancel barcode. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 87: Bi-Directional Redundancy

    The default for Security Level parameter is Level 1. Select an option by scanning either of the barcodes shown below. If you wish to change your selection, scan Cancel. Enable Bi-Directional Redundancy Disable Bi-Directional Redundancy Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 88: Data Options

    Next, scan four numeric barcodes that correspond to the computer keycode using the “Keypad Number Symbols” at the end of this chapter. If you wish to change your selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 89: Suffix 1

    Next, scan four numeric barcodes that correspond to the computer keycode using the “Keypad Number Symbols” at the end of this chapter. If you wish to change your numeric selection, scan Cancel on the “Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 90: Scan Data Transmission Format

    Use this option when you want to append a prefix and suffix to the decode data. Set this parameter by scanning one of the following barcodes. Data As Is [Data] [Suffix 1] [Data] [Suffix 2] [Data] [Suffix 1] [Suffix 2] [Prefix] [Data] [Prefix] [Data] [Suffix 1] Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 91 SE955 Laser Barcodes [Prefix] [Data] [Suffix 2] [Prefix] [Data] [Suffix 1] [Suffix 2] Cancel Now you are ready to scan one of the “Prefix/Suffix Values” barcodes. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 92: Transmit Code Id Character

    Discrete 2 of 5 or Discrete 2 of 5 IATA Code 11 MSI Plessey UCC/EAN-128 Bookland EAN Trioptic Code 39 Coupon Code GS1 DataBar Omnidirectional (RSS-14) GS1 DataBar Limited (RSS Limited) GS1 DataBar Expanded (RSS Expanded) Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 93: Transmit Aim Code Id Character

    Function code 1 in first symbol character position. Function code 1 in second symbol character position. Example: A Code (EAN) 128 barcode with Function 1 FNC1 character in the first position, Aim Id is transmitted as ]ClAimId E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 94 According to AIM standards, a UPC with supplemental barcode is transmitted in the following format: ]EO (UPC chars) (terminator) ]E2 (supplemental) (terminator) Therefore, a UPC with two supplemental characters, 01234567890510, is transmitted to the host as a 21-character string, ]E00012345678905]E110. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 95: Laser On Time

    Next, scan two numeric barcodes that correspond to the desired on time using the “Keypad Number Symbols” at the end of this chapter. Times less than 1.0 second must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 96: Linear Code Type Security Level (Redundancy Level)

    D 2 of 5 Length of 8 characters or less I 2 of 5 Length of 8 characters or less Level 1 All code types (Code 128 exception) must be successfully read twice before being decoded. Level 2 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 97 Length of 8 characters or less I 2 of 5 Length of 8 characters or less Level 3 All code types (Code 128 exception) must be successfully read three times before being decoded. Level 4 Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 98: Parameter Scanning

    When enabled, scanners can be configured using the barcodes in this chapter. Select a mode by scanning either of the barcodes shown below. Enable Parameter Scanning Disable Parameter Scanning Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 99: Power Mode

    SE955 Laser Barcodes Power Mode Note: LXE mobile devices are designed to be operated in Low Power Mode. LXE recommends leaving this value unchanged. Parameter Default Value: Low Power A parameter setting of Continuous On means the laser scanner will not power down until the mobile device is powered off.

  • Page 100: Scan Angle

    Once the parameter barcode is scanned, the Scan Angle setting is persistently stored. Select an option by scanning one of the barcodes shown below. Narrow Angle (35°) Wide Scan Angle Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 101: Set Default Parameter

    Store the current scanner settings as custom defaults. Once custom default settings are stored, they can be recovered at any time by scanning the Restore Defaults barcode. Restore Defaults Set Factory Defaults Write Custom Defaults E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 102: Simple Serial Interface (Ssi) Options

    SE955 Laser Barcodes Simple Serial Interface (SSI) Options Note: The following barcodes are directed toward the host programmer when writing host/scanner interface programs for different hosts. Contact LXE Customer Service for further assistance. Default Values: Option Default Baud Rate Not Supported Beep on <BEL>...

  • Page 103: Decode Data Packet Format

    If the raw format is chosen, ACK/NAK handshaking is automatically disabled for decode data. Set this parameter by scanning either of the following barcodes. Send Raw Decode Data Send Packeted Decode Data E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 104: Host Character Time-Out

    300 msec is selected by scanning the “3” and the “0” numeric barcodes. A value of 30 msec is selected by scanning the “0” and the “3” barcodes. If you wish to change your selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 105: Host Serial Response Time-Out

    25 msec is selected by scanning the “2” and the “5” numeric barcodes. A value of 6 msec is selected by scanning the “0” and the “6” barcodes. If you wish to change your selection, scan Cancel on the “Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 106: Parity

    1 bits is contained in the coded character. Mark Parity The parity bit is always 1. Space Parity The parity bit is always 0. No Parity No parity is required. Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 107: Software Handshaking

    The scanner waits up to the programmable Host Serial Response Time-out to receive an ACK or NAK. If the scanner does not get a response in this time, it resends its data up to two times before discarding the data and declaring a transmit error. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 108: Stop Bit Select

    The number of stop bits selected (one or two) depends on the number the receiving computer is programmed to accommodate. Set the number of stop bits to match host device requirements. Set this parameter by scanning one of the following barcodes. One Stop Bit Two Stop Bits Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 109: Transmit "No Read / Decode" Message

    When disabled, and a symbol does not decode, no message is sent to the host. Select an option by scanning either of the barcodes shown below. If you wish to change your selection, scan Cancel. Enable No Read Disable No Read Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 110: Trigger Mode

    SE955 Laser Barcodes Trigger Mode Note: LXE mobile devices with linked scanners are designed to be operated in Host Trigger Mode. LXE recommends leaving the Trigger Mode default value unchanged. Parameter Default Value: Host Use this parameter to determine when the laser is activated and decoding begins, how long the laser remains on and what determines the cessation of the laser scan and decode process.
  • Page 111 SE955 Laser Barcodes Host Triggering signal comes from a host command. Any actual Scan button press will be interpreted by the scanner engine as a Level triggering option. Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 112: Scanner Parameters - Se955 Barcode Type Specific

    Disable Chinese 2 of 5 Codabar Parameter Default Value: Disable When enabled, Codabar symbols will be scanned, decoded and transmitted. Set this parameter by scanning either of the barcodes shown below. Enable Codabar Disable Codabar Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 113: Clsi Editing

    Parameter Default Value: Disable When enabled, the start and stop characters are stripped from a decoded Codabar symbol. Set this parameter by scanning either of the barcodes shown below. Enable NOTIS Editing Disable NOTIS Editing E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 114: Set Lengths For Codabar

    Next, scan two numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 115: Two Discrete Lengths (Parameter L2)

    Symbols” at the end of this chapter. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Any Length This option decodes Codabar barcodes containing any number of characters. To set any length, scan this barcode: E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 116: Code 11

    The length of a code refers to the number of characters, including check digits, the code contains. It also includes any start or stop characters. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 117: One Discrete Length (Parameter L1)

    Next, scan numeric barcodes that correspond to the desired value using the “Keypad Number Symbols” at the end of this chapter. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 118: Any Length

    Note: Enable “Code 11 Check Digit Verification” when “Transmit Code 11 Check Digits” is enabled. Set this parameter by scanning one of the barcodes shown below. Disable this feature One Check Digit Two Check Digits Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 119: Transmit Code 11 Check Digits

    SE955 Laser Barcodes Transmit Code 11 Check Digits Parameter Default Value: Do Not Transmit (Disable) Note: Code 11 Check Digit Verification must be enabled for this parameter to function. Transmit (Enable) Do Not Transmit (Disable) E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 120: Code 128

    When AIM symbology identifiers are transmitted, the modifier character indicates the position of the leading FNC1 character according to AIM guidelines. For example, ]cl indicates a UCC/EAN- 128 symbol with a leading FNC1 character. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 121 FNC1 FNC1 ABCD E are read as ABCD FNC1 FNC1 E are read as ABCD FNC1FNC1 FNC1 ABCD E are read as ABCD FNC1 ABCD E is read as ABCD ABCDE is read as ABCDE E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 122: Isbt-128

    Parameter Default Value: Enable Set this parameter by scanning either of the barcodes shown below. Enable ISBT-128 Disable ISBT-128 Lengths for Code 128 No length setting is required for Code 128. The default setting is Any Length. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 123: Code 39

    Only those Code 39 symbols which include a modulo 43 check digit are decoded when this parameter is enabled. Set this parameter by scanning either of the barcodes shown below. Enable Code 39 Check Digit Verification Disable Code 39 Check Digit Verification E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 124: Code 32 Prefix

    When parameter “Code 32 Prefix” is to be enabled, this Convert Code 39 to Code 32 (Italian Pharma Code) parameter must also be enabled. Set this parameter by scanning either of the barcodes shown below. Enable Convert Code 39 to Code 32 Disable Convert Code 39 to Code 32 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 125: Code 39 Full Ascii Conversion

    See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Set this parameter by scanning either of the barcodes shown below. Enable Code 39 Full ASCII Conversion Disable Code 39 Full ASCII Conversion E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 126: Set Lengths For Code 39

    Next, scan two numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 127: Two Discrete Lengths (Parameter L2)

    If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Any Length This option decodes Code 39 barcodes containing any number of characters. To set any length, scan this barcode: E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 128: Transmit Code 39 Check Digit

    When enabled, the check digit is transmitted with the data. Parameter setting for “Code 39 Check Digit Verification” has no effect on this parameter value. Set this parameter by scanning either of the barcodes shown below. Enable Transmit Code 39 Check Digit Disable Transmit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 129: Trioptic Code 39

    When Trioptic Code 39 is enabled, set the “Code 39 Full ASCII” parameter to disabled. Both parameters should not be enabled simultaneously. Set this parameter by scanning either of the barcodes shown below. Enable Trioptic Code 39 Disable Trioptic Code 39 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 130: Code 93

    The length of a code refers to the number of characters, including check digits, the code contains. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 131: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 132: Length Within Range

    If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Any Length This option decodes Code 93 barcodes containing any number of characters. To set any length, scan this barcode: Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 133: Discrete 2 Of 5

    When enabled, Discrete 2 of 5 (D 2 of 5) symbols will be scanned, decoded and transmitted. Set this parameter by scanning either of the barcodes shown below. Enable Discrete 2 of 5 Disable Discrete 2 of 5 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 134: Set Lengths For Discrete 2 Of 5

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 135: Length Within Range

    Any Length This option decodes D 2 of 5 barcodes containing any number of characters. Note: Selecting this option may lead to misdecodes for D 2 of 5 codes. To set any length, scan this barcode: E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 136: Interleaved 2 Of 5

    When enabled, Interleaved 2 of 5 (I 2 of 5) symbols will be scanned, decoded and transmitted. Set this parameter by scanning either of the barcodes shown below. Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 137: I 2 Of 5 Digit Verification

    USS (Uniform Symbology Specification) or OPCC (Optical Product Code Council). Set this parameter by scanning one of the barcodes shown below. Disable I 2 of 5 Check Digit Verification USS Check Digit OPCC Check Digit Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 138: Convert I 2 Of 5 To Ean-13

    When enabled, the parameter converts a 14 character I 2 of 5 barcode into EAN-13 and transmits it to the host as EAN-13. Set this parameter by scanning either of the barcodes shown below. Enable Convert I 2 of 5 to EAN-13 Disable Convert I 2 of 5 to EAN-13 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 139: Set Lengths For I 2 Of 5

    Next, scan two numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 140: Two Discrete Lengths (Parameter L2)

    To begin setting lengths within a range, scan this barcode: Next, scan numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 141: Any Length

    Parameter setting for “I 2 of 5 Check Digit Verification” has no effect on this parameter value. Set this parameter by scanning either of the barcodes shown below. Enable Transmit I 2 of 5 Check Digit Disable Transmit I 2 of 5 Check Digit E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 142: Msi Plessey

    When the “Two MSI Plessey Check Digits” option is selected, an additional verification is required to ensure integrity. Either of the two following algorithms may be selected. Set this parameter by scanning either of the algorithm barcodes shown below. Mod 10/Mod 11 Mod 10/Mod 10 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 143: Msi Plessey Check Digits

    When Two Check Digits is selected, an “MSI Plessey Check Digit Algorithm” must also be selected. Set the number of check digits to be included with the barcode by scanning either of the barcodes shown below. One MSI Plessey check digit Two MSI Plessey check digits E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 144: Set Lengths For Msi Plessey

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 145: Length Within Range

    If you wish to change your number selection, scan Cancel on the “Keypad Number Symbols” page. Any Length This option decodes MSI Plessey barcodes containing any number of characters. Note: Selecting this option may lead to misdecodes for MSI Plessey codes. To set any length, scan this barcode: E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 146: Transmit Msi Plessey Check Digit

    Parameter Default Value: Disable When enabled, the check digit is transmitted with the data. Set this parameter by scanning either of the barcodes shown below. Enable Transmit MSI Plessey Check Digit Disable Transmit MSI Plessey Check Digit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 147: Upc/Ean

    Parameter Default Value: Enable Select an option by scanning either of the barcodes shown below. Enable UPC-A Disable UPC-A UPC-E Parameter Default Value: Enable Select an option by scanning either of the barcodes shown below. Enable Disable E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 148: Upc-E1

    Select an option by scanning either of the barcodes shown below. Enable UPC-E1 Disable UPC-E1 EAN-8 Parameter Default Value: Enable Select an option by scanning either of the barcodes shown below. Enable EAN-8 Disable EAN-8 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 149: Ean-13

    Select an option by scanning either of the barcodes shown below. Enable EAN-13 Disable EAN-13 Bookland EAN Parameter Default Value: Disable Select an option by scanning either of the barcodes shown below. Enable Bookland EAN Disable Bookland EAN E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 150: Check Digits

    This parameter determines whether the symbol will be transmitted with or without the UPC-E check digit. Select an option by scanning either of the barcodes shown below. Enable Transmit UPC-E Check Digit Disable Transmit UPC-E Check Digit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 151: Transmit Upc-E1 Check Digit

    This parameter determines whether the symbol will be transmitted with or without the UPC-E1 check digit. Select an option by scanning either of the barcodes shown below. Enable Transmit UPC-E1 Check Digit Disable Transmit UPC-E1 Check Digit E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 152: Conversions

    A programming selections (e.g. Preamble, Check Digit, etc.). When disabled, UPC-E1 (zero suppressed) decoded data is transmitted without conversion. Select an option by scanning either of the barcodes shown below. Enable UPC-E1 to UPC-A conversion Disable UPC-E1 to UPC-A conversion Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 153: Convert Ean-8 To Ean-13 Type

    EAN-13 barcode or an EAN-8 barcode. When “EAN-8 Zero Extend” is disabled, this parameter’s conversion setting is ignored. Select an option by scanning either of the barcodes shown below. Type is EAN-13 Type is EAN-8 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 154: Preambles

    [country code] [schar] [data] Select an option by scanning one of the barcodes shown below. No UPC-A Preamble <DATA> System Character <SYSTEM CHARACTER><DATA> System Character and Country Code (“0” for USA) <COUNTRY CODE> <SYSTEM CHARACTER> <DATA> Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 155: Upc-E Preamble

    [country code] [schar] [data] Select an option by scanning one of the barcodes shown below. No UPC-E Preamble <DATA> System Character <SYSTEM CHARACTER><DATA> System Character and Country Code (“0” for USA) <COUNTRY CODE> <SYSTEM CHARACTER> <DATA> E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 156: Upc-E1 Preamble

    [country code] [schar] [data] Select an option by scanning one of the barcodes shown below. No UPC-E1 Preamble <DATA> System Character <SYSTEM CHARACTER><DATA> System Character and Country Code (“0” for USA) <COUNTRY CODE> <SYSTEM CHARACTER> <DATA> Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 157: Supplementals

    UPC/EAN is decoded and the supplemental characters ignored. Ignore UPC/EAN with Supplementals When this option is selected you must assign a value to the “Decode UPC/EAN Supplemental Redundancy” parameter. value of 5 or more is recommended. Autodiscriminate UPC/EAN Supplementals E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 158 Supplemental Mode The scanner will identify supplementals for EAN-13 barcodes that start with a 378, 379 or 978 prefix only. All other UPC/EAN codes are decoded immediately and the supplemental characters ignored. Enable Smart Supplemental Mode Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 159: Decode Upc/Ean Supplemental Redundancy

    When disabled, EAN-8 symbols are transmitted as is and parameter “Convert EAN-8 to EAN-13 Type” setting is ignored. Select an option by scanning either of the barcodes shown below. Enable EAN-8 Zero Extend Disable EAN-8 Zero Extend E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 160: Ucc Coupon Extended Code

    The UCC Coupon Extended Code is an additional barcode adjacent to a UCC Coupon Code. To enable or disable UCC Coupon Extended Code, scan the appropriate barcode below. Enable UCC Coupon Extended Code Disable UCC Coupon Extended Code Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 161: Upc/Ean Security Level

    1, 2, 7 and 8. Level 2 Select this security level upon experiencing mis-decodes of Mis-decodes not 1,2,7,8 poorly printed barcodes and the mis-decodes are not limited to characters 1,2,7 and 8. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 162 This level significantly impairs the decoding ability of the scanner. If this level of security is necessary, you should try to improve the quality of your barcodes. Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 163: Gs1 Databar (Rss) Codes

    Omnidirectional (RSS-14) GS1 DataBar Limited (RSS Limited) Enable GS1 DataBar Limited (RSS Limited) Disable GS1 DataBar Limited (RSS Limited) GS1 DataBar Expanded (RSS Expanded) Enable GS1 DataBar Expanded (RSS Expanded) Disable GS1 DataBar Expanded (RSS Expanded) E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 164: Convert Gs1 Databar (Rss) To Upc/Ean

    UPC-A. The UPC-A Preamble parameter to transmit the system character and country code applies to converted barcodes. Note that neither the system character nor the check digit can be stripped. Enable Convert GS1 DataBar (RSS) to UPC/EAN Disable Convert GS1 DataBar (RSS) to UPC/EAN Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 165: Keypad Number Symbols

    The barcode labels shown below represent a numeric keypad, with decimal values 0 through 9. Each label can be scanned individually to enter a numeric value. Use these numeric value symbols to enter numeric input in the course of performing a scan engine system configuration. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 166 SE955 Laser Barcodes Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 167: Figure 4-1 Supported Se4400 Barcode Symbologies

    Scan engine manufacturers may offer more barcodes and options than are contained in this chapter. Please note that the barcodes in this chapter are only those supported by LXE and the mobile devices it manufactures or supports. If you need assistance when using the barcodes in this chapter, please contact your LXE representative.

  • Page 168: Imager Identification Label

    SE4400 Imager Barcodes Imager Identification Label Look on the labels on your LXE Bluetooth Ring Scanner Module or the ring finger strap. The type of installed scan engine should be clearly labeled. Contact your system administrator or LXE Customer Service for assistance.

  • Page 169: Pre-Configured Default Values

    Enable EAN-13/JAN 13 Enable Bookland EAN Disable Bookland Format Decode UPC/EAN/JAN Supplementals (2 and 5 digits) Ignore UPC/EAN/JAN Supplemental Redundancy Transmit UPC-A Check Digit Enable Transmit UPC-E Check Digit Enable Transmit UPC-E1 Check Digit Enable E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 170 MSI Check Digits Transmit MSI Check Digit Disable MSI Check Digit Algorithm Mod 10/Mod 10 Postal Codes 4State Postal Disable US Postnet Enable US Planet Enable UK Postal Enable Transmit UK Postal Check Digit Enable Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 171 Transmit Macro PDF Control Header Not Supported Escape Characters Not Supported Flush Macro PDF Buffer Not Supported Abort Macro PDF Entry Not Supported Beep on <BEL> This parameter is enabled. There is no corresponding imager programming barcode required. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 172: Reset/Cancel Barcodes

    After scanning Set All Defaults barcode, reboot the Bluetooth Ring Scanner Module by removing the battery then reinserting the battery. Set All Defaults Cancel See “Pre-Configured Default Values” earlier in this chapter for an alphabetical listing of all default values. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 173: Enable / Disable Parameter Scanning

    When disabled, either scan the Enable Parameter Scanning barcode or the Set All Defaults barcode to reset the parameter. When enabled, scanners can be configured using the barcodes in this chapter. Select a mode by scanning either of the barcodes shown below. Enable Parameter Scans Disable Parameter Scans E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 174: Configure Imager For Barcode Types

    Level, etc. Note: Increase decode time by disabling unused barcode types. 2D Symbologies Refer to this symbology’s section later in this chapter for more programming barcodes. PDF417 Enable PDF417 Disable PDF417 MicroPDF417 Enable MicroPDF417 Disable MicroPDF417 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 175 SE4400 Imager Barcodes Code 128 Emulation Enable Code 128 Emulation Disable Code 128 Emulation Data Matrix Enable Data Matrix Disable Data Matrix Maxicode Enable Maxicode Disable Maxicode E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 176: Codabar

    Refer to this symbology’s main section later in this chapter for more programming barcodes. Disable Codabar Enable Codabar Code 11 Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable Code 11 Disable Code 11 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 177 Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable Code 39 Disable Code 39 Code 93 Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable Code 93 Disable Code 93 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 178: Code 128

    Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable Code 128 Disable Code 128 Composite Refer to this symbology’s section later in this chapter for more programming barcodes. Composite CC-C Enable Composite CC-C Disable Composite CC-C Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 179: Interleaved 2 Of 5

    Composite TLC-39 Enable Composite TLC-39 Disable Composite TLC-39 Interleaved 2 of 5 Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 180: Isbt-128

    Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable Discrete 2 of 5 Disable Discrete 2 of 5 ISBT-128 Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable ISBT-128 Disable ISBT-128 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 181: Msi (Plessey Code)

    Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable MSI Disable MSI Postal Codes Refer to this symbology category’s section later in this chapter for more programming barcodes. US Postnet Enable US Postnet Disable US Postnet E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 182 SE4400 Imager Barcodes US Planet Enable US Planet Disable US Planet UK Postal Enable UK Postal Disable UK Postal Japan Postal Enable Japan Postal Disable Japan Postal Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 183: Gs1 Databar (Rss)

    Dutch Postal Enable Dutch Postal Disable Dutch Postal GS1 DataBar (RSS) Refer to this symbology’s main section later in this chapter for more programming barcodes. Enable GS1 DataBar Omnidirectional (RSS-14) Disable GS1 DataBar Omnidirectional (RSS-14) E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 184: Upc/Ean

    SE4400 Imager Barcodes UPC/EAN Refer to this symbology’s main section later in this chapter for more programming barcodes. UPC-A Enable UPC-A Disable UPC-A UPC-E Enable UPC-E Disable UPC-E UPC-E1 Enable UPC-E1 Disable UPC-E1 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 185 SE4400 Imager Barcodes EAN-8/JAN-8 Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 EAN-13/JAN-13 Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Bookland EAN Enable Bookland EAN Disable Bookland EAN E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 186: Decode Session Timeout

    Keypad Number Symbols” at the end of this chapter. Times less than 1.0 second must have a leading zero. If you wish to change your number selection, scan Cancel on the “Imager Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 187: Decode Aiming Pattern

    Select Disable Autoexposure to manually adjust the gain and exposure time (not supported in this version). This option is only recommended for advanced users with difficult image capture situations. Enable Decoding Autoexposure Disable Decoding Autoexposure E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 188: Decoding Illumination

    Disable this parameter to prevent LED illumination. See LED Illumination. Select a setting by scanning one of the barcodes shown below. If you wish to change your selection, scan Cancel. Enable Illumination Disable Illumination Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 189: Focus Mode

    • With Near Focus, the imager is optimized to read at its near position. • Smart Focus toggles the focus position after every frame. Scan the appropriate barcode below. Far Focus Near Focus Smart Focus E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 190: Led Illumination

    Internal and External Illumination turns the LEDs on during scan mode. See Decoding Illumination. Select an illumination setting by scanning one of the barcodes shown below. If you wish to change your selection, scan Cancel. Internal Illumination External Illumination Internal and External Illumination Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 191: Operational Mode

    Decode Mode. Note: A Decode Mode barcode is not available. The default is that when the trigger is released, in other modes, the imager returns to Decode Mode. Snapshot Mode Video Mode Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 192: Power Mode

    SE4400 Imager Barcodes Power Mode Note: LXE mobile devices are designed to be operated in Low Power Mode. LXE recommends leaving this value unchanged. Parameter Default Value: PL4407: Low Power MS4407: Continuous On A parameter setting of Continuous On means the laser will not power down until the mobile device is powered off.

  • Page 193: Presentation Mode Session Timeout

    For example, to set 0.5 seconds, scan the Presentation Mode Session Timeout barcode, then scan the 0, 0, 5 barcodes from the section titled Imager Keypad Number Symbols. To correct an error or change the selection, scan the Cancel barcode and try again. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 194: Time Delay To Low Power Mode

    Scan button press or when the host attempts to communicate with the decoder. This parameter only applies when Power Mode is set to Low Power. See Power Mode. 1 Second Delay 5 Second Delay 1 Minute Delay 5 Minute Delay 15 Minute Delay Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 195: Time-Out Between Decodes, Same Symbol

    0.1 second increments. Times less than 1.0 second must have a leading zero. If you wish to change your number selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 196: Trigger Modes

    SE4400 Imager Barcodes Trigger Modes Note: LXE mobile devices with ring decoders are designed to be operated in Level Trigger Mode. LXE recommends leaving the Trigger Mode default value unchanged. Parameter Default Value: PL4407: Level Trigger Mode MS4407: Presentation Mode Use this parameter to determine when the laser is activated and decoding begins, how long the laser remains on and what determines the cessation of the laser scan and decode process.

  • Page 197: Report Version

    SE4400 Imager Barcodes Cancel See also Presentation Mode Session Timeout. Report Version Scan the following barcode to view the version of software currently installed in the ring decoder. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 198: Transmit Code Id Character

    DataBar Limited (RSS Limited), GS1 DataBar Expanded (RSS Expanded) UCC Composite, TLC 39 PDF417, MacroPDF417, MicroPDF417 Data Matrix QR Matrix Maxicode US Postnet US Planet Japan Postal UK Postal Dutch Postal Australian Postal UK Postal Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 199: Transmit Aim Code Id Character

    Example: A Full ASCII barcode with check character W,A+I+MI+DW, is transmitted as ]A7AimId where 7 = (3+4). Trioptic Code 39 No option specified at this time. Always transmit 0. Example: A Trioptic barcode 412356 is transmitted as ]X0412356 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 200 Five digit supplement data only EAN-8 data packet. Example: A UPC-A barcode 012345678905 is transmitted as ]E00012345678905 Bookland EAN No options specified at this time. Always transmit 0. Example: A Bookland EAN barcode 123456789X is transmitted as ]X0123456789X Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 201 903-907, 912, 914, 915. The barcode contains a UCC/EAN-128 symbol, and the first codeword is in the range 908-909. The barcode contains a UCC/EAN-128 symbol, and the first codeword is in the range 910-911. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 202 According to AIM standards, a UPC with supplemental barcode is transmitted in the following format: ]EO (UPC chars) (terminator) ]E2 (supplemental) (terminator) Therefore, a UPC with two supplemental characters, 01234567890510, is transmitted to the host as a 21-character string, ]E00012345678905]E110. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 203: Prefix / Suffix Values

    Next, scan four numeric barcodes that correspond to the computer keycode using the “Imager Keypad Number Symbols” at the end of this chapter. If you wish to change your selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 204: Suffix 2

    Next, scan four numeric barcodes that correspond to the computer keycode using the “Imager Keypad Number Symbols” at the end of this chapter. If you wish to change your numeric selection, scan Cancel on the “Imager Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 205: Scan Data Transmission Format

    If you wish to change your selection, scan the Cancel barcode and scan again. Set the Scan Data Transmission Format parameter by scanning one of the following barcodes: Data As Is [Data] [Suffix 1] [Data] [Suffix 2] [Data] [Suffix 1] [Suffix 2] [Prefix] [Data] E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 206 SE4400 Imager Barcodes [Prefix] [Data] [Suffix 1] [Prefix] [Data] [Suffix 2] [Prefix] [Data] [Suffix 1] [Suffix 2] Cancel Now you are ready to scan one of the “Prefix/Suffix Values” barcodes. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 207: Transmit "No Read" Message

    Scan a barcode below to select whether or not to transmit a No Read message. When enabled, the characters NR are transmitted when a barcode is not decoded. When disabled, if a symbol does not decode, nothing is sent to the host. Enable No Read Disable No Read E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 208: Upc/Ean

    Select an option by scanning either of the barcodes shown below. Enable UPC-A Disable UPC-A UPC-E Parameter Default Value: Enable Select an option by scanning either of the barcodes shown below. Enable UPC-E Disable UPC-E Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 209: Upc-E1

    Enable UPC-E1 Disable UPC-E1 Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. EAN-8/JAN-8 Parameter Default Value: Enable Select an option by scanning either of the barcodes shown below. Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 210: Ean-13/Jan-13

    SE4400 Imager Barcodes EAN-13/JAN-13 Parameter Default Value: Enable Select an option by scanning either of the barcodes shown below. Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 211: Bookland Ean

    Enable Bookland EAN Disable Bookland EAN Bookland Format Parameter Default Value: Bookland 10 This parameter is used to control the Bookland Format. Select an option by scanning either of the barcodes shown below. Bookland 10 Bookland 13 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 212: Decode Upc/Ean/Jan Supplementals (2 And 5 Digits)

    Select an option by scanning one of the barcodes shown below. If you wish to change your selection, scan the Cancel barcode and scan again. Decode UPC/EAN/JAN only with Supplementals Ignore Supplementals Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 213 SE4400 Imager Barcodes Autodiscriminate UPC/EAN/JAN Supplementals Enable 378/379 Supplemental Mode Enable 978 Supplemental Mode Enable Smart Supplemental Mode Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 214: Upc/Ean/Jan Supplemental Redundancy

    This parameter determines whether the symbol will be transmitted with or without the UPC-A check digit. Select an option by scanning either of the barcodes shown below. Enable Transmit UPC-A Check Digit Disable Transmit UPC-A Check Digit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 215: Transmit Upc-E Check Digit

    This parameter determines whether the symbol will be transmitted with or without the UPC-E1 check digit. Select an option by scanning either of the barcodes shown below. Enable Transmit UPC-E1 Check Digit Disable Transmit UPC-E1 Check Digit E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 216: Upc-A Preamble

    System Character [schar] [data] System Character and Country Code [country code] [schar] [data] Select an option by scanning one of the barcodes shown below. No Preamble System Character System Character and Country Code (“0” for USA) Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 217: Upc-E Preamble

    System Character [schar] [data] System Character and Country Code [country code] [schar] [data] Select an option by scanning one of the barcodes shown below. No Preamble System Character System Character and Country Code (“0” for USA) E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 218: Upc-E1 Preamble

    System Character [schar] [data] System Character and Country Code [country code] [schar] [data] Select an option by scanning one of the barcodes shown below. No Preamble System Character System Character and Country Code (“0” for USA) Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 219: Convert Upc-E To Upc-A

    A programming selections (e.g. Preamble, Check Digit, etc.). When disabled, UPC-E (zero suppressed) decoded data is transmitted without conversion. Select an option by scanning either of the barcodes shown below. Enable UPC-E to UPC-A Disable UPC-E to UPC-A E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 220: Convert Upc-E1 To Upc-A

    A programming selections (e.g. Preamble, Check Digit, etc.). When disabled, UPC-E1 (zero suppressed) decoded data is transmitted without conversion. Select an option by scanning either of the barcodes shown below. Enable UPC-E1 to UPC-A Disable UPC-E1 to UPC-A Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 221: Ean-8/Jan-8 Extend

    When disabled, EAN-8 symbols are transmitted as is and parameter “Convert EAN-8 to EAN-13 Type” setting is ignored. Select an option by scanning either of the barcodes shown below. Enable EAN-8/JAN-8 Zero Extend Disable EAN-8/JAN-8 Zero Extend E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 222: Ucc Coupon Extended Code

    UPCA, EAN-13 and EAN-128 must be enabled to scan all types of Coupon Codes. Enable UCC Coupon Extended Code Disable UCC Coupon Extended Code Note: Use the Decode UPC/EAN Supplemental Redundancy parameter to control autodiscrimination of the EAN128 (right half) of a coupon code. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 223: Code 128

    Set this parameter by scanning either of the barcodes shown below. Enable Code 128 Disable Code 128 UCC/EAN-128 Parameter Default Value: Enable Set this parameter by scanning either of the barcodes shown below. Enable UCC/EAN-128 Disable UCC/EAN-128 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 224: Isbt-128

    ISBT-128 is a variant of Code 128 used in the blood bank industry. If necessary, the host must perform concatenation of the ISBT data. Set this parameter by scanning either of the barcodes shown below. Enable ISBT-128 Disable ISBT-128 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 225: Trioptic Code 39

    When Trioptic Code 39 is enabled, set the “Code 39 Full ASCII” parameter to disabled. Both parameters should not be enabled simultaneously. Set this parameter by scanning either of the barcodes shown below. Enable Trioptic Code 39 Disable Trioptic Code 39 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 226 This parameter adds the prefix character “A” to all Code 32 barcodes. Note: When enabled, “Convert Code 39 to Code 32” parameter must also be enabled. Set this parameter by scanning either of the barcodes shown below. Enable Code 32 Prefix Disable Code 32 Prefix Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 227: Set Length(S) For Code 39

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 228: Length Within Range

    To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. Any Length This option decodes Code 39 barcodes containing any number of characters. To set any length, scan this Any Length barcode: Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 229: Code 39 Check Digit Verification

    Enable this feature if the code 39 barcodes contain a Modulo 43 check digit. Set this parameter by scanning either of the barcodes shown below. Enable Code 39 Check Digit Verification Disable Code 39 Check Digit Verification E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 230: Transmit Code 39 Check Digit

    Parameter setting for “Code 39 Check Digit Verification” has no effect on this parameter value. Set this parameter by scanning either of the barcodes shown below. Enable Transmit Code 39 Check Digit Disable Transmit Code 39 Check Digit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 231: Code 39 Full Ascii Conversion

    Code 39 Full ASCII interprets the barcode special character ($ + % /) preceding a Code 39 character and assigns an ASCII character value to the pair. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 232: Set Lengths For Code 93

    • or lengths within a specific range. The length of a code refers to the number of characters, including check digits, the code contains. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 233: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 234: Length Within Range

    To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. Any Length This option decodes Code 93 barcodes containing any number of characters. To set any length, scan this Code 93 Any Length barcode: Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 235: Set Lengths For Code 11

    The length of a code refers to the number of characters, including check digits, the code contains. It also includes any start or stop characters. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 236: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 237: Length Within Range

    Cancel on the “Imager Keypad Number Symbols” page. Any Length This option decodes Code 11 barcodes containing any number of characters. To set any length, scan this Code 11 Any Length barcode: E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 238: Code 11 Check Digit Verification

    Enable Code 11 Check Digit Verification when Transmit Code 11 Check Digits is enabled. Set this parameter by scanning one of the barcodes shown below. Disable Code 11 Check Digit Verification One Check Digit Two Check Digits Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 239: Transmit Code 11 Check Digits

    Transmit Code 11 Check Digits Parameter Default Value: Do Not Transmit (Disable) Code 11 Check Digit Verification must be enabled for this parameter to function. Transmit (Enable) Code 11 Check Digits Do Not Transmit (Disable) Code 11 Check Digits E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 240: Interleaved 2 Of 5 (Itf)

    • or lengths within a specific range. The length of a code refers to the number of characters, including check digits, the code contains. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 241: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 242: Length Within Range

    This option decodes I 2 of 5 barcodes containing any number of characters. Note: Selecting this option may lead to misdecodes for I 2 of 5 codes. To set any length, scan this I 2 of 5 Any Length barcode: Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 243: I 2 Of 5 Check Digit Verification

    USS (Uniform Symbology Specification) or OPCC (Optical Product Code Council). Set this parameter by scanning one of the barcodes shown below. Disable I 2 of 5 Check Digit Verification USS (Uniform Symbology Specification) OPCC (Optical Product Code Council) E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 244: Transmit I 2 Of 5 Check Digit

    Parameter setting for “I 2 of 5 Check Digit Verification” has no effect on this parameter value. Set this parameter by scanning either of the barcodes shown below. Enable Transmit I 2 of 5 Check Digit Disable Transmit I 2 of 5 Check Digit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 245: Convert I 2 Of 5 To Ean

    When enabled, the parameter converts a 14 character I 2 of 5 barcode into EAN-13 and transmits it to the host as EAN-13. Set this parameter by scanning either of the barcodes shown below. Enable Convert I 2 of 5 to EAN-13 Disable Convert I 2 of 5 to EAN-13 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 246: Discrete 2 Of 5 (Dtf)

    To prevent this, select specific lengths (using D2 of 5 – One Discrete Length and D 2 of 5 Two Discrete Lengths) for D 2 of 5 applications. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 247: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 248: Length Within Range

    Selecting this option may lead to misdecodes for D 2 of 5 codes. See note in Set Lengths for Discrete 2 of 5. To set any length, scan this D 2 of 5 Any Length barcode: Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 249: Codabar

    , and 10 characters of a 14 character Codabar symbol. Set this parameter by scanning either of the barcodes shown below. Note: Symbol length does not include start and stop characters. Enable CLSI Editing Disable CLSI Editing E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 250: Notis Editing

    The length of a code refers to the number of characters, including check digits, the code contains. It also includes any start or stop characters. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 251: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 252: Length Within Range

    Cancel on the “Imager Keypad Number Symbols” page. Any Length This option decodes Codabar barcodes containing any number of characters. To set any length, scan this Codabar Any Length barcode: Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 253: Set Length(S) For Msi

    To prevent this, select specific lengths (using MSI One Discrete Length and MSI Two Discrete Lengths) for MSI applications. See the table titled “ASCII Character Equivalents” at the end of the “Appendix”. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 254: One Discrete Length (Parameter L1)

    Next, scan four numeric barcodes that correspond to the desired value. Single digit numbers must have a leading zero. To correct an error or to change a selection, scan Cancel on the “Imager Keypad Number Symbols” page. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 255: Length Within Range

    This option decodes MSI barcodes containing any number of characters. Note: Selecting this option may lead to misdecodes for MSI codes. See note in section titled Set Lengths for MSI. To set any length, scan this MSI Any Length barcode: E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 256: Msi Check Digits

    When Two MSI Check Digits is selected, an MSI Check Digit Algorithm must also be selected. Set the number of check digits to be included with the barcode by scanning either of the barcodes shown below. One MSI check digit Two MSI check digits Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 257: Transmit Msi Check Digit

    Parameter Default Value: Disable When enabled, the check digit is transmitted with the data. Set this parameter by scanning either of the barcodes shown below. Enable Transmit MSI Check Digit Disable Transmit MSI Check Digit E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 258: Msi Check Digit Algorithm

    Either of the two following algorithms may be selected. Set this parameter by scanning either of the barcodes shown below. Mod 10/Mod 11 MSI Check Digit Algorithm Mod 10/Mod 10 MSI Check Digit Algorithm Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 259: Postal Codes

    To enable or disable US Postnet, scan the appropriate barcode: Enable US Postnet Disable US Postnet US Planet Parameter Default Value: Enable To enable or disable US Planet, scan the appropriate barcode: Enable US Planet Disable US Planet E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 260: Uk Postal

    Disable UK Postal Transmit UK Postal Check Digit Parameter Default Value: Transmit Select whether to transmit UK Postal data with or without the check digit: Transmit UK Postal Check Digit Do Not Transmit UK Postal Check Digit Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 261: Japan Postal

    To enable or disable Japan Postal, scan the appropriate barcode: Enable Japan Postal Disable Japan Postal Australian Postal Parameter Default Value: Enable To enable or disable Australian Postal, scan the appropriate barcode: Enable Australian Postal Disable Australian Postal E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 262: Dutch Postal

    SE4400 Imager Barcodes Dutch Postal Parameter Default Value: Enable To enable or disable Dutch Postal, scan the appropriate barcode: Enable Dutch Postal Disable Dutch Postal Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 263: Transmit Us Postal Check Digit

    Select whether to transmit US Postal data with or without the check digit: Transmit US Postal Check Digit Do Not Transmit US Postal Check Digit 4State Postal Parameter Default Value: Disable To enable or disable 4State Postal, scan the appropriate barcode: Enable 4State Postal Disable 4State Postal E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 264: Gs1 Databar (Rss)

    GS1 DataBar Limited (RSS Limited) Parameter Default Value: Enable To enable or disable RSS Limited, scan the appropriate barcode: Enable GS1 DataBar Limited (RSS Limited) Disable GS1 DataBar Limited (RSS Limited) See Also: Convert GS1 DataBar (RSS) to UPC/EAN Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 265: Gs1 Databar Expanded (Rss Expanded)

    Note that neither the system character nor the check digit can be stripped. Enable Convert GS1 DataBar (RSS) to UPC/EAN Disable Convert GS1 DataBar (RSS) to UPC/EAN E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 266: Composite

    Scan one of the following barcodes to enable or disable Composite barcodes of type CC-C. Enable Composite CC-C Disable Composite CC-C Composite CC-A/B Parameter Default Value: Disable Scan one of the following barcodes to enable or disable Composite barcodes of type CC-A/B. Enable Composite CC-A/B Disable Composite CC-A/B Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 267: Composite Tlc-39

    SE4400 Imager Barcodes Composite TLC-39 Parameter Default Value: Disable Scan one of the following barcodes to enable or disable Composite barcodes of type TLC-39. Enable Composite TLC-39 Disable Composite TLC-39 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 268: Upc Composite Mode

    UPC barcode does not transmit. Autodiscriminate The decoding engine determines if there is a 2D portion, then UPC Composites transmits the UPC, as well as the 2D portion if present. UPC Never Linked UPC Always Linked Autodiscriminate UPC Composites Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 269: Ucc/Ean Code 128 Emulation Mode

    Select whether to enable or disable UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes. Parameter Default Value: Disable Enable UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes Disable UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 270: D Symbologies

    Parameter Default Value: Enable To enable or disable PDF417, scan the appropriate barcode below. Enable PDF417 Disable PDF417 MicroPDF417 Parameter Default Value: Disable To enable or disable MicroPDF417, scan the appropriate barcode below. Enable MicroPDF417 Disable MicroPDF417 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 271: Code 128 Emulation

    If disabled, they are transmitted with one of the following prefixes: • ]L3 if the first codeword is 903-907, 912, 914, 915 • ]L4 if the first codeword is 908 or 909 • ]L5 if the first codeword is 910 or 911 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 272: Data Matrix

    Enable Data Matrix Disable Data Matrix Data Matrix Inverse Parameter Default Value: Regular Only This parameter controls the setting of the DataMatrix inverse decoder. Scan the appropriate barcode below. Regular Only Inverse Only Inverse Auto Detect Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 273: Maxicode

    To enable or disable Maxicode scan the appropriate barcode below. Enable Maxicode Disable Maxicode QR Code Parameter Default Value: Enable To enable or disable QR Code scan the appropriate barcode below. Enable QR Code Disable QR Code E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 274: Microqr

    To enable or disable MicroQR scan the appropriate barcode below. Enable MicroQR Disable MicroQR QR Inverse Parameter Default Value: Regular Only This parameter controls the setting of the QR Inverse decoder. Scan the appropriate barcode below. Regular Only Inverse Only Inverse Auto Detect Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 275: Aztec

    To enable or disable Aztec scan the appropriate barcode below. Enable Aztec Disable Aztec Aztec Inverse Parameter Default Value: Regular Only This parameter controls the setting of the Aztec Inverse decoder. Scan the appropriate barcode below. Regular Only Inverse Only Inverse Auto Detect E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 276: Redundancy Level

    8 characters or less I 2 of 5 8 characters or less Codabar 8 characters or less Redundancy Level 4 The following code types must be successfully read three times before being decoded: Code Type Code Length Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 277 SE4400 Imager Barcodes Redundancy Level 1 Redundancy Level 2 Redundancy Level 3 Redundancy Level 4 Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 278: Security Level

    Select the security level appropriate for the barcode quality and then scan the appropriate Security Level barcode on this page and the following page. Security Level 0 Security Level 1 Security Level 2 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 279 SE4400 Imager Barcodes Security Level 3 Cancel E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 280: Intercharacter Gap Size

    Due to various barcode-printing technologies, this gap can grow larger than the maximum size allowed, preventing the decoder from decoding the symbol. If this problem occurs, scan the Large Intercharacter Gaps parameter to tolerate these out-of- specification barcodes. Normal Intercharacter Gaps Large Intercharacter Gaps Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 281: Imager Keypad Number Symbols

    Use these numeric value symbols to enter numeric input in the course of performing an imager engine system configuration. To correct an error or change a selection, scan Cancel then scan a desired barcode. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 282 SE4400 Imager Barcodes Cancel Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 283: Scanner Identification Label

    Chapter 5 Scan Engine Technical Specifications Scanner Identification Label The label specifying which laser engine is installed in the LXE mobile device is usually on the back of the mobile device, next to the laser warning label. Decode Zones The scan ranges listed in the following tables are based on the following factors: •...

  • Page 284: Figure 5-1 Decode Zones - Se955-I000Wr Standard Range Laser Ring Scanner

    45.00 in / 114.30 cm 34.00 in / 86.36 cm * Near ranges are largely dependent upon the width of the barcode and the scan angle. Figure 5-1 Decode Zones – SE955-I000WR Standard Range Laser Ring Scanner Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 285: Se4400 Laser Imager

    1. Near distances are field –of-view (FOV) limited. 2. Working range specifications at: temperature = 23° C, pitch = 15°, roll = 0°, skew = 0°, photographic quality, ambient light ~30 ft-c, humidity 45-70% RH. Figure 5-2 Imager Near Focus Decode Distances E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 286: Figure 5-3 Imager Far Focus Decode Distances

    15.5 in / 39.4 cm Notes: 1. Near distances are FOV limited. 2. Working range specifications at temperature = 23°C, pitch=15°, roll=0°, skew=0°, photographic quality, ambient light ~30 ft-c, humidity 45-70% RH. Figure 5-3 Imager Far Focus Decode Distances Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 287: Figure 5-4 Imager Toggled Focus Decode Distances

    15.5 in / 39.4 cm Notes: 1. Near distances are FOV limited. 2. Working range specifications at temperature = 23°C, pitch=15°, roll=0°, skew=0°, photographic quality, ambient light ~30 ft-c, humidity 45-70%RH. Figure 5-4 Imager Toggled Focus Decode Distances E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 288: Figure 5-5 Imager Decode Distances In Darkness

    45-70%RH. 3. Range measurements are when VCC_ILLUM is powered off of 3.0 V. Powering VCC_ILLUM off of 3.3 V yields slightly improved working ranges in darkness. Figure 5-5 Imager Decode Distances in Darkness Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

  • Page 289: A Ppendix

    A desktop/laptop Win XP or Win 2000 PC with an available USB port. A Bluetooth module and a fully charged battery. Bluetooth Module Firmware update cable (8650A051CBLBTUPDATE). Firmware update file (contact your LXE representative to obtain the latest Bluetooth Module firmware update file). Note: A Bluetooth module is required when performing the initial install of the BlueCore Device Firmware Update program on the PC.
  • Page 290 Next. 11. Click Continue Anyway when the dialog box appears stating “the driver has not passed Windows logo testing to verify compatibility”. 12. Select Finish on the next dialog box. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 291 14. Click the plus sign next to Universal Serial Bus controllers. Verify the BTRS Ringscanner in DFU mode is present. Close all open windows and return to the PC desktop. 15. You are ready to update the Bluetooth Ring Scanner module firmware. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 292: Update The Module Firmware

    6. The upgrade process proceeds and ends with a Successful Upgrade message (see step 7). The Bluetooth module may emit a series of beeps or the blue LED may stop flashing and remain illuminated until the upgrade is finished. Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 293 Appendix 7. Click Finish. E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...

  • Page 294: Ascii Character Equivalents

    CTRL S 1020 CTRL T 1021 CTRL U 1022 CTRL V 1023 CTRL W 1024 CTRL X 1025 CTRL Y 1026 CTRL Z 1027 CTRL [ 1028 CTRL \ 1029 CTRL ] 1030 CTRL 6 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 295 1037 1038 & 1039 ’ 1040 1041 1042 1043 1044 1045 1046 1047 1048 1049 1050 1051 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 296 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 ‘ 1097 1098 1099 1100 1101 1102 1103 1104 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 297 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 Undefined Beep Related Programming Barcodes for the ring scanner / ring imager are not supported by LXE E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 298 Appendix Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 299 Lowercase letters a-z ........... 47 Code 93 manufacturer scan engine barcodes ......29 SE4400..............222 Master and slave modes ..........31 SE955..............120 Numbers 0 - 9 .............. 45 D 2 of 5 Pairing status..............31 SE4400..............236 PIN code ..............43 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 300 Uppercase letters a-z ............53 Any Length Volume .................41 SE4400 ..............225 Bluetooth module SE955 ..............106 LXE barcodes...............30 Check Digit Verification Bluetooth ring scanner and ring imager, described .....5 SE4400 ..............226 Bluetooth ring scanner assembled........11 SE955 ..............106 Bookland EAN...
  • Page 301 Configuring the Bluetooth module ........30 and Length options Connect scanner cable............9 SE4400 ..............215 Connecting the Ring Device Cable ........9 SE955 ..............114 Contacting LXE ............... 27 SE4400..............219 Convert SE955..............113 Code 39 to Code 32 Length SE955 ..............112 SE4400..............215...
  • Page 302 SE955 ..............128 SE4400 ...............197 One Discrete Length SE955 .................136 SE4400 ..............229 to EAN-13 SE955 ..............127 SE955..............141 SE4400............... 228 Zero Extend SE955 ................ 124 SE4400..............209 to EAN-13 SE955.............141, 147 SE4400 ..............233 Encode Char ..............282 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 303 Max On Timer User Name ..............43 SE955...............83 LXE Programming Barcodes SE955 ................83 Focus Mode, Imager ............ 42 LED Illumination............176, 178 LXE Tethered Scanners and Bluetooth....... 2 LED patterns...............13, 14 Length Code 128 SE955..............110 Code 39 SE4400..............215 Manuals on the WWW ............. 27 SE955..............
  • Page 304 SE4400 ...............245 SE955 ................ 130 MSI Check Digits Postal Codes..............247 and MSI Power Mode Check Digit Algorithm SE4400............... 180 SE4400 ..............244 SE955 ................87 MSI Plessey Preamble AIM Code UPC-A SE4400..............188 SE4400 ..............204 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 305 SE955 ................78 UPC-E1 Scan Range..............271 SE4400..............206 Scan Value..............282 SE955..............144 Scanner Performance Prefix LXE Support..............23 SE4400 ...............191 Scanner Power Mode Prefix / Suffixes SE955 ................87 SE4400 ...............191 SE4400 Barcode Types ..........162 SE955 ................76 SE4400 Defaults...
  • Page 306 SE4400 ...............184 AIM Code Trigger Mode, SE .............98 SE4400 ..............188 Trigger module replacement ..........16 SE955 ..............82 Trioptic Code 39 SE4400............... 196 AIM Code SE955 ................ 135 SE4400..............187 Security Level SE955...............81 SE955 ..............149 Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...
  • Page 307 SE4400............... 209 SE4400..............208 SE955 ................ 147 SE955..............140 Zero Suppressed Update module firmware ..........18 UPC-E to UPC-A..........140, 207 US Planet UPC-E1 to UPC-A SE4400 ...............247 SE4400 ..............208 US Postal data SE955 ..............140 SE4400 ...............251 E-SW-BLUESCANPG-B Bluetooth Ring Scanner Guide...
  • Page 308 Index Bluetooth Ring Scanner Guide E-SW-BLUESCANPG-B...

Table of Contents
