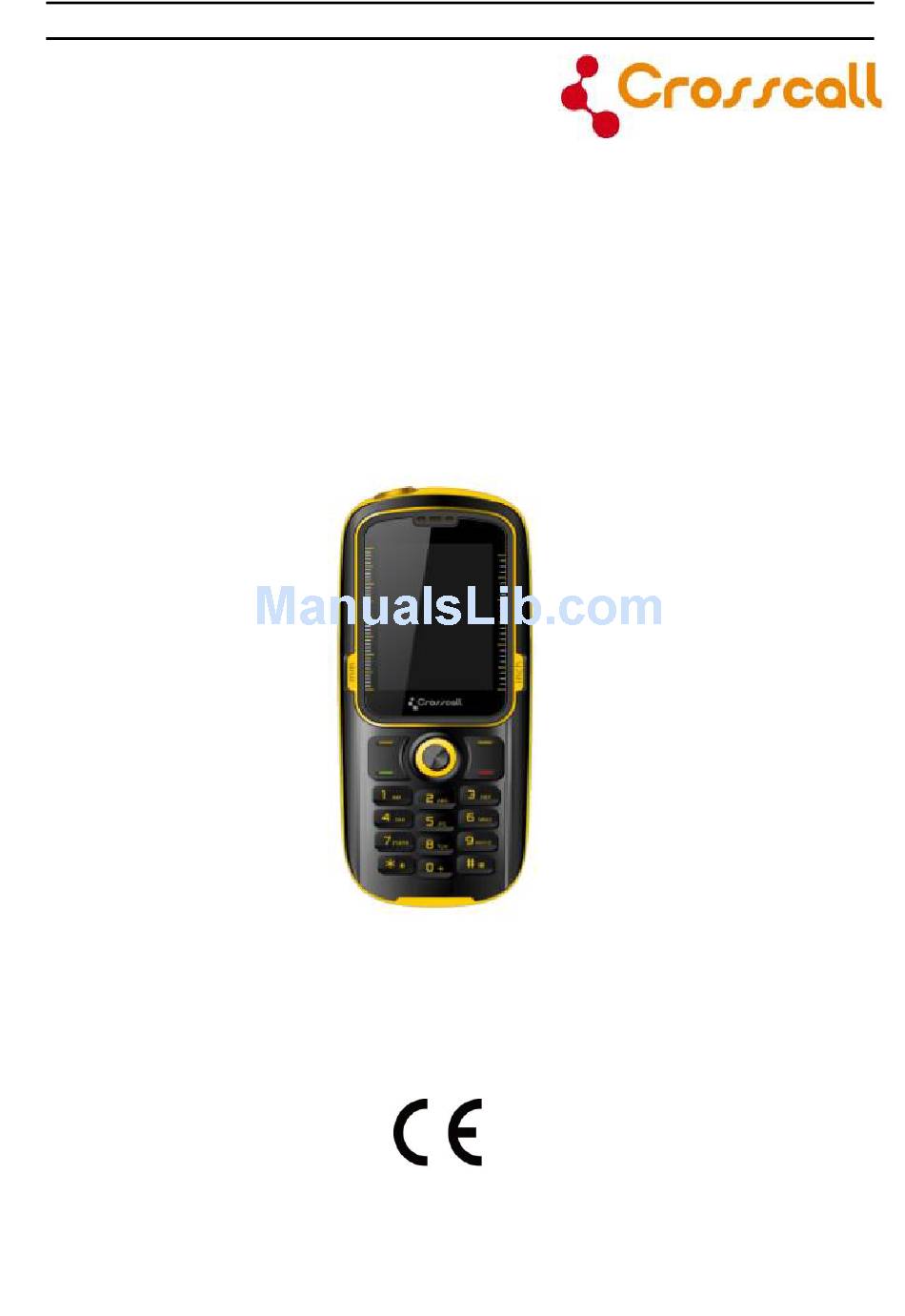

Page 1: User Manual
WAKE User Manual GSM Mobile Phone User Manual WAKE Please read and retain these instructions. - Page 2 WAKE User Manual Dear Customer, Thank you for purchasing this Crosscall GSM mobile phone. Here is a short introduction of the main features: - This phone is dustproof and waterproof IP57, with anti-shock protection, making it your ideal companion for outdoor activities,...
-
Page 3: Table Of Contents
WAKE User Manual Content Important Safety Information ............4 Getting Started ................8 1. Product Presentation ..............8 2. Installing or remove battery cover ..........10 3. The battery ................. 10 4. Connecting to the network ............12 Basic Features ................15 1. -
Page 4: Important Safety Information
WAKE User Manual Important Safety Information General Do not become distracted by the device while driving, and always be fully aware of all driving conditions. Always operate the vehicle in a safe manner. Minimize the amount of time spent viewing the device‟s screen while driving and use voice prompts when possible. - Page 5 WAKE User Manual Li-Ion battery pack used This product contains a Li-Ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Warning: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not attempt to open or service battery back.
- Page 6 WAKE User Manual Emergency calls Important: This device operates using radio signals, wireless networks, landline networks, and user-programmed functions. If your device supports voice calls over the internet (internet calls), activate both the internet calls and the cellular phone. The device may attempt to make emergency calls over both the cellular networks and through your internet call provider if both are activated.
- Page 7 WAKE User Manual Declaration of Conformity Hereby, Admea declares that this GSM Phone is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity is available on website: www.crosscall.eu / www.logisav.fr 1313 The European directive 2002/96/EC on Waste Electrical and...
-
Page 8: Getting Started
WAKE User Manual Getting Started 1.Product Presentation 1. Right Soft key 2. End call key 3. Left soft key 4. Talk key 5. OK key 6. Navigation keys 7. * key 8. # key 9. Dial plate 10. Screen 11. Sound Receiver 12. - Page 9 WAKE User Manual Key Function Definition Function Definition Right soft key Press this button to enter the contacts. End call key Press this button to turn on or off the phone or reject a phone call. Left soft key Press this button to enter the menu.
-
Page 10: Installing Or Remove Battery Cover
WAKE User Manual 2. Installing or remove battery cover - This mobile phone is waterproof and therefore a screwdriver (provided in this package) is necessary so as to open the battery compartment. - There are two screws into the battery cover. Please use the screwdriver to turn the screws at left direction for opening the cover. -
Page 11: Charging The Battery
WAKE User Manual To remove the battery, follow the steps below: 1. Unscrew the two screws back cover at the downside of the device; 2. Snap the space between the middle of the back cover and your handset, push the cover backward;... -
Page 12: Connecting To The Network
WAKE User Manual 4. Connecting to the network 4.1 SIM card A SIM card (Subscriber Identity Module) is required in order to use this mobile phone. Please contact your phone operator in order to obtain one. This device is equipped with two SIM card slots, thus combining into one single phone multiple usages (such as personal and professional usage). - Page 13 WAKE User Manual How to copy data onto your Micro SD card - Copy from your computer files directly on the Micro SD card, and then insert the card onto the phone. - Alternatively, connect the phone to your computer with the USB cable provided.
-
Page 14: Unlocking The Phone
WAKE User Manual guarantee a compatibility with all cards. Should a compatibility problem arise, please try to use another Micro SD card, with a lower capacity (such as 4GB as total capacity). 4.4 Switching on/off the device After inserting the SIM card and micro SD card, press and hold the End call key to power on/off your device. -
Page 15: Basic Features
WAKE User Manual Basic Features 1. Making Calls Once the network provider appears on the screen, you can make or answer a call. The signal bar on the upper right corner of the screen shows the signal strength to the network. The appearance of four bars indicates the strongest signal. -
Page 16: Call Options
WAKE User Manual 5. Call options During a call, press left soft key to access the call options or “H-Free” to activate hands-free function. To turn off the loud speaker, press the same key. For the operations of call options, refer to that of the function menu. -
Page 17: Description Of Function Menu
WAKE User Manual Description of Function Menu... -
Page 18: Phonebook
WAKE User Manual 1. Phonebook Phonebook is for saving information like names, phone numbers, and mobile phone numbers. The phone numbers can be saved to your device or the SIM card. The phone book supports quick search through it. Enter the first letter in the white blank, and then all the records starting with this letter would be displayed. -
Page 19: Messaging
WAKE User Manual 2. Messaging Press OK key or left soft key to enter the messaging menu. Write message Under write message menu, press left soft key for options: Send to: to enter number or add from Phonebook. ... -
Page 20: Broadcast Message
WAKE User Manual While reading a message, you can press ”Option” to select your required operation as View, Resend, Edit, Delete, Delete all, Mark several, Advanced, Remove From call Black List and Add to Sms Black List. 2.5 Sent messages Display the messages you‟ve sent. - Page 21 WAKE User Manual 2.10.2 Multimedia message The first time you are using this phone, or if you have changed your SIM card operator, you will need to select your operator name before being able to send MMS (Multimedia Message) or connect to the internet (WAP service).
- Page 22 WAKE User Manual If too many accounts are created, you will not be able to add a new one. Should this situation arises, please delete an already-existing account first. 2) After completed step 1 above, please follow the below procedure to enter your operator’s WAP parameters:...
-
Page 23: Call History
WAKE User Manual Sending: to set the validity period, delivery report, read report, priority, slide time and delivery time. Retrieval: to set the home network, roaming, read report and delivery report. Preferred storage: to default a position (phone or Memory card) to save your MMS. -
Page 24: Music
WAKE User Manual 4.Music You can play music via this menu. And songs must be in MP3 format extension. At the same time, music files must be saved in My Music folder no matter in phone or in micro SD card. -
Page 25: Camera
WAKE User Manual 5. Camera Press the Left Soft key or OK key to access the <Camera > function. Inside the menu, you can chhose Option in the preview mode to have the following options: to Photos, Camera Settings, Image Settings, White balance, Scene mode, Effect Settings, Set frame,Storage and Restore default. -
Page 26: Sound Recorder
WAKE User Manual Add icon: to choose icon for the current photo. Add text: to edit the text and choose the text style for the current photo. Mirror: to horizontal rotate the current photo. Rotate: to rotate the current photo. -
Page 27: Schedule Fm Record
WAKE User Manual press*key to reduce the volume, and press # key to enlarge it. And you can also press left soft key for: Channel list: Allows you to save 30 channels into the list. Manual input: Allows you to input the desired frequency modulating broadcasting programs manually. -
Page 28: Settings
WAKE User Manual 7. Settings 7.1 Main menu Show style This is for setting of main menu show style, Six Diamonds or Rotate. 7.2 Main menu setting There are 8 types of setting when moving the cursor between main menu icons. -
Page 29: Call Settings
WAKE User Manual 7.6 Call settings Access the submenu of Call Settings to set the following items. 7.6.1 SIM1 call settings Caller ID You can select the presetting of system, hidden numbers or send numbers provided by the network operator. - Page 30 WAKE User Manual Change Barring PW: Enter the old call barring password and change for a new one. Line Switching You can select to switch over Line 1 and Line 2. 7.6.2 SIM2 Call setting The same as SIM1 Call setting.
-
Page 31: Network Settings
WAKE User Manual 7.6.8 Auto quick end Set it as On or Off, and the period is 1 to 9999 seconds. 7.7 Network Settings 7.7.1 Network selection User could choose SIM 1 network or SIM 2 network for setting. You can have new search, select network and selection mode for setting. - Page 32 WAKE User Manual 7.8.3 Phone lock Your phone can be protected from being stolen and used by this function. Press OK key and you need to input the password to on/off the phone lock. If phone lock is set to be on, it would require entering the password when you power on the phone.
- Page 33 WAKE User Manual My name: you can edit the device name of this phone. Advanced: there are following operations: Audio path, storage, sharing permission and view the address of this device. Paring your phone with other Bluetooth device: ...
-
Page 34: File Manager
WAKE User Manual Note: You may also listen to the music via File manager → phone or Memory card → My music → choose the music you want to play. For some special Bluetooth audio device Paring via My device menu ... -
Page 35: Organizer
WAKE User Manual 10. Organizer Allow you to use various daily tools like Calendar, world clock, and Alarm clock. 10.1 Calendar In the submenu, the screen displays the calendar for the current month and the actual date is marked with blue color background. To view the date, press the Up/Down/Left/Right key. -
Page 36: Wap Internet Access
WAKE User Manual bookmark, book info, settings, apply global settings, help and close. 10.6 Alarm Five alert types and power-off alarm are supported. In the alarm clock list, select one to set the following entries, On/Off, 00:00 (Time), Repeat, Snooze, and the Alert Type. -
Page 37: Connection To Pc Via Usb
WAKE User Manual Connection to PC via USB This mobile phone supports connection to PC via USB. Please use the USB cable (provided with this package) to connect you phone and PC: The phone can connect to your PC no matter power on or off: ... -
Page 38: Input Method
WAKE User Manual Power on mode When the phone is power on, the phone would prompt some information after connecting the phone to PC by the USB cable. Please choose „Back‟ if you just want to charge the phone; if you want to use connection to PC via USB, please choose “Mass storage”. -
Page 39: Troubleshootings
WAKE User Manual Troubleshootings Prior to contacting the after-sales service providers, please make the following simple check： Common Causes and Resolutions Troubles Press the end call key for more than 1 second, Check if the battery is not inserted well. You... - Page 40 WAKE User Manual Standby time is related to the system setting of network, maybe the cell phone is used in the area with poor receiving signals. Upon no Standby signals, the cell phone will constantly launch signals to search for base station and batteries time is will run out, so the standby time is curtailed.
- Page 41 WAKE User Manual Check if your music file is put in the folder My The music can‟t music； be played Via audio player Music files must be in mp3. format extension; Photo file should be in jpg. extension and with...
