Related Manuals for Crosscall Shark
Summary of Contents for Crosscall Shark
-

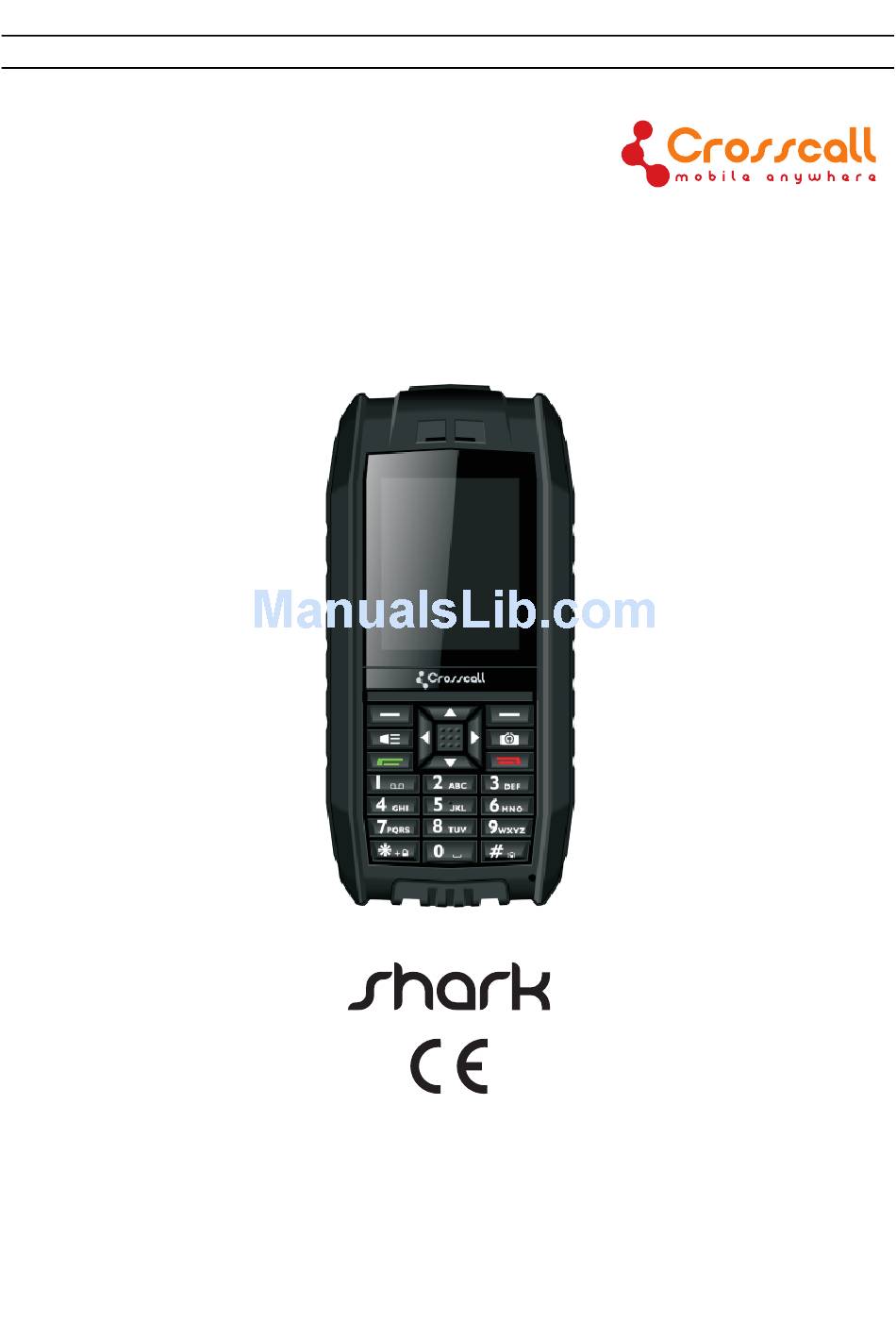

Page 1: User Manual
SHARK User Manual GSM Mobile Phone User Manual Please read and retain these instructions. - Page 2 SHARK User Manual Dear Customer, Thank you for purchasing this Crosscall GSM mobile phone. Here is a short introduction of the main features: ‐ This phone is dustproof and waterproof IP68, with anti‐shock protection, making it your ideal companion for outdoor activities, ‐...
-
Page 3: Table Of Contents
SHARK User Manual Content Important Safety Information....................4 Get to know your phone......................8 Phone layout......................... 8 Key Function Definition....................9 Getting started........................10 Remove or install the battery cover................10 Insert a SIM card......................10 Insert a Micro SD card....................11 Insert the battery...................... -
Page 4: Important Safety Information
SHARK User Manual Important Safety Information General Do not become distracted by the device while driving, and always be fully aware of all driving conditions. • Always operate the vehicle in a safe manner. • Minimize the amount of time spent viewing the device’s screen while driving and use voice prompts when possible. - Page 5 SHARK User Manual Li‐Ion battery pack used This product contains a Li‐Ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Warning: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do Not attempt to open or service battery back.
- Page 6 SHARK User Manual Emergency calls Important: This device operates using radio signals, wireless networks, landline networks, and user‐programmed functions. If your device supports voice calls over the internet (internet calls), activate both the internet calls and the cellular phone. The device may attempt to make emergency calls over both the cellular networks and through your internet call provider if both are activated.
- Page 7 SHARK User Manual required to reach the network. That amount changes depending on a number of factors such as how close you are to a network base station. The highest SAR value under the ICNIRP guidelines for use of the device at the ear is 1.460 W/kg.
-
Page 8: Get To Know Your Phone
SHARK User Manual Get to know your phone Phone layout 1. Left soft key 8. Camera key 2. Torch key 9. Power key / End call key 3. Call key 10. Dial plate 4. Navigation key 11. # key 5. OK key 12. -
Page 9: Key Function Definition
SHARK User Manual Key Function Definition Function Definition Left soft key To enter the main menu. Torch key To turn on or off the torch LED light. Call key To call or to answer the phone. Navigation keys To enter the desired menu directly or move the cursor to left/right/up/down. -
Page 10: Getting Started
SHARK User Manual Getting started Remove or install the battery cover This mobile phone is waterproof and therefore a screwdriver is necessary so as to open the battery compartment. There are two screws into the battery cover. Please use the screwdriver to turn the screws at left direction for opening the cover. -
Page 11: Insert A Micro Sd Card
SHARK User Manual Note: The SIM card and its contacts can be damaged easily by scratches or bending, so be careful when handing, inserting and removing the card. Before installing the SIM card, make sure that the phone is switched off, disconnected from the charger or any other device and then remove the battery. -
Page 12: Insert The Battery
SHARK User Manual Install the battery Line up the contacts of the battery and the battery compartment, and then insert the battery. Charge the battery • Charge with the provided travel adapter 1. Connect the charger to an ac wall outlet. -
Page 13: Power On/Off
SHARK User Manual Please only use the AC adapter and the battery provided. No part of this device can be repaired by end‐user. Contact your reseller should you need to replace the AC adapter or the battery. Talking time and standby time will depend on different conditions when using the device, like signal intensity, working profiles, environment, temperature etc. -
Page 14: Access Codes
SHARK User Manual Select your operator so as to be able to connect to WAP services: o Go to MENU, SERVICES, INTERNET SERVICE, SETTINGS, DATA ACCOUNT. Select your SIM card operator from the list and press OK. If your SIM card operator does not appear on the list, you will need to set it manually so as to activate MMS and WAP services. -
Page 15: Basic Function
SHARK User Manual Basic function Quick access to some menus Please the navigation keys for quick access to the desired menus. You can change the desired menus following the path: Menu > Settings > Phone settings > Dedicated keys. Press left soft key (LSK) to access main menu. -
Page 16: Lock The Keypad
SHARK User Manual Then you can see the mobile disk icon in your PC. Power on mode When the phone is power on, the phone would show “Mass storage” automatically after connecting to PC. Confirm this selection, and then the phone will appear as a removable disk on your PC. -
Page 17: Main Menu
SHARK User Manual Main menu In the standby mode, select Menu and the desired menu and submenu. Select Back to exit the current level of menu. Press the end key to return to the standby mode directly. Not all menu functions or option items are described here. -
Page 18: Phonebook
SHARK User Manual Phonebook You can store phone numbers on your SIM card and in your phone’s memory. The SIM card and phone’s memory are physically separate, but they are used as a single entity called Phonebook. To access this menu, press... - Page 19 SHARK User Manual 3. To send the message, press key or select Options > Send to, enter the recipient’s phone number or add from phonebook, and select On editing interface, you can press the LSK (Left soft key) for submenu under Options: Send to, input method, advanced and save to drafts.
- Page 20 SHARK User Manual obtain the information from your You can make settings for SIM 1and SIM2. Please service provider if necessary. You can also check the memory status of SIM cards and phone, to choose Save sent message on or off, and prefer a storage for saving the SMS.
- Page 21 SHARK User Manual • Account Name: Your operator’s name. Other information below must be provided by your operator. • APN (Access Point Name), • Username, • Password, • Authentication Type • SIM selection • Advanced settings • Homepage • Connection type •...
-
Page 22: Call Center
SHARK User Manual Call center Call history You can check missed calls, dialed calls, received calls and delete call logs in this menu. Call settings SIM1 call settings (if available) SIM 2 call settings (if available) You can have setting for call waiting, call divert, call barring and line switching. -
Page 23: Settings
SHARK User Manual Advanced settings • Auto redial: if this function if active, the phone will auto redial if nobody answers. • Call time reminder: if this function is on, you can make it remind in single or periodic when you are on phone number. - Page 24 SHARK User Manual • GPRS transfer pref.: select the priority network service provider, it will show network service provider’s list. Different with what showed on the phone. Security settings • SIM card security: input PIN code (provided with the SIM card) to set SIM card lock or unlock.
- Page 25 SHARK User Manual Paring your phone with other Bluetooth device: • Make sure the 2 devices are both with Bluetooth function switch‐on. • Enter My device menu to choose “search new device” or enter Search audio device if paring a Bluetooth headset or speaker. Then the Bluetooth devices would show.
-
Page 26: Multimedia
SHARK User Manual Note: The phone would power off/on automatically after restoring factory settings. Multimedia Camera Press the Left Soft key or OK key to access the < Camera > function. Inside the menu, you can choose Option in the preview mode to have the following options: Photos, Camera Settings, Image Settings, White balance, Scene mode, Effect Settings, Storage and Restore default. -
Page 27: File Manager
SHARK User Manual • Auto search: Select Auto Search Setting List, then it will receive the frequency modulating broadcasting information according your location and save into the channel list. • Settings: Allows you to set the background play as ON or OFF, Loudspeaker as ON... -
Page 28: User Profile
SHARK User Manual key to browser, press options make to view, view all, add event, delete event, jump to date, go to today and go to weekly view options. Alarm There are 5 alarm clocks can be set. Press Up/Down navigation key to choose a alarm, and edit status, time, mode, alarm tone, snooze, alert type. -
Page 29: Bluetooth
SHARK User Manual Ebook reader Please save the Ebook files in .txt format extension under Ebook folder via your PC, and then view the files with this mobile phone. Press left soft key to confirm to access electric book interface, you can select open Ebook, clean up bookshelf, global settings, book info, delete, delete all files, sort by , apply global settings and help. - Page 30 SHARK User Manual Homepage: you can preset the website to login directly. Bookmarks: used to save websites you are interested in. Input address: enter into this menu, you can edit the website to login. Recent pages: record the pages you browsed.
-
Page 31: Troubleshootings
SHARK User Manual Troubleshootings Prior to contacting the after‐sales service providers, please make the following simple check： Common Troubles Causes and Resolutions Press the end call key for more than 1 second, Check if the battery is not inserted well. You... - Page 32 SHARK User Manual will run out, so the standby time is curtailed. Please use the cell phone in places with stronger signal or power off it if not use for a long time; Please replace batteries; There is filth on the metal surfaces of SIM cards, please use the clean cloth to wipe the metal contact point of SIM card;...
- Page 33 SHARK User Manual The first time you are using this phone, or if you have changed your operator, you will need to Cannot send a MMS or select your operator name before being able to cannot access the internet send MMS (Multimedia Message) or connect to the internet (WAP service).
