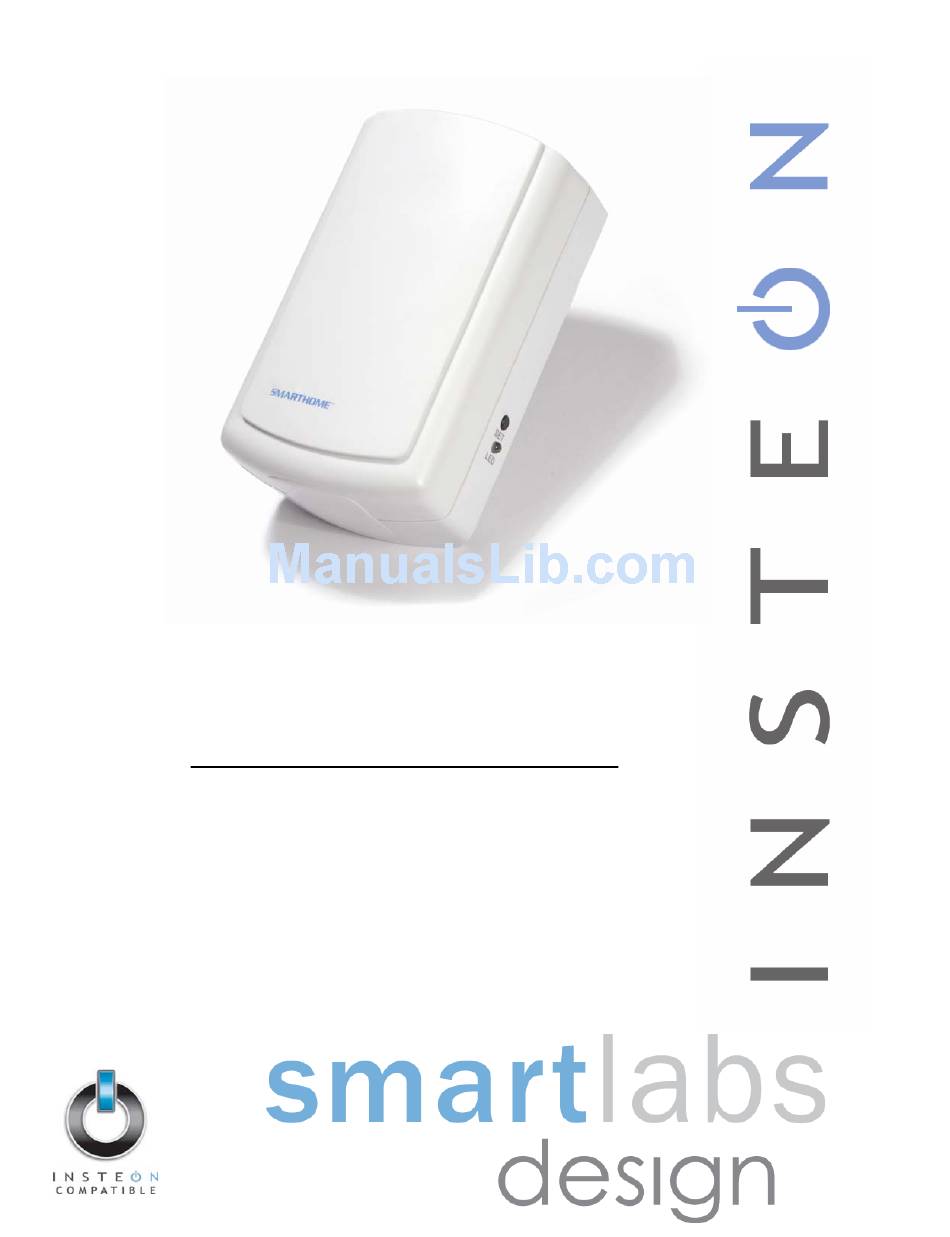

- Page 1 ™ INSTEON AccessPoint INSTEON RF Receiver/ RF-PLC Bridge For models: #2443 AccessPoint #2443P AccessPoint two-pack...
-
Page 2: Table Of Contents
AccessPoint Installation Tips........................4 Installing the First Two AccessPoints......................4 Install the AccessPoint ..........................5 Install the Second AccessPoint (or any subsequent AccessPoints) ............5 Installing Additional AccessPoints......................6 ABOUT INSTEON ............................7 Understanding Why an INSTEON Network Is Reliable................7 Further Enhancing Reliability ........................ -
Page 3: About Insteon Accesspoint
INSTEON is a simple, reliable, and affordable breakthrough in home control. Simple, because Plug-n- Tap™ setup is a breeze, and there are no wires to add – INSTEON uses existing powerline wiring as well as radio-frequency for communication. Reliable, because every INSTEON device is a two-way repeater. -
Page 4: How To Set Up Accesspoints
States, or the Canadian Electrical Code and local regulations in Canada. Use indoors only. AccessPoint is not designed nor approved for use on power lines other than 120V 60Hz, single phase. Attempting to use AccessPoint on non-approved powerlines may have hazardous consequences. -
Page 5: Install The Accesspoint
Install the Second AccessPoint (or any subsequent AccessPoints) 1. You have about 9 minutes to perform these steps before Setup Mode on the First AccessPoint will time out automatically. If the First AccessPoint does time out, simply put it back into Setup Mode and you will have another 9 minutes. -
Page 6: Installing Additional Accesspoints
Installing Additional AccessPoints You can add additional AccessPoints to your INSTEON network to extend its coverage and maximize performance. Simply choose the AccessPoint that you previously installed as the First AccessPoint and follow the steps above to confirm that new AccessPoints are communicating with your existing AccessPoints. -
Page 7: About Insteon
INSTEON device helps to support the overall network. To further ensure reliability, every INSTEON device confirms that it has received a command. If an INSTEON Controller does not receive this confirmation, it will automatically retransmit the command up to five times. -
Page 8: About Insteon And X10
If you have any of these products and the BoosterLinc feature is turned on, please consult your User’s Guide or call 866-243-8018 for help with turning it off. You may then wish to install newer INSTEON BoosterLinc X10 Signal Boosters, which SmartLabs can help you with. -
Page 9: Troubleshooting
Problem Possible Cause Solution The Status LED on my AccessPoint is not getting Make sure AccessPoint is not plugged into a switched AccessPoint is not power. outlet that is turned off. turning on at all. The Status LED on the You didn’t press the SET... -
Page 10: Specifications
INSTEON-compatible AccessPoint User’s Guide SPECIFICATIONS AccessPoint Specifications General SmartLabs Product Number 2443- INSTEON AccessPoint or 2443P- INSTEON AccessPoint (twin pack) Warranty 2 years Operation Status LED White INSTEON RF Features RF Frequency 900 MHz ISM band RF Sensitivity -103 dbm... -
Page 11: Fcc Compliance Statement
• Increase the distance between AccessPoint and the receiver, • Connect AccessPoint to an AC outlet on a circuit different from the one that supplies power to the receiver, or • Consult the dealer or an experienced radio/TV technician. -
Page 12: Certification
INSTEON-compatible AccessPoint User’s Guide Certification AccessPoint has been thoroughly tested by ITS ETL SEMKO, a nationally recognized independent third-party testing laboratory. The North American ETL Listed mark signifies that the product has been tested to and has met the requirements of a widely recognized consensus of U.S and Canadian product safety standards, that the...
