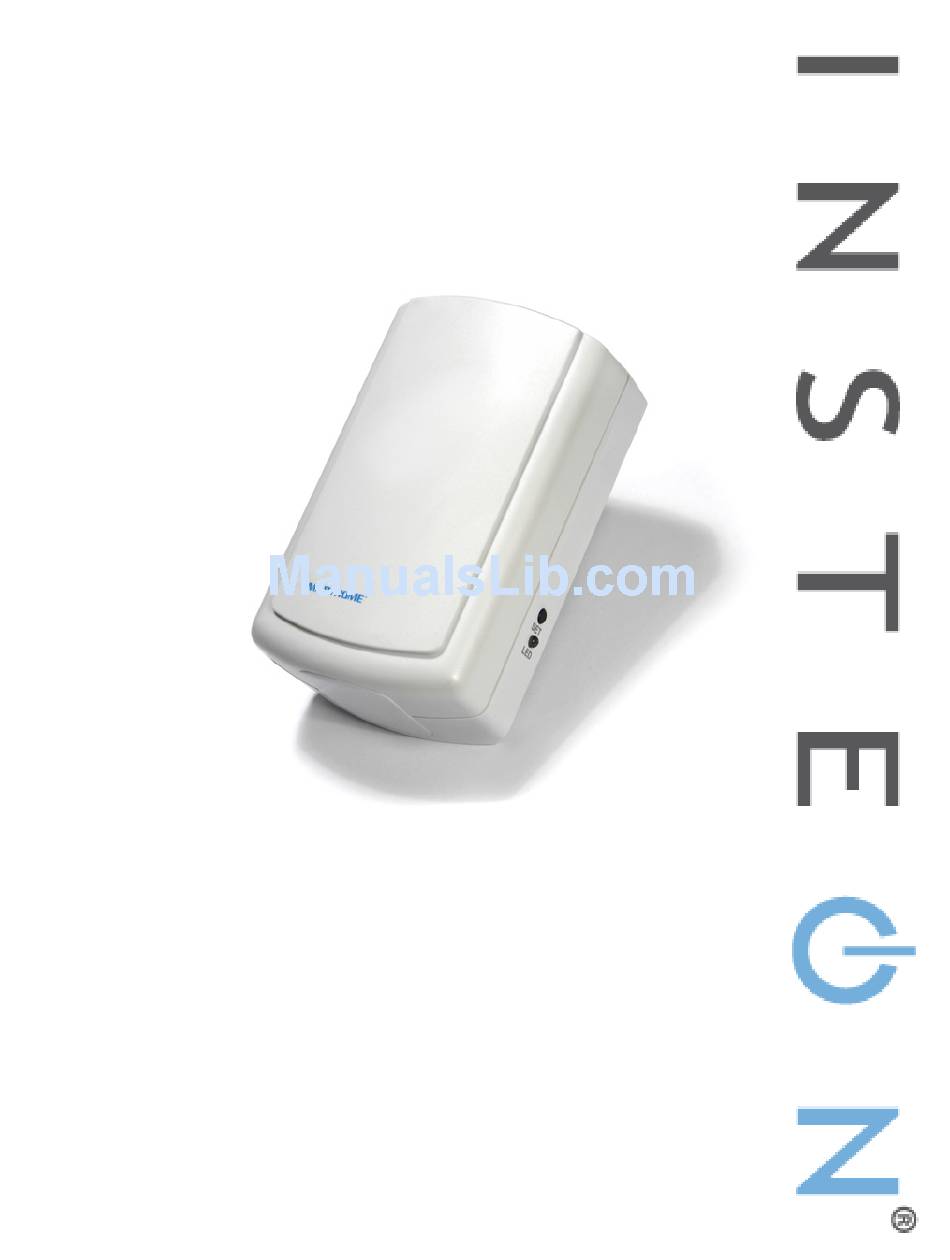

- Page 1 Dual-Band Access Point ® INSTEON Wireless Phase Coupler Owner’s Manual (#2443) Page 1 of 8 2443 - Rev: 1/21/2014 8:39 AM...
-
Page 2: Table Of Contents
Features and Benefits ..........................3 What’s in the Box? ............................. 4 Preparing to Install Access Point ......................4 An Important Note About INSTEON Networks ..................4 Split Single-Phase vs. 3-Phase Installation ....................4 Installing Access Points ..........................4 Installing the First Access Point ........................ 4 Installing the Second Access Point ...................... -
Page 3: About Dual-Band Access Point
Points in your INSTEON-compatible home will improve INSTEON signal strength and network coverage throughout your home and provide an interface between wireless-only INSTEON devices and your overall INSTEON network. Access Points also tie together your dual-band mesh INSTEON network by transmitting INSTEON signals across radio-frequency to bridge your home’s power line wiring phases. -
Page 4: What's In The Box
INSTEON messages can travel everywhere in your home. Installing two Access Points will wirelessly couple the 120V electrical phases in your home. This allows INSTEON devices on one phase to communicate reliably with the INSTEON devices on the other phase. You can add more Access Points as needed for superior performance and maximized coverage of your INSTEON network. -
Page 5: Installing The Second Access Point
INSTEON Support Line at 1-800-762-7845. Installing Additional Access Points To extend your INSTEON network’s coverage and maximize its performance, you can add additional Access Points. Simply use the first Access Point that you installed and follow the steps in Installing the Second Access Point to confirm that the new Access Points are communicating with your existing Access Points. -
Page 6: Understanding Insteon Reliability
As the messages make their way to the INSTEON responders, they are picked up and retransmitted by all other INSTEON devices along the way. This method of communicating is called a mesh network because every device becomes a signal repeater. -
Page 7: Troubleshooting
Access Points. (4827). If you have tried these solutions, reviewed this Owner's Manual, and still cannot resolve an issue you are having with Access Point, please call the INSTEON Support Line at 1-800-762-7845. Page 7 of 8 Rev: 1/21/2014 8:39 AM... -
Page 8: Certification And Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an...
