Silicon Graphics
– Minimum memory configuration is 64 MB in a bank (2 x 32 MB DIMM).
– Maximum configuration is 2 GB in a bank (2 x 1 GB DIMM).

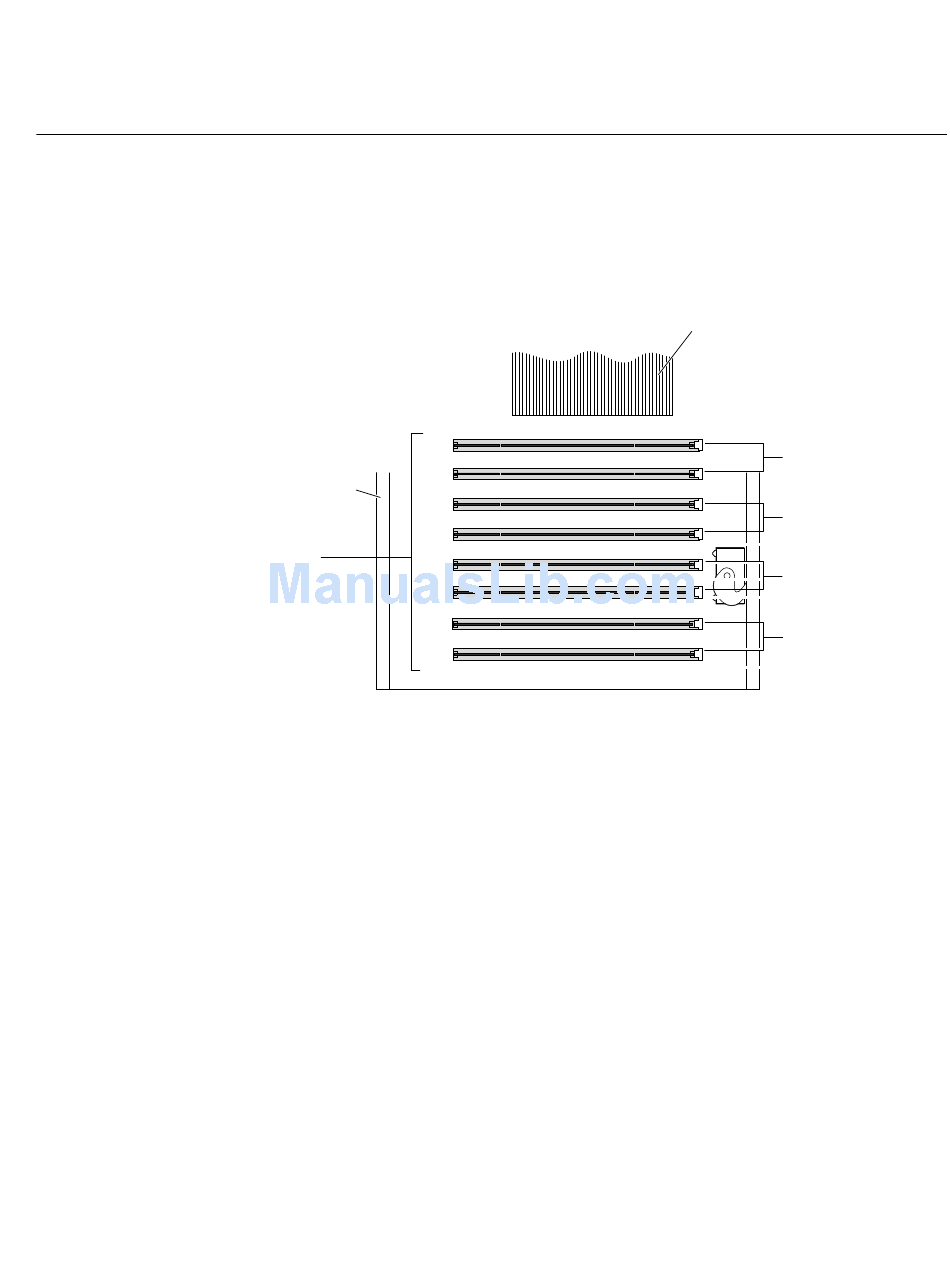

Figure 3 shows the Octane's four DIMM banks, with two DIMM sockets in each bank.
System module
DIMM
sockets
Figure 3 Identifying DIMM Sockets and DIMM Banks
® OCTANE ® R12000 ™
S1
S2
S3
S4
S5
S6
S7
S8
2 GB Memory Upgrade Kit Installation Guide
Heat sink
DIMM banks
1
2
3
4
7
