User's Guide
Storage Devices
Storage devices allow the Notebook PC to read or write documents, pictures, and other files to
various data storage devices. This Notebook PC has the following storage devices :
Expansion Card
Optical drive
Flash memory reader
Hard Disk drive
Expansion Card

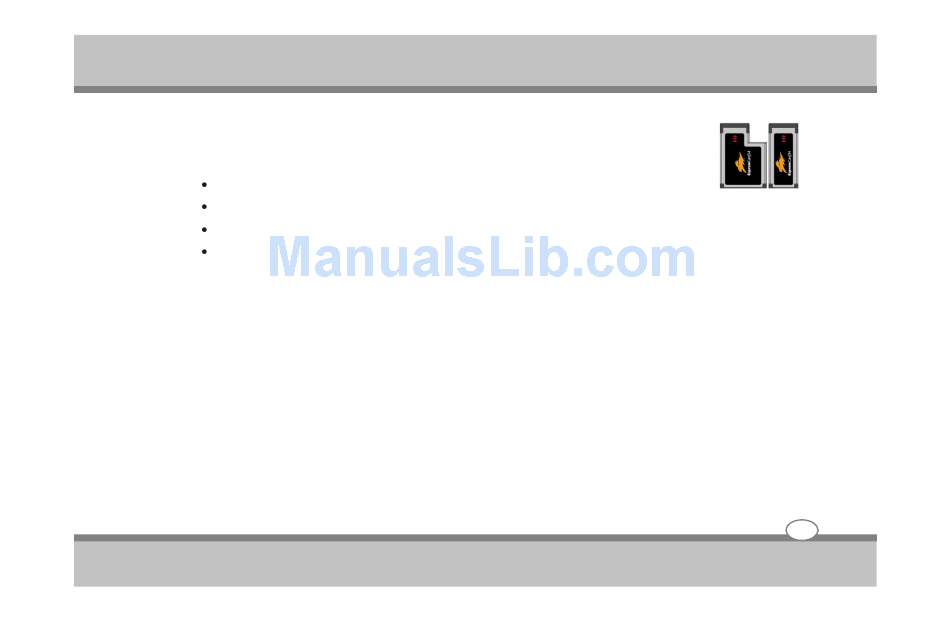

One 26pin Express card slot is available to support one ExpressCard/34mm or one ExpressCard/54mm
expansion card. This new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead
of the slower parallel bus used in the PC card slot. (Not compatible with previous PCMCIA cards.)
Inserting an Expansion Card
1. If there is an ExpressCard socket protector, remove it using the "Removing an ExpressCard" instructions
below.
2. Insert the ExpressCard with the connector side first and label side up. Standard ExpressCards will be flush
with the Notebook PC when fully inserted.
3. Carefully connect any cables or adapters needed by the ExpressCard. Usually connectors can only be
inserted in one orientation. Look for a sticker, icon, or marking on one side of the connector representing the
top side.
