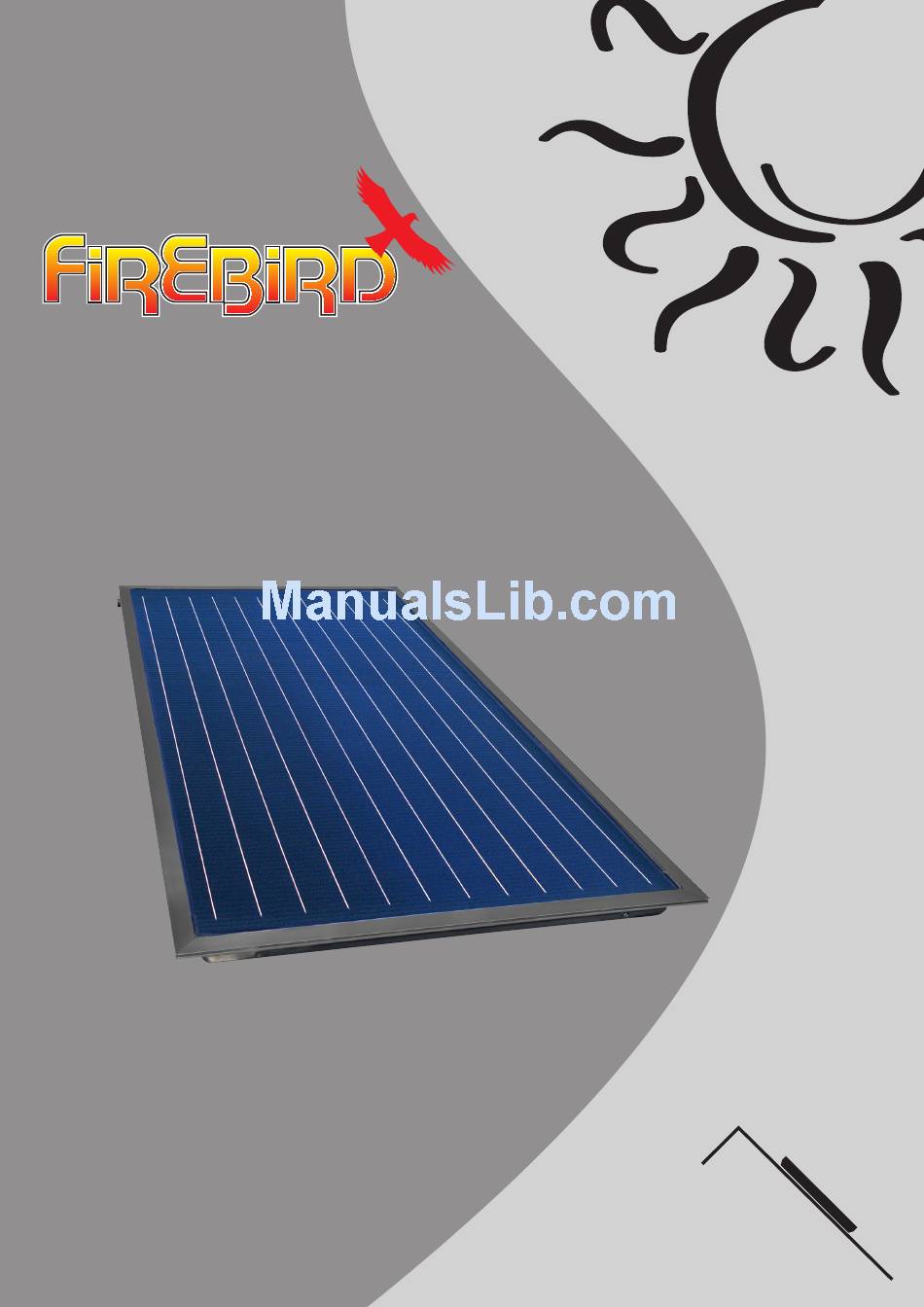

- Page 1 Manual Mounting parallel bench srew mountingsystem Flate plate collector CPK 7210 N 6 9 0 x x x x / version 2008.03...
-
Page 2: Table Of Contents
Contents Safety information ..................3 Transport note ....................4 Assembly instructions - Collector ..............5 Overview of tools ..................6 Overview of materials ..................7 Suggestion for attachment points ..............8 Mounting parallel bench srew mountingsystem ..........9 Technical data - Collector................12 Operating tips - Solar power system .............. 13 General Information.................. -
Page 3: Safety Information
Safety information Before commencing mounting work on roofs, set up mechanical (i.e. non-human) fall protection devices and fall arrest systems in accordance with DIN 18338 Safety harnesses should be fixed above the users on roof sealing and roof covering works and where possible. -
Page 4: Transport Note
Transport note ATTENTION: Do not lift collectors by the connections or the screw threads! -
Page 5: Assembly Instructions - Collector
Assembly instructions - Collector Instructions for installation and transport The installation may only be carried out by qualified personnel. Only the supplied material should be used for the installation. Please inform yourself about the applicable local norms and regulations before mounting and operating the solar system. -
Page 6: Overview Of Tools
Overview of tools Tape measure Drill Ø 8 mm twist drill (wood) Ø 14mm stone drill (brick) Hex spanner Angle grinder Hacksaw Installation wrench... -
Page 7: Overview Of Materials
Overview of materials Bench screw M12*350 Rubber seal M12 washer M12 hex nut Ø 13 mm clamping piece Support rail M8*30 hex bolt M8 washer M8 hex nut Flat gasket... -
Page 8: Suggestion For Attachment Points
Suggestion for attachment points COLLECTOR VERTICAL Atachment Collectors Total length points 212cm 318cm 424cm 530cm 636cm... -
Page 9: Mounting Parallel Bench Srew Mountingsystem
Mounting system, parallel The attachment points (on the rafter) must be measured pre- cisely for this type of installation. 1: A = COLLECTOR in a vertical position: 202cm Generally, the following applies: one support per vertical collector. 2: Drill tiles 3: Drill rafters 4: Fasten bench screw, minimum screw depth ≥... - Page 10 Mounting system, parallel 5: Attach the rubber seal and tighten Sequence: rubber seal - washer - nut 6: Set the clamping pieces to a common height and secure them (distance from top edge of the brick to bottom edge of the clam- ping piece approx.
- Page 11 Mounting system, parallel 8: Insert the collectors and attach them to the support rails with screws. Sequence: screw - washer - support rail - collector 9: Connect the collectors to one another.
-
Page 12: Technical Data - Collector
Information about the collector Technical data Gross area m² 2.12 Weight Net area m² 1.80 Contents Apertur m² 2.00 max. Pressure... -
Page 13: Operating Tips - Solar Power System
Operating tips - Solar power system Flushing and filling For safety reasons, you should only fill the collectors when there is no direct irradiation from the sun (or cover the collectors). Especially in regions exposed to frost, for flat plate collectors you should use a mixture of (FS) antifreeze with water (40% antifreeze). - Page 14 Operating tips - Solar power system Connecting the collectors to one another The diagram below is an example of how the collectors can be connected to one another. However, the actual connection may be different depending on structural conditions. A maximum of 6 collectors may be connected in a series! If a collector panel is made up of more than 6 collectors, the panel must be connected several times in parallel.
-
Page 15: General Information
General Information Guarantee and Warranty No liability is accepted for incorrect use, unauthorized changes to the assembly components, or the resulting con- sequences. All information and instructions in this manual refer to the current state of development. Please always use the re- spective assembly instructions supplied with the collectors.
