- Page 1 GUIDE TO SOLAR THERMAL SYSTEMS Working towards a greener planet...
-
Page 2: Table Of Contents
Index Solar Energy Explained Collector Specifications System Design Stagnation Safeguard Against Legionella System Schematics Health and Safety Information Transport and Storage Installation 10.0 Commissioning 11.0 Maintenance and Service Spare Parts Firebird Solar Warranty... - Page 3 Please contact the Firebird technical department for any additional queries. FOREWORD Firebird is a leading manufacturer of high efficiency heating products and continues to develop and expand its renewable sector. Our solar systems offer high efficiency collectors, up to date controller technology and advanced developments in pump efficiency.
-
Page 4: Solar Energy Explained
Just some of the benefits of a solar water heating system: • Savings - A Firebird solar heating system can cut your heating bills by up to 90% in the summer and up to 30% in the winter, on average this equates to approximately 50-70% reduction in your hot water heating costs annually. - Page 5 (sunlight) is available at ground level and can be converted into useful heat by your Firebird solar collector. During the summer months the Firebird solar heating system could provide the total energy needs for heating all your water.
- Page 6 The liquid is pumped through the pipe work loop by a control station from the collector to a hot water tank, transferring the energy from the pipe work to the water within the hot water tank. Firebird solar collector Typical solar collector...
- Page 7 20˚ and 45˚. However all Firebird solar collector systems have been tested to various tilt angles with permitted angles of between 15˚ to 75˚.
-
Page 8: Collector Specifications
2.0 COLLECTOR SPECIFICATIONS 2.1 CPK7210-N Flat Panel Collector The Firebird CPK7210-N Flat Plate collector is specifically designed to maximise the absorption and retention of solar radiation. The collector contains an absorber plate made of copper and coated with a highly selective TiNOX absorber. - Page 9 COLLECTOR SPECIFICATIONS Collector Specifications: CPK7210-N Flat Panel Collector Type CPK 7210N Collector outer dimensions: Height [mm] 2038 Width [mm] 1039 Depth [mm] Weight [Kg] Gross collector area 2.11 Aperture area 1.88 Absorber area 1.79 Max. operating pressure [bar] Stagnation temperature [˚C]...

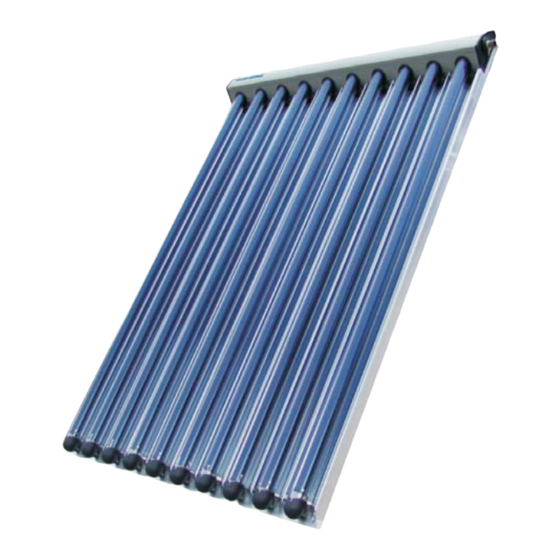

- Page 10 COLLECTOR SPECIFICATIONS 2.2 CVSKC-10 Vacuum Tube Collector The Firebird CVSKC-10 Vacuum Tube Collector offers one of the best performance to area of any collector on the market and delivers higher efficiency in less favourable weather conditions. Each solar tube consists of two glass tubes made from extremely strong borosilicate glass.
- Page 11 COLLECTOR SPECIFICATIONS Collector Specifications: CVSKC-10 Vacuum Tube Collector Type CVSKC-10 Collector outer dimensions: Height [mm] 1645 Width [mm] 1115 Depth [mm] Weight [Kg] Gross collector area 1.83 Aperture area 1.59 Absorber area 1.59 Max. operating pressure [bar] Stagnation temperature [˚C] Contents 1.63 Angle of inclination permitted...
- Page 12 COLLECTOR SPECIFICATIONS 3 TZ58-1800 Heat Pipe Solar Collector The Firebird TZ58-1800 Heat Pipe Solar Collector is the latest addition to the Firebird solar range and offers an optimum performance to price ratio. Built to Firebird’s exacting standards, they have an extremely high efficiency and can deliver solar energy even in overcast weather conditions.
- Page 13 COLLECTOR SPECIFICATIONS Collector Specifications: TZ58-1800 Heat Pipe Solar Collector Type TZ58-1800 TZ58-1800 20 tube set 30 tube set Collector outer dimensions: Height [mm] 2020 2020 Width [mm] 1825 2655 Depth [mm] Heat pipe dimensions: Diameter [mm] Length [mm] 1800 1800 Weight [Kg] Gross collector area...
-
Page 14: System Design
2. Set the solar fraction of the total DHW energy. CVSKC-10, TZ58-1800, CPK7210-N 3. Calculate the required energy to be collected by the solar. 4. Choose which Firebird solar system is to be used. Calculate the hot water demand 5. Calculate the storage volume required and hence the total required volume. - Page 15 SOLAR SYSTEM DESIGN Calculate the Daily Hot Water Demand Typical hot water demand for a domestic household is within the range of 30 litres to 70 litres per person per day. This value is dependant on the demand of water i.e. a dwelling that uses large volumes of hot water (baths) on a regular basis would have a higher demand than those who do not.
- Page 16 The table below outlines guidance on number of persons to recommended collector areas and DHW tank sizes. No. of persons Number of collectors Tank size (litres) 2 x CPK7210-N Flat Panel collectors 2 x CVSKC-10 Vacuum Tube collectors 30 or 40 TZ58-1800 heat pipes 3 x CPK7210-N Flat Panel collectors...
- Page 17 SOLAR SYSTEM DESIGN Additional System Design Criteria Pipe specifications and sizing Pipe material Specific pipe materials must be used when installing a solar system. These include the following: Stainless steel. Copper. Black steel pipe. Suitable methods of joining Suitable joint types for solar circuits are: •...
- Page 18 50 - 70 m 42 mm Pump sizing All Firebird solar pump stations include a circulating pump suitable for most domestic solar applications. When installing a solar system, the following information should be checked to ensure sufficient pump pressure is present: 1.
-
Page 19: Stagnation
As a result the solar energy reaching the panels, continues to heat the fluid in the panel, causing it to evaporate within the panel. This is referred to as stagnation. The Firebird solar fluid is designed to cope with stagnation temperatures of up to 200˚C. However, repeated and frequent stagnation will cause the glycol to disintegrate, thereby losing its frost protection and its recommended ph value, causing a scale build up or corrosion in the pipes. -
Page 20: Safeguard Against Legionella
The Firebird differential controller has an anti-Legionella function built in. This function must be connected to a Second Relay (R2) to enable it to operate, by means of motorised value or immersion. The function enables the controller to record temperatures over a set period of time (e.g. -
Page 21: System Schematics
They are NOT full system design drawings. Installers must always calculate and design the system requirements for each individual installation. Un-vented Pressurised System Firebird condensing boiler Unvented DHW tank Temp. sensor (after heating) 2 way mixing valve Solar collector Collector temp. - Page 22 SYSTEM SCHEMATICS Open-vented System Firebird condensing boiler Open vented cylinder Temp. sensor (after heating) Cold water tank Solar collector Collector temp. sensor Pump station 7A Pressure relief valve 7B Expansion vessel 7C Intermediate vessel (if needed) Controller DHW tank sensors...
- Page 23 SYSTEM SCHEMATICS East/West Solar System Firebird condensing boiler DHW tank Temp. sensor (after heating) Cold water tank Solar collector Collector temp. sensor Pump station 7A Pressure relief valve 7B Expansion vessel Cold mains 7C Intermediate vessel (if needed) Controller DHW tank sensors...
- Page 24 SYSTEM SCHEMATICS Two Tank Solar System Firebird condensing boiler DHW tank (for boiler) Temp. sensor (after heating) DHW tank (for solar) Solar collector Collector temp. sensor Pump station 7A Pressure relief valve 7B Expansion vessel 7C Intermediate vessel (if needed)
-
Page 25: Health And Safety Information
Do not open or attempt to service the panels. There are no user serviceable parts inside. • All solar packaging is recyclable so please dispose of it in an environmentally friendly way. • Firebird site risk assessment documents are to be used in conjunction with all other safety documents and relevant standards. -
Page 26: Transport And Storage
Please follow the below guidelines when transporting and storing solar system components: • CPK7210-N Flat Panel collectors can be transported and stored horizontally or vertically and can be stacked on top of each other (up to the manufacturer’s prescribed limit). -
Page 27: Installation
Before commencing any site work, determine the best roof location for the solar collectors and decide where the tank and other large components are to be located. When installing a Firebird solar system, we would suggest the following order of installation, although not mandatory: •... - Page 28 • Never lift the collectors by the connections or the screw threads. • A special kit is available for carrying and lifting flat plate collectors (please contact the Firebird sales office for more details). • Do not expose the collectors to direct sunlight until the installation is complete. Firebird provide special weather proof covers if the panels are going to be left exposed for a long period before commissioning.
- Page 29 Connecting solar collectors in series All Firebird Solar collectors can be joined in series. The CPK7210-N Flat Panel Collector and the CVSKC-10 Vacuum Tube Collector, have male and female connectors at each end to facilitate interconnection. A special gasket is provided to seal the connection between each collector.
- Page 30 Sensor pocket locations The following outlines the location of sensor pockets with respect to each Firebird solar system. Collector sensors should always be inserted to the flow side of the manifold. TZ58-1800 Heat Pipe Solar Collector - sensor pocket located on left-hand-side of manifold.
- Page 31 When passing the pipes through the roof structure, suitable flashing material must be used. The installer must ensure that a weatherproof seal is made between the pipes, flashing and roof. Firebird offers a number of roof flashing options as shown below: Glidevale G1 roof vent...
- Page 32 (up to 200˚C). Solar Water Storage Cylinders Firebird offer a range of solar twin coil unvented cylinders that have been designed specifically for solar applications. A special open vented triple coil cylinder is also available.
- Page 33 INSTALLATION Installing the Solar Pump Station The Firebird Envirosol solar system is managed by a twin-line solar pump station and solar differential controller. The pump station comes with a solar circulating pump with a 6m head and contains the most important functional and safety components required for a solar system, namely: •...
- Page 34 Lightning protection Installing Firebird solar panels will not increase the risk of lightning, causing damage to property. Solar panels in general, are fitted below the level of the ridge tiles and the chimney. Property situated in areas that may be vulnerable to lightning will more than likely have lightning conductors installed.
- Page 35 INSTALLATION The Firebird solar controller ensures the efficient operation of the solar system, managing the efficient transfer of the solar energy from the collectors to the water storage tank. The controller is easy to use and displays key system data at the touch of a button. The controller LCD has a basic system diagram to explain the information being displayed such as: •...
- Page 36 INSTALLATION Controller settings The Firebird solar controller is factory-set and there should be little need to change system settings. Factory settings for key parameters are: Parameter Description Factory setting DT 0 Switch ON temp. differential 6˚C DT F Switch OFF temp. differential 4˚C...
- Page 37 INSTALLATION • The connection for the expansion vessel must be on the RETURN line, stepped off the pump station. • The expansion vessel must always be placed 500mm or more BELOW the pump station. • If it is not possible to position the expansion vessel below the level of the pump station, an intermediary vessel should be installed between the pressure vessel and pump station.
-
Page 38: Commissioning
COMMISSIONING 10.0 COMMISSIONING NOTE: The solar system should be filled and commissioned as soon as possible after installation to avoid any unnecessary heat build up in the collectors. If there is a delay with the commissioning of the solar system, the collectors must be covered with a suitable weather and UV-proof cover. 10.1 Filling the Solar Circuit WARNING: filling the solar system should only be carried out in low light with the... -
Page 39: Maintenance And Service
To ensure the optimum transfer of solar energy from the collectors to the storage tank, the correct flow rate for the solar circuit needs to be used. Firebird recommends a flow rate of between 0.5 to 1.5 l/min per m2 of aperture. -
Page 40: Spare Parts
FIXING OPTIONS PITCHED ROOF All Firebird solar collectors can be installed on a normal slate or tiled roof using our weather-proof aluminium mounting frame kits. Mounting kits are constructed from robust materials and come with easy to follow instructions. Mounting kits for CPK7210-N Flat Plate collectors and CVSKC-10 Vacuum Tube collectors are available for double and single collector configurations. - Page 41 (boiler) will heat the hot water via the upper coil. Firebird water storage tanks are built from premium quality stainless steel and include an electric immersion as standard.
- Page 42 DESCRIPTION SOL001ELB 1" Male to 22mm Compression Fitting - for CPK7210-N Flat Plate Collector SOL001FEM 1" Female to 22mm Compression Fitting - for CPK7210-N Flat Plate Collector SOL075ELB 3/4" Male to 22mm Compression Fitting - for CVSKC-10 Vacuum Tube Collector SOL075TAP 3/4"...
-
Page 43: Firebird Solar Warranty
Our Warranty Policy Firebird offers 5 years warranty on the solar collectors - flat plate and vacuum tube -from date of installation, provided installation has occurred within 12 months from date of purchase. Firebird offers 2 years warranty on all other solar system components from date of installation, provided installation has occurred within 12 months from date of purchase. - Page 44 Photographs, Illustrations & Specifications. This catalogue was correct at the time of going to print. However, Firebird’s policy is one of continuous development. The right is reserved to change specifications, colour, and prices of the models and items illustrated and described in this publication at any time. Whilst every care has been exercised in the production of this catalogue, Firebird cannot accept any liability for errors or omissions.
