Tornado
Operation & Maintenance Manual
For Commercial Use Only
L2460P 4/01 2001 Tornado Industries
Headmaster
Internal Filter Vacuum
97050 (115V, 18 GAL.)
97051 (230V, 18 GAL.)
97475 (115V, Head Only)
Model 7000 Series
MODEL NOS.
All rights reserved.
TORNADO INDUSTRIES
7401 W. LAWRENCE AVENUE
CHICAGO, IL 60706
(708) 867-5100 FAX (708) 867-6968
www.tornadovac.com
Advertisement
Table of Contents
Related Manuals for Tornado Headmaster 97051
Summary of Contents for Tornado Headmaster 97051

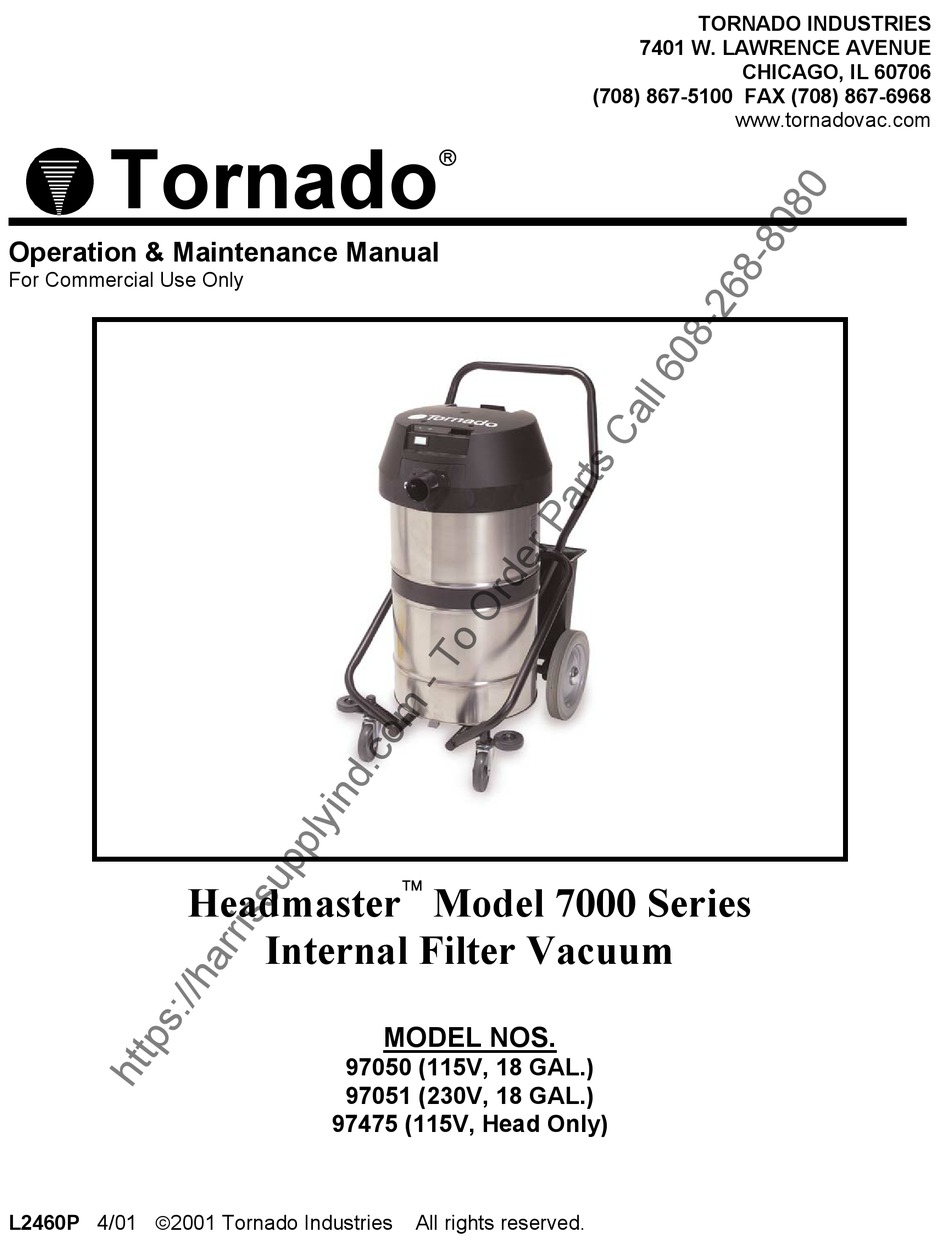

- Page 1 Tornado Operation & Maintenance Manual For Commercial Use Only Headmaster Model 7000 Series Internal Filter Vacuum MODEL NOS. 97050 (115V, 18 GAL.) 97051 (230V, 18 GAL.) 97475 (115V, Head Only) L2460P 4/01 2001 Tornado Industries All rights reserved.
- Page 2 NOTES...
- Page 3 S t a n d a r d W a r r a n t y P r o g r a m * 10 Years: All plastic tanks and rotationally-molded bodies Warranties cover 2 Years: components subject to normal Parts on all Tornado and Tornado/Karcher wear or abuse and misuse, and 1) 2) have other limitations cleaning equipment specified here.
-
Page 4: Important Safety Instructions
Do not use to pick up flammable or combustible liquids, such as gasoline or use in areas where they may be present. Before operating your TORNADO equipment make sure the voltage and current used are the same as indicated on the nameplate. -
Page 5: Importantes Mesures De Sécurité
IMPORTANTES MESURES DE SÉCURITÉ L’UTILISATION D’UN APPAREIL ÉLECTRIQUE DEMANDE CERTAINES PRÉCAUTIONS: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER CET APPAREIL AVERTISSEMENT. POUR RÉDUIRE LES RISQUES D’INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURE: Ne brancher qu’à une prise de courant avec mise à la terre. Voir les instructions visant la mise à la terre. Ne pas laisser l’appareil sans surveillance lorsqui’il est branché. -
Page 6: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment - grounding conductor and grounding plug. -
Page 11: Parts List
PARTS LIST 7000 SERIES VACS - HEAD ASSEMBLY PART ITEM DESCRIPTION 17419 Screw-Phil.Rnd.Hd. #10-24 x 1/2" (Nylon) 17335 Cover-Vac. Head 17427 Panel 17344 Receptacle 17349 Screw-Phil.Flat Hd. #6-32 x 1/2" 01246 Lockwasher-(H/S) #6 00616 Nut-Finished Hex. #6-32 17342 Switch-Rocker, D.P.S.T 20A/125-277 Vac/1-1/2HP 17471 Base Assembly 03105... - Page 13 ITEM DESCRIPTION 03261 Screw-Pan.Hd. #10-32 x 3/8" 17823 Pivot Block-T/P Carrier 01995 Screw-Phil.Pan.Hd. #10-24 x 7/8" 17822 Tank Strap 30817 Decal-Tornado w/ Logo 14676 Decal-Tank 03660 Screw-Phil.Pan.Hd. #10-24 x 7/16" 01978 Screw-Phil.Pan.Hd. 1/4-20 x 1-1/2" 03264 Wheel-3" Dia. 17400 Spacer-1/4"...
