ACCESS/A

AUDIO CONTROL

SYSTEM

MODEL: A711 L-Series

Installation Manual

TiL Document No.

09RE416

Rev. A

May, 2012

Technisonic Industries Limited

240 Traders Boulevard, Mississauga, Ontario L4Z 1W7

Tel: (905) 890-2113 Fax: (905) 890-5338

www.til.ca

Technisonic Industries ltd.

Table of Contents

Need help?

Do you have a question about the A711 L-Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Technisonic Industries Limited A711 L-Series

Page 1: Installation Manual
ACCESS/A AUDIO CONTROL SYSTEM MODEL: A711 L-Series Installation Manual TiL Document No. 09RE416 Rev. A May, 2012 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED...
Page 2 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A REVISIONS Revision Page Description Date Approved 2-11 Fig. 2-9 Updated for PA Pin corrections May 22, 2012 WS2/SM 2-19 Installation drawing corrected for PA pins May 22, 2012 WS2/SM 2-20 Fig. 2-13 Connector Map corrected for PA...
Page 3 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and work at a static-safe workstation when handling internal printed circuit boards. WARRANTY INFORMATION The Model A711L Audio Controller is under warranty for one year from date of purchase. Failed units...
Page 4: Table Of Contents
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A TABLE OF CONTENTS TiL DOCUMENT 09RE416 SECTION 1 GENERAL DESCRIPTION Introduction ......................... 1-1 Description ........................1-1 Purpose of Equipment ....................1-2 Model Variations ......................1-2 Technical Summary ....................1-5 System Limitations ...................... 1-7...
Page 5 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A LIST OF TABLES A711L General Specifications ..................1-4 LIST OF ILLUSTRATIONS A711L Audio Control - General View................1-3 A711L Outline Drawing ..................... 2-3 System Installation Drawings- Pilot/Co-Pilot Wiring............2-4 System Installation Drawings- COM1-COM4 Wiring ............2-5 System Installation Drawings- COM5-NAV1 Wiring ............
Page 6: General Description
GENERAL DESCRIPTION INTRODUCTION This publication provides operating and installation information on the Model A711 L-series, ACCESS/A Audio Controls manufactured by Technisonic Industries Limited. For convenience, it is referred to as the “A711L” in the manual. This unit is designed to provide high performance cockpit audio control in high noise installations.
Page 7: Purpose Of Equipment
Units may also be supplied with or without internal 3-tone alerting (w/ground- seeking keylines). See the ACCESS/A price list for model numbers and availability or different versions. All A711 L-series part numbers begin 961072, followed by a dash number. The most common variations are summarized below:...

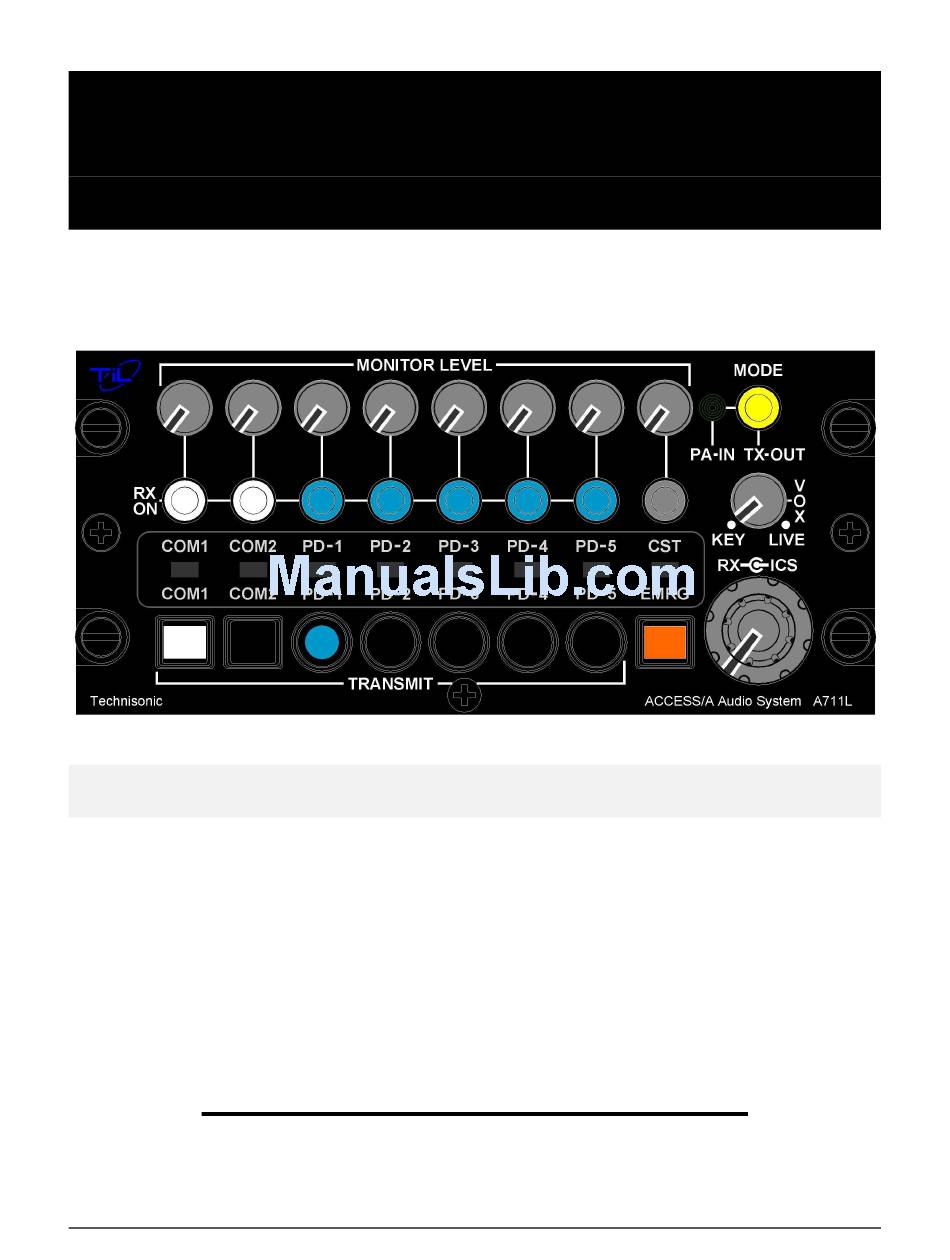

Page 8 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A FIGURE 1-2 A711L ACCESS/A AUDIO CONTROLLER - GENERAL VIEW Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED 1- 3...
Page 9: Technical Summary
TECHNICAL SUMMARY A summary of the relevant electrical, operational, mechanical and physical characteristics of the control panels are given in Table 1-1, General Specifications. TABLE 1-1 A711 L-Series GENERAL SPECIFICATIONS MODEL A711L-Series - ACCESS/A Audio Controller: PHYSICAL CHARACTERISTICS: Width (max.)..........................5.75 inches Height (max.)........................2.625 inches...
Page 10 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A 1.6.1 Power Limitations With Standard Set-up, which consists of six headsets connected, a power output of not less than 332 mW is delivered per headset (as represented by 150 ohms) provided that the Direct Alert Input is terminated in not less than 600 ohms and that nominal input voltages are applied at the applicable channel inputs.
Page 11 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A 1.6.4 Isolation Limitations When in Pilot Isolation Mode, the pilot microphone for ICS operation is rendered inactive. Consequently, neither co-pilot nor passengers can receive pilot intercom transmissions while the latter is in Isolation mode.
Page 12: Installation Instructions
INSTALLATION INSTRUCTIONS GENERAL This section contains information and instructions for the correct installation of the A711 L-Series, ACCESS/A Audio Controllers. For convenience they are referred to as A711L in the manual. Make certain that the unit is correctly operating in accordance with the equipment user's requirements and manufacturer’s specifications, prior to releasing the equipment for service.
Page 13 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A ACCESS/A AUDIO PANEL INSTALLATION The A711L ACCESS/A Audio Controls are designed to be Dzus mounted and should be installed in conjunction with an IN-A711L installation connector kit. See Figure 2-1 for an outline drawing of the units with dimensions, to facilitate the installation.
Page 14 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A FIGURE 2-1 Outline Drawing for Model A711L ACCESS/A Audio Controller Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED 2- 3...
Page 19 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Figure 2-6 NAV6-NAV8 / CST / MUSIC WIRING Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED 2- 8...
Page 23 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Figure 2-10 DIRECT INPUT/SPECIAL FUNCTION WIRING Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED 2- 12...
Page 25 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Figure 2-12 SPECIAL 6-PLACE PASSENGER WIRING Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED 2- 14...
Page 26: Kit Contents
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A 2.4.1 PASSENGER HEADSET CONSIDERATIONS The A711L has the ability to drive passenger ICS in both PTT or VOX modes, but you must consider this: Loose passenger headsets lying in the cabin MUST be properly accounted for. If the headsets are wired in directly, the loose headsets will be a continual source of intercom noise, rattling around the cabin.
Page 27 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A INSTALLATION - PIN LOCATIONS AND CONNECTIONS The pin numbers and locations for the connectors located on the rear of the A711L ACCESS/A Audio Control are shown in the following tables. Mating DD50S...
Page 28 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Mating DC37S Top Connector J201 DC37P Cable Connector: (37 Pin Female) J201 Connector Pin Assignments RX Connector High Connection Notes ICS Node ICS Tie Line Between Units SUM Node Input For connection to A770...
Page 29 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Mating DA15P Top Connector J202 DA15S Cable Connector: (15 Pin Male) Note: this is the only male cable connector on the control J202 Connector Pin Assignments Headset Connector Connection Notes Pilot’s H/S Audio...
Page 30 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Mating DA15S Bottom Connector J102 DA15P Cable Connector: (15 Pin Female) J102 Connector Pin Assignments Alerting Connector High Connection Notes Alternate alerting input (disables Alert Audio Input (Internal Jumper tone system if jumper selected)
Page 31: Headphones
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Figure 2-13 Full A711L Connector Map (view from mating connector wiring side) HEADPHONE INSTALLATION The A711L ACCESS/A Audio Controls are intended for use with industry standard 150/600 ohm headphones. There is also provision for connection to an 8 ohm (minimum impedance) speaker, for a supplemental cabin speaker output.
Page 32: Ptt
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A MICROPHONE INSTALLATION All microphone connections to the A711L must be done with shielded cables. The inputs are intended for use with standard “carbon-equivalent” or amplified dynamic Microphones (such as the D/C M1, M4 M7, etc.). Shielded, twisted pair routing is strongly preferred for lowest noise pick-up, but single conductor shielded wiring generally gives adequate results in non-critical or single box installations, although noise floor and cross-talk will increase.
Page 33: Annunciator Dimming
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A ANNUNCIATOR DIMMING 2.12 The lighted annunciators (Radio Selected, TX status) can be operated in three ways. First, they can be run at their fixed intensity at all times, this is done by jumpering J102 Pin 6 (Day/Night Dim I/P) to J101 Pin 17 (28V Input Power).
Page 34: Post Installation Adjustment Locations
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Rear Tone Alerts Adjustments Side RX/TX Adjustments Side Lighting/CST/Aux Adjustments Top PA Adjustments 2.14 POST-INSTALLATION ADJUSTMENT LOCATIONS Technisonic Industries ltd. Copyright 1996, 97, 2010, 2011 BY TiL ALL RIGHTS RESERVED 2- 23...
Page 35: Post Installation Adjustments
ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A 2.15 POST-INSTALLATION ADJUSTMENTS After installation, the A711L may require adjustment of some functions to compensate for airframe and equipment specific issues, and to suit user tastes. Locations of these adjustments are as shown in section 2.14.
Page 36 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A J201 (above) may be removed to make these adjustments Back - Alerting Adjustments Adjustment Name Location Procedure/purpose Notes Back Adj. for comfortable alert level, Too sensitive will Alert Level controls both direct input (option) increase noise floor.
Page 37 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Side Lighting/CST/Aux Adjustments Location Procedure/purpose Notes Adjustment Name R/H Side Sets low frequency cut-off (BASS) Not normally a field setting. ICS Low Cut of ICS audio. Useful for removing very high levels of cabin low frequency noise on the intercom.
Page 38 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Side RX/TX Adjustments Adjustment Name Location Procedure/purpose Notes L/H Side Sets mute level of RX audio during Preset for 6dB at mid- RX Mute Depth Upper TX operations. (Sidetone) volume control. Set to other...
Page 39 ACCESS/A A711 L-Series Installation Manual 09RE416 REV. A Unit modifications that can be set in the field during installation: Internal, removable jumpers may be set for the following items (DEFAULT is BOLD): Main RX Board PILOT HEADSET Impedance: 150/600 or 8/20 ohms...
Page 40: 2.16 Product Warranty Terms
Tel: (905) 890-2113 Fax: (905) 890-5338 IMPORTANT! PRODUCT WARRANTY All communication equipment manufactured by Technisonic Industries Limited is warranted to be free of defects in Material or Workmanship under normal use for a period of one year from Date of Purchase by the end user.
