ACCESS/A
AUDIO CONTROL
TM
SYSTEM
MODEL: A740
Installation and
Operating Instructions
TiL Document No. 98RE238
Rev. 1.3
SEPT 2002
Technisonic Industries Limited
240 Traders Blvd, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
3840 East Robinson Road, Suite 214, Amherst, New York 14228
Tel: (716) 691-0669
Advertisement
Table of Contents
Related Manuals for Technisonic Industries Limited ACCESS/A A740
Summary of Contents for Technisonic Industries Limited ACCESS/A A740
-
Page 1: Operating Instructions
Installation and Operating Instructions TiL Document No. 98RE238 Rev. 1.3 SEPT 2002 Technisonic Industries Limited 240 Traders Blvd, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 3840 East Robinson Road, Suite 214, Amherst, New York 14228 Tel: (716) 691-0669... - Page 2 98RE238 ACCESS/A A740 - Installation Instructions REVISIONS Revision Page Description Date Approved Changed headers on all sections to match 27 OCT 98 Added dimensions & weight to specs 30 MAY 00 Change operating high temperature limit Update Table Of Contents...
-
Page 3: Warranty Information
98RE238 ACCESS/A A740 - Installation Instructions CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and work at a static-safe workstation when handling internal printed circuit boards. WARRANTY INFORMATION The Model A710 Audio Controller is under warranty for one year from date of purchase. Failed units... - Page 4 98RE238 ACCESS/A A740 - Installation Instructions TABLE OF CONTENTS TiL DOCUMENT 98RE238 SECTION 1 GENERAL DESCRIPTION Introduction........................1-1 Description ........................1-1 Purpose of Equipment....................1-2 Model Variations......................1-2 Technical Summary..................... 1-3 SECTION 2 INSTALLATION INSTRUCTIONS General........................2-1 Equipment Packing Log ....................2-1 Wiring Requirements....................
- Page 5 ACCESS/A A740 - Installation Instructions 98RE238...
- Page 6 ACCESS/A A740 - Installation Instructions 98RE238...
- Page 7 ACCESS/A A740 - Installation Instructions 98RE238...
- Page 8 ACCESS/A A740 - Installation Instructions 98RE238...
- Page 9 ACCESS/A – A740 INSTALLATION MANUAL 98RE238...
- Page 10 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 • • • • • • • • • • • • • • • • • • 1. This manual. 2. Warranty registration card.
-

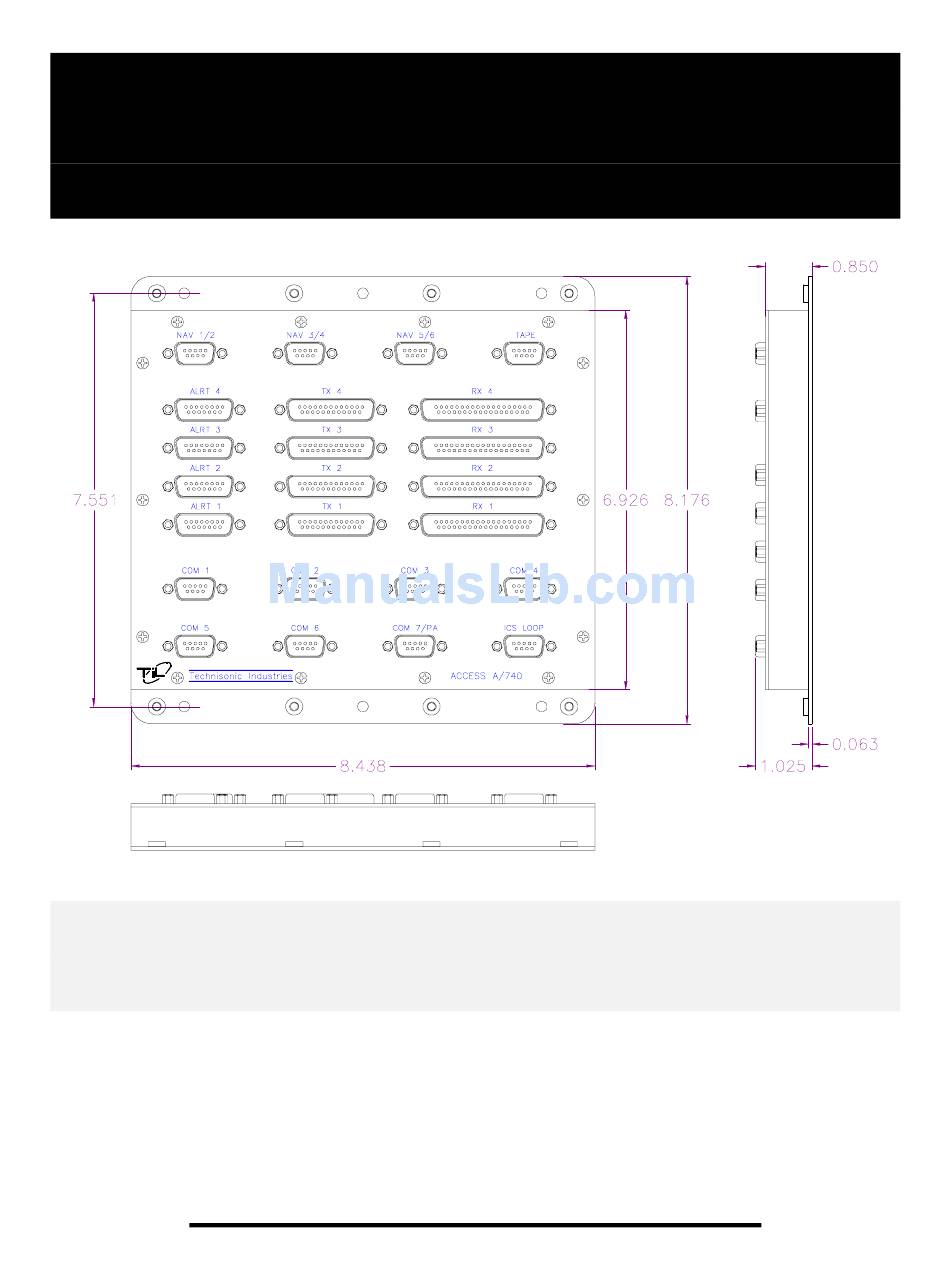

Page 11: A740 Interconnect Patch Bay
ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay • • • • • • These definitions are NORMALLY used with the A740: J2001, J3001, J4001 Pilot’s Position J2002, J3002, J4002 Co-Pilot’s Position J2003, J3003, J4003 Rear Station (or J4003 may be used for alerting/Nav inputs) J2004, J3004, J4004... - Page 12 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 IMPORTANT! Plugs may be interchanged for testing or other operations without damage, but the mapping of ICS Tie signals will be affected at connector J1008 as these cables are moved to other stations. Likewise, radio plugs may be changed for trouble-shooting purposes, but the mapping to specific switches on a control station will then be changed.
- Page 13 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay RX Connector J2001 through J2004 DC37S Mating Cable Connector: DC37P (37 Pin Male) J2001J Connector Pin Assignments RX Connector 2004 High Connection Notes ICS Node ICS Tie Line Between Units Can be used for additional Sum Line need NOT brought out to Shield grounds, if required.
- Page 14 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay TX Connector J3001 through J3004 DB25S Mating Cable Connector: DB25P (25 Pin Male) J3001-3004 TX Connector Pin Assignments ACCESS/A System Connection Notes COM 7/PA TX Mic Out COM 6 TX Mic Out COM 5 TX Mic Out COM 4 TX Mic Out COM 3 TX Mic Out...
-
Page 15: Connector Pin Assignments
ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay TX Connector J4001 through J4004 DA15S Mating Cable Connector: DA15P (15 Pin Male) J4001 Connector Pin Assignments Alerting Connector J4004 High Connection Notes Possible alerting connections Alert 1 (in) Active when grounded. Accepts +28VDC. - Page 16 ACCESS/A – A740 INSTALLATION MANUAL 98RE238...
-
Page 17: Transceiver Connector
ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay Radio (Transceiver) Connectors J1001 through J1007 DE9P Mating Cable Connector: DE9S (9 Pin Female) J1001 Connector Pin Assignments Transceiver Connector J1007 High Connection Notes Always use both lines. RX Audio Connect 2 &... - Page 18 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay ICS Connector J1008 DE9S Mating Cable Connector: DE9P (9 Pin Male) J1008 Connector Pin Assignments ICS Connector High Connection Notes Route to A770 (rear position). Or: J2003 & 2004 ICS Line (rear stations) Jumper 1, 2, &...
- Page 19 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay Radio (Receiver) Connectors J1009 through J1011 DE9P Mating Cable Connector: DE9S (9 Pin Female) J1009 Connector Pin Assignments RX Connector J1011 High Connection Notes Always use both lines. RX Audio A (odd numbered Nav) Connect 2 &...
- Page 20 ACCESS/A – A740 INSTALLATION MANUAL 98RE238 A740 Interconnect Patch Bay Tape Player Connector J1012 DE9P Mating Cable Connector: DE9S (9 Pin Female) with keying pin @ pin 3 J1012 Connector Pin Assignments RX Connector High Connection Notes Tape Player Left Audio Always use both lines.
