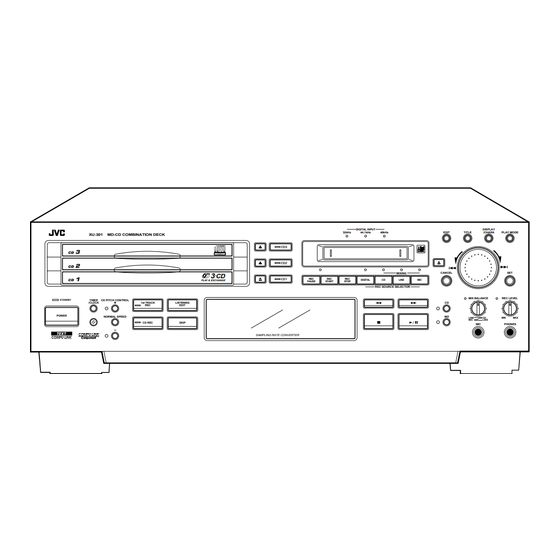

MD-CD COMBINATION DECK
PLATINE COMBINÉE MD-CD
XU-301BK
XU-301
MD-CD COMBINATION DECK
3
CD
2
CD
1
CD
STANDBY
TIMER
CD PITCH CONTROL
/CLOCK
POWER
NORMAL SPEED
3
CD
-
REC
PLAY & EXCHANGE
PAUSE
1st TRACK
LISTENING
REC
EDIT
CD REC
SKIP
SAMPLING RATE CONVERTER
INSTRUCTIONS
MANUEL D'INSTRUCTIONS
DIGITAL INPUT
DISPLAY
32kHz
44.1kHz
48kHz
EDIT
TITLE
/CHARA
PLAY MODE
CANCEL
SET
MIXING
REC
REC
DIGITAL
CD
LINE
MIC
START
STOP
REC SOURCE SELECTOR
MIX BALANCE
REC LEVEL
CD
MD
LINE
CD
MIN
MAX
MIC
LINE
MIC
PHONES
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0009-001B
[J]
Advertisement
Table of Contents
Related Manuals for JVC XU-301BK
Summary of Contents for JVC XU-301BK
- Page 1 MD-CD COMBINATION DECK PLATINE COMBINÉE MD-CD XU-301BK XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING EDIT POWER NORMAL SPEED CD REC SKIP INSTRUCTIONS MANUEL D’INSTRUCTIONS DIGITAL INPUT 32kHz 44.1kHz 48kHz EDIT TITLE CANCEL MIXING DIGITAL LINE PLAY &...
- Page 2 Warnings, Cautions and Others/Mises en garde, précautions et indica- tions diverses RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION “TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL” The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
Thank you for purchasing this JVC product. Please read these instructions through carefully before starting operation to ensure that you will derive the optimum performance and a long service life from your unit. Table of Contents BEFORE OPERATION Precautions ... 2 Features ... -
Page 4: Precautions
Precautions 1. Safeguarding against electric shocks, fire hazards and damage A very low current will still flow even when the POWER button is set at STANDBY. To save power and ensure safety when the unit is not going to be used for an extended period of time, disconnect the power cords from the household AC outlet. -
Page 5: Features
Features • 3CD + MD combination deck • CD-TEXT facility supported • Simultaneous copying of CD-TEXT characters (track titles, etc.) onto MDs • Input of CD disc titles and names of artists enabled • Full complement of input/output facilities including optical digital, LINE and MIC •... -
Page 6: Connections
• For further details on the COMPU LINK function, see page 50 . 2 (SLAVE UNIT) Optional connecting cord This is connected for synchro recording. COMPU LINK - 3 SYNCHRO XU-301BK MD-CD combination deck • When connected with TAPE input/output terminals of the amplifier or receiver MODE COMPU LINK - 3... -
Page 7: Digital Connections
Optional optical digital cable COMPU LINK - 3 TEXT COMPU LINK SYNCHRO 1 MASTER UNIT MODE MD TD 2 SLAVE UNIT VICTOR COMPANY OF JAPAN , LIMITED MADE IN JAPAN XU-301BK MD-CD combination deck... -
Page 8: Names Of The Parts
Names of the Parts CD Parts/Common Parts POWER button and STANDBY lamp (See page 11 ) This sets the power to ON from the OFF (standby mode), or vice versa. TIMER/CLOCK button (See pages 45 , 46 ) This is used for setting the clock and programming the timer. CD trays (trays 1, 2 and 3 from the bottom) These are opened and CDs placed on them. - Page 9 MD Parts MD recording control buttons and lamp (See page 28 ) • REC PAUSE: This is used to pause recording. • REC START: This is used to start recording. • REC STOP: This is used to stop recording. DIGITAL INPUT lamps (See page 28 ) These light according to the sampling frequency of the digital input signal.
-
Page 10: Using The Remote Control
Using the Remote Control Installing the dry batteries ——————————————————————————— 1 Slide open the cover. Remote control operations ——————————————————————————— The remote control has two sets of control panels: the regular control panel on the unit’s exterior, and the editing control panel which is revealed when the exterior panel is opened out. - Page 11 When installing the dry batteries, ensure that the markings. Do not drop the remote control or subject it to strong impact. In order to ensure that the remote control does not fail to operate, avoid operation under the following conditions: •...
- Page 12 Names of the buttons (editing control panel) ————————————————— Character input buttons (See page 43 ) These enables characters to be input directly when titles are to be given to a CD or MD. Upper/lower-case letter selector button (See page 43 ) •...
-
Page 13: Power On/Off Operations
Power ON/OFF Operations Power ON/OFF operations XU-301 MD-CD COMBINATION DECK PLAY & EXCHANGE STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING EDIT POWER NORMAL SPEED CD REC SKIP POWER button • To turn on the power Main unit Lamp goes out. STANDBY STANDBY POWER... -
Page 14: Listening To Cds
Listening to CDs Continuous Play (playing CD1, CD2 and CD3 through once each) XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK POWER NORMAL SPEED Example: When playing starting with CD1 1 Open the CD tray (by pressing the CD1 0 button). •... - Page 15 • Playing CDs using the 6 button • First set the function to “CD.” Stopping CD play ————————————————————— • Stopping play at any time • When the button on the left is pressed after the function has been set to “CD,” the track number and play time appear on the display.
- Page 16 CD PITCH CONTROL ———————————————————— The CD PITCH CONTROL buttons The CD play signals are output to any other device from DIGITAL OUT OPTICAL only when the play speed is set to NORMAL. Normally, NORMAL SPEED should be set. CD Text——————————————————————————— “CD Text”...
- Page 17 Direct Play (starting play from a spe- cific track) CD play can be started from a specific track by pressing the corresponding number button(s) on the remote control. 1 Press the CD button. 2 Press the number button(s). • To play a track from No.1 to No.10 Press the number button ( •...
-
Page 18: Skipping Tracks
Skipping Tracks • To skip to the previous or next track with this unit, turn the jog dial. With the remote control, tap the ¢ or 4 button once. When the operation is performed while the last track on the CD is playing, play moves on to the next CD. -
Page 19: Giving A Title To A Cd
Giving a title to a CD The CD can be given a title as well as the name of the artist and genre of music using up to 32 characters. XU-301 MD-CD COMBINATION DECK PLAY & EXCHANGE CD PITCH CONTROL STANDBY TIMER /CLOCK... - Page 20 5 Input the title (using up to 32 characters). To return to a previous character Example : Disc title • If the wrong character has been input, clear it using the CANCEL button. • The title of your choosing is input by repeating steps 4 and 5. To clear a particular character which has been input, use the 1 button to align the cursor with •...
-
Page 21: Disc Lock Function
List of Music Genres ———————————————————— Genre ADULT CONTEMPORARY ALTERNATIVE ROCK CHILDRENS MUSIC CLASSICAL CONTEMPORARY CHRISTIAN COUNTRY DANCE EASY LISTENING EROTIC FOLK GOSPEL HIP HOP JAZZ LATIN MUSICAL NEW AGE OPERA OPERETTA POP MUSIC REGGAE ROCK MUSIC RHYTHM EFFECTS SOUND EFFECTS SOUND TRACK SPOKEN WORD WORLD MUSIC... -
Page 22: Listening To Mds
Listening to MDs Playing all tracks XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK POWER NORMAL SPEED CD REC 1 Place the MD in position. • Place the MD with its label side facing up. When it is inserted in the direction shown by the arrow, the power turns on and the MD is automatically drawn inside. -
Page 23: Changing The Display In The Display Window
When the MD has been placed inside ——————————— Lamp lights. • To eject the MD Press the MD 0 button. “MD EJECT” appears in the display window, and the MD is ejected. display is cleared. The MD can be ejected even when the power is off. In this case, as soon as the MD is ejected, the power is automatically turned off. - Page 24 Keep MDs away from the following locations! Do not place or keep MDs in any of the following locations. • Any location exposed to direct sunlight, inside a car or wherever the temperature may increase to a very high level Such locations will warp the discs and render them unusable.
- Page 25 Skipping Tracks • To skip to the previous or next track with this unit, turn the jog dial. With the remote control, tap the ¢ or 4 button once. Main unit To skip to the start of the current or previous track Direct play cannot be initiated by pressing the ( of the number buttons (...
-
Page 26: Mix Program Play
MIX PROGRAM Play Up to 16 tracks can be programmed in programs 1, 2 and 3. Any tracks on the MD, CD1, CD2 and CD3 can be selected. XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING EDIT POWER... - Page 27 6 Repeat steps 4 and 5 (this procedure can be repeated for up to 16 tracks). • The tracks on the MD alone or only the tracks on the CDs can be programmed also. 7 Press the 6 button to start MIX PROGRAM play. •...
-
Page 28: Recording Onto Mds
5 Select and enter the track. 6 Repeat steps 4 and 5 (this procedure can be repeated for up to 16 tracks). • The tracks on the MD alone or only the tracks on the CDs can be programmed also. 7 Press the £... - Page 29 Adding track numbers ——————————————————— • Recording the numbers automatically With CD digital recordings, the numbers are added automatically following the numbers in the recording source. • Adding your own numbers (at any time except during synchro REC) When MANUAL is set using the TRACK MARKING button and the SET button on the main unit or remote control is pressed during recording, a number can be added exactly where desired.
-
Page 30: Manual Recording
Manual Recording XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK POWER NORMAL SPEED CD REC 1 Insert the recording MD. • Insert the MD with its label side facing up. Flashing 2 Establish the rec pause mode. •... -
Page 31: Cd Recording (Single-Action Recording)
When DIGITAL IN UNLOCK is scrolled and displayed, the OPTICAL IN connector is not connected to the source unit. In the case of an MD with some remaining space, the end of the last track recorded is automatically searched, and recording is commenced immediately. To record over all the existing tracks, erase all the tracks using the ALL ERASE function (see page 40 ), and then proceed with the new recordings. -
Page 32: Cd Recorfing (1St Track Recording)
• To stop the recording at any time Press the 7 (stop) button. The recording mode is released after “UTOC WRITING” is displayed. There is no need to adjust the recording level (for a digital recording). Recording is not possible while a CD or MD is playing. When the CD REC button is pressed, the function is automatically switched to “CD.”... -
Page 33: Cd Recorfing (Listening Edit Recording)
There is no need to adjust the recording level (for a digital recording). Upon completion of the MD recording, “UTOC WRITING” is displayed. Operating any button while this message is displayed may render the MD unusable. Always wait for “UTOC WRITING” to be cleared before proceeding with the next operation. This unit uses a microcomputer to perform a large number of operations. -
Page 34: Mixing Recording
When there is not much recording time left on the MD, the tracks which can be recorded are auto- matically searched (on all the CDs). When up to 32 tracks are programmed, recording starts from program 1. The same applies when the programming for all the CDs is completed. •... - Page 35 Flashing 3 Select two recording sources. • CD + LINE • CD + MIC MIXING • LINE + MIC LINE REC SOURCE SELECTOR • The lamps of the selected sources stop flashing and light. The other lamp goes off. • Since analog signals are recorded, the REC LEVEL and MIX BALANCE lamps light.
-
Page 36: Md Editing Functions
MD Editing Functions In addition to its recording and play functions, the MD part of this combination unit comes with editing functions. Recorded tracks can be joined, divided or erased exactly where required. Dividing tracks (DIVIDE function) This involves adding a track mark (see Note) at some point during the track which is to be made into the start of an additional track so that the original track is divided into two tracks. -
Page 37: Dividing Tracks (Divide Function)
Dividing tracks (DIVIDE function) XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING POWER NORMAL SPEED CD REC 1 Insert the MD to be edited, and set the function to “MD.” • The number of tracks and play time are displayed. EDIT 2 Select “DIVIDE.”... -
Page 38: Joining Tracks (Join Function)
EDIT 6 Press the EDIT button. • “EDITING” appears, and the track number is incremented by 1. The change is stored in the memory IC. • Play stops automatically. 7 Eject the MD. \ The editing mode is now exited. •... -
Page 39: Moving Tracks (Move Function)
5 Press the SET button. Example: When joining the second track EDIT 6 Press the EDIT button. • “EDITING” appears, and the track number is decremented by 1. The change is stored in the memory IC. • Play stops automatically. 7 Eject the MD. - Page 40 4 Select the track to be moved. 1 Select the track. 2 Enter the track selection. • When the track to be moved is selected using the number button on the remote control corre- sponding to the track number, the track is played directly. 5 Select the destination to which the track is to be moved.
-
Page 41: Erasing A Track (Erase Function)
Erasing a track (ERASE function) XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING POWER NORMAL SPEED CD REC 1 Insert the MD to be edited, and set the function to “MD.” • The number of tracks and play time are displayed. EDIT 2 Select “ERASE.”... -
Page 42: Erasing All The Tracks (All Erase Function)
7 Eject the MD. \ The editing mode is now exited. • After “UTOC WRITING” is displayed, the MD is ejected. • The data in the memory IC has been recorded on the MD. The editing mode can also be exited by pressing the POWER button in step 7 to turn off the power. Once a track is erased, the recording cannot be restored. -
Page 43: Giving Titles To Discs And Tracks (Title Function)
5 Eject the MD. \ The editing mode is now exited. • After “UTOC WRITING” is displayed, the MD is ejected. • The data in the memory IC has been recorded on the MD. The editing mode can also be exited by pressing the POWER button in step 5 to turn off the power. To stop the ALL ERASE operation at any time Press the EDIT button. - Page 44 4 Select the type of characters to be used for the title. Each time this is pressed, the character type changes. (The input characters appear in the display window.) For details, refer to the character layout table on page 44 . 5 Input the title (using up to 32 characters).
- Page 45 Editing operations using the remote control Buttons bearing the same markings as those on the main unit function in exactly the same way as their main unit counterparts. This section describes how to use the buttons on the remote control which are not provided on the main unit.
-
Page 46: Character Layout Table
Character Layout Table This unit enables the titles of the album and tracks to be written for the disc and tracks which have been recorded. The characters which can be used for this purpose are shown below. Upper-case letters A B C D E F G H K L M N O P Q R S T... -
Page 47: Setting The Clock
Setting the Clock Setting the Present Time (to be performed when the unit is to be used for the first time) XU-301 MD-CD COMBINATION DECK PLAY & EXCHANGE STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING EDIT POWER NORMAL SPEED CD REC SKIP •... -
Page 48: Timer Operations
• To ascertain the correct time Use the time display on your TV screen or call the speaking clock. • When a power failure has occurred or the power cord has been disconnected The time display is cleared, and the “ re-set the time by previous steps 1 and 2. - Page 49 3 Press the SET button. 4 Set the timer start time (this unit uses a 12-hour clock). Example: When timer play is to start at 7:15AM To put back the time To advance the time 1 Use the dial to align the “hour” display with “...
- Page 50 Timer Play (wake-up play) XU-301 MD-CD COMBINATION DECK STANDBY TIMER CD PITCH CONTROL /CLOCK POWER NORMAL SPEED Continued from page 47 (while “PLAY?” is flashing) 6 Press the SET button. • When “REC?” flashes, turn the jog dial to select “PLAY?” flashing. •...
-
Page 51: Timer Recording
Timer Recording (unattended record- ing of the sound from a broadcast re- ceiver or other component) XU-301 MD-CD COMBINATION DECK PLAY & EXCHANGE STANDBY TIMER CD PITCH CONTROL /CLOCK 1st TRACK LISTENING EDIT POWER NORMAL SPEED CD REC SKIP Continued from page 47 (while “PLAY?” is flashing) 6 Select “REC?”... -
Page 52: Compu Link Function
CD combination Amplifier CD player The COMPU LINK functions provided with JVC’s products come in the form of COMPU LINK-3 or COMPU LINK-1. They are compatible, and the difference between them is that COMPU LINK-3 has the functions of COMPU LINK-1 and some additional functions as well. -
Page 53: Text Compu Link Control System
Connection to CD player or CD changer (refer to page 4 and 5 ) This unit can record CD TEXT information onto an MD when it is directly connected to a CD changer made by JVC which supports the TEXT COMPU LINK function. The optical digital cables are used for this connection. -
Page 54: Information On The Mds (Minidiscs)
Information on MDs (Minidiscs) This is a new digital audio disc format: it has a diameter of 64 mm and enables up to 74 minutes of playback and recording. Function of the cartridge The diameter of the actual disc is 64 mm, making it slightly smaller than CD singles. -
Page 55: Md (Minidisc) Error Messages
MD (Minidisc) Error Messages Error message MD BLANK DISC CANNOT JOIN DISC ERROR DISC FULL DISC PROTECTED EMERGENCY STOP MD NO DISC NON AUDIO CANNOT COPY PLAYBACK DISC TRACK PROTECTED SCMS CANNOT COPY Significance An MD with nothing recorded on it has been inserted. -
Page 56: Restrictions Imposed By Mds (Minidiscs)
Restrictions Imposed by MDs (Minidiscs) MDs use their own system to record information which is different from conventional cassette tapes and DAT tapes. This system has a number of restrictions which sometimes give rise to the following symptoms. These symptoms do not, however, indicate that something is wrong with the product. -
Page 57: Troubleshooting
Troubleshooting Symptom No sound. • An MD with nothing recorded on it has been inserted. (“BLANK DISC” is displayed.) The time display flashes in the • A power failure has occurred or the power display window. cord has been disconnected. Play fails to start •... -
Page 58: Main Specifications
Main Specifications CD Player Section Error correction system CIRC Number of channels 2 Total harmonic distortion (1 kHz) 0.009% Dynamic range (1 kHz) 90 dB Signal-to-noise ratio 94 dB Frequency response 8Hz ~ 20 kHz MD Recorder Section Recording system Magnetic field modulation overwrite system Signal readout system Non-contact optical system using semiconductor laser ( = 780nm) Sound compression system ATRAC system Number of channels 2... - Page 59 VICTOR COMPANY OF JAPAN, LIMITED 0298IMMIDESAN EN,FR...
