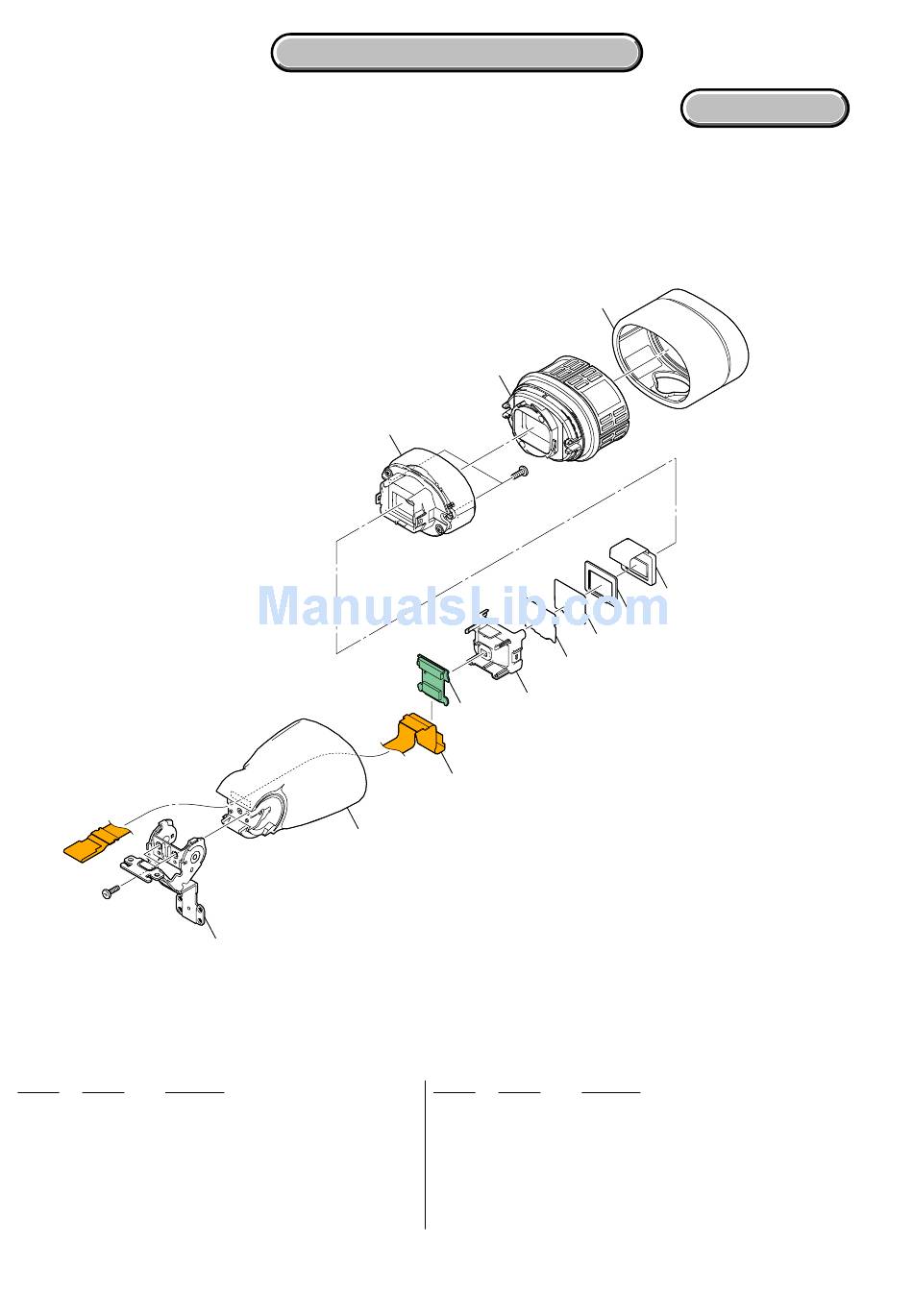

5-1-11. EVF BLOCK

#53
Ref. No. Part No. Description
501 X-2159-325-1 HOLDER ASSY, VF PANEL
502 X-2159-324-1 FINDER ASSY
503 2-892-122-01 CUSHION, VF PANEL
504 2-633-596-01 SHEET (1), VF PRISM
505 2-633-595-01 SHEET (2), VF DIFFUSION
506 2-892-120-01 LAMP, VF HOLDER,
507 A-1217-213-A UU-003 BOARD, COMPLETE
HVR-V1J/V1U/V1N/V1E/V1P/V1C
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
501
509
510
511
502
#54
505
506
507
508
Ref. No. Part No.
508 1-870-123-11 FP-501 FLEXIBLE BOARD
509 X-2159-328-1 CABINET ASSY (D), VF
510 X-2159-326-1 TILT ASSY, VF
511 2-892-123-01 EYE CUP
LCD902 8-753-210-99 LCX068AK-1
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
#54 3-318-203-11 SCREW, TAPPING, P2 (Black)
5-12
HARDWARE LIST
LCD902
503
504
Description
