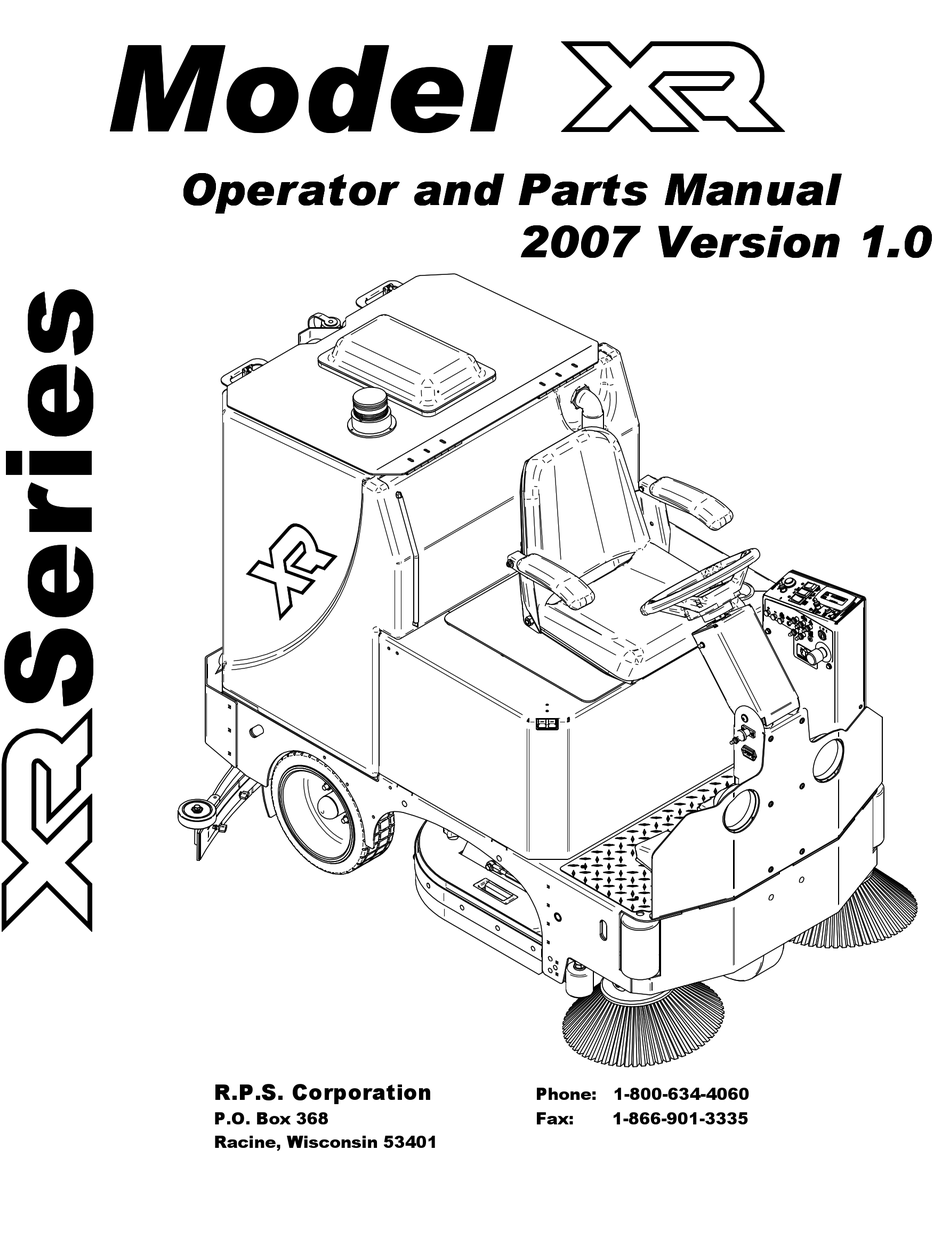

M M M M o o o o d d d d e e e e l l l l
Oper r r r a a a a t t t t o o o o r r r r a a a a n n n n d d d d P P P P a a a a r r r r t t t t s s s s Man
Ope
Ope
Ope
R.P.S. Corporation
P.O. Box 368
Racine, Wisconsin 53401
Man
Manu u u u a a a a l l l l
Man
2 2 2 2 0 0 0 0 0 0 0 0 7 7 7 7 V V V V e e e e r r r r s s s s i i i i o o o o n n n n 1 1 1 1 . . . . 0 0 0 0
Phone: 1-800-634-4060
Fax:
1-866-901-3335
Advertisement
Table of Contents
Troubleshooting
Related Manuals for RPS XR
Summary of Contents for RPS XR
- Page 1 M M M M o o o o d d d d e e e e l l l l Oper r r r a a a a t t t t o o o o r r r r a a a a n n n n d d d d P P P P a a a a r r r r t t t t s s s s Man Manu u u u a a a a l l l l 2 2 2 2 0 0 0 0 0 0 0 0 7 7 7 7 V V V V e e e e r r r r s s s s i i i i o o o o n n n n 1 1 1 1 .
-
Page 2: How To Use This Manual
The SAFETY section contains important information HOW TO USE THIS MANUAL regarding hazard or unsafe practices of the machine. Levels of hazards are identified that could result in product This manual contains the following sections: or personal injury, or severe injury resulting in death. - HOW TO USE THIS MANUAL The OPERATIONS section is to familiarize the operator with the - SAFETY... -
Page 3: Table Of Contents
Table of Contents Machine parts illustration Machine Information Page 1 Front wheel drive Page 42-43 Machine delivery form Page 2 Side brooms (optional) Page 44-45 Machine specifications Page 3 Front wheel side brooms and rollers Page 46-47 Common wear parts/scrub brushes Page 4 Disk deck Page 48-49... -
Page 4: Machine Information
This operator and parts manual should be considered a permanent part of the unit and should remain with the unit at all times. This operator and parts manual covers all the XR series scrubbers. You may find descriptions and features that are not on your particular model. The information and specifications included in this publication were in effect at the time of printing. - Page 5 R.P.S. CORPORATION P.O. BOX 368 RACINE, WI 53401 PHONE: 800-634-4060 Dealer: __________________________ Installed By: ______________________ Location: (City, State)_______________ Install Date: ______________________ Customer Information Name:________________________ Contact: _________________________ Address:_________________________ City/State:__________________Zip______ Phone Number :___________________ Fax Number: _____________________ Model Number:___________ Serial Number:______________ Hour Meter:____________ Squeegee Size:__________ Squeegee Material: Gum Linatex Neoprene...
- Page 6 Model BODY CONSTRUCTION/DIMENSIONS Tank Material: Poly (3/8” thick) Frame Construction: 7-gauge (3/16” steel) Rear Wheels (diameter x width): 14” x 5” Drive Wheel (diameter x width): 12” x 4” Size (L x W x H): 69” x 36” x 59” Weight: 1,230 pounds Weight (w/batteries):...
-
Page 7: Common Wear Parts/Scrub Brushes
# # 422W Light White *Extra pad driver retaining clip: 40-433 Brush repair kit: 40-423 replacement locating clip for all disk brushes Squeegee kits Size Gum Rubber Linatex XR-34D and XR-34C 53" 370-770G 370-770L XR-40D and XR-40C 53" 370-770G 370-770L XR-46C 60"... -
Page 8: Safety Messages
Safety Message Your safety, and the safety of others, is very important, and operating this unit safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other safety information in the manual. This information informs you of potential hazards that could hurt you or others. -
Page 9: Safety Precautions
!! Safety Precautions!! Warning: Always use the charger provided by the Hazardous voltage. Shock, burns or Warning: manufacturer to charge the machine. It is an electrocution can result. Always disconnect the automatic charger, specifically designed to charge batteries before servicing machine. at the appropriate rate. -
Page 10: Machine Controls And Features
Machine Controls and Features 33 34 31 32 PAGE 7... - Page 11 Controls and Functions 1. Steering wheel: Steers the machine. Your machine is equipped with an adjustable seat with arm rests. 2. Adjustable seat with arm rests: Latch must be secured for recovery tank to seal properly. 3. Recovery tank lid: Helps prevent damage to machine and objects you may drive close to.
-
Page 12: Lcd Screen Menu Displays
LCD Screen Menu Displays SCREEN # 1 (Operator) SCREEN #3 (Maintenance) SCREEN W/ERROR CODE ***Use green menu selection button on control panel to change screens*** - Indicates the energy level remaining in the batteries. (Shown on all menu displays) Battery level indicator - Sets the down pressure on the brushes. -
Page 13: Machine Setup
Machine Setup Uncrating Machine and Connecting Batteries 1. Carefully check the crate for any signs of damage. Batteries are in the unit. 2. To uncrate the machine, remove banding from around the crate. Take off the top and sides and dispose of properly. 3. -
Page 14: Attaching Squeegee
Removing Squeegee Attaching Squeegee 1. Lower the squeegee mounting plate by 1. With the squeegee in the down position, turn depressing the squeegee switch to the key switch off & remove key. down positio (See picture below) 2. Disconnect vacuum hose from squeegee and loosen the (4) knobs. -
Page 15: Adjusting Squeegee
Adjusting Squeegee 1. Turning adjustment knob clock-wise (Tightening) will raise tips & lower center. (See picture to the left) 2. This squeegee is adjusted too far back and will not pick up on the corners. Note tips of the blades are off the floor. (See picture to the left) 3. -
Page 16: Leveling Scrub Deck
Leveling Scrubdecks Leveling Disk Scrubdeck 1. Drive machine to a flat level surface and turn machine off. (See picture to the left) 2. Deck should be raised off the floor. 3. With the shrouds off, measure from the ground to a parallel surface on all four corners of the Measure from Measure from scrubdeck. - Page 17 Attaching Disk Brushes/Pads 1. Turn "on" machine power. 2. Raise the scrub deck by depressing the brush switch to the position and turn ("0") machine power "off". Disconnect batteries. (See picture to the left) 3. Loosen knobs and remove shrouds to access scrub deck (See picture to the left) 4.
-
Page 18: Adjusting Shrouds
Adjusting Shrouds 1. The shroud must be adjusted correctly in order to have proper water control during turns. the front of the shroud should be slightly higher than the rear. (See picture to the left) 2. To adjust shrouds loosen knobs remove shroud. -
Page 19: Adjusting Cylindrical Side Wipers
Adjusting Cylindrical Side Wipers 1. The cylindrical deck comes euipped with side wipers for increased water control when turning. (See picture to the left) 2. To adjust the side wipers, first loosen the locking nut , then turn the adjusting screw in to raise or out to lower the height of the side wiper blade. -
Page 20: Solution System
Solution System BOTH TANKS EMPTY ! STRAP 1. To access the items listed below, completely drain solution and recovery tanks (See picture to the left) I. Carefully tip the tank back until it is supported by the strap. II. Gate Valve DONT LAY III. - Page 21 Vac System 1. The "high recovery" light (A) ( red) will illuminate and the horn will sound when the recovery tank is full. Stop immediately and drain the recovery tank. (See picture to the left) 2. If the red light is ignored the vac motor will overheat.
- Page 22 Operation One pass scrubbing Pre-cleaning check list Steps: (see picture below) Read and understand the safety section on page 5 and 6 before operating machine. 1. Turn machine on with the key switch. 2. Lower squeegee by pressing the switch. 1.
-
Page 23: Double Scrubbing
Operation Double Scrubbing Vac Only Scrubbing Steps: (see picture below) Steps: (see picture below) 1. Turn machine on with the key switch. 1. Turn machine on with the key switch. 2. Lower scrub head to the floor, use the 2. Lower squeegee by pressing the switch. top half of the brush switch. - Page 24 Operating Hints 1. Observe the amount of solution the machine is dispensing on the floor and adjust to the desired flow. To increase the solution flow rate, push solution switch (A) + , to decrease push solution switch (A) - . (See picture to the left) 2.
- Page 25 Drain Recovery Tank Drain Solution Tank Always empty recovery tank when refilling the solution To drain left over cleaning solution from the solution tank, tank. To drain the recovery tank, perform the following perform the following steps. steps. 1. Pull the clear sight tube/drain hose off barbed fitting.
-
Page 26: Drain Saver
Recovery Tank Recovery Tank Drain Saver Float Shut-Off The recovery tank drain saver will help prevent the drain When water is no longer being vacuumed from becoming clogged with debris. from the floor and the vacuum fan is operating, the ball float has engaged the red 1. -
Page 27: Standard Battery Charging
Standard Battery Charging Charger Specifications Standard Charger Output voltage of 36 volts. (Standard) Caution: the following instructions are intended for the Output current of 36 amps max. (Standard) 36v charger supplied with the machine. Do not use Input voltage of 110 volts/60 Hz. (standard) any non OEM charger with this machine. -
Page 28: Optional Battery Charging
Optional Battery Charging On-Board Charger Charger Specifications Caution : the following instructions are intended for the 36v Output voltage of 36 volts. (optional) "optional" on-board charger . (See left middle picture) Output current of 30 amps max. Input voltage of 110 volts/60 Hz. Automatic shut off circuit. -
Page 29: On-Board Charger Operator Manual
On-Board Charger Operator Manual Charge Status LED's LCD Display Main Power Switch PAGE 26... - Page 30 On-Board Charger Operator Manual PAGE 27...
- Page 31 On-Board Charger Operator Manual PAGE 28...
-
Page 32: Changing Batteries
Changing Batteries Stop machine in a clean area next to the charger. Turn off machine. For safety: Before leaving or servicing the machine; stop on level surface, turn off machine and remove key. Use eye protection. 1. Tip back tank to expose batteries. 2. -
Page 33: Side Broom System
Side Broom System 1. Flip side broom switch (A) up to lower and 6. Picture below shows brooms to high. engage broom. (See picture below) 2. To adjust side broom height, loosen locking nut located behind screwhead of screw that is in front of scrubdeck just inside the side wall of frame on each side of the machine. -
Page 34: Overhead Guard
Machine options HD Side Doors Overhead Guard 1. Your machine may be equipped with an "optional" 1. Your machine may be equipped with "optional" "Overhead Guard" (A) that helps protect the operator "Heavy Duty Side Doors" (C) that helps protect the from falling objects that are above the operators head . -
Page 35: Spray Hose
Machine options Spray Hose Vac Wand Your machine may be equipped with "optional" Your machine may be equipped with "optional" Vacuum wand which allows you to vacuum up water Spray hose. Permits cleaning in remote areas. in hard to reach places. (See picture above) (See picture below) Stainless Rec. -
Page 36: On-Board Soap
Machine options Attach vac hose here Vac Wand Spray Hose On-board Soap 1. Detach vac hose from squeegee 1. Turn on spray jet pump using the 1. Switch toggel switch up once for and attach it to the vac wand. togle switch on the central normal soap distribution and up twice (See picture above) -
Page 37: Daily Maintenance
Maintenance Daily Maintenance Yearly Maintenance Remove and clean pads or brushes. Never use soiled Call your local dealer for yearly maintenance pads when cleaning. Replace pads when they become packed with residue. Remove and clean debris from the float shut-off screen Storing Machine and drain saver located inside the recovery tank. - Page 38 Maintenance Service Schedule Maintenance Sevice Schedule Maintenance Before each work After each work 50 hrs 100 hrs 200 hrs period period Check water level of batteries after charging add distilled water if necessary Check that recovery tank cover seals tightly Visualy check for damaged or worn tires Check brushes or pads for proper installation Check vacuum hose connections...
-
Page 39: Preventative Maintenance Records
Preventative Maintenance Records CUSTOMER INFORMATION CUSTOMER ADDRESS CITY STATE ZIP CODE MACHINE INFORMATION MODEL # SERIAL # WORK ORDER# HOUR METER: BATTERY CONDITION Cell #1 Cell #2 Cell #3 Battery # 1 Hydrometer Reading Battery # 1 Water Condition Battery # 2 Hydrometer Reading Battery # 2 Water condition Battery # 3 Hydrometer Reading Battery # 3 Water Condition... - Page 40 Preventative Maintenance Records CHECK OPERATION AND CONDITION OF: IN SPEC REPAIR PROBLEM Brush Switch Solution Potentiometer Solution Solenoid Solution Drain Valve Low Solution Light Brush Deck Lift System Brush Motors & Motor Brushes Vacuum Switch Vacuum Motor performance Off-Board Vac Switch Squeegee Lift System Squeegee Adjustment Squeegee Blades...
-
Page 41: Troubleshooting Central Command
Troubleshooting Central Command Note : this machine is operated by a sophisticated electronic "controller" that has many fail-safes within it. It self-analyzes problems and flashes a four-digit alpha-numeric code of what is wrong in the LCD window. Most of these codes require a technician attention. You should not attempt repairs you are unfamiliar with, especially if you are not authorized to work on this equipment. - Page 42 Troubleshooting Central Command Vacuum motor circuit is open. 5. 7700. You pressed the foot pedal before 6. Throttle error. turning on the key. Turn off the key and try again, leaving foot off of the pedal. Low voltage warning. Voltage 7.
-
Page 43: Troubleshooting
Troubleshooting Problem Cause Solution Contact local servicing dealer No power, nothing operates Faulty key switch See charging batteries Batteries need charging Faulty battery Replace battery Tighten loose cable Loose battery cable Wait 5 minutes for auto reset Main circuit breaker tripped Determine cause and correct Put brush deck down Brush motor(s) do not operate... - Page 44 Troubleshooting Solution Problem Cause Fill solution tank No solution flow No solution in tank Rotate lever to on Solution valve off Turn solution switch on Solution switch off Remove and clean screen Solution screen clogged Contact local servicing dealer Faulty solution solenoid Contact local servicing dealer Faulty solution switch Empty recovery tank...
-
Page 45: Machine Parts
Model XR-34D / XR-40D / XR-34C XR-40C / XR-46C Machine Parts Section Machine parts illustration Front wheel drive Page 42-43 Side brooms (optional) Page 44-45 Front wheel side brooms and rollers Page 46-47 Disk deck Page 48-49 Shrouds Page 50... -
Page 46: Front Wheel Drive
Front wheel drive TO ORDER MOTOR SEPARATELY USE PART #370-7311 TO ORDER WHEEL SEPARATELY USE PART # 370-7315 TO ORDER BRAKE SEPARATELY USE PART #370-7323 TO ORDER COMPLETE DRIVE UNIT USE PART #370-7310 PAGE 42... - Page 47 Front wheel drive Item Part No. Part Description 250-7314 60 TOOTH STEERING SPROCKET 250-7320 12" DROP PLATE 250-7327 STEERING CHAIN 250-7332 STEERING SHAFT 275-7120 STEERING SHAFT, LOWER 290-2780 TERMINAL BOOT, BLACK 37-7317 TAPERED ROLLER BEARING 37-7318 BEARING CAP 37-7319 STEERING SHAFT SEAL 37-7320 PRE LOAD SLEEVE 37-7321...
-
Page 48: Side Brooms (Optional)
Side Brooms 4-402 SIDE BROOM POLYPROPYLENE 4-402S SIDE BROOM POLY STEEL 4-402 SIDE BROOM POLYPROPYLENE 4-402S SIDE BROOM POLY STEEL PAGE 44... - Page 49 Side Brooms Item Part No. Part Description Qty. 250-0220 (RH) SIDE BROOM MOTOR, 36V 106 RPM 250-0221 (LH) SIDE BROOM MOTOR, 36V 106 RPM 250-4420 SIDE BROOM LIFT ARM (LH) 250-4421 SIDE BROOM LIFT ARM (RH) 370-4422 SIDE BROOM PIVIOT 370-4620 SIDE BROOM AXLE SHAFT 390-1170...
- Page 50 Front Wheel & Side Brooms SIDE BROOM ASSEMBLY FOR INDIVIDUAL PARTS SEE SIDE BROOM PAGE 290-1128 USED WITH 34" DECK MACHINES FRONT WHEEL DRIVE ASSEMBLY FOR INDIVIDUAL PARTS SEE FRONT WHEEL DRIVE PAGE 370-1126 USED WITH 21-1126 USED WITH 40" CYLINDRICAL DECK MACHINES 40"...
- Page 51 Front Wheel & Side Brooms Item Part No. Part Description Qty. 21-1126 ROLLER BRACKET 21-1127 ROLLER 250-1102 SCRUB DECK LIFTING BRACKET 250-2240 2" STROKE 36V ACTUATOR 450 LB LOAD 290-1128 LOWER ROLLER BRACKET 370-1100 MAIN FRAME 370-1126 DOUBLE ROLLER BRACKET (40") 4-4230 3/4"...
- Page 52 Disk Decks (RH) 34 INCH SHROUD 39 33 FOR INDIVIDUAL PARTS SEE SHROUD PAGE 47 37 PAGE 48...
-
Page 53: Disk Deck
Disk Decks Item Part No. Part Description Qty. 21-5000 BRUSH DRIVER 250-1084 SHROUD ADJUSTMENT KNOB 250-1103 DISK SCRUB DECK BRACKET 250-1265 SCRUB ARM BRACKET 250-2210 4" STROKE 36V ACTUATOR 1000 LB LOAD 290-1233 3/8" ID, 1/2" OD, 1/4" LG BEARING 290-1245 3/8"... -
Page 54: Shrouds
Shrouds 34" LEFT HAND SHROUD SHOWN PART # 370-1136 34" RIGHT HAND SHRAOUD USE PART # 370-1135 40" LEFT HAND SHROUD USE PART # 370-1138 40" RIGHT HAND SHROUD USE PART # 370-1137 TO ORDER COMPLETE (RH) 34" SHROUD ASSEMBLY USE PART # 370-1135C FOR 40"... -
Page 55: Cylindrical Wipers
Cylindrical wiper LH WIPER HORIZONTAL ARM USE PART # 370-1232 370-1135L LINATEX SIDE WIPER RH WIPER HORIZONTAL ARM USE PART # 370-1231 370-1135G GUM RUBBER SIDE WIPER 17 2 9 19 9 19 Item Part Number Part Description 21-4060 6" LANYARD 290-1233 3/8"... -
Page 56: Cylindrical Decks
Cylindrical decks 34" HOPPER RAIL SHOWN 40" HOPPER RAIL USE PART # 430-8320 34" DECK SHOWN 40" DECK USE PART # 370-9040 34" HOPPER SHOWN 40" HOPPER USE PART # 370-9054 34" BRACKET SHOWN 40" BRACKET USE PART # 370-1268 10 42 DETAIL A PAGE 52... - Page 57 Cylindrical decks Item Part No. Part Description Qty. 21-1127 ROLLER 250-0001 RETAINER PIN 250-1230 SHROUD HINGE 250-1265 SCRUB ARM BRACKET 250-2240 2" STROKE 36V ACTUATOR 450 LB LOAD 253-8215 TIMING SPROCKET 32 TOOTH 253-8225 TIMING SPROCKET 68 TOOTH 253-8230 565-5M-25 HI-PERFORMANCE PD PLUS BELT 253-9002 MOTOR ADJ BRACKET 290-1233...
-
Page 58: Cylindrical Doors
Cylindrical door TO ORDER WHOLE DOOR ASSEMBLY USE PART # 370-9021 PAGE 54... - Page 59 Cylindrical door Item Part No. Part Description Qty. 370-9022 DRIVE COVER 1-305 BEARING HOUSING 370-8241 IDLER BEARING H-72682 FHP #10-32 X 1/2" SS 5-130 DOOR LATCH H-00270 3/16" X 3/4" KEY 370-8370 BRUSH DRIVER H-71017 FW 3/8" X 7/8" SS 5-100 GROMMET H-0171004...
-
Page 60: Attaching Decks
Attaching decks 34" DISK DECK SHOWN SEE DISK DECK PAGE FOR INDIVIDUAL PARTS 34" CYLINDRICAL DECK SHOWN SEE CYLINDRICAL DECK PAGE FOR INDIVIDUAL PARTS 12 12 1 13 8 PAGE 56... - Page 61 Attaching decks Item Part No. Part Description Qty. 250-1102 SCRUB DECK LIFTING BRACKET 370-0019 FRONT WALL CURTAIN 370-1100 MAIN FRAME H-0156776 1/2" X 3.5" CLEVIS PIN H-32258 RUBBER LOOP CLAMP, 1.0" #16 H-3225T RUBBER LOOP CLAMP, 1-1/2" H-70860 NYLOK 1/4"- 20 SS H-70861 NYLOK 5/16"...
-
Page 62: Squeegee Trail Arm
Squeegee trail arm TO ORDER COMPLETE SQUEEGEE TRAIL ARM ASSEMBLY USE PART # 370-7155 PAGE 58... - Page 63 Squeegee trail arm Item Part No. Part Description Qty. 21-7205 STAR KNOB 290-1233 3/8" ID, 1/2" OD, 1/4" LG BEARING 370-5002 SQUEEGEE DRAG BRACKET 370-7140 SQUEEGEE SWING PLATE 370-7150 SQUEEGEE TRAIL ARM 370-7610 SQUEEGEE TRIANGLE PLATE 4-446 GROMMET-3/8 ID X 1-1/2 OD X .375 430-7570 CASTER H-0171004...
-
Page 64: 53" Squeegee
53" Squeegee TO ORDER COMPLETE 53" SQUEEGEE ASSEMBLY USE PART # 370-7180 18 28 18 28 18 28 18 28 18 28 18 28 370-755L LINATEX FRONT SQUEEGEE BLADE 370-755G GUM RUBBER FRONT SQUEEGEE BLADE 18 28 18 28 370-754L LINATEX REAR SQUEEGEE BLADE 370-754G GUM RUBBER REAR SQUEEGEE BLADE PAGE 60... - Page 65 53" Squeegee Item Part No. Part Description Qty. 370-7181 53" SQUEEGE BODY 370-7182 SQUEEGEE BODY BOTTOM H-92320 .252 ID X .50 OD X 1.25 LG SPACER 370-7183 SQUEEGE CASTER BRACKET 190-3030 4.0" WHEEL (GRAY) 370-7160 REAR SQUEEGEE BAND (RH) 370-7184 SQUEEGEE PIN 370-7161 REAR SQUEEGEE BAND (LH)
-
Page 66: 60" Squeegee
60" Squeegee TO ORDER COMPLETE 31 31 60" SQUEEGEE ASSEMBLY USE PART # 380-7180 18 28 18 28 18 28 18 28 18 28 18 28 18 28 370-757L LINATEX FRONT SQUEEGEE BLADE 18 28 370-757G GUM RUBBER FRONT SQUEEGEE BLADE 370-756L LINATEX REAR SQUEEGEE BLADE 370-756G GUM RUBBER REAR SQUEEGEE BLADE PAGE 62... - Page 67 60" Squeegee Item Part No. Part Description Qty. 370-7191 60" SQUEEGE BODY 370-7192 SQUEEGEE BODY BOTTOM (60") H-92320 .252 ID X .50 OD X 1.25 LG SPACER 370-7183 SQUEEGE CASTER BRACKET 190-3030 4.0" WHEEL (GRAY) 370-7162 REAR SQUEEGEE BAND (RH 60") 370-7184 SQUEEGEE PIN 370-7163...
-
Page 68: Squeegee Trail Arm And Rear Axle
Squeegee trail arm and Rear axle 17 15 PAGE 64... - Page 69 Squeegee trail arm and Rear axle Item Part No. Part Description Qty. 21-1126 ROLLER BRACKET 21-1127 ROLLER 250-1102 SCRUB DECK LIFTING BRACKET 250-2240 2" STROKE 36V ACTUATOR 450 LB LOAD 290-6186 1/2-20 X 1-1/4 " U BOLT 290-6187 LUG NUT, 1/2"- 20 370-1105 REAR BUMPER 370-6040...
-
Page 70: Dual Vac Motors
Dual vac motors PAGE 66... - Page 71 Dual vac motors Item Part No. Part Description Qty. 190-1450 VAC BOX 190-3002 VAC MOTOR GASKET 250-0119 1/4" ID X 9-1/2" HOSE 250-5250 36V VAC MOTOR, TANGENTAL 250-7291 EXHAUST ELBOW 290-7212 1-1/2" - 2" HOSE CUFF 370-0122 VAC MUFFLER HOSE 370-0122 VAC MUFFLER HOSE 370-4072...
-
Page 72: Vac Motors And Solution Hoses
Vac motors and Solution hoses 36 24 PAGE 68... - Page 73 Vac motors and Solution hoses Item Part No. Part Description Qty. 190-1235 ELBOW, 90 DEG X 3/8" MNPT X 3/8" BARB, NYLON 21-1601 1/2" BARBED ELBOW (PLASTIC) 290-8960 SPRAY JET HOSE 370-0001 1/2" X 12" CLEAR HOSE 370-0002 1/2" X 3" CLEAR HOSE 370-0003 1/2"...
-
Page 74: Tank Lid
Tank Lid PAGE 70... - Page 75 Tank Lid Item Part No. Part Description Qty. 170-4060 LANYARD 190-1075 TANK CLEAR COVER GASKET 190-1410 VAC FORMED CLEAR COVER 370-1130 HOOD STAND 370-4051 TANK LID 370-7420 TANK LID GASKET 5-122 HINGE 8" SS H-37708 1/4-20 LC ACORN NUT H-71013 FNW 1/4"...
-
Page 76: Tank Baffle
Tank Baffle PAGE 72... - Page 77 Tank Baffle Item Part No. Part Description Qty. 21-4028 SNAP GRIP CLAMP 21-4085 VAC SCREEN 21-7060 VAC BOX 250-8911 SCREEN STRAINER 370-0081 TANK BAND, REAR 370-0082 TANK BAND, FRONT 370-0120 1-1/2(ID) X 16" LG. TANK HOSE 370-0121 2"(ID) X 15" LG. TANK HOSE 370-1129 TANK BACK SPLASH 370-1131...
-
Page 78: Solution/Recovery Tank
Solution/recovery Tank RED TANK USE PART # 370-4040 GRANITE TANK USE PART # 370-4041 PAGE 74... - Page 79 Solution/recovery Tank Item Part No. Part Description Qty. 190-1210 2.0 NPT X 2.0" BARB 190-1215 2.0 NPT X 1.50 BARB 21-4044 3/4" NPT TO 3/4" BARBED ELBOW 290-7040 2" NPT X 2" BARB ELBOW, BLACK 370-0111 SQUEEGEE HOSE 370-0112 TANK TO VAC HOSE 370-1210 2"...
- Page 80 Tank Mounting PAGE 76...
- Page 81 Tank Mounting Item Part No. Part Description Qty. 290-8960 SPRAY JET HOSE 370-1100 MAIN FRAME 370-7421 TANK GASKET 370-7422 TANK GASKET 5-122 HINGE 8" SS 5-895 SPRAY NOZZLE H-70003 HCS 1/4"- 20 X 3/4" SS H-71013 FNW 1/4" X 5/8" SS H-71063 LW 1/4"...
-
Page 82: Standard Batteries And Seat
Standard Batteries and Seat RED BATTERY COMPARTMENT LID USE PART # 370-1102 GRANITE BATTERY COMPARTMENT LID USE PART # 370-1101 RED BATTERY COMPARTMENT USE PART # 370-1103 GRANITE BATTERY COMPARTMENT USE PART # 370-1104 4 38 TO ORDER BATTERY WIRING HARNESS USE PART # 370-1900 29 28 PAGE 78... - Page 83 Standard Batteries and Seat Item Part No. Part Description Qty. 21-2230 MICRO SWITCH 290-2110 L 16 H BATTERY 6 VOLT 395 AH 370-0000 370 BATTERY BOX 370-0014 CUP HOLDER 370-0112 TANK TO VAC HOSE 370-1100 MAIN FRAME 370-1108 (2) QUART TRAY 370-1201 SEAT SUPPORT 370-2441...
- Page 84 Industrial Battery and Seat RED BATTERY BOX LID (HD) USE PART # 370-1302 GRANITE BATTERY BOX LID (HD) USE PART # 370-1301 RED BATTERY BOX (HD) PART # 370-1203 GRANITE BATTERY BOX (HD) PART # 370-1204 PAGE 80...
- Page 85 Industrial Battery and Seat Item Part No. Part Description Qty. 253-1040 TANK STRAP SUPPORT 370-1040 BATTERY COMPARTMENT STRAP (HD) 370-1100 MAIN FRAME 370-1202 SEAT SUPPORT (HD) 370-1205 INDUSTRIAL BATTERY BRACKET 370-2110 INDUSTRIAL BATTERY 390-2576 350 GREY CONNECTOR WITH 1/0 CONTACTS 430-1225 13"...
-
Page 86: Central Command
Central Command RED CONTROL BOX USE PART # 370-2010 GRANITE CONTROL BOX USE PART # 370-2011 RED CONTROL BOX DOOR USE PART # 370-2001 GRANITE CONTROL BOX DOOR USE PART# 275-2001 PAGE 82... - Page 87 Central Command Item Part No. Part Description Qty. 290-2004 ACCESS COVER GASKET 290-2015 ONE TOUCH BUTTON 290-2300 LOW SOLUTION (AMBER) 290-2310 FULL RECOVERY (RED) 290-234 KEY SWITCH 290-234A KEY SET (REPLACE) 290-2891 LCD SCREEN 290-2899 COMPUTER CONTROL V3 290-8370 FUSE, RESETTABLE, 50 AMP, 50V DC MAX 370-2006 HARDWARE PANEL 370-2013...
-
Page 88: Steering Tower Assembly
Steering Tower RED UPPER STEERING TOWER USE PART # 290-1171 GRANITE UPPER STEERING TOWER USE PART # 292-1171 RED COVER USE PART # 290-1172 GRANITE COVER USE PART # 292-1172 20 28 20 26 RED LOWER STEERING TOWER USE PART # 290-1170 GRANITE LOWER STEERING TOWER USE PART # 292-1170 PAGE 84... - Page 89 Steering Tower Item Part Number Part Description 290-1245 3/8" ID, 1/2" OD, 3/8" LG, FLANGE BEARING 290-1247 BRONZE THRUST BEARING, .50" ID X 1.0" OD X 1/16" TH 290-1248 FW BRONZE 1/2" ID X 1" OD X 1/8" TH 290-7050 INDEX PLUNGER 4-101 SERIAL NUMBER PLATE...
-
Page 90: Central Command And Steering Tower
Central Command and Steering Tower RED FRONT APRON USE PART # 370-1180 GRANITE FRONT APRON USE PART # 370-1181 17 11 27 26 27 26 22 20 PAGE 86... - Page 91 Central Command and Steering Tower Item Part No. Part Description Qty. 250-1173 DRIVE COVER 290-7090 STEERING SHAFT, UPPER 290-7110 U-JOINT 290-7111 1/4-28 ZERK FITTING 370-1100 MAIN FRAME 370-1610 NON SKID FLOOR PLATE 7-125A ROLLER 8-290 FOOT PEDAL 8-701A STEERING COVER 8-703 STEERING WHEEL H-01125...
- Page 92 Side doors 40" LEFT HAND DOOR USE PART # 370-9597 40" RIGHT HAND DOOR USE PART # 370-9596 46" LEFT HAND DOOR USE PART # 370-9599 46" RIGHT HAND DOOR USE PART # 370-9598 Item Part No. Part Description Qty. 5-122 8"...
- Page 93 Side doors Item Part No. Part Description Qty. 370-1100 MAIN FRAME H-70003 HCS 1/4"- 20 X 3/4" SS H-70860 NYLOK 1/4"- 20 SS PAGE 89...
- Page 94 Overhead Guard PAGE 90...
- Page 95 Overhead Guard Item Part No. Part Description Qty. 370-1100 MAIN FRAME 370-1701 OVERHEAD GUARD SUPPORT (LH) 370-1702 OVERHEAD GUARD SUPPORT (RH) 370-1703 ROOF SUPPORT 370-1704 OVERHEAD GUARD ROOF H-70861 NYLOK 5/16" - 18 SS H-70862 NYLOK 3/8"-16 SS H-71017 FW 3/8" X 7/8" SS H-74415 CB 3/8"- 16 X 1-3/4"...
- Page 96 Water jet kit Item Part No. Part Description Qty. 21-1601 1/2" BARBED ELBOW (PLASTIC) 290-8960 SPRAY JET HOSE 370-0003 1/2" X 10" CLEAR HOSE 430-8910 PUMP, WATER JET, 36V 5-891B 1/2" SPRAY JET BARB 5-895 SPRAY NOZZLE H-081 CLAMP 7/16"- 25/32" SS H-71010 FW #10 .218 x .687 S/S H-72536...
-
Page 97: Vac Wand Kit (Optional)
Vac wand kit P/N 21-11 COMPLETE ASSEMBLY Item Part No. Part Description Qty. 5-883 SQUEEGEE HOSE 5-887 VAC WAND 5-889 VACUUM NOZZLE 7-884 COUPLER, S/S PAGE 93...
