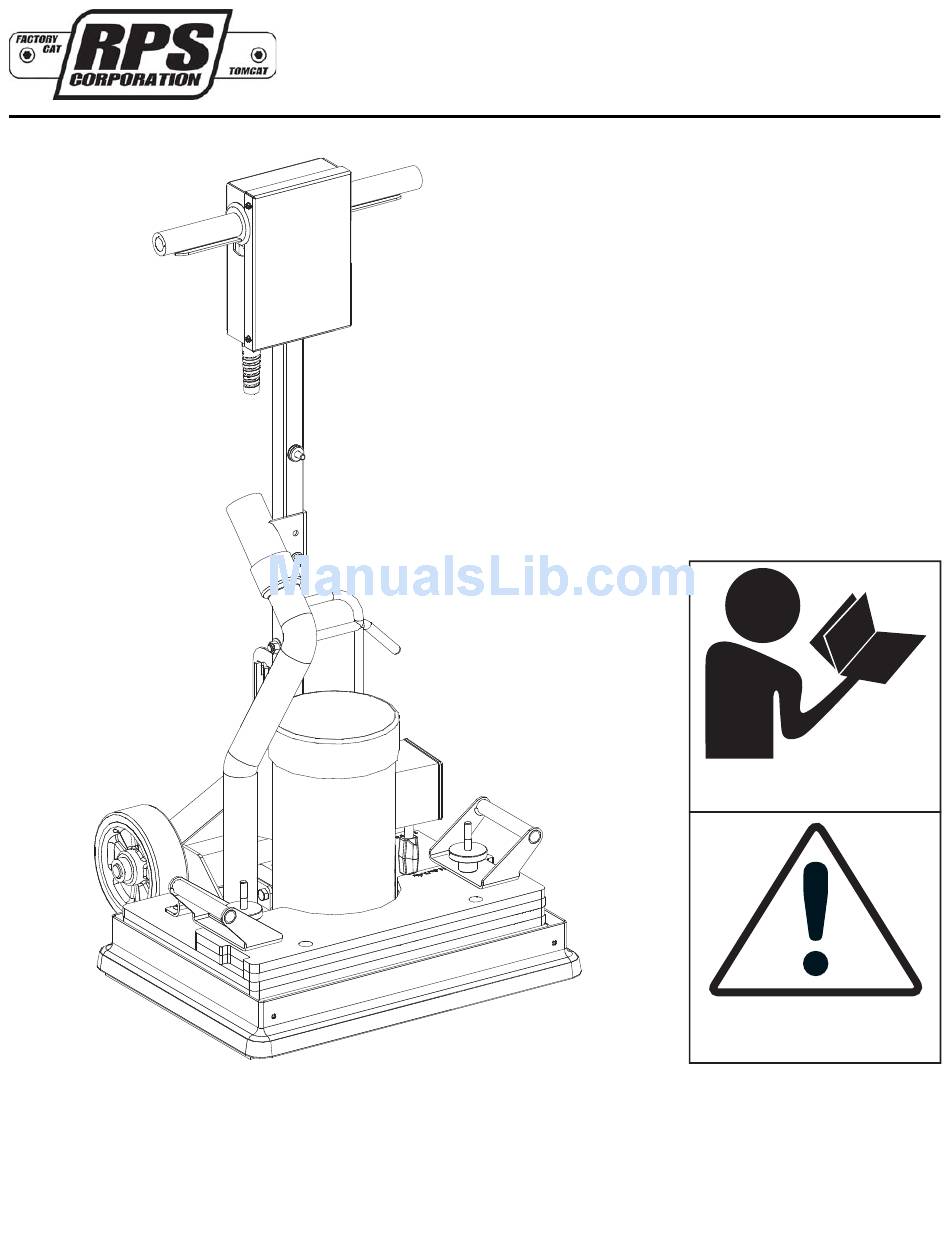

EDGE
Operating Instructions (EN)
MODELS:
Read these Instructions before
using the machine.
Read these Safety Messages
before using the machine.
& Parts Manual
20'' EDGE Stick ST / HD
28'' EDGE Stick ST / HD
VERSION 13.0530
EDGESTICK-OP-EN
Advertisement
Table of Contents
Related Manuals for RPS edge stick st/hd
Summary of Contents for RPS edge stick st/hd
- Page 1 & Parts Manual MODELS: 20'' EDGE Stick ST / HD 28'' EDGE Stick ST / HD Read these Instructions before using the machine. Read these Safety Messages before using the machine. www.rpscorporation.com www.factorycat.com VERSION 13.0530 EDGESTICK-OP-EN www.tomcatequip.com © 2013 RPS Corporation...
-
Page 2: Introduction
This manual is furnished with each new machine. This manual will allow the Operator to get the best performance out of your RPS manufactured Scrubber-Drier, Sweeper, Burnisher, or Orbital Scrubber. Read this manual thoroughly before operating or servicing the machine. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Motor Information About This Manual AC Diagram Table of Contents Trouble-shooting Safety Messages Machine Specs Operation Controls Common Wear Parts EDGE Pads and Screens: Machine Setup EDGE Diamonds For Polishing Marble/Terrazzo: Installing EDGE pads: EDGE Isolator Replacement Kits: Pre-Cleaning Checklist: Soap Choices Operating - Scrubbing:... -
Page 4: Safety Messages
SAFETY MESSAGES You will see four kinds of safety reminders in this manual: WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury or damage to this machine or nearby objects. - Page 5 WARNING WARNING Do not operate this machine around fuels, solvents, To avoid electrical shock, do not pull on the power cord to move the machine or unplug the power cord from the electrical outlet. electrical sparks and all other sources of ignition WARNING should be extinguished or avoided.
-
Page 6: Operation Controls
OPERATION CONTROLS 1. HANDLEBAR: Foam padded handlebars provide ergonomic support 2. SOLUTION CONTROL LEVEL (OPTIONAL): Controls (Down = RELEASE, Up = OFF) 3. MAIN POWER SWITCH (OPTIONAL): Turns the machine ON and 4. POWER CORD: Hospital grade 50 ft cord 5. -
Page 7: Machine Setup
MACHINE SETUP MACHINE OPERATION INSTALLING EDGE PADS: PRE-CLEANING CHECKLIST: Read and understand the Safety Messages section on To install or replace a Pad: Pages 3 and 4 before operating the machine. 6. Check and make sure that there is electrical outlets NOTICE available for use or large gauge extension cords. -
Page 8: Maintenance
MAINTENANCE DAILY MAINTENANCE: 1. Remove the clean Pads / Brushes. Never use soiled Pads / Brushes when cleaning. Replace Pads / Brushes when they become packed with residue. feed to Scrubdeck (If applicable to your model). 3. Inspect Vacuum Hose for any objects obstructing the 4. -
Page 9: Pm Records
PM RECORDS CUSTOMER INFORMATION CUSTOMER EMAIL ADDRESS PHONE CITY STATE CONTACT CUSTOMER INFORMATION CUSTOMER EMAIL ADDRESS PHONE CITY STATE ZIP CODE CONTACT MACHINE INFORMATION MODEL #: SERIAL #: WORK ORDER#: HOUR METER: ISOLATOR HOUR METER: RE-CHARGE COUNTER: DECK CONDITION EDGE PAD GRIP FACE GOOD WORN NEEDS... - Page 10 COMMENTS SERVICING DISTRIBUTOR TECHNICIAN’S NAME DATE SIGNATURE CUSTOMER’S NAME DATE SIGNATURE EDGESTICK-OP-EN - 10 -...
-
Page 11: Battery Charging / Edge Cordless Only
BATTERY CHARGING / EDGE CORDLESS ONLY Charger Specifications grounded 110 Volt standard wall outlet (C). 5. The Charger will automatically begin charging and Output voltage of 24 Volts automatically shut off when fully charged (check Battery gauge). Output current of 12 amps max 6. -
Page 12: Battery Maintenance Guide / Edge Cordless Only
BATTERY MAINTENANCE GUIDE / EDGE CORDLESS ONLY SAFETY: WATERING: Add water, NEVER ACID, to cells (distilled water DANGER recommended). Explosive hydrogen gas forms when Batteries are Do not over water Before charging the Batteries, only add water if the to explode. Serious personal injury or property damage plates are exposed. -
Page 13: Motor Information
MOTOR INFORMATION ® ® IEC34-1 E57948 LR33543 IEC34-5 CAT. NO: 117536.00 DATE: G12B MODEL: M6K28FC3A 1 1/2 / 1.12 HP/KW: 1 1/2 / 1.12 CUST: PN: 2850 3450 RPM: DUTY:CONT INS:F4 100/200-220 TYPE: KF 115/230 VOLT: PH:1 AMB:40 C 15.6/7.8-7.5 ENCL: TEFC 13.2/6.6 FLA:... -
Page 14: Ac Diagram
AC DIAGRAM LOW VOLTAGE HIGH VOLTAGE PLUG AC MALE PLUG AC MALE L1 BLACK L2 WHITE L1 BLACK L2 WHITE SWITCH, HANDLEBAR SWITCH, HANDLEBAR BLACK BLACK HOUR METER HOUR METER 8-262 8-262 CONNECTED CONNECTED PLUG AC FEMALE PLUG AC FEMALE BLACK WHITE BLACK... -
Page 15: Trouble-Shooting
TROUBLE-SHOOTING PROBLEM CAUSE SOLUTION Machine will not start Not connected to power source Check power source connection Defective switch Contact local servicing dealer Runs erratically Low voltage from excessive length or Use 12 gauge extension cord - not longer undersized extension cord than 25 ft long Defective handlebar switch Contact local servicing dealer... -
Page 16: Machine Specs
MACHINE SPECS BODY CONSTRUCTION/DIMENSIONS CHASSIS CONSTRUCTION: ⁄ ⁄ ⁄ '' GAUGE STEEL (3.2 mm) AXLE: 3/4'' SOLID STEEL (2 cm) HANDLEBAR: 12 GAUGE STEEL, ADJUSTABLE FINISH: POWDER PAINT (2×) 6'' × 2'' NON-MARKING REAR WHEELS: [(2×) 15×5cm] WEIGHT: 20'' ST: 125 lbs (57 kg) 20'' HD: 165 lbs (75 kg) 28'' HD: 225 lbs (102 kg) 20'' HD ProPolish: 265 lbs (120 kg) -
Page 17: Common Wear Parts
COMMON WEAR PARTS EDGE PADS AND SCREENS: DESCRIPTION 28''×14'' 20''×14'' 13''×19'' SCRUBDECK SCRUBDECK White Pad EDGE-4054 EDGE-4005 Red Pad EDGE-4053 EDGE-4004 Blue Pad EDGE-4052 EDGE-4003 Green Pad EDGE-4051 EDGE-4002 Black Pad EDGE-4050 EDGE-4001 White Driver Pad EDGE-4058 EDGE-4025 EDGE-4019 60 Grit Sand Screen EDGE-4059 EDGE-4026 EDGE-4020... -
Page 18: Edge Isolator Replacement Kits
EDGE ISOLATOR REPLACEMENT KITS: DESCRIPTION PART NUMBER Kit for 20" AC Stick Machines EDGE-7217 Kit for 28" AC Stick Machines EDGE-7221 Kit for 28" DC Stick Machines EDGE-7218 Kit for 32" DC Stick Machines EDGE-7219 Kit for 20" DC Machines EDGE-7209 Kit for 24"... -
Page 19: Soap Choices
SOAP CHOICES DEMO / RENTAL QUARTS TRADITIONAL DRUMS / TOTES ONBOARD AUTO DISPENSING WALL-MOUNTED SUPERCON EDGESTICK-OP-EN - 19 -... - Page 20 Onboard FORMULAS Availability 707 Citrus Green An environmentally cleaner that works! It is a solvent free degreaser that works on oil, carbon, even rubber marks. Incorporates the latest technology in “Green Cleaning”. 733 Low pH Safe on most surfaces not harmed by water alone. Low scale formula to prevent alkali buildup in cleaning equipment, while offer detergent to emulsify oil.
-
Page 21: Machine Install / Warranty Registration
MACHINE INSTALL / WARRANTY REGISTRATION Installing Dealer: Installed By: Location: (City, State): Install Date: End-User Company Name: End-User Contact: Address: City/State: Zip: Phone: Fax: Email: Model: Serial #: Hour Meter: BUYER’S REPRESENTATIVE HAS RECEIVED INSTRUCTION IN PROPER OPERATION OF THE FOLLOWING CONTROLS AND FEATURES: SCRUBBERS: - Adjusting controls &... -
Page 22: Standard Warranty Policy
RPS Corporation warrants its machines, parts and accessories to be free of manufacturer’s defects for the periods speci- fied below. Warranty will be granted at the sole discretion of RPS Corporation and is subject to final claim and parts review by R.P.S. -
Page 23: Parts Section
Parts Section EDGESTICK-OP-EN - 23 -... -
Page 24: Handlebar Versions
HANDLEBAR VERSIONS EDGESTICK-OP-EN - 24 -... -
Page 25: Scrubdeck Assembly
SCRUBDECK ASSEMBLY EDGESTICK-OP-EN - 25 -... -
Page 26: Scrubdeck Weights
SCRUBDECK WEIGHTS EDGESTICK-OP-EN - 26 -... -
Page 27: Water Tank And Handlebar
WATER TANK AND HANDLEBAR EDGESTICK-OP-EN - 27 -... -
Page 28: Isolated Handlebars
ISOLATED HANDLEBARS EDGESTICK-OP-EN - 28 -... - Page 30 1711 South Street Racine, WI 53404 www.rpscorporation.com www.factorycat.com www.tomcatequip.com Tel. US: 800-634-4060 Tel. Int: (011) 262-681-3583 Fax: 866-901-3335 © RPS Corporation 2013...
