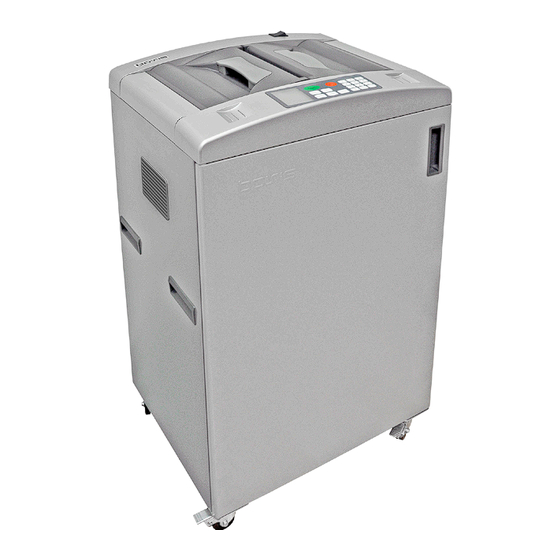

Boxis AutoShred R700 User Manual

Paper shredder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model# R700
Model# S700
www.boxisautoshred.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutoShred R700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boxis AutoShred R700

Summary of Contents for Boxis AutoShred R700

  • Page 1 Model# R700 Model# S700 www.boxisautoshred.com...
  • Page 2 Customer Support: 866-707-1854 support@boxisautoshred.com See product demo video at: www.boxisautoshred.com Ver. 0211...

  • Page 3: Table Of Contents

    Table of Contents Welcome............................2 The.Boxis™.AutoShred™.Advantage..................3 Specifications The.Boxis™.AutoShred™.R700..................4 II... The.Boxis™.AutoShred™.S700..................5 Installation............................6 Safety.Instructions........................6 Warnings............................7 Shredder.Diagram........................8 General.Operation.Instructions..................9.-.11 Secure.Shredding.Instructions....................12 LCD.Panel.Guide.......................13.-.14 Maintenance..........................15 Warranty,.Registration.&.Contact.Info..................16...

  • Page 4: Welcome

    Welcome Thank you for your purchase. The Boxis™ AutoShred™ is a revolution in document destruction. We are proud to bring to market the Boxis™ AutoShred™ series of paper shredders that has a paper tray capacity of up to 700 sheets.

  • Page 5: The.boxis™.Autoshred™.Advantage

    The S700 has a 700-sheet capacity and can destroy a full load in 9-12 min. The R700 has a 700-sheet capacity and can destroy a full load in 18-24 min. You don’t need to stand there while the paper is destroyed.

  • Page 6: Specifications

    The Boxis™ AutoShred™ R700 ..Technical.Specifications Model ..........................R700 Cutting Style ......................Micro-Cut Shred Size ..................0.1” x 0.8” (3 x 20mm) DIN Security Level .....................Level 3 Sheet Capacity ..................700 sheet Autofeed 6-Sheet Manual Feed Shred Speed ...................10.5 ft/min (3.2 m/min) Intake Throat Width ..................9.4” (240mm) Motor Power ......................
  • Page 7 The Boxis™ AutoShred™ S700 ..Technical.Specifications Model ..........................S700 Cutting Style ......................Micro-Cut Shred Size ..................0.08” x 0.59” (2 x 15mm) DIN Security Level .....................Level 4 Sheet Capacity ..................700 sheet Autofeed 6-Sheet Manual Feed Shred Speed ...................22.6 ft/min (6.9 m/min) Intake Throat Width ..................9.4” (240mm) Motor Power ......................

  • Page 8: Installation

    Installation • Refer to set-up instructions printed on carton box for proper assembly. • Only operate this product from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult an electrician. • Make sure the electrical outlet is easily accessible from the shredder. • Shredder must be operated only in upright position. • To make sure the shredder has proper ventilation, place it a minimum distance of 5cm (2 inches) from the wall or furniture. Safety Instructions 1. Read and follow all instructions before use. Save these instructions for later use. 2. Always turn off and unplug the machine before moving, servicing, cleaning, or anything other than normal operation. Serious injury may result. Clean shredder with a damp cloth, using a mild soap and water solution. 3. Do not use abrasives or petroleum-based cleaners. 4. Place this product as close as possible to power source for quick and easy unplugging. 5. Turn off the power switch before removing waste bin. It is advisable to disconnect the power cord before opening the shredder. 6. This product should never be placed near a radiator or other heat source. 7. Do not allow anything to rest on the power cord. Do not place the power cord where people may walk on the it. 8. If an extension cord is used with this product, make sure the total of the ampere (amps) ratings on the products plugged into the extension cord do not exceed the extension cord’ s ampere rating. 9. Do not attempt to service this product yourself, as in opening or removing covers may expose you to risks of getting injured. Also, doing this will void the warranty of the shredder.

  • Page 9: Warnings

    WARNINGS CAUTION: KEEP THIS DEVICE AWAY FROM CHILDREN AND PETS! Place the paper shredder in an area less accessible to children. DO NOT PLACE FINGERS TOO CLOSE TO THE FEED SLOT AS SERIOUS INJURY MAY OCCUR. Paper shredders can pull children’s fingers into the shredder mechanism.

  • Page 10: Shredder.diagram

    Manual Stop Button Button LCD Panel Manual Manual Lubricate Keypad Forward & Lock & Reset (For security code) Reverse Unlock Button Buttons Buttons Power Switch Power Paper Tray (R700 Model) Switch Manual Feed Doors (on right side of shredder) (S700 Model) Slot Handles for Paper Tray Control Doors Panel Cabinet Access Ventilation Door Handles Manual Unlock (on right side of shredder) Contents inside cabinet: • Waste Bin...
  • Page 11 Operation Read.instructions.completely.before.operating.shredder. Connect.power.cord.to.the.power.socket.at.the.backside.of.the.machine.. Connect.the.power.cord.to.any.standard.120V.AC,.60Hz.outlet. Install waste bin •.Open.cabinet.door.and.remove.remove.waste.bin.from.the.cabinet.. •.. P lace.plastic.waste.liner.around.the.basket.(2.waste.liners.included)... Allow.bag.edges.to.overhang. •.Slide.the.waste.bin.into.the.cabinet.and.shut.the.cabinet.door. •.Store.this.operation.manual.in.slot.inside.cabinet.door. Switching “ON” •.Toggle.the.power.switch.ON..(S700.Model’s.power.switch.is. on.the.top.of.the.machine..R700.Model.is.on.the.right.side.of. the.machine.) •.The.LCD.panel.indicates.machine.. is.ready.for.shredding.operation.. Note: The.display.indication. is.always.shown.for.unlocked. paper.tray.doors. Load and Shred Open doors Close doors Place.up.to.the.maximum.number.of Press.“START”.button. sheets.of.paper.into.the.paper.tray. When the shred job is complete, the machine will automatically stop.
  • Page 12 Operation (cont’d) To manually feed paper (max. 6 sheets) or lubricant sheets. •.The.shredding.process.is.initiated.by.photo.sensors.in.the. paper.feed.opening..Insert.a.maximum.of.6.sheets.of.paper. into.the.paper.feed.opening;.shredding.begins.automatically.. When.shredding.is.complete,.the.cutting.system.. automatically.stops.after.approximately.3.seconds. •.For.maintenance,.shredder.lubricant.sheets.should.be.fed. in.the.paper.feed.opening.as.well.. To clear paper jam. •.If.paper.jam.occurs.press.and.hold.the.“Reverse”.button.to. back.paper.out.of.the.paper.entry..Try.pulling.gently.on.the. paper.to.remove.it.from.the.shredder..Alternate.between. forward.and.reverse,.as.needed,.until.the.jam.clears. •.On.LCD,.REVERSE.will.be.displayed.

  • Page 13: General.operation.instructions

    Operation (cont’d) AUTO Mode •.The.master.power.switch.is.located.on.the.top.right.side.of.. the.cabinet..When.switch.is.toggled.ON,.the.LCD.. shows.AUTO.and.the.machine.enters.into.AUTO.mode. •.In.the.AUTO.mode,.the.shredder.is.ready.to.shred.paper. either.by.auto.or.manual.feed. START Mode •.Press.the.“Start”.button.and.the.machine.starts.shredding. paper.loaded.in.paper.tray..The.LCD.shows.AUTO.with. paper.feeding. STOP Mode •.Press.the.“Stop”.button.to.interrupt.the.shred.job..The.LCD. displays.flashing.STOP. REVERSE Mode (In AUTO Mode) •.Pressing.the.“Reverse”.button.during.AUTO.Mode.. operation.will.initiate.the.manual.REVERSE.function.. The.LCD.shows.REVERSE..Press.and.hold.the.“Reverse”. button.in.order.to.keep.the.motor.running.in.reverse..When. the.“Reverse”.button.is.released,.the.machine.returns.to. AUTO.mode.and.the.display.will.show.AUTO. REVERSE Mode (In STOP Mode) •.When.pressing.the.“Reverse”.button.during.STOP.Mode,. the.LCD.shows.REVERSE.and.the.motor.enters.the.REVERSE. mode..Press.and.hold.the.“Reverse”.button.in.order.to.keep. the.motor.running.in.reverse..When.the.“Reverse”.button.is. released,.the.machine.returns.to.STOP.Mode.and.the.LCD. displays.flashing.STOP. NOTE:.Manual.reverse.function.will.not.work.unless.tray.doors are.closed.

  • Page 14: Secure.shredding.instructions

    To manually STOP a shred job. •.Press.“STOP”.button.. To power OFF the shredder. •.Toggle.OFF.the.power.switch..(S700.Model’s.power. switch.is.on.the.top.of.the.machine..R700.Model.is. on.the.right.side.of.the.machine.) .. NOTE: Energy-Saving Technology — The S700 will automatically toggle OFF if idle for 30 minutes. To resume power just toggle switch back ON.
  • Page 15 InfoCenter LCD Panel ™ FORWARD Mode •.Pressing.the.“Forward”.button.during.STOP.mode.will. initiate.the.manual.Forward.function..Press.and.hold.the. “Forward”.button.in.order.to.keep.the.motor.running. in.forward..When.the.“Forward”.button.is.released,.the. machine.returns.to.STOP.mode.and.the.LCD.displays. flashing.STOP. OVERLOAD Mode •.If.the.shredder.becomes.overloaded.during.operation,. the.motor.will.stop.running.and.sound.an.alert..The.LCD.will. display.OVERLOAD..Pressing.the.“Reverse”.button.will.start. the.motor.reversing.and.the.LCD.will.show.REVERSE. DOOR OPEN Mode •.When.the.cabinet.door.is.opened.while.shredding,.the. motor.will.stop.immediately..The.LCD.shows.DOOR.OPEN. and.will.sound.an.alert..To.resume.normal.function,.the. cabinet.door.must.be.closed..The.LCD.will.show.AUTO. again..Press.“Start”.to.resume.normal.operation. PAPER TRAY DOOR OPEN Mode •.When.the.paper.tray.doors.are.opened.while.shredding,.the. motor.will.stop.immediately..The.LCD.shows.DOOR.OPEN. and.will.sound.an.alert..To.resume.normal.operation,.the. doors.must.be.closed..The.LCD.will.show.AUTO.again.

  • Page 16: Lcd.panel.guide

    InfoCenter LCD Panel ™ (cont’d) OVERHEAT Mode •.If.the.shredder.overheats,.the.LCD.will.show.a.flashing. OVERHEAT.icon..All.functions.will.stop..When.the.shredder. overheats,.user.may.press.Stop.button.to.place.the.shredder. in.Standby.mode..The.shredder.will.not.resume.normal. functioning.until.the.temperature.of.the.motor.cools.down.to. a.safe.temperature.and.LCD.shows.AUTO. BIN FULL Mode •.If.the.waste.bin.is.full,.the.motor.will.stop.and.sound.an. alert..LCD.shows.the.character.BIN.FULL..All.shredder. functions.will.stop..After.the.waste.bin.is.emptied,.placed. back.into.cabinet.and.the.cabinet.door.is.closed,.the.LCD. will.show.AUTO.and.resume.normal.functioning. ParticleSweeper ™ WASTE LEVELER •.The.ParticleSweeper™.located. under.the.cutting.mechanism. (right.above.the.waste.bin). increases.bin.capacity.by.evenly. distributing.and.leveling.shred. particles.

  • Page 17: Maintenance

    . RESET.LUBRICATE.ALERT:.After.applying.lubricant.to.the. cutting.blades,.the.warning.icon.can.be.reset.by.pressing. and.holding.the.“Lubricate”.button.for.approximately.. 7.seconds..The.LCD.will.clear.the.warning.message.and.icon. CLEANING RUBBER ROLLERS CAUTION: Before proceeding with the next step, PLEASE POWER DOWN THE SHREDDER AND UNPLUG THE SHREDDER FROM THE OUTLET. •.After.the.shredding.blades.have.been. lubricated,.we.recommend.cleaning. the.rubber.rollers.with.rubbing. alcohol..Apply.the.rubbing.alcohol. to.a.clean,.dry.cloth.and.briskly.clean. each.roller.. •.Manually.rotate.the.rollers. and.continue.to.clean.until.no. contaminants.appear.on.the.cloth.. •.After.rollers.are.clean,.let.the.rollers. dry.for.approximately.5.minutes. •.The.Boxis™.AutoShred™.is.now. ready..Reconnect.power.to.the. machine.and.operate.

  • Page 18: Warranty,.Registration.&.Contact.info

    Bulletproof Warranty and Product Registration The.manufacturer.warrants.the.machine.for.a.limited.time.to.be.free.from.defects.in. material.and.workmanship..If.any.part.is.found.to.be.defective.during.the.warranty. period,.your.sole.and.exclusive.remedy.will.be.repair.or.replacement,.at.the. manufacturer’s.option.and.expense,.of.the.defective.part.except.for.the.postage.. It.is.the.responsibility.of.the.consumer.to.return.the.machine.to.the.manufacturer. . This.warranty.is.valid.for.the.original.consumer.only.with.original.proof.of. purchase.and.is.not.transferable..This.warranty.does.not.apply.in.cases.of.abuse,. mishandling.or.unauthorized.repair..ANY.IMPLIED.WARRANTY,.INCLUDING.THAT. OF.MERCHANTABILITY.OR.FITNESS.FOR.A.PARTICULAR.PURPOSE,.IS.HEREBY. LIMITED.IN.DURATION.TO.THE.APPROPRIATE.WARRANTY.PERIOD.SET.FORTH. ABOVE..In.no.event.shall.the.manufacturer.be.liable.for.any.consequential.or. incidental.damages.attributable.to.this.product..This.warranty.gives.you.specific. legal.rights..You.may.have.other.legal.rights.that.vary.. . Repairs.must.be.performed.by.the.manufacturer’s.authorized.technician..For.more. details,.or.to.obtain.service.under.this.warranty,.please.contact.us.at.866-707-1854. . Please.retain.original.proof.of.purchase.to.ensure.that.your.product.is.recorded.and. warranty.information.received. Return Instructions: Call.866-707-1854.for.a.Return.Authorization.Number.(RA#).in.order.to.return.a. defective.product.. Product Registration: Please.register.your.new.product.by.calling.866-707-1854. Contact Us: For.more.information,.please.call.866-707-1854,.or.email.us.at.. support@boxisautoshred.com.
  • Page 20 revolution paper shredding... productivity. increase security. ensure 100% SATISFACTION GUARANTEED • 3-YEAR BULLET-PROOF WARRANTY* • LIFETIME Warranty on Cutters • FREE DELIVERY INCLUDED *. I f.you.have.any.problem.with.your.shredder, . just.call.us.and.we’ll.fix.it . or.we’ll.replace.the . entire.machine! Copyright © 2011 INTEK America, INC. Rancho Dominguez, CA 90220. ALL RIGHTS RESERVED.

This manual is also suitable for:

Autoshred s700
