Summary of Contents for Boxis Autoshred AF100

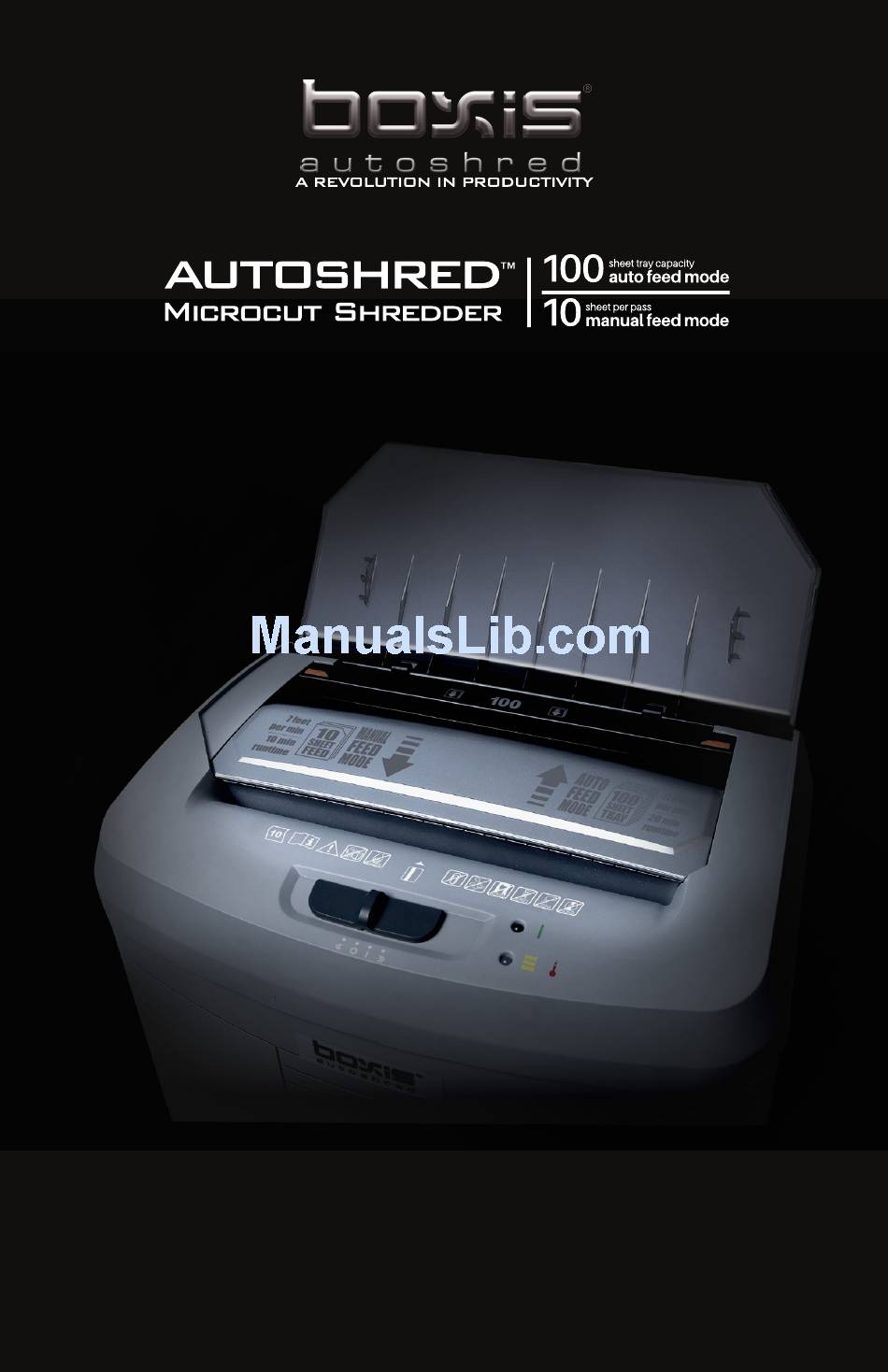

- Page 1 Model# AF100...
-
Page 2: Table Of Contents
PRODUCT SUPPORT Contents Technical Specifications & Features ............... 3 Warnings ......................4 Installation / Safety Instructions ..............5 Assembly ......................6 Operation ..................... 6-8 Maintenance ....................8 Troubleshooting ....................9 Warranty ....................... 10 Return Instructions & Contact Info ............... 10... -
Page 3: Technical Specifications & Features
year Limited Product Auto Feeding Tray Warranty Reverse/Off/Auto/ Forward slide switch Safety Cover Manual Feed Entry Reverse Power Forward On/Off Button Button Credit Card Power/ Auto Bin Full Overheat Casters Technical Specifications Cutting Type ...................Micro Cut Shred Size ..............0.16 x 0.39 in. (4 x 10mm) Will Shred .......... -
Page 4: Warnings
WARNINGS CAUTION: KEEP THIS DEVICE AWAY FROM CHILDREN AND PETS! Place the paper shredder in an area less accessible to children. DO NOT PLACE FINGERS TOO CLOSE TO THE FEED SLOT AS SERIOUS INJURY MAY OCCUR. Paper shredders can pull children’s fingers into the shredder mechanism. -
Page 5: Installation / Safety Instructions
Installation • Only operate this product from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult an electrician. • Make sure the electrical outlet is easily accessible from the shredder. •... -
Page 6: Assembly
Assembly NOTE: This shredder will operate only when used with the supplied basket. The supplied basket has a built-in safety feature which prevents the shredder from operating if used with any other basket or if improperly assembled. This shredder contains sharp edges on the underside of the shredder head. The plug on the power supply cord is intended to serve as the disconnect device, so the socket-outlet should be installed near the equipment and should be easily accessible. - Page 7 Operation (cont’d) Manual Feed: 1. To shred paper, insert up to 10 sheets straight into the manual feed entry. 2. To shred credit cards, insert 1 card at a time into the middle of the paper feed entry. Auto Feed: 1.
-
Page 8: Maintenance
Operation (cont’d) BIN FULL: The Yellow Bin Full LED indicator will illuminate when waste bin is full. 1. Turn the unit OFF by sliding to the Power Off position. 2. Remove the bin and either dispose of the paper shreds or compress the shreds down. -
Page 9: Troubleshooting
Troubleshooting If you have a problem with your shredder, check the issues and resolutions below. If you cannot solve the problem, contact our product support experts at 1-866-707-1854. Do not open the shredder head to attempt repair. It could expose you to electric shock and sharp blades. Doing this will void your warranty. -
Page 10: Warranty And Product Registration
Warranty and Product Registration The manufacturer warrants the machine for a limited time to be free from defects in material and workmanship, does NOT include normal wear and tear. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at the manufacturer’s option and expense, of the defective part except for the postage. - Page 11 SOUTIEN TECHNIQUE Table des matières Caractéristiques techniques ................. 12 Mises en garde ..................... 13 Directive d’installation et consignes de sécurité .......... 14 Assemblage ....................15 Fonctionnement ..................15-17 Entretien ....................... 17 Résolution de problèmes ................18 Garantie ......................19 Instructions de retour et Coordonnées ............19...
-
Page 12: Caractéristiques Techniques
Garantie limitée d’un Interrupteur à glissière des modes Reverse (Marche arrière) / Off (Arrêt) / Auto (Marche Bac d’alimentation automatique an sur le automatique) / Forward produit (Marche avant) Couvercle de sûreté Fente d’alimentation manuelle Bouton Bouton Bouton Bouton de Off (Arrêt) On/Off Reverse... -
Page 13: Mises En Garde
MISES EN GARDE AVERTISSEMENT : GARDER CET APPAREIL HORS DE LA PORTÉE DES ENFANTS ET DES ANIMAUX DE COMPAGNIE! Installez la déchiqueteuse à papier dans un endroit moins accessible pour les enfants. NE PAS METTRE SES DOIGTS TROP PRÈS DE LA FENTE D’INSERTION DU PAPIER, CAR CELA POURRAIT ENTRAÎNER DES BLESSURES GRAVES. -
Page 14: Directive D'installation Et Consignes De Sécurité
Instructions d’installation • Ne faites fonctionner cet appareil qu’à partir de la source d’électricité indiquée sur l’étiquette. Si vous n’êtes pas certain du type d’alimentation électrique disponible, veuillez consulter un électricien. • Assurez-vous que la sortie électrique soit aisément accessible depuis la déchiqueteuse. -
Page 15: Assemblage
Assemblage NOTE : Cette déchiqueteuse ne fonctionnera que si elle est utilisée avec la corbeille fournie. Cette corbeille possède un dispositif de sécurité intégré qui empêche la déchiqueteuse de fonctionner quand elle est utilisée avec une autre corbeille ou quand la corbeille n’est pas assemblée correctement. Cette déchiqueteuse contient des arêtes coupantes sur la face inférieure de son couvercle. - Page 16 Fonctionnement (suite) Alimentation manuelle : 1. Pour déchiqueter du papier, insérez jusqu’à 10 feuilles en ligne droite dans la fente d’insertion manuelle. 2. Pour déchiqueter des cartes de crédit, insérez 1 carte de crédit à la fois au milieu de la fente d’insertion. Alimentation automatique : 1.
-
Page 17: Entretien
Fonctionnement (suite) CORBEILLE PLEINE : Le voyant DEL jaune Corbeille pleine s’allume quand la corbeille est pleine. 1. Éteignez l’appareil en glissant l’interrupteur à la position Power Off. 2. Retirez la corbeille et jetez ou compactez les résidus de papier. 3. -
Page 18: Résolution De Problèmes
Résolution de problèmes Si vous éprouvez un problème avec votre déchiqueteuse, veuillez consulter la section de problèmes et de solutions ci-dessous. Si vous ne pouvez pas résoudre votre problème, veuillez communiquer avec nos spécialistes du soutien technique en composant le 1-866-707-1854. N’ouvrez pas la tête de la déchiqueteuse pour essayer de la réparer vous-même. -
Page 19: Garantie
Garantie et enregistrement de l’appareil Le fabricant offre une garantie limitée contre les vices de matériaux ou de fabrication, EXCLUANT les problèmes découlant de l’usure normale de l’appareil. Si une pièce de l’appareil est défectueuse à l’intérieur de la période de garantie, votre seul et unique recours sera de faire réparer ou remplacer la pièce défectueuse, au gré...
Need help?
Do you have a question about the Autoshred AF100 and is the answer not in the manual?
Questions and answers
Boxis AF 50 auto feed is not working
The Boxis AF100 auto feed may not be working due to one or more of the following reasons:
1. Staples are not positioned at the top of the paper, furthest from the shredder opening.
2. Folded paper or non-flat items are in the auto feed tray.
3. Too many sheets are loaded; reduce the number of pages.
4. The bin is full; empty or compress the contents and reinsert the bin.
5. A paper jam is detected; use the Manual Reverse function to clear it.
6. The unit may be overheated; allow it to cool down before use.
This answer is automatically generated
The autofeed grabbed multiple pages and jammed. It will not reverse or go forward. Is there a way to take the silver part out of the unit or another way to unjam?
To unjam the Boxis AF100 autofeed if it has grabbed multiple pages and will not reverse or go forward:
1. Slide the switch to "Manual Reverse" to attempt reversing the jammed paper.
2. If the paper remains jammed, flip up the safety cover of the autofeed tray.
3. Remove the jammed paper manually.
4. Close the safety cover.
5. Insert paper into the auto feed tray to resume normal operation.
This answer is automatically generated
why is my power button red
The power button on the Boxis AF100 may be red because the shredder has overheated. When the motor gets too hot, the shredder automatically shuts off and the red Overheat LED indicator lights up. This is a normal safety feature. The shredder needs about 60 minutes to cool before it can be used again.
This answer is automatically generated
I have the Boxis 150 sheet shredder. It will not automatically feed. I can get it to work by holding down the V button. How can I get it working properly.
To fix the automatic feeding issue on your Boxis Autoshred AF100 shredder:
1. Slide the power switch to the Manual Reverse position to reverse any jammed paper.
2. Lift the safety cover and remove any stuck paper from the auto feed tray.
3. Close the safety cover securely.
4. Insert paper into the auto feed tray to resume normal operation.
Also, make sure:
- The shredder is plugged in.
- The power switch is set to Auto On.
- The waste bin is empty and correctly positioned.
Avoid inserting folded paper, and do not add more paper to the tray while it is in use.
This answer is automatically generated
Boxis auto shredder-yellow light comes on, but pull-out basket is empty, and shredder will not run. Pushed in basket completely all to no avail.
The Boxis Autoshred AF100 may show a yellow light and not run even when the pull-out basket is empty if the basket is not correctly positioned in the shredder housing. The shredder has a built-in safety feature that prevents operation if the basket is improperly assembled or missing. Ensure the basket is properly inserted to allow the shredder to function.
This answer is automatically generated
We have a piece of metal stuck in the shredder. How can we disassemble the machine to get the blades out?
