18"-24"-30" Kiva Fireplace
GAS BURNING INSTALLATION MANUAL
Frame Models:
Keep these instructions for future use.
This fireplace is to be installed ONLY by a con-
struction industry licensed contractor. Any
permits and construction industry inspections
required for installation should be obtained
by this contractor.

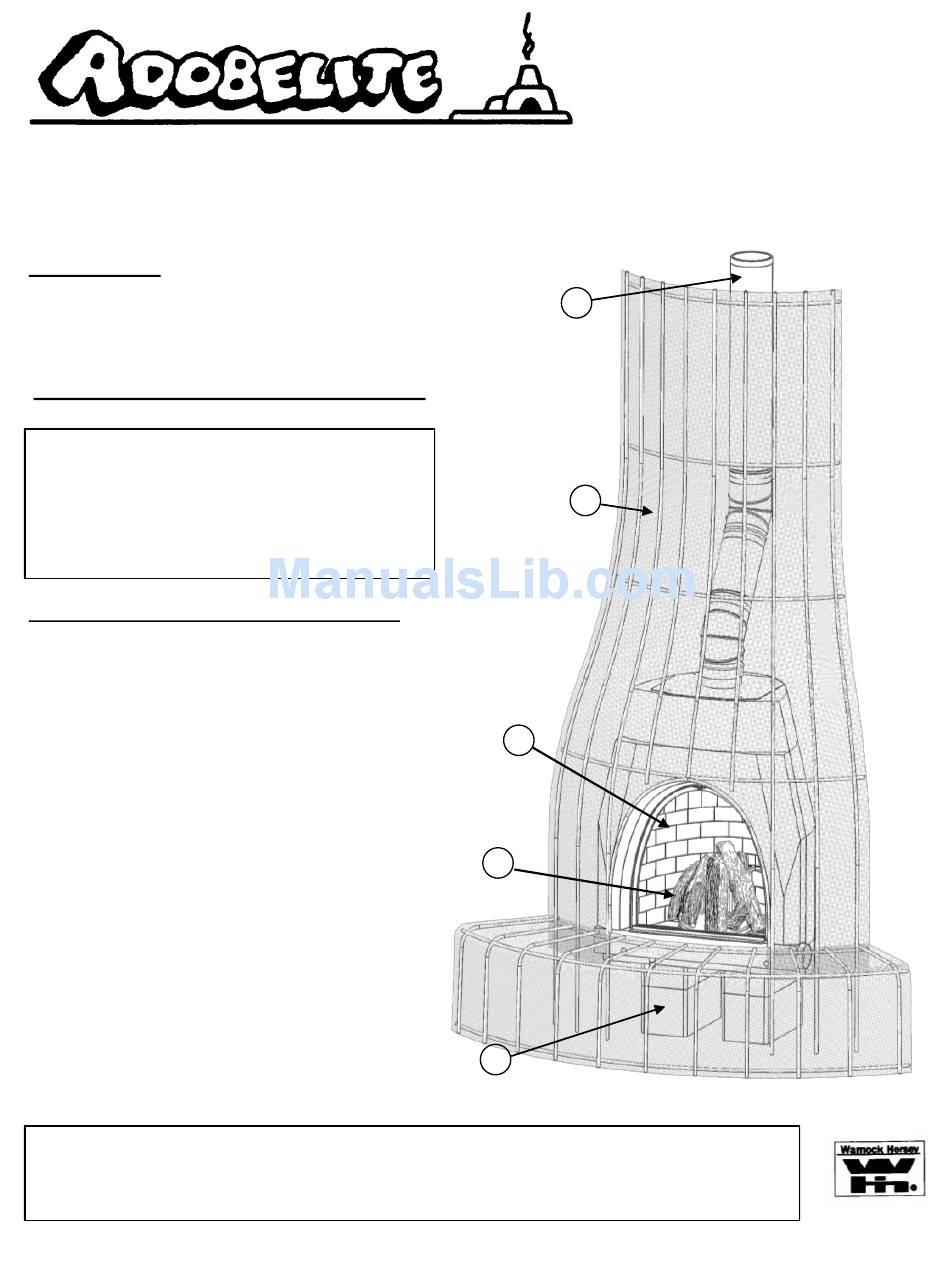

The Adobelite Fireplace System consists of:
A) KIVA FIREBOX - A pre-cast firebox consist-
ing of real hand laid firebrick and light-
weight concrete.
B) EXTERIOR FIREPLACE FRAME - A tubular
steel and diamond-mesh frame. The frame
is finished with stucco after installation.
C) B-VENT CHIMNEY - Lightweight 6" type B-
Vent chimney is used for venting the fire-
place.
D) GAS LOG SYSTEM - Electronic Ignition Gas
Log Burning System is operated by a wall
switch or remote.
E) FIREBOX PEDESTAL - Concrete blocks are
used to elevate the firebox.
NOTE: All warnings are outlined in this manual and must be adhered to by the installer
and the buyer. Failure to do so will nullify the manufacturer's warranty, and may cause
serious fire hazard.
RV-103012
Orno
Santa Fe
Navajo
Zuni
C
B
A
D
E
