Adobelite Kiva 18 Installation Manual

Gas burning with double wall air-cooled chimney
Hide thumbs Also See for Kiva 18:

Advertisement

Quick Links

18"‐24"‐30" Kiva Fireplace
GAS BURNING INSTALLATION MANUAL
WITH DOUBLE WALL AIR‐COOLED CHIMNEY
Frame Models:









Keep these instructions for future use.
This fireplace is to be installed ONLY by a con‐
struction  industry  licensed  contractor.  Any
permits and construction industry inspections
required  for  installation  should  be  obtained
by this contractor.

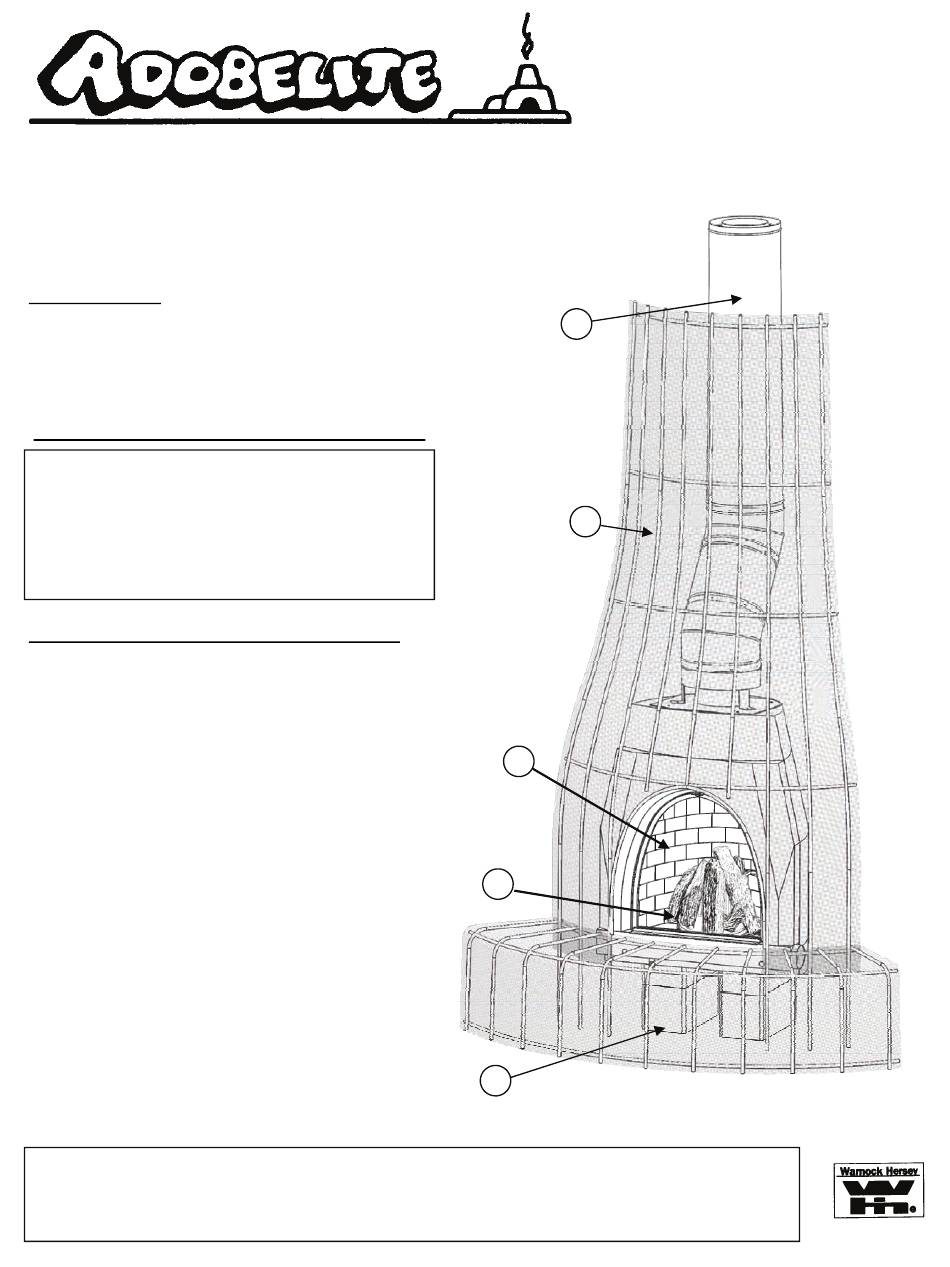

The Adobelite Fireplace System consists of:
A)  KIVA  FIREBOX  ‐ A pre‐cast firebox consist‐
ing  of  real  hand  laid  firebrick  and  light‐
weight concrete.

B)  EXTERIOR  FIREPLACE  FRAME  ‐  A  tubular
steel and diamond‐mesh frame. The frame
is finished with stucco after installation.

C)  AIR‐COOLED  CHIMNEY  ‐  Lightweight
stainless  steel  double  walled  air‐cooled
chimney is used for venting the fireplace.

D)  GAS  LOG  SYSTEM  ‐ Electronic Ignition Gas
Log  Burning  System  is  operated  by  a  wall
switch or remote.

E)  FIREBOX  PEDESTAL  ‐  Concrete  blocks  are
used to elevate the firebox.
NOTE: All warnings are outlined in this manual and must be adhered to by the installer
and the buyer. Failure to do so will nullify the manufacturer's warranty, and may cause
serious fire hazard.
RV‐4.10.2019
Orno
Santa Fe
Navajo
Zuni



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kiva 18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Adobelite Kiva 18

  • Page 1 Keep these instructions for future use.  This fireplace is to be installed ONLY by a con‐ struction  industry  licensed  contractor.  Any  permits and construction industry inspections  B  required  for  installation  should  be  obtained  by this contractor.  The Adobelite Fireplace System consists of:  A)  KIVA  FIREBOX  ‐ A pre‐cast firebox consist‐ ing  of  real  hand  laid  firebrick  and  light‐ weight concrete.    A  B)  EXTERIOR  FIREPLACE  FRAME  ‐  A  tubular  steel and diamond‐mesh frame. The frame ...
  • Page 2 This page intentionally left blank ...
  • Page 3: Warning And Safety Precautions

    WARNINGS AND GENERAL SAFETY PRECAUTIONS    IMPORTANT:  THESE INSTRUCTIONS MUST BE LEFT     WITH HOMEOWNER   ALL WARNINGS OUTLINED IN THIS MANUAL MUST BE STRICTLY     ADHERED TO BY THE INSTALLER AND HOMEOWNER.    FAILURE TO FOLLOW these installation instructions will   VOID THE WARRANTY and may cause a serious FIRE HAZARD.  This fireplace is to be installed ONLY by a construction industry licensed contractor. Any permits and  construction industry inspections required for installation should be obtained by this contractor.  Fully READ and UNDERSTAND all instructions  DO NOT modify your fireplace in any way.  carefully before beginning installation.  Any modification will void the warranty and  create a potential fire hazard.  Before burning your first fire, fully read the  Combustion Air Intake of fireplace must be  “Homeowners Operation Manual”.  kept clear of debris at all times.  Do not store or use flammable liquids or   Never leave the fireplace burning while unat‐ aerosols near this fireplace.  tended.  Children should never be left unattended  WARNING: Only use approved chimney and  while the fireplace is in use.  termination systems outlined in this manual.  WARNING: This fireplace is NOT designed for  wall termination. Fireplace must be vented  vertically. ...
  • Page 4 This page intentionally left blank ...
  • Page 5: Table Of Contents

          Gas Requirements…….……………………………………………………………….. 9    Electrical Requirements…………………………………………………………….10    Fireplace Layout……………………………………………………………………10,11    Fireplace Pedestal…………..………………………………………………………..11    2.   Firebox Installation………………………………………………………………..……12    Firebox Assembly ……………………………………………………………….. 12    Door Frame …..………………………………………….……………………………. 13    Anchor Plate……………... ………………………………………………………...…13    3.  Chimney Installation……………………………………………………………………14     Installing the Chimney Pipe………………………………………………… 14‐17     Outside Air Kit Installation……………………………………………………….. 17    4.      Gas and Electrical Connections………………………………………………...18      5.    Kiva Frame Installation……………………………………………………………….19    6.    Finishing the Fireplace……………………………………………………………..…20  Lava Rock / Gas Log Setup………………………………………………………...21    7.    Operation and Trouble Shooting ………………………………………………..22    8.     Adobelite Kiva Fireplace Options…………………………………………...….23             ...
  • Page 6: Listing Data Plate / Location

    LISTING DATA PLATE / LOCATION  The Adobelite Kiva Fireplace is a factory built fireplace  tested to U.L. 127. Locate the Listing Data Plate inside the  manifold by opening the hinged access door at the bot‐ tom of the door frame. Record the model, size, and serial  number listed on the data plate below.  SERIAL NUMBER  MODEL TYPE / SIZE  FIG. 1 ‐ LISTING DATA PLATE LOCATION  PLEASE FILL IN THE FOLLOWING INFORMATION FOR FUTURE REFERENCE  Model Type / Size: ________________  Date Installed:  ___________________  Date Purchased:  ________________  Frame Style: __________________________________  Dealership Purchased at: ______________________________________  Serial Number: ________________________________  Dealership Phone #: __________________________________________  Chimney Pipe Brand: ____________________________  Chimney Pipe Size (Inner/Outer): _______________________________  Notes: _______________________________________________________________________________________________________  _____________________________________________________________________________________________________________ _____________________________________________________________________________________________________________ ...
  • Page 7: Pre-Installation Requirements

    1  PRE‐INSTALLATION REQUIREMENTS  KIVA18    FIREBOX DIMENSIONS: TOP VIEW  CLEARANCES TO COMBUSTIBLES  SIDES/BACK  1”   All framing along firebox face must be non‐ FACE  combustible   HEARTH EXTENTION  18”  CHIMNEY  2”    A  B  C  D  E  F  G  H  I  KIVA 18  20  ”  27”  18  ”  35”  43”  22  ”  8”   12”  10  ”  KIVA24 ...
  • Page 8: Chimney Requirements

    I  KIVA 30  30”  40”  27  ”  48  ”  56  ”  28”  8” FOR GAS BURNING ONLY  12” FOR GAS BURNING ONLY  12  ”   10” MIN. FOR WOOD OR GAS   15”  FOR WOOD OR GAS  Fireplace installation must be in compliance with local building codes. Before installing the fireplace, consult  the local construction industry to ensure that you are in compliance with all applicable codes, including permits  and inspections.  WARNING: THE FIREBOX MUST BE FINISHED WITH THE ADOBELITE KIVA METAL FRAME OR OTHER NON‐ COMBUSTIBLE MATERIALS. CLEARANCES TO COMBSTIBLE MATERIALS AND FRAMING MUST BE MAINTAINED.  CHIMNEY REQUIREMENTS  For minimum chimney sizes and types see table below. Certified equivalents tested and listed to UL Test Procedure  103, and ULC S604 rated to 1700°F or 2100°F may also be used if minimum chimney diameter is adhered to.  Minimum  I.D. Chase  Chimney Type and Sizes    Clearance  Size  8” ID/12” OD Air‐Cooled (IHP 8DM, Lennox TF8, Heatilator SL300)  KIVA 18  2”  17  ”x 17  ”  8” ID/12” OD Air‐Cooled (IHP 8DM, Lennox TF8, Heatilator SL300)  KIVA 24  2” ...
  • Page 9: Gas Requirements

    ”  gas  supply  line  capable  of  supplying  an  input  BTU  of  48,000  for       Natural Gas, and 39,700 for Liquid Propane. KEY VALVE    Before  the  Adobelite  firebox  is  installed,  gas  lines  should  be  run  into  the  area  where  the  fireplace  will  be  in‐ stalled. A Keyed Gas Shutoff Valve is required in an accessible location within 3’ of the fireplace. Use figure A, in  the charts below to locate the minimum distance from  the corner where the Keyed Gas Shutoff Valve can be  placed to insure it will not be behind the Adobelite Frame when installed. It should also be at a minimum height  of 1’8”. ...
  • Page 10: Electrical Requirements

    ELECTRICAL REQUIREMENTS:  This fireplace comes equipped with a 3 volt electronic ignition gas control system. This system includes a two      D‐cell battery pack prewired to the gas system controls, which will provide reliable operation of the system even  in the event of a power outage. Battery polarity must be correct or module damage will occur. An optional 3 volt  AC transformer is available from Adobelite or your dealer for operation using 110V AC. The optional transformer  and the included battery pack CANNOT both be hooked up to the control module at the same time or damage  will occur. Remove batteries from the battery pack before connecting the optional transformer, and unplug the  transformer before installing the batteries.  ELECTRICAL BOX AND SWITCH  Install  an  Electrical  Box  and  Wall  Switch  (or  remote  control  receiver)  for  fireplace  control  in  the  wall  at  the       desired  location.  Refer  to  FIG.  1  on  page  9  to  locate  the  minimum  distance  from  the  corner  that  the  Switch ...
  • Page 11: Fireplace Pedestal

    FIREBOX PEDESTAL:   Standard Hearth Height of 18”  (Note:  Concrete  Blocks  are  not  included  with  the  Adobelite  Fireplace  Kit  and  must  be purchased separately)  Concrete Masonry Units (C.M.U) are  used to construct the Firebox Pedes‐ tal. The overall height of the pedes‐ tal  should  be  12”.  A  combination  of  two  8”x8”x16”  and  two  4”x8”x16”  CMU  can  be  stacked  (as  shown  in  BASE LINE  FIG  6),  or  any  other  combination  of ...
  • Page 12: Firebox Installation

    2  FIREBOX ASSEMBLY  1)  BASE  –Spread a thin layer of concrete mortar or construction adhesive  on the top of the firebox pedestal. Place the firebox base on the pedes‐ tal.  Using the layout sketch, align the front of the base with the firebox  1  base  line  and  center  the  firebox  along  the  center  line.  Make  sure  the  Base is level.   2)  LOWER  BACK  –Apply  a  5”  wide  thin  layer  of  the  included  refractory  mortar to the  outside top edge of the base where the Lower Back will  rest.  Place  the  Lower  Back  in  place  and  rotate  the  piece  slightly  back  and ...
  • Page 13: 7A -Door Frame

    FIREBOX ASSEMBLY    (CONTINUED): 7)  DOOR  FRAME  –  The  Door  Frame  allows an Adobelite Screen Door or  Glass Door to be used with the fire‐ 7  place.  Begin  by  attaching  the  Door  Frame to the Manifold. Position the  Door Frame on top of the Manifold  and allow a  ” space between the  5” Black  ”  Angle  Iron  on  the  top  of  the  Head Phillips  Front Arch  Screws  Access  Door  and  the  Door  Frame. ...
  • Page 14: Chimney Installation

    CHIMNEY INSTALLATION  3  WARNING: A MINIMUM OF 2”  AIR CLEARANCE MUST BE MAINTAINED BETWEEN ALL CHIMNEY COMPONENTS  AND COMBSTIBLE MATERIALS. ALL INSTRUCTIONS PROVIDED BY CHIMNEY MANUFACTURERS MUST BE  STRICTLY ADHERED TO. FAILURE TO PROPERLY FOLLOW ALL CLEARANCES AND INSTRUCTIONS MAY RESULT IN  A SERIOUS FIRE CAUSING INJURY OR DEATH!   KIVA 18 and KIVA 24 (8” I.D. Chimney)  CHIMNEY OFFSET  Return  Spacer Length  Offset  Rise  Elbow  An offset and return elbow set is re‐ 0” (Elbows Only)  3”  11”  quired  for  installation.  Each  elbow  12”  8  ”   20”  set will contain an offset (or starter)  18”  11  ”   25  ”   elbow,  and  a  return  elbow.  The  re‐ Rise ...
  • Page 15 BEAD  ney pipe is used between the Starter Elbow and Return Elbow.  Refer to Offset and Rise chart on Page 14 (FIG. 9) for offset and  rise dimensions of other spacer lengths.    Make  sure  the  chimney  will  be  offset  far  enough  to  clear  the  FIG. 12 ‐ STARTER ELBOW (OUTER)  top portion of the Adobelite Kiva Frame (refer to dimensions A  and E in Layout charts, Pages 10‐11). Firmly push both the in‐ ner  and  outer  pipes  into  the  Starter  Elbow  until  they  “snap”  PIPE STRAP  lock into place.  14  14)  RETURN  ELBOW    –  Position  the  Return  Elbow  so  that  the ...
  • Page 16 CHIMNEY INSTALLATION  :  (CONTINUED) A  15)  STRAIGHT  CHIMNEY  SECTIONS  –  Before  running  2” MIN. AIR  the  straight  chimney  through  the  roof,  slide  the  SPACE TO  COMBUSTIBLES!  Firestop  Spacer  (shown  in  FIG.  16)  over  the  Return  A  Elbow.  Now,  snap  the  remaining  Straight  Chimney  sections into place.   MODEL ...
  • Page 17: Outside Air Kit Installation

    20)  OUTSIDE  AIR  VENT  – If the  fireplace  is  located  against  4” HOLE  20  an  exterior  wall  (FIG  20.1),  use a hole saw to cut a hole  20  4” HOLE  completely  through  the  ex‐ terior  wall.  Use  the  layout  charts (Pages 10‐11) to make  sure  that  the  Adobelite  Kiva  Frame will cover the hole and Outside Air Vent. The center of the hole should be located about 8” from the  bottom of the wall. If the fireplace is not located on an exterior wall, the outside air can be brought down  from the roof or chimney chase (FIG 20.2). Cut a 4” hole located on a vertical face of the chimney chase and  attach the Outside Air Vent.  21) ALUMINUM FLEX DUCT – Connect the  4” Alumi‐ FIG. 21 ‐ ALUMINUM FLEX DUCT  num Flex Duct to the Outside Air Vent and to the  circular open end of the Manifold. Use Metal Tape  to secure the ends.  21 ...
  • Page 18: Gas And Electrical Connections

    GAS AND ELECTRICAL CONNECTIONS  4  GAS SYSTEM CONNECTIONS: IMPORTANT:    All  gas  connections  and  gas  piping  must  be  installed  by  a  construction  industry         licensed plumber or gas fitter qualified to install gas appliances. Check all gas connections for leaks.  It is possible that connection may have loosened during transport!  WARNING:    IF  THE  INFORMATION  IN  THIS  MANUAL  IS  NOT  FOLLOWED  EXACTLY,  A  FIRE  OR  EPLOSION  MAY  RESULT         CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE   22) ...
  • Page 19: Kiva Frame Installation

    5  KIVA FRAME INSTALLATION :  WARNING: Use care and wear gloves when handling the frame and diamond lath pieces. Cut edges of the diamond lath  mesh are very sharp!  WARNING: THE FIREBOX MUST BE FINISHED WITH THE  ADOBELITE KIVA METAL FRAME OR OTHER NON‐ #6 x  ”      COMBUSTIBLE MATERIALS. CLEARANCES TO COMBSTIBLE  Phillips  MATERIALS AND FRAMING MUST BE MAINTAINED.  Washer Head  Self‐Drilling  Screws  ATTACH LATH TO MANIFOLD (FIG. 23)  Before placing the Kiva frame around the firebox,  Lath needs to be attached to the front of the manifold.  Cut  a  strip  of  lath  24”  x  27”.  Fold  the  24”  side  in  half  and  place  a  sharp  crease  at  the  bend.  Open  the  piece  up  and ...
  • Page 20: Finishing The Fireplace

    6  FINISHING THE FIREPLACE  3‐COAT PLASTER FINISH  The Adobelite fireplace can be finished with any indoor plaster system. Typically a 3‐coat gypsum plaster system  is used. The first coat (base coat) should contain fiberglass and sand. This will provide a solid base for the other  coats. The first coat can be mixed slightly on the dry side to help it bond to the Kiva Frame wire mesh. Allow the  first coat to dry completely before applying the 2nd coat.     The 2nd coat should contain fiberglass, and may or may not contain sand and cement. Many indoor plasters are  gypsum based. Apply the 2nd coat using a trowel, and then smooth out the plaster using water and a float (or  sponge). When complete the 2nd coat will be fairly smooth but will have a “grainy” of stucco finish.      Allow one full week or more for the first two coats to completely dry before applying the final coat of plaster.  The final coat does not generally contain fiberglass and is applied with a hard trowel to give a smooth appear‐ ance, but can be also be finished any way desired.   Recommended Base Coat and 2nd Coat Products  Manufacturer  Manufacturer  Product  Product  Website  Website  USG  Red Top Wood Fiber Gypsum Plaster*  http://www.usg.com/red‐top‐wood‐fiber‐gypsum‐plaster.html  USG  Red Top Wood Fiber Gypsum Plaster*  http://www.usg.com/red‐top‐wood‐fiber‐gypsum‐plaster.html USG  Structo‐Lite Fibered Basecoat Plaster  http://www.usg.com/usg‐structo‐lite‐basecoat‐plaster.html    * Wood Fiber Gypsum Plaster should be mixed with sand at a 1 to 1 ratio for maximum strength. Refer to manufacturer’s instructions.    Recommended Finish Coat Products  Manufacturer  Product  Website  http://www.usg.com/diamond‐veneer‐finish.html? USG ...
  • Page 21: Lava Rock / Gas Log Setup

    CERAMIC LOG INSTALLATION  LAVA ROCK  Spread the supplied lava rock onto the bottom of the firebox. The lava  rock  should  form  an  even  layer  across  the  base  covering  all  the  wires  and tubing to the burn pan, but not the burn pan itself.      GLOWING EMBERS  Tear  the  supplied  Glowing  Embers  into  dime  sized  pieces.  Place  the  pieces all around the burner holes on top of the burner pan making sure  not to cover the burn holes where the gas will come out of. See FIG 26.    LOG PLACEMENT  FIG. 26 ‐ GLOWING EMBERS  Refer  to  figures  below  for  proper  placement  of  Ceramic  Logs.  The  logs  should sit in‐between the large burn holes of the Burn Pan. See FIG 27.  ...
  • Page 22: Operation And Trouble Shooting

    7  OPERATING AND TROUBLESHOOTING  OPERATING THE FIREPLACE  IMPORTANT: WHAT TO DO IF YOU SMELL GAS. 1) Shut off gas to fireplace. 2) Extinguish and flame. 3) Go to a phone  outside your home and call your gas supplier. If you can’t reach your gas supplier, call the Fire Department.  The Adobelite Gas Fireplace uses an electronic/intermittent pilot system. When the wall switch is flipped to the  on position, the control system sends a spark and ignites the pilot light. Once the heat sensing rod at the pilot  heats up, the main burner turns on and ignites. When the wall switch is turned off both the main burner and pi‐ lot light will turn off.       1.  Fully open the Keyed Gas Shutoff Valve located on the wall (shown on Page 9).  2.  Flip the Wall Switch to the “on” position.    You may hear a “clicking” sound as the igniter lights the pilot flame. If this is the first time operating  the  fireplace  it  may  take  several  seconds  for  the  air  in  the  gas  line  to  bleed  out  before  the  pilot      ignites.    3.   When done using the fireplace, flip the wall switch to the “off” position. It is not necessary to close the Keyed  Gas Shutoff Valve when you are not using the fireplace.  TROUBLE SHOOTING ...
  • Page 23: Adobelite Kiva Fireplace Options

       All doors our hand made, and snap into place using the provided door  frame for a clean, elegant look.  GLASS DOOR  SCREEN DOOR  Sidewall Banco  Nicho (Set of 2)  Nichos  can  be  added  to  any  of  the  Adobelite  Kiva  Sidewall Bancos are  15  ” tall x 15  ” deep (before  Frames.  Inside  measurements  before  plaster  are:  12”  plaster)  to  match  the  height  of  the  Adobelite  Kiva  wide x 12” tall x 5” deep.  Frame  hearth  extension  and  are  available  in  lengths ...
