18"-24"-30" Kiva Fireplace
WOOD BURNING INSTALLATION MANUAL
Frame Models:
Keep these instructions for future use.
This fireplace is to be installed ONLY by a con-
struction industry licensed contractor. Any
permits and construction industry inspections
required for installation should be obtained
by this contractor.

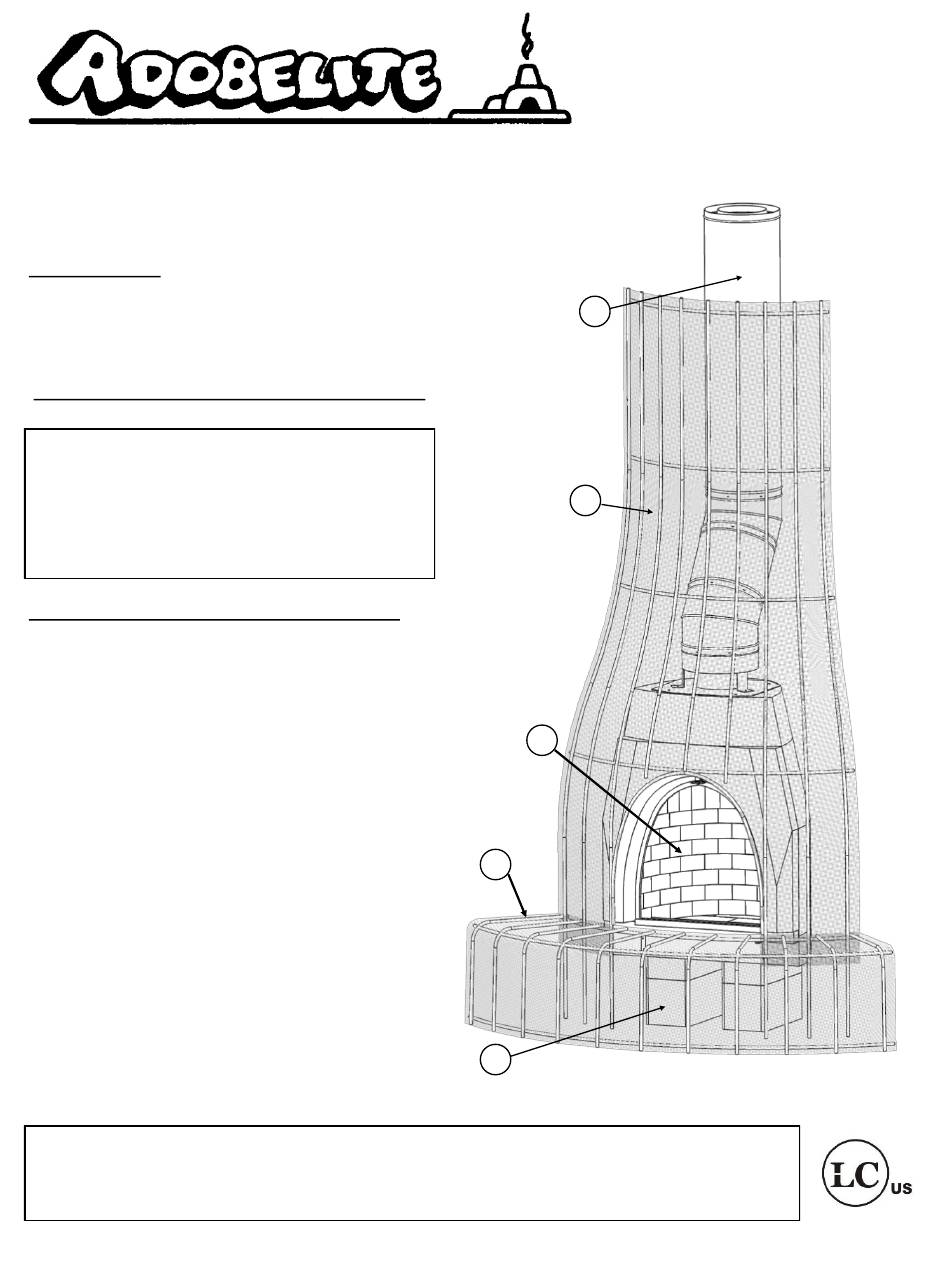

The Adobelite Fireplace System consists of:
A) KIVA FIREBOX - A pre-cast firebox con-
sisting of real hand laid firebrick and light-
weight concrete.
B) EXTERIOR FIREPLACE FRAME - A tubular
steel and diamond-mesh frame. The frame
is finished with stucco after installation.
C) AIR-COOLED CHIMNEY - Lightweight stain-
less steel double walled air-cooled chim-
ney is used for venting the fireplace.
D) FIREBOX PEDESTAL - Concrete blocks are
used to elevate the firebox.
(Concrete blocks are not included)
E) HEARTH EXTENSION - Provides flooring
protection. Finished with stucco or plaster.
NOTE: All warnings are outlined in this manual and must be adhered to by the installer
and the buyer. Failure to do so will nullify the manufacturer's warranty, and may cause
serious fire hazard.
RV-03142024
Orno
Santa Fe
Navajo
Zuni
C
B
A
E
D
Advertisement
Table of Contents
Related Manuals for Adobelite Kiva 18
Summary of Contents for Adobelite Kiva 18
- Page 1 Any permits and construction industry inspections required for installation should be obtained by this contractor. The Adobelite Fireplace System consists of: A) KIVA FIREBOX - A pre-cast firebox con- sisting of real hand laid firebrick and light- weight concrete.
-
Page 2: Warning And Safety Precautions
WARNINGS AND GENERAL SAFETY PRECAUTIONS IMPORTANT: THESE INSTRUCTIONS MUST BE LEFT WITH HOMEOWNER ALL WARNINGS OUTLINED IN THIS MANUAL MUST BE STRICTLY ADHERED TO BY THE INSTALLER AND HOMEOWNER. FAILURE TO FOLLOW these installation instructions will VOID THE WARRANTY and may cause a serious FIRE HAZARD. This fireplace is to be installed ONLY by a construction industry licensed contractor. -
Page 3: Table Of Contents
TABLE OF CONTENTS Warning and Safety Precautions ………………………………………………...……..2 Listing Data Plate / Location……………………………………………………………….4 1. Pre-Installation Requirements ……………………………………………………..5 Firebox Dimensions…………………………………………………………………..5,6 Chimney Requirements……………………………………………………………….7 Framing Requirements…………………………………………………………... 8-9 Fireplace Layout……..………………………………………………………….. 10-11 Fireplace Pedestal…………..…………………………………………………………11 2. Firebox Installation………………………………………………………………..……12 Firebox Assembly ………………………………………………………………..12 Door Frame …..………………………………………….…………………………….. 13 Damper/Anchor Plate………………..………………………………………………13 3. -
Page 4: Listing Data Plate / Location
LISTING DATA PLATE / LOCATION The Adobelite Kiva Fireplace is a factory built fireplace tested to U.L. 127. test standards and is well- insulated for safe clearances to combustible construction materials used to build your home. The proper clearances are described by a label... -
Page 5: Pre-Installation Requirements
FIREBOX DIMENSIONS: TOP VIEW CLEARANCES TO COMBUSTIBLES 1” SIDES/BACK All framing along firebox face FACE must be non-combustible 16” HEARTH EXTENTION 2” CHIMNEY KIVA 18 ” 27” ” 35” 43” ” 8” MIN. 12” ” KIVA24 FIREBOX DIMENSIONS: TOP VIEW CLEARANCES TO COMBUSTIBLES 1”... - Page 6 KIVA30 FIREBOX DIMENSIONS: TOP VIEW CLEARANCES TO COMBUSTIBLES 1” SIDES/BACK All framing along firebox face FACE must be non-combustible HEARTH EXTENTION 16” 2” CHIMNEY KIVA 30 30” 40” ” ” ” 28” 10” MIN. 15” ”...
-
Page 7: Chimney Requirements
103, UL 103HT, and ULC S604 rated to 1700°F or 2100°F may also be used if minimum chimney diameter (8” I.D. for KIVA 18 and KIVA24, 10” I.D. for KIVA 30) is adhered to. Note: Anchor Plate (FIG 8 / page 14) and Chimney Starter Collar (FIG 11 / page 16) are specific to each chimney pipe type and are not interchangeable. -
Page 8: Framing Requirements
2” min. Finished air space Interior Walls 2” min. air space CORNER MODELS FLATWALL MODELS Minimum Corner Framing Dimensions Minimum Flatwall Framing Dimensions MODEL KIVA 18 KIVA 24 KIVA 30 MODEL KIVA 24 KIVA 30 Orno/Ornito 4’2” 4’7” 4’11” Orno 6’8”... - Page 9 (CONTINUED) Refer to the below diagram for minimum combustible framing requirements and clearances to combustibles. See pages 11 and 12 for required spaces and layouts for Adobelite systems including Adobelite stucco/plaster ready outer façade frames. DO NOT PACK REQUIRED AIR SPACES WITH INSULATION OR OTHER MATERIALS.
-
Page 10: Fireplace Layout
FIREPLACE LAYOUT AND FIREBOX PEDESTAL: CHIMNEY CHASE REQUIREMENTS If an enclosed exterior roof top chimney chase is constructed, it should be framed with a minimum open clear space specified by dimension “A” Minimum Framing as specified in TABLE 1, Page 9. Framing should be constructed of 2 x 4 lumber or heavier. -
Page 11: Fireplace Pedestal
FIREBOX PEDESTAL: Standard Hearth Height of 18” (Note: Concrete Blocks are not included with the Adobelite Fireplace Kit and must be purchased separately) Concrete Masonry Units (C.M.U) are used to construct the Firebox Pedes- tal. The overall height of the pedes- tal should be 12”. -
Page 12: Firebox Installation
FIREBOX ASSEMBLY 1) BASE –Spread a thin layer of concrete mortar or construction adhesive 1” MIN. AIR on the top of the firebox pedestal. Place the firebox base on the ped- SPACE TO COMBUSTIBLES! estal. Using the layout sketch, align the front of the base with the fire- box base line and center the firebox along the center line. -
Page 13: 7A -Door Frame
FIREBOX ASSEMBLY (CONTINUED): 7) DOOR FRAME – The Door Frame allows an Adobelite Screen Door or Glass Door to be used with the fire- place. Begin by attaching the Door Frame to the Combustion Air Tube. Position the Door Frame on top of 5”... -
Page 14: Chimney Installation
Starter Elbow to the Anchor Plate Collar. CHIMNEY OFFSET An offset and return elbow set is KIVA 18 and KIVA 24 (8” I.D. Chimney) Return required for installation of the Spacer Length... - Page 15 CHIMNEY INSTALLATION (CONTINUED) 11) STARTER COLLAR The Starter Collar is used to support the outer chimney section, while the Anchor Plate / Damp- er supports the inner chimney. Attach the legs BEAD of the Starter Collar to the Anchor Plate with the supplied #12 x ”...
- Page 16 CHIMNEY INSTALLATION (CONTINUED) Room Above WARNING: Ceiling firestops must be used whenever the (non-insulated ceiling) chimney penetrates a ceiling/floor. 15) FIRESTOP SPACERS – Firestop Spacers are required at each point where the chimney penetrates a floor or ceil- Ceiling Firestop attached to bottom of framing ing joist space.
- Page 17 CHIMNEY INSTALLATION (CONTINUED) 17) STRAIGHT CHIMNEY SECTIONS – Before running the 2” MIN. AIR straight chimney through the roof, determine the place- SPACE TO COMBUSTIBLES! ment of required Firestop Spacers. If a Firestop will be installed against the ceiling, then before installing any straight chimney sections, first slide the Firestop Spacer (shown in FIG.
-
Page 18: Outside Air Kit Installation
The Outside Air Kit is used to provide outside combustion air to the firebox, therefore not using air from the inte- rior of the house. When installed, one end will be open and supply air to the cavity formed by the Adobelite Kiva Frame and walls. -
Page 19: Gas Installation For Vented Gas Logs
GAS INSTALLATION FOR VENTED GAS LOGS/LIGHTER PROVISION: WARNING! Fire and/or Asphyxiation Risk! Use with solid wood fuel or decorative gas appliance only. Gas fire generates fumes. CAUTION: WHEN USING THE DECORATIVE APPLIANCE, THE FIREPLACE DAMPER MUST BE SET IN THE FULLY OPEN POSITION VENTED GAS LOGS •... -
Page 20: Finishing (Without Kiva Frame Façade)
(WITHOUT KIVA FRAME FAÇADE) FINISHING MATERIALS: If the fireplace is to be installed with an Adobelite Kiva Frame Façade, proceed Kiva Frame Installation on page 24 for installation instructions and finishing. Refer to the below sections for finishing requirements if Adobelite Kiva Frame Façade is not used. -
Page 21: Hearth Extension Requirements
HEARTH EXTENSION REQUIREMENTS: HEARTH EXTENSION: If the fireplace is to be installed with an Adobelite Kiva Frame Façade and included hearth extension, proceed to page 24 for installation instructions and finishing. Refer to the below sections for hearth extension requirements if Adobelite Kiva Frame Façade with hearth extension is not used. -
Page 22: Kiva Frame Façade Installation
WARNING: Use care and wear gloves when handling the frame and diamond lath pieces. Cut edges of the diamond lath mesh are very sharp! WARNING: THE FIREBOX MUST BE FINISHED WITH THE ADOBELITE KIVA METAL FRAME OR OTHER NON- COMBUSTIBLE MATERIALS. CLEARANCES TO COMBSTIBLE MATERIALS AND FRAMING MUST BE MAINTAINED. -
Page 23: Finishing The Kiva Frame Façade
PAINTING THE PLASTER Once the plaster is completely dry, the fireplace can be painted if desired. Adobelite recommends using a latex based primer and paint. If the fireplace has been burned in, clean any soot buildup along the opening of the fire-... - Page 24 10031 Southern Ave SE, Albuquerque NM 87123 ph: 505-291-0500 fax: 505-291-9317 email: customerservice@adobelite.com Visit us at: www.adobelite.com...
