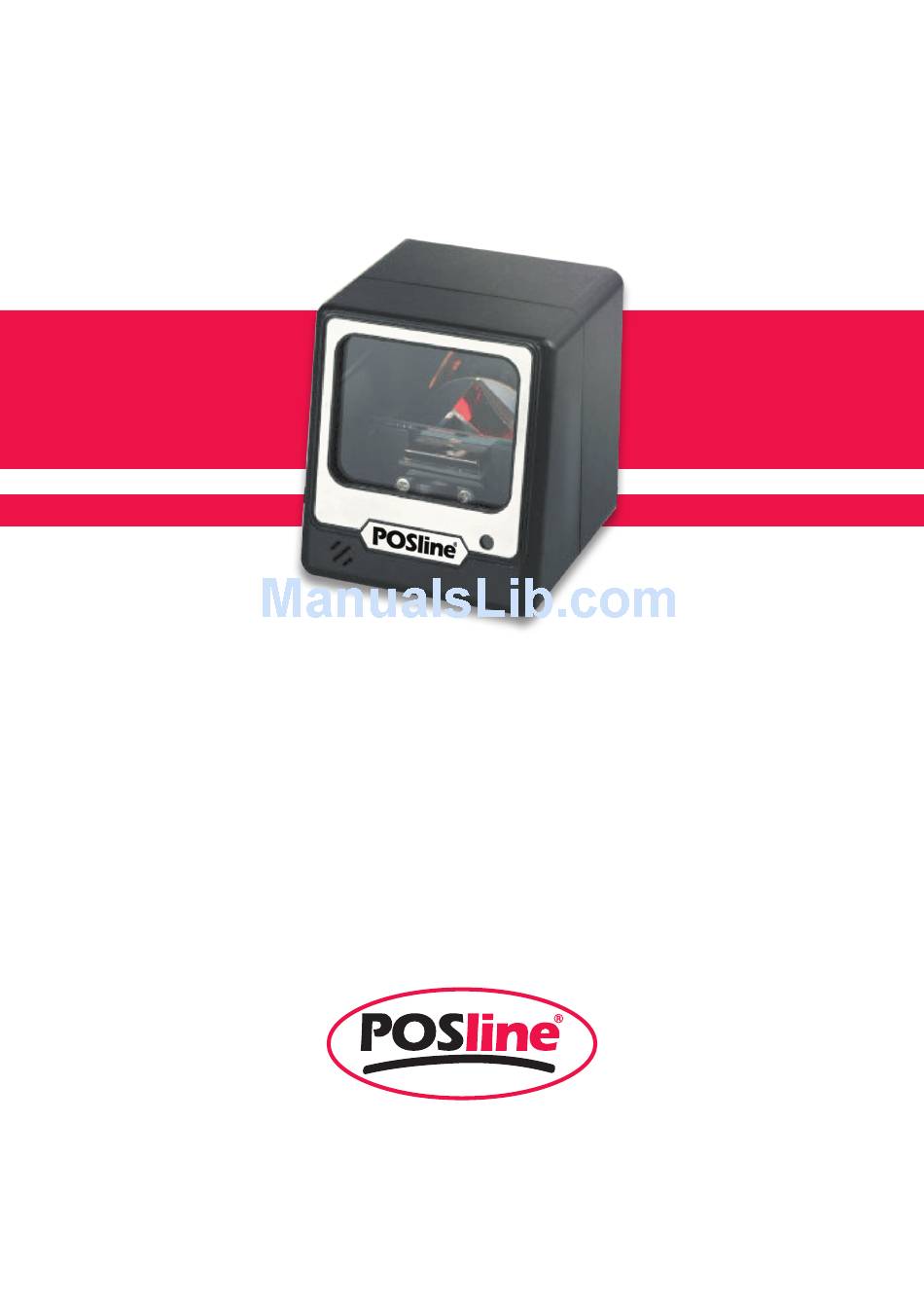

- Page 1 SM2410 Manual del Usuario ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO.
- Page 2 No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of mechantability or fitness for a particular purpose. We are not liable for any errors con- tained herein nor incidental or consequential damages in connection with furnishing, performance or use of this material.
- Page 3 **Move the device away from the receiver. **Plug the device into a different outlet so that the device and the receiver are on different branch circuits. If necessary the user may consult the manufacturer, an authorized dealer, or experienced radio/television technician for additional sug- gestions.
- Page 4 Laser Safety The Omnidirectional Laser Scan Module complies with safety stand- ard IEC 60825 for a Class I laser product. It also complies with CDRH as applicable to a Class IIa laser product. Avoid long term starting into direct laser light. Radiant Energy: The Omnidirectional Laser Scan Module uses one low-power visible laser diode operating at 650nm in an opto- mechanical scanner resulting in less than 3.9uW radiated power as...
-
Page 5: Table Of Contents
Table of Contents Introduction..........1 Unpacking..........1 Finding Your Way Around....... 2 Connecting and Mounting.......3 Power............ 3 Verifying Scanner Operation....3 Mounting..........4 Connecting to the Host......6 Setting Up the Scanner......6 Scan Test..........6 Set Up..........7 Operation..........7 LED Indications........8 Beeps.......... -
Page 6: Introduction

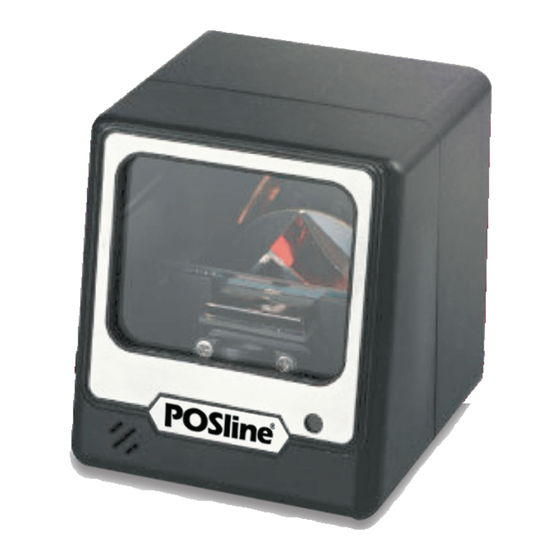

Introduction This Omnidirectional Laser Scan Module is an easy-to-inter- grate unit that performs 5 directions of scan field with a 20- line scan pattern cycling at 1200 scan per second for quick accurate reads. The scanner’s smart small cubic design allows for easy integration into new equipment and efficiently reduces overall equipment size. -
Page 7: Finding Your Way Around
Finding Your Way Around Front View Back View Bottom View... -
Page 8: Connecting And Mounting
Connecting and Mounting Power The scanner needs a minimum of 200mA at 5V power. The power link interface cable that comes with the scanner sup- ports both direct power (where the scanner takes power from the host machine) and external power (the power adapter that's plugged into an AC outlet). -
Page 9: Mounting
4. When the scanner powers up, LED light up in green and the buzzer makes four short beep sounds. When the self-test is finished the LED light will turn red. 5. Place the "test barcode" in front of the scanner. If the scanner works right, it will make a short beep sound, and the LED will show green light indicating a good read, then the "test barcode"... - Page 10 Back View Bottom View Unit: mm (inch) SR (strain release) that is connected to the cable rotates 90 to comply with the way the scanner is mounted. Therefore the scanner will be positioned horizontally to the host machine without cable inter- ference for optimal mounting.
-
Page 11: Connecting To The Host
Connecting to the Host The scanner connects to a host terminal by an interface cable. This cable connects to the scanner with a modular connector, and connects to the host terminal with the con- nector required by the host (RS-232, keyboard wedge, or USB. -
Page 12: Set Up
Set Up With the scanner running (LED red) and the host sys- tem on, scan <Enter/Exit Programming Mode> bar- code found on the inside cover of the Programming Guide. Scanner is ready for programming if it gives one low beep sound followed immediately by a high beep sound and LED turns green. -
Page 13: Led Indications
LED indications Status Indications no power applied to the scanner steady red light the scanner is on and ready to scan one blink of green one barcode has been succesfully light decoded steady green light *scanner is in programming mode, *a barcode has been successfully decoded but the object has not been removed from the scan win-... -
Page 14: Beeps
Beeps Beeps Status Indications one beep a barcode has been successfully decoded series of 4 beeps *scanner passed self-test and is operating properly *when scanner is powered up series of 2 beeps when scanner is entering pro- gramming mode continual beep failure indication, return to repair Changing Beep Volume The scanner can be programmed with the Programming... -
Page 15: Controlling From A Host System
Controlling the Scanner from a Host System The scanner can be controlled from the host system via the RS-232C interface. Control can be accomplished by trans- mitting the following single-byte commands to the scanner. The default setting for the commans are as follows: ASCII Code Function Byte is Also Called... -
Page 16: Specifications
Specifications Operational Light source 650nm visible laser diode Depth of Scan Field 0-210mm@ UPC/EAN 100%, PCS 90% Number of Scan Lines Scan Pattern 5 directions of scan field Scan Speed 1200 scan per second Minimum Bar Width 5mil @ PCS 90% Print Contrast 30% @ UPC/EAN100% Indicators (LED) - Page 17 Power Input Voltage 5VDC+10% Power 1.0Watts Operating Current 200mA@ 5.0V Laser Class CDRH Class IIa, IEC 60825-1: Class 1 CE&FCC DOC compliance Environment Operating Temperature C-40 Storage Temperature C-60 Humidity 5%-95% RH (non-condensing) Light Level max. 2500LUX (fluorescent) Shock Designed to withstand 1m drops...
-
Page 18: Dimensions
Dimensions... -
Page 19: Scan Field
Scan Field 116.4 4.58 100.0 3.94 50.0 1.97 1.97 50.0 100.0 3.94 4.58 116.4 5 mil (0.127mm) 6 mil (0.15mm) WIDTH OF FIELD 11.5 7.5 mil (0.19mm) 10 mil (0.25mm) 13 mil (0.33mm) 100% UPC/EAN 26 mil (0.66mm) 50.0 100.0 150.0 200.0 250.0... -
Page 20: Troubleshooting
Troubleshooting Problem Diagnostic Tips The scanner is on but *The scanner window is dirty and cannot read bar- must be cleaned as described in codes. The LED is Maintenance section. red. *The presented barcode type is not enabled and must be programmed with the programming guide *The host disables the scanner. - Page 21 Problem Diagnostic Tips LED remains green. *The scanner is continuously seeing a barcode. Remove all barcode la- bels out of the scan volume of the scanner and try again. *The scanner cannot send data to the host system. There is no proper handshaking between the scanner and the host.
- Page 22 Notes...
- Page 23 Notes...
- Page 24 Scale 1:1 Unit: mm Note: 3 Mounting Holes; size- M3*0.5, Depth=5.0 Figure 1: Mounting Plate Boring Template- Back View...
- Page 26 Scale 1:1 Unit: mm Note: 2 Mounting Holes; size- M3*0.5, Depth=4.5 Figure 2: Mounting Plate Boring Template- Bottom View...
