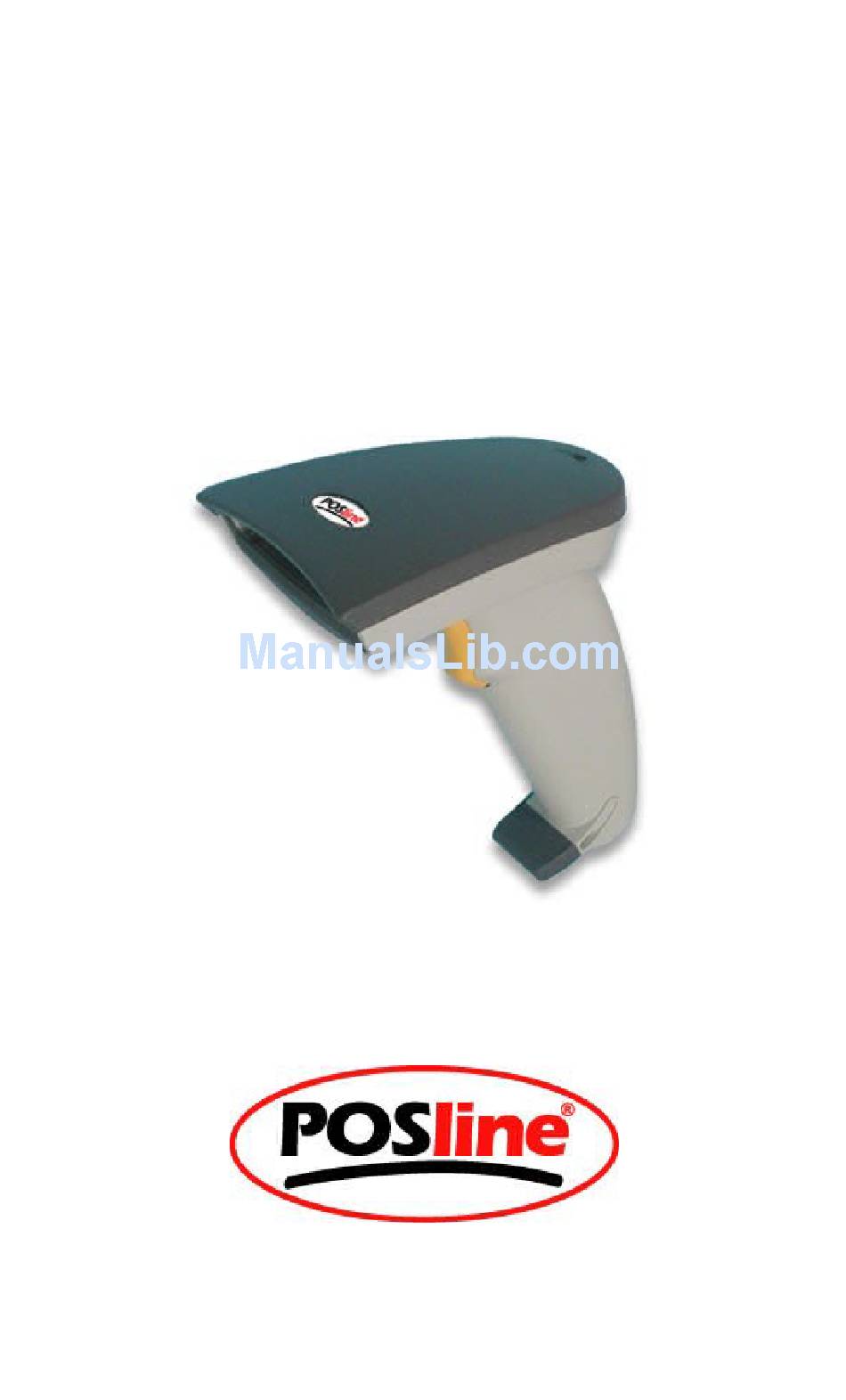

- Page 1 Manual POSline SC2110/SC2120/SC2130/SC2140 1D & 2D Barcode Reader User's...
- Page 2 Introducción Instalación Interfase Teclado En primer lugar, debe apagar la terminal o computadora. Desconecte el teclado de la computadora. Conecte el cable correspondiente al lector y a la computadora. Encienda la computadora. Instalación Interfase RS-232 Desconecte la energia electrica de la terminal o computadora. Conecte el cable serial y la fuente de poder externa al lector.
- Page 3 Programando los lectores SC2110/SC2120/SC2130/SC2140 Para programar los modelos SC2110/SC2120/SC2130/SC2140, usted debera escanear una serie de codigos de barras en el orden indicado. Doble hacia fuera la cubierta de la parte posterior y usted vera una tabla de codigos de barra alfanumericos, los cuales son utilizados para programar las diferentes opciones presentadas.
- Page 4 Sin embargo, debe de estar seguro del cable que necesita. *La intefase de fabrica del lector SC2110 no puede ser cambiada por otro tipo de interfase, cada modelo especifico trabaja solo con su interfase.
- Page 5 Teclado wedge La interfase a Teclado del lector, soporte la mayoria de las terminales PC e IBM. El proceso de instalacion es bastante sencillo, no requiere cambios de software o hardware Tipo de Teclado: Seleccione el tipo de conector del teclado de su computadora.
- Page 6 Program Option Bar Code Option Alphanumeric Entry IBM AT, PS/2 IBM PS/2 25,30 Keyboard type IBM PS/2 25 IBM XT IBM 5550 Macintosh ADB NEC 9801 Belgium Keyboard layout Danish France Germany Italian Portuguese Spanish Swedish Switzerland Latin American 00-08 0 : high clock rate Keyboard speed 8 : low clock rate...
-
Page 7: Keyboard Wedge
Keyboard wedge Function Key: Set Enable, scanner can output code as pressing function-key in your application program while the barcode datas contain ASCII value between 0116 to 1F16. Refer to ASCII table, page 71. Numeric Key: The Keypad has to be selected if your application program is only keypad numeric code acceptable. - Page 8 Program Option Bar Code Option Alphanumeric Entry Disable Enable Function key Alphabetic key Numeric keypad Numeric key Only Alt+Keypad Caps lock No Caps lock Caps lock Disable Enable Power-on simulation 00-99 msec 00-99 Inter-character delay 00-99 10 msec 00-99 Block transmission delay Exit...
- Page 9 RS-232 CTS: Clear To Send (Hardware Signal) RTS: Request To Send (Hardware Signal) Xon: Transmit On (ASCII Code 1116) Xoff: Transmit Off (ASCII Code1316) Flow control: None-The communication only uses TxD and RxD signals without regard for any hardware or software handshaking protocol. RTS/CTS-If the scanner wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication.
- Page 10 Program Option Bar Code Option Alphanumeric Entry None RTS/CTS Flow control Xon/Xoff ACK/NAK 00-99 (msec) 00-99 Inter-character delay 00-99 (10 msec) 00-99 Block transmission delay 00-99 (100 msec) 00-99 Response delay 300 BPS 600 BPS Baud rate 1200 BPS 2400 BPS 4800 BPS 9600 BPS 19200 BPS...
- Page 11 Exit Scan Scanning mode: Good-read off-The trigger button must be pressed to activate scanning. The light source of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed. Momentary-The trigger button acts as a switch. Press button to activate scanning and release button to stop scanning.
- Page 12 Multi field scan: The scanner can be read many sets of barcode data on the same scanning line at the same time, even if they are different kinds of barcode symbology. Program Option Bar Code Option Alphanumeric Entry Good-read off Momentary Scanning mode Alternate...
- Page 13 PDF-417 Only the SC2130 can decode PDF-417. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Program Option Bar Code Option Alphanumeric Entry Disable Enable...
-
Page 14: Parameter Setting List
Barcode standard parameter setting list bar code. System parameter setting list If you wish to display the product information and revision number for your SC2110/SC2120/SC2130 scanner over the host terminal/computer, scan the System parameter setting list bar code. - Page 15 Firmware version list If you wish to display the firmware version, scan the Firmware version list. WARNING: Default value initialization If you wish to return the SC2110/SC2120/SC2130/SC2140 to all the factory default settings, scan the Default value initialization bar code.
- Page 16 Finish...
