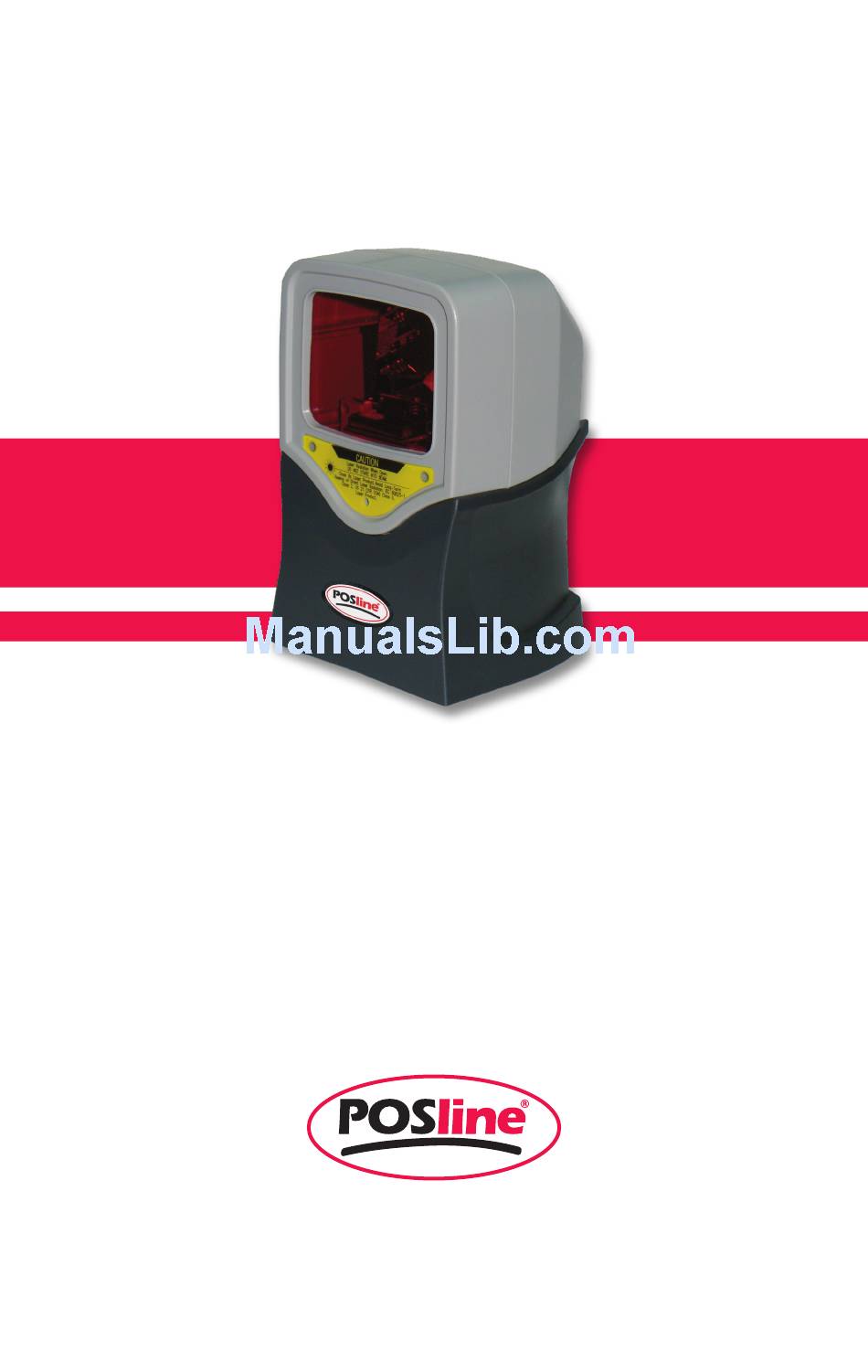

- Page 1 SM2410B Manual del Usuario ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO.
- Page 2 No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for a particular purpose. We are not liable for any errors contained herein or incidental or consequential damages in connection with furnishing, performance or use of this material.
- Page 3 Laser Safety The laser scanner complies with safety standard IEC 60825 -1for a Class I laser produce. It also complies with CDRH as applicable to a Class IIa laser product. Avoid long term staring into direct laser light. Radiant Energy: The laser scanner uses one low-power visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than 3.9μW radiated power as observed through a 7mm aperture and averaged over 10 seconds.
-
Page 4: Table Of Contents
Table of Contents Introduction ..............1 Unpacking..............2 Outline ................3 Scanner ..............3 Stand ...............4 Connecting..............5 Power ..............5 Verifying Scanner Operation ........5 Connecting to the Host..........6 Setting Up the Scanner ..........7 Scan Test..............7 Set up ..............7 Operating the Scanner ..........9 Single-line Scan Mode ..........9 Presentation Mode ..........10 LED Indications ............11 Beeps ..............12... -
Page 5: Introduction
Instruction The scanner is a compact hands-free omnidirectional laser scanner, and becomes a single-line laser scanner by pressing down a button. It is designed to suit both requirements for omnidirectional and single-line scanning. With the reserved mounting holes at the back of the scanner body, The scanner transforms to a scanning module to allow integration into your desirable hardware application. -
Page 6: Unpacking
Unpacking The handheld omnidirectional scanner package contains: 1 ea. Compact omnidirectional scanner 1 ea. Scanner stand 1 ea. Screw (to fix the stand when necessary) 1 ea. Adjustable stand (optional) 1 ea. Communication cable 1 ea. Power adapter (only for specific RS-232 cables as optional accessory) 1 ea. -
Page 7: Outline
Outline Scanner Description Function Exit Window Reads barcodes Object Detector Trigger and wake up scanner when presenting barcode in its range Beeper Hole For beep tone indication Function Button Wake up scanner When the scanner enters into the sleep mode, pressing this switch can wake the scanner up. -
Page 8: Stand
Stand The stands are both designed with a fixing hole, use appropriate screws enclosed in package to fix the stands on surface if necessary. Fixed Stand Screw Size: Sharp screw, M4-16.0mm, Cross shape Adjustable Stand Screw Size: Sharp screw, M5-16.0mm, Cross shape Adjustable height illustrate as below,... -
Page 9: Connecting
Connecting 4-1. Power The scanner requires a minimum of 2.5W at 5 VDC power. The interface cable that comes with the scanner supports both direct power (where the scanner takes power from the host machine) and external power (that’s what the supplied power adapter is for). -
Page 10: Connecting To The Host
power adapter is not needed. The scanner powers up, the buzzer sounds four beeps and the LED indicator glows. 4. Present a known-good test barcode to the scanner. The scanner should issue a short beep and the LED should flash red momentarily. [if the scanner is connected to a USB for this test, it should read one barcode, beep, then remain with a red LED indicating... -
Page 11: Setting Up The Scanner
Setting up the Scanner In certain cases no setup is required. The scanner is either pre-programmed suit situation, automatically detects and is ready to go. In other cases the scanner must be informed about what kind of system it is connected to. This can be done in a few moments using the programming barcodes enclosed in the later sections of this booklet. - Page 12 scanner is in programming mode. Decide which parameters are required and find their barcodes in the programming section. Cover unwanted codes with your hand and present the desired codes, one by one, to the scanner, the scanner beeps once as it accepts each code. When done, again present the <Enter/Exit programming mode>...
-
Page 13: Operating The Scanner
Operating the Scanner The scanner can read barcodes in either omnidirectional or single-line mode to accommodate different requirements. This scanner is truly omnidirectional while single-line mode is usually used for better aiming on the specific barcode on the same sheet of more than one barcode printed closely. 6-1 Single Line Scan Mode In this mode the scanner can emit a single line pattern for user to handheld scanning of hard to read or multiple... -
Page 14: Presentation Mode
If the button is released, it automatically switch back to omnidirectional scan in 5 seconds. Press down again to switch to single-line scan when necessary. 6-2 Presentation Mode As if the scanner is on the stand, the scanner will always stay active in Presentation Mode. -
Page 15: Led Indications
6-3 LED Indications A dual color red-blue LED indicates operating status as follows: LED status Indication No power supplied to the scanner Steady blue light The scanner is on and ready to scan One red flash A barcode has been successfully decoded. -
Page 16: Beeps
6-4 Beeps A beeper gives audible feedback on scanner operation. Beeps Indication One beep A barcode has been successfully decoded. Four beeps in This indicates the scanner series passed the power on self-test and is operating properly. Two beeps: The scanner has entered low-high programming mode. -
Page 17: Sleep Mode
6-5 Sleep Mode After the scanner has been inactive for a period of time, the laser automatically turns off; then the motor will turn off and the scanner will enter into “Sleep Mode”, the blue status LED blinks once as indication. To wake up the scanner, simply present an object close to the exit window, or press the trigger button. -
Page 18: Maintaining The Scanner
Maintaining the Scanner The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. 7-1. Cleaning the Scan Window Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid scratching and damaging the scan window. - Page 19 5. Plug the new cable into the host. 6. If a power adapter is used, plug the power adapter into the jack on the interface cable. Press down here Gently pull out the cable this direction...
