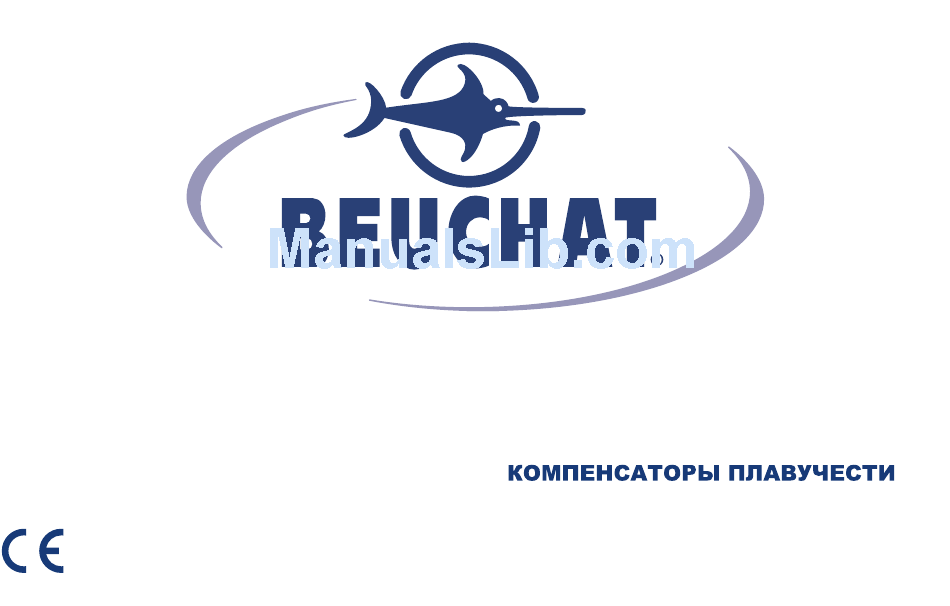

- Page 1 BOUÉES D’ÉQUILIBRAGE BUOYANCY COMPENSATORS / TARIERJACKETS CHALECOS HYDROSTATICOS / COLETES COMPENSADORES GIUBBETTI EQUILIBRATORI / TRIMJACKS / KAMIZELKI WYPORNOSCIOWE ÚSZÓKÉPESSÉG SZABÁLYOZÓK / EN 1809 ED. 12/05...
- Page 2 B u o y a n c y c o m p e n s a t o r s > U s e r g u i d e...
-
Page 3: Table Of Contents
Summary Introduction 1 - Models in the Beuchat product range 2 - Technical description 3 - Buoyancy compensator (BC) features Implementation 1 - Attaching the BC to the tank 2 - Connecting the regulator 3 - Settings - Adjustments 4 - Auxiliary inflation system... -
Page 4: Models In The Beuchat Product Range
28 > Instructions for use / Introduction D > Combined Buoyancy Compensator-Life Jackets: Introduction This BC, specially designed for the needs of the Navy, can be used with all sorts of dive suits. Its large volume 1. Models in the product range assures both impressive buoyancy and optimal surface safety. - Page 5 Introduction / Instructions for use > 29...
-
Page 6: Technical Description
30 > Instructions for use / Introduction 2. Technical description Depending on the type of BC, the air bladder can be integrated into a jacket or can be attached to an independent harness. A > The air bladder: The watertight bladder is made of 420 or 840 denier polyamide material with a polyurethane coating, bound together at a high frequency. -
Page 7: Buoyancy Compensator (Bc) Features
Introduction / Instructions for use > 31 3. Buoyancy compensator (BC) features The Buoyancy compensator (BC) allows the user to: A > While diving: •find neutral buoyancy at all depths using the inflation and air-dump systems, •control buoyancy while resurfacing using the power inflator. -
Page 8: Implementation
32 > Instructions for use / Implementation Implementation 1. Attaching the BC to the tank: The BC is securely fixed to the tank by a tank band equipped with a cam buckle that locks tightly in place once adjusted. This tank band is equipped with a quick release buckle that allows for easy handling without affecting the adjusted settings. - Page 9 Implementation / Instructions for use > 33 •Tighten the tank band by pulling on its end. •Close the buckle by pushing it back towards the tank and press the remaining strap end onto the Velcro security band (see figures 2 and 3). Note 1: wet the tank band before mounting it on the tank, if possible.
-
Page 10: Connecting The Regulator
34 > Instructions for use / Implementation 2 - Connecting the regulator: The BC is manually inflated using the power inflator; this power inflator may also be referred to as a direct- system. The power inflator is supplied with air at intermediate pressure by a tube attached to the first stage of the regulator and connected to the power inflator by a quick connector. - Page 11 Implementation / Instructions for use > 35 B > Connecting the power inflator with the quick connector: •Complete this operation before putting the hose under pressure. •Push back the moveable ring on the quick connector (see figure 6). •Place the end of the power inflator into the connector. •Bring the connector's ring back toward the front (see figure 7).
-
Page 12: Settings - Adjustments
36 > Instructions for use / Implementation 3 - Settings - Adjustments: A > Adjusting the backpack (figure 8): The backpack offers lumbar support that adjusts height- wise to fit the diver's chest height: •Do not undo the main fastening screw. •Lightly fold the horizontal part forward to release the adjustable notches. - Page 13 Implementation / Instructions for use > 37 B > Adjusting the cummerbund (figure 9): •Adjust the cummerbund by adjusting the length of the straps with the plastic buckles. •Ensure that there are 15 to 20 cm of Velcro covering around the waist. C >...
- Page 14 38 > Instructions for use / Implementation 11. Position the weights (traditional or integrated) in the removable pockets and close the flaps. 12. Position the removable pockets in the BC's integrated weight system as shown in the diagram. 13. Fasten and secure the removable pockets in place as indicated below. 14.
-
Page 15: Auxiliary Inflation System
Implementation / Instructions for use > 39 4 - Auxiliary inflation system: This inflation system exists only on the Océane model. It consists of a 0.4 liter tank and valve attached to the BC and allows for very fast emergency inflation by manually opening the valve (see figure 15). -
Page 16: To Check Before Diving
40 > Instructions for use / Checks To check before diving It is important to be sure of the good condition and proper functioning of your entire BC: •Ensure that the hose is properly attached to the regulator and in good condition. •Once you have inflated the BC using the power inflator, activate the purge valves. -
Page 17: Use
Use / Instructions for use > 41 It is recommended that you use a BC only after having fully learned from a certified instructor. 1 - Inflation features: A > Inflation with the power inflator: This type of inflation is used in all circumstances. It allows for precise adjustment of buoyancy. - Page 18 42 > Instructions for use / Use B > Oral inflation: A procedure preferably executed at the surface to reduce the risk of breathlessness or hyperventilation. •Take the inflator in your left hand and bring it to mouth level. •Take a deep breath from the regulator. •Place the oral inflator piece against your lips and start to blow, simultaneously pushing on the button at the inflator's end (see figure 17).
-
Page 19: Air Dump Instructions
•Pull, but not excessively, toward the bottom of the BC. All of the purge valves installed on models in the Beuchat product range are overpressure relief valves; therefore they prevent all risk of bursting due to over- inflation or uncontrolled ascent. - Page 20 44 > Instructions for use / Use C > L L o o w w e e r r e e x x h h a a u u s s t t v v a a l l v v e e : found at the back on the lower right-hand side of the BC.
-
Page 21: Maintenance - Storage
Maintenance / Storage / Instructions for use > 45 Maintenance / Storage •Rinse fully in fresh water after each use. •Inject fresh water into the BC via the inflator's oral inflation piece while pressing the purge button (see figure 21). •Distribute water evenly inside the BC by shaking gently. -
Page 22: Warranty
46 > Instructions for use / Warranty Warranty conditions All our products are guaranteed in compliance with current laws in the country of purchase from the date of purchase by the user for non-professional, recreational sporting use. The warranty covers parts recognized as defective by our technical services, and manufacturing and material defects with the exception of parts worn by use. - Page 23 Siège Social / Head Quarters ESPAÑA : BEUCHAT International BEUCHAT Sub España S.A. 34, av Boisbaudran CALLE BALMES N° 8 4° 8 13015 Marseille - FRANCE 08291 RIPOLLET BARCELONA, SPAIN Other distributor Réf. 60385...
