TABLE DES MATIÈRES NOTES .................................. CARACTÉRISTIQUES ET AFFICHAGES ................ 5 PRÉSENTATION .................................6 BOUTONS DE COMMANDE ..........................6 INDICATEUR DE VITESSE DE REMONTÉE .......................7 AFFICHAGES NUMÉRIQUES ..........................7 Affichages profondeur ............................8 Affichages temps et date ............................8 Affichage température............................9 ALARME SONORE ..............................9 RÉTROÉCLAIRAGE ..............................10 ALIMENTATION.................................11 Indicateur de niveau de pile ..........................11 Pile faible ................................11...
Page 4
TABLE DES MATIÈRES (SUITE) MODES APRÈS PLONGÉE NORM ................4 MODE SURFACE APRÈS PLONGÉE NORM ......................44 CINQ PREMIÈRES MINUTES ...........................44 APRÈS LES CINQ PREMIÈRES MINUTES (jUSQU'à HEURES) ...............45 CHRONOMÈTRE (MARCHE/ARRêT/R.A.z.) ......................46 MODE MÉMOIRE NORM ............................47 MODE HISTORIQUE NORM .............................49 INTERFACE PC (CHARGEMENT DES RÉGLAGES, TRANSFERT DE DONNÉES) ..........51 COMPENSATION D'ALTITUDE ..........................5 MODE NAV ........................
NOTE: A tout moment quand le d.i.P est en fonctionnement dans n'importe quel mode en surface comme en immersion, appuyer sur le bouton A (gauche) pendant 10 secondes arrête le temps de plongée écoulé NAV (s'il est en marche), puis pendant 0 autres secondes ef- face toutes les informations (N°...
La technologie ne doit pas remplacer le bon sens et si le d.i.P communique des informations à l'utilisateur, il ne lui apprend pas à en faire bon usage.
18,5 m/min. AFFICHAGES NUMÉRIQUES Chaque affichage numérique et graphique du d.i.P représente un élément d'information spécifique. Il est impératif de comprendre parfaitement la formulation, l'échelle et la valeur des informations présentées de façon à...
Affichages profondeur Pendant une plongée, l'affichage de la profondeur actuelle (Fig. 2a) indique les profondeurs de 0 à 120 m par intervalles de 0,1 m jusqu'à 99,9 m puis 1 m au-delà. La profondeur maximum atteinte pendant cette plongée est affichée pendant les 5 premières minutes lors du retour en surface après une plongée NORM (Fig.
Affichage température La température ambiante repérée par le symbole degrés (°) et la lettre C (ou F) est affichée (Fig. 4a) en mode Surface et elle peut être consultée en mode Plongée NORM en appuyant sur le bouton A (Avance/gauche). NOTE: Les affichages sont décrits en détail au fur et à...
RÉTROÉCLAIRAGE • Le rétroéclairage ne fonctionne pas si la pile est faible. S'il est allumé quand la pile s'affaiblit, il s'éteint Pour allumer le rétroéclairage dans le mode de fonctionnement NORM, en surface comme en plongée : > appuyer brièvement (moins de 2 secondes) sur le bouton S (Sélection/droit). •...
ALIMENTATION Le d.i.P est alimenté par une pile lithium de 3 volts type CR 2450 qui lui assure un minimum de 50 heures de fonctionnement avec le rétroéclairage allumé en permanence à 50% en mode NAV. Indicateur de niveau de pile L’état de la pile s’affiche sur l’écran altitude/état de la pile qui apparaît après...
Page 12
• Si la pile est faible et que l'instrument n'est pas activé par les boutons avant une plongée, l'icône pile faible s'af- fiche et clignote pendant la descente dès la profondeur de 1,2 m en mode NORM et 0,6 m en mode NAV. Aucune autre information n'est affichée.
Le réglage de FO est décrit ultérieurement au chap- itre réglage 1 NORM. Après l'activation, le d.i.P fonctionne en mode NORM avec un réglage FO2 par défaut Air (Fig. 7), sauf si l'utilisateur règle FO2 sur une valeur numérique comprise entre 21 et 100%(Fig. 8).
ICÔNES ET SYMBOLES Description a. Bouton S (Sélection/droit) b. Bouton A (Avance/gauche) c. Icône – CHRONO ou alarme Temps de plongée écoulé d. Symbole – Degré (cap NAV) e. Symbole – Degré (température) f. Abréviation – Profondeur maximum g. Icône – Réglage de l'alarme sonore h.
NOTE: A tout moment quand le d.i.P est en fonctionnement dans n'importe quel mode en surface comme en immersion, appuyer sur le bou- ton A (gauche) pendant 10 secondes arrête le temps de plongée écoulé NAV (s'il est en marche), puis pendant 0 autres secondes efface toutes les informations (N°...
PC. Si l’activation par immersion est réglée sur OFF, le d.i.P ne peut être activé que par les boutons-pous- soirs et uniquement à une profondeur inférieure à 1,2 m.
Page 17
• Pendant les 5 secondes qui suivent l’écran du niveau d’altitude et de l’état de la pile s’affiche. L'icône d'altitude (pictogramme montagnes) et l’abréviation ALt apparaît accompagné du niveau d’altitude représenté par 0 ou un chiffre de 2 à 13 (Fig. 10a). L’abréviation bAtt s’affiche aussi accompagnée de OP pour indiquer que la pile est opérationnelle ou de l’icône pile faible (pictogramme éclair) pour indiquer qu’elle doit être remplacée.
MODE SURFACE NORM Le mode Surface NORM, signalé par l'affichage température et heure, suit immédiatement l’écran altitude/état de la pile après l'activation et les écrans diagnostic NORM et altitude/état de la pile. L'affichage PRINCIPAL SURFACE NORM indique (Fig. 11): • En cas d’un niveau d’altitude de 2 à 13, l’icône montagnes est af- fiché.
MODES RÉGLAGE Le menu de réglage est constitué d'une suite de 3 groupes de réglages suivis d'un écran avec le numéro de série et d'un écran d'indication d'échelle de vitesse de remontée accessible à partir de l'écran principal surface. Menu de réglage : PRINCIPAL SURFACE NORM >>...
MODE RÉGLAGE NAV Ce mode original est décrit ultérieurement dans ce manuel dans un chapitre spécifique MODE NAV (page 53). MODE RÉGLAGE 1 NORM Pour accéder au mode réglage 1 NORM, appuyer simultanément sur les deux boutons pendant 2 secondes à partir de l'écran SET NAV et relâcher quand SEt 1 s'affiche (Fig.
Page 21
Pour accéder à l'écran de réglage de l'alarme de profondeur max à partir de l'écran Set 1, appuyer brièvement (moins de 2 secondes) sur le bou- ton A (Avance/gauche). • La valeur de la profondeur max d'alarme clignote avec les indica- tions M (ou FT), dEEP, l'icône d'alarme A et la flèche vers le bas avec la barre (Fig.
Page 22
RÉGLAGE ASCENT – CHRONO (A – C) Fig. 17 - Réglage A – C Le d.i.P intègre un mode Chronographe et un mode d'affichage nu- (les deux OFF) mérique de la vitesse de remontée. Ce réglage permet de choisir l'un des deux modes, l'autre étant mis hors service ou de n'utiliser ni l'un ni...
Page 23
> Appuyer brièvement sur le bouton S (Sélection/droit) de façon ré- pétée (moins de 2 secondes à chaque fois) pour afficher les valeurs l'une après l'autre. > Appuyer brièvement sur le bouton A (Avance/gauche) pour con- firmer le réglage et passer au réglage de la durée de rétroéclairage (GLO) ou sur les deux boutons pendant 2 secondes pour repasser à...
Page 24
> Appuyer brièvement sur le bouton S (Sélection/droit) de façon ré- pétée (moins de 2 secondes à chaque fois) pour afficher les valeurs l'une après l'autre. > Appuyer brièvement sur le bouton A (Avance/gauche) pour con- firmer le réglage et passer au réglage de l'alarme de PO2 NORM (PO2) ou sur les deux boutons pendant 2 secondes pour repasser à...
Page 25
Réglé sur Air (valeur par défaut) lors de l'activation, FO2 peut aussi être réglé de 21 à 100% par intervalles de 1%. Le réglage FO2 repasse sur la position Air quand le d.i.P s’éteint. Pour accéder à l'écran de réglage de FO2 à partir de l'écran Set 1, ap- puyer brièvement 6 fois (moins de 2 secondes à...
Page 26
1 pour faciliter l'opération de copie du contenu de la mémoire NORM PC sont fournies ultéri- du d.i.P vers un PC à l'aide du programme d'interfaçage spécifique pour eurement dans ce manuel conservation et utilisation ultérieure ou pour le chargement vers le d.i.P et dans le chapitre Aide du des réglages NORM et/ou NAV à...
MODE RÉGLAGE NORM Pour accéder au mode Réglage NORM 2, appuyer simultanément sur les deux boutons pendant 2 secondes à partir de l'écran SET 1 et relâch- er quand SEt 2 s'affiche (Fig. 25). PRINCIPAL SURFACE NORM >> RÉGLAGE NAV >> RÉGLAGE SEt 1 NORM >> RÉGLAGE SEt 2 NORM >>...
Page 28
> Appuyer brièvement sur le bouton S (Sélection/droit) pour alterner Ce réglage des unités entre mesures métriques et anglo-saxonnes. de mesure peut aussi > Appuyer brièvement sur le bouton A (Avance/gauche) pour con- s'effectuer à partir du firmer le réglage et passer au réglage du format d'affichage de l'heure mode réglage NAV.
Page 29
RÉGLAGE DE L'HEURE Réglé d'origine sur l'heure locale du lieu de fabrication en format 12 heures, l'heure peut être réglée de :01 à 12:00 AM/PM (en format 12 heures) ou de :00 à 23:59 (en format 24 heures). Pour accéder à l'écran de réglage de l'heure à partir de l'écran Set 2, appuyer brièvement 3 fois (moins de 2 secondes à...
Page 30
RÉGLAGE DE LA DATE Réglée d'origine sur le jour de fabrication, la date peut être réglée de 01/01/2006 à 31/12/2049. Quand l'instrument est réglé sur les unités métriques, le jour vient avant le mois. Quand il est réglé sur les unités anglo-saxonnes, le mois vient avant le jour.
Page 31
RÉGLAGE DE LA FRÉQUENCE D'ÉCHANTILLONNAGE DU PROFIL Réglée d'origine sur 15 (secondes), la fréquence d'échantillonnage peut être réglée sur 2, 15, 30 ou 60 (secondes) ou 0,5 - 1,5 ou 3 mètres (2, 5 ou 10 pieds). Pour accéder à l'écran de réglage de la fréquence d'échantillonnage à partir de l'écran Set 2, appuyer brièvement 8 fois (moins de 2 sec- ondes à...
Page 32
RÉGLAGE DE L'ACTIVATION PAR IMMERSION Réglée d'origine sur ON (activée), cette option peut aussi être désac- tivée (OFF). Sur la position ON, le d.i.P s'active et passe en mode Plon- gée NORM automatiquement à l'immersion à une profondeur de 1,5 mètres, ou en mode Plongée NAV à...
PRINCIPAL SURFACE NORM >> RÉGLAGE NAV >> RÉGLAGE SEt 1 NORM >> RÉGLAGE SEt 2 NORM >> SN >> ASC • L'abréviation SN, le numéro de série du d.i.P et le n° de la version du microprogramme (r) apparaissent (Fig. 34).
à l'écran PRINCIPAL SURFACE NORM au bout de 2 minutes. ATTENTION : Si, pendant l'activation et le diagnostic, un affichage ou une fonction diffère de la description qui en a été faite, retourner le d.i.P à votre service technique agréé pour révision.
NOTE: A tout moment quand le d.i.P est en fonctionnement dans n'importe quel mode en surface comme en immersion, appuyer sur le bou- ton A (gauche) pendant 10 secondes arrête le temps de plongée écoulé NAV (s'il est en marche), puis pendant 0 autres secondes efface toutes les informations (N°...
INDICATEUR DE VITESSE DE REMONTÉE L’indicateur de vitesse de remontée (Fig.36a) visualise graphique- ment votre vitesse de remontée. Lorsque vous dépassez la vitesse de remontée maximum recommandée pour la profondeur où vous êtes, il entre dans la zone trop rapide et vous avertit par le clignotement de tous les segments et le déclenchement de l'alarme sonore (sauf si elle est réglée sur OFF).
MODE PLONGÉE NORM Le d.i.P entre en mode Plongée NORM à la profondeur de 1,20 m au bout de 3 secondes et affiche l'écran PRINCIPAL PLONGÉE NORM. Après entrée en mode Plongée NORM, la profondeur actuelle s'affiche jusqu'à ce que le plongeur remonte à la profondeur de 0,6 m pendant 1 seconde, les tirets remplacent alors la valeur numérique de la profon-...
Page 38
ÉCRAN CHRONO MARCHE/ARRÊT/R.A.Z, (Fig. 38) • Abréviation CHR et ON (si en marche) ou OFF (si arrêté) • Le temps chronométré • L'icône horloge > Appuyer brièvement (moins de 2 secondes) sur le bouton S (Sélec- tion/droit) pour démarrer ou arrêter le chrono. >...
Page 39
DÉPASSEMENT DE LA PROFONDEUR MAXIMUM D'UTILISATION Si l'utilisateur descend au-delà de 120 mètres, profondeur maximum d'utilisation du d.i.P, 3 tirets (---) remplacent les profondeurs actuelle et maximum (Fig. 41). Quand l'utilisateur remonte au-dessus de 120 mètres, la profondeur ac- tuelle se réaffiche alors normalement mais l'affichage de la profondeur maximum indique trois tirets (---) pendant le reste de la plongée.
Page 40
PO2 ÉLEVÉE Au fur et à mesure que la profondeur augmente au cours d’une plon- gée, la pression partielle d’oxygène (PO2) augmente. Lorsque la pression partielle d'oxygène arrive à 0,20 ATA de la PO2 d'alarme (option du groupe de réglage SET 1), la valeur de la PO2 actuelle et le symbole PO2 apparaissent sur l'affichage principal plongée NORM (Fig.
Page 41
ALARME DE PROFONDEUR PLONGÉE NORM Lorsque la profondeur dépasse la valeur du réglage d'alarme (option du groupe de réglage SET 1), l'alarme sonore retentit sauf si elle est réglée sur OFF (option du groupe de réglage SET 2) et la profondeur actuelle clignote (Fig.
Page 42
• Le pourcentage d’oxygène (FO) du mélange nitrox utilisé doit être réglé avant chaque plongée au nitrox. • Tant qu'il ne s'est pas éteint automatiquement, le d.i.P ne doit pas être utilisé à une altitude différente de celle à laquelle il a été initialement ac- tivé, sous peine d'erreurs dues à...
NOTE: A tout moment quand le d.i.P est en fonctionnement dans n'importe quel mode en surface comme en immersion, appuyer sur le bou- ton A (gauche) pendant 10 secondes arrête le temps de plongée écoulé NAV (s'il est en marche), puis pendant 0 autres secondes efface toutes les informations (N°...
MODE SURFACE APRÈS PLONGÉE NORM Lors de la remontée à 0,6 m, le d.i.P affiche trois tirets à la place de la profondeur, continue d'afficher la profondeur maximum et le temps de plongée écoulé pour cette plongée et commence à chronométrer l'intervalle surface.
Les paramètres ne seront pas enregistrés dans la mémoire de l'instrument avant la fin de cette période de transition de 5 minutes. Si l'utilisateur redescend pendant la période de transition de 5 minutes, le temps de plongée écoulé reprend au moment de l'arrivée en surface (continuation de cette plongée).
Page 46
Il s'arrête alors et se remet à zéro :00:00 (h:min:s). Le d.i.P s'arrête automatiquement 3 heures après l'arrivée en surface de la dernière plongée. A la réactivation manuelle ou par immersion suivante, l'écran PRINCIPAL SURFACE NORM apparaît et l'intervalle...
MODE MÉMOIRE NORM Le mode Mémoire (MEMO) enregistre les informations concernant vos 24 dernières plongées NORM pour consultation ultérieure. Les plongées sont numérotées à la suite de 1 à 999 sans tenir compte de la date ni de l'heure de départ ni de la période d’activation. La 1000e porte le n° 1, et la numérotation recommence.
Page 48
Accéder au mode Mémoire à partir de l'écran PRINCIPAL SURFACE NORM : • Appuyer brièvement (moins de 2 secondes à chaque fois) sur le bouton A (Avance/gauche) 2 fois si le chrono est sur ON ou 1 fois si Chrono/Ascent est sur OFF. L’écran d'identification de la plongée la plus récente affiche (Fig.
Fig. 53 - Ecran paramètres 02 MODE HISTORIQUE NORM Le d.i.P conserve dans son mode Historique (HSt) tout l’historique de son fonctionnement. Les paramètres NAV ne sont pas mémorisés. Le contenu de la mémoire Historique n’est pas effacé lors du changement de la pile, par contre il peut être effacé...
Page 50
Accès à l'écran du mode Historique Total Plongées Total Heures • A partir de l'écran PRINCIPAL SURFACE NORM, 5 minutes après une plongée NORM, appuyer brièvement 2 fois (moins de 2 sec- ondes à chaque fois) sur le bouton A (Avance/gauche). PRINCIPAL SURFACE NORM >>...
Le câble d'interfaçage se connecte à la prise située sur le côté du boîtier du d.i.P et à un port USB du PC. Se reporter page 26 de ce manuel pour les instructions concernant l'accès à l'écran PC du d.i.P en mode Réglage NORM 1 et à...
à des altitudes comprises entre 610 mètres et 4 270 mètres. Le d.i.P mesure la pression ambiante quand il est activé, mais aussi toutes les 15 minutes une fois qu’il est activé et toutes les 30 minutes quand il n’est pas activé. À l’altitude de 610 mètres, il passe automatiquement de l’étalonnage eau de mer à...
NOTE: A tout moment quand le d.i.P est en fonctionnement dans n'importe quel mode en surface comme en immersion, appuyer sur le bou- ton A (gauche) pendant 10 secondes arrête le temps de plongée écoulé NAV (s'il est en marche), puis pendant 0 autres secondes efface toutes les informations (N°...
0,0 M au lieu des 3 tirets comme c'est le cas au retour en surface après une plongée NORM. Après réglage du mode NORM sur ON, le d.i.P entre en mode Plon- gée NAV à la profondeur de 0,6 m au bout de 3 secondes, et affiche l'écran PRINCIPAL PLONGÉE NAV.
Page 55
Après réglage du mode NORM sur ON, le d.i.P reste en mode NAV jusqu'à ce que le mode NAV soit réglé sur OFF. Lors de la réactivation ou après avoir mis le mode NAV sur ON s'il était à l'origine sur OFF, le mode diagnostic NAV s'affiche puis le mode Surface avant plongée...
MODE DIAGNOSTIC NAV • Dès qu'il est activé manuellement (si NAV était précédemment sur ON et le d.i.P sur OFF) ou lors de l'accès à l'écran de réglage NAV à partir de l'écran PRINCIPAL SURFACE NORM, l'instrument entre en mode Diagnostic NAV (Fig. 60) qui affiche tous les segments NAV de l'écran ACL.
L'écran d'identification du numéro de cap est inclus dans le menu de réglage NAV quand les réglages NAV ont été chargés dans le d.i.P à l'aide du programme PC. La capacité de chargement est de 99 numéros de cap avec leur durée (compte à rebours) jusqu'à 9:59:59 (h:min:s) et valeur de cap de 0 à...
L'écran PC est identique à celui du réglage 1 NORM. Il est inclus dans le menu de réglage NAV quand les réglages NAV ont été chargés dans le d.i.P à l'aide du programme PC. Pour accéder à l'écran PC à partir de l'écran de réglage NAV, >...
RÉGLAGE DE L'ALARME DE PROFONDEUR MAXIMUM Cette fonction est identique à celle du menu de réglage 1 NORM. Ré- gler l'un modifie l'autre. L'alarme de profondeur max peut être réglée sur les valeurs 6, 7 ou 8 mètres puis de 9 à 120 mètres par intervalles de 3 mètres. Pour accéder à...
RÉGLAGE DES UNITÉS DE MESURE Cette fonction est identique à celle du menu de réglage 2 NORM. Ré- gler l'un modifie l'autre. L'instrument peut être réglé sur les unités métriques (M,C), ou sur les unités anglo-saxonnes (FT, F). Pour accéder à l'écran de réglage des unités de mesure à partir de l'écran de réglage NAV, appuyer brièvement 4 fois (moins de 2 sec- ondes à...
REGLAGE DU MODE RÉTROÉCLAIRAGE NAV Le mode rétroéclairage NAV permet de choisir si l'écran reste éclairé après que le bouton S a été relâché pour l'allumer (éclairage perma- nent) ou s'éteint à la fin de la temporisation réglée en mode réglage 1 NORM (0, 5 ou 10 secondes).
Durée MODE PLONGÉE NAV du Cap Quand le mode NAV est sur ON, le d.i.P entre en mode Plongée NAV à la profondeur de 0,6 m au bout de 3 secondes et affiche l'écran PRIN- CIPAL PLONGÉE NAV. En mode de fonctionnement NAV, le temps de plongée écoulé est com- mandé...
Page 63
> Appuyer brièvement (moins de 2 secondes) sur le bouton S (Sé- lection/droit) pour passer le rétroéclairage de ON à OFF en mode réglage (permanent ON ou ON pour la durée temporisée réglée, OFF jusqu'à mise sur ON). > Appuyer brièvement (moins de 1 seconde) sur le bouton A (Avance/ gauche) pour lancer le temps de plongée écoulé...
Page 64
> Si le temps de plongée écoulé défile, appuyer pendant 10 secondes sur le bouton A (Avance/gauche) pour l'arrêter. > Appuyer brièvement (moins de 1 seconde) sur le bouton A (Avance/gauche) pour lancer le temps de plongée écoulé. > Appuyer pendant 2 secondes sur le bouton S (Sélection/droit) pour lancer le Cap n°1. >...
Page 65
ÉCRAN PRINCIPAL PLONGÉE NAV (après arrivée en surface) En remontant à la profondeur de 0,6 m, la profondeur actuelle s'affiche sous la forme 0,0 M (Fig. 72). • La profondeur actuelle sous forme 0,0 (ou 0) avec symbole M (ou FT) •...
(Fig. 7). EFFACEMENT NAV Le d.i.P dispose d'une fonction qui permet à l'utilisateur d'effacer complètement de tous les écrans et de toutes les mémoires les temps de plongée écoulés NAV et tous les paramètres cap et durées de cap NAV préalablement chargés (Fig.
NOTE: A tout moment quand le d.i.P est en fonctionnement dans n'importe quel mode en surface comme en immersion, appuyer sur le bou- ton A (gauche) pendant 10 secondes arrête le temps de plongée écoulé NAV (s'il est en marche), puis pendant 0 autres secondes efface toutes les informations (N°...
• Rincer abondamment le d.i.P dans l'eau douce à la fin de chaque journée de plongée et vérifiez que les abords du capteur de pression (Fig. 75a), de la prise d'interface PC (Fig. 75b) et des boutons sont propres et non obstrués.
Page 69
RÉVISION ET ENTRETIEN Le d.i.P doit être révisé tous les ans par un service technique agréé qui procédera au contrôle de fonc- tionnement et de l'état général de l'instrument préconisé par le constructeur.
REMPLACEMENT DE LA PILE Le compartiment pile doit être ouvert avec un soin extrême et uniquement dans un endroit sec et propre pour éviter toute intrusion d'humidité, de sable, de corps étranger ou de poussière. Comme mesure de précaution supplémentaire pour éviter la forma- tion de condensation dans le compartiment pile, il est recommandé...
Page 71
• Enlevez le couvercle du compartiment pile. ATTENTION : En cas de dommage, d'humidité ou de corrosion, il est recommandé de retourner le d.i.P à un service technique d.i.P agréé et de NE PAS l'utiliser tant qu'il n'a pas été révisé.
Page 72
• Lubrifier légèrement le nouveau joint torique de couvercle avec de la graisse silicone et le placer sur le bord intérieur du couvercle. S'assurer qu'il disposé régulièrement. Ce joint doit être un joint d'origine d.i.P. Fig. 79 - Mise en place de la pile...
Page 73
• Glisser la bague du couvercle sur votre pouce, la partie supérieure (petit orifice) en premier, (Fig. 80). • Placer soigneusement le couvercle équipé de son joint torique sur le bord du compartiment pile et appuyer de façon régulière avec ce même pouce pour le mettre en place complètement.
Page 74
CARACTÉRISTIQUES UTILISATION MODE PLONGÉE NORM • NORM (instrument de plongée classique) • Principal - (profondeur actuelle, profondeur maximum, • NAV (instrument de navigation) temps de plongée écoulé, indicateur de vitesse de remontée et si sur ON, temps Chrono ou vitesse de remontée numérique) MODES DE FONCTIONNEMENT •...
Page 75
CARACTÉRISTIQUES (SUITE) PLAGE D'AFFICHAGE/RÉSOLUTION Affichages Numériques : Plage: Résolution : • Numéro de la plongée NORM 0 - 199 • Profondeur 0 - 120 m 0,1 m/1m >99,9 m • Profondeur maximum 120 m 0,1 m/1m >99,9 m • Vitesse de remontée 0 –...
Page 76
CARACTÉRISTIQUES (SUITE) INDICATEUR DE VITESE DE REMONTEE (STANDARD) <= 18 M > 18 M Segments m/min Segments m/min Zone normale 3,5-4,5 6,5-9 Zone normale 9,5-12 Zone normale 6,5-7,5 12,5-15 Zone critique 15,5-18 Zone trop rapide (tous clignotants) >9 >18 INDICATEUR DE VITESE DE REMONTEE (NAVY - Marine Nationale Française) Segments m/min 0-10,5 Zone normale...
Page 77
CARACTÉRISTIQUES (SUITE) Altitude • Fonctionne du niveau de la mer jusqu'à 4 270 m d’altitude • Échantillonnage de la pression ambiante toutes les 30 minutes au repos, à l'activation manuelle et toutes les 15 min- utes une fois activé. Pas d'échantillonnage de la pression ambiante une fois humide. •...
GLOSSAIRE Affichage - Information visuelle apparaissant sur l'écran de l'instrument. Affichage secondaire - Affichage supplémentaire accessible sur commande. Alarme sonore - Son émis par l'ordinateur pour avertir le plongeur d'un danger. Capteur de profondeur – Dispositif électromécanique qui convertit la pression de l'eau en signal électrique pour en permettre l'affichage.
FICHE DE RÉVISION Numéro de Série _____________________ Numéro de version microprogramme _____________________ Date de mise en service _______________ Magasin ____________________________ Date Travaux effectués Revendeur/Technicien...
Page 80

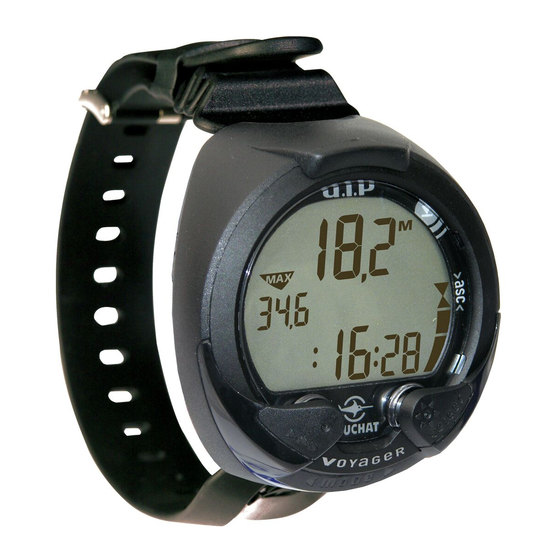

Diving Instrument for Professional Operating Manual...
Page 82
CONTENTS NOTICES ..................................2 FEATURES AND DISPLAYS ..................... 5 OVERVIEW .................................. 6 CONTROL BUTTONS ............................6 ASCENT RATE BAR GRAPH (ASC) ........................7 INFORMATIONAL DISPLAYS ..........................7 Depth Displays ..............................8 Time and Date Displays ............................. 8 Temperature Display ............................9 AUDIBLE ALARM ................................
Page 83
CONTENTS (continued) NORM POST DIVE MODES ................... 43 POST DIVE NORM SURFACE MODE ........................44 FIRST 5 MINUTES ..............................44 AFTER THE FIRST 5 MINUTES (UP TO 3 HOURS) ....................45 CHRONOGRAPH START/STOP/RESET ........................46 NORM MEMO MODE ..............................47 NORM HISTORICAL MODE .............................
NOTE: At any time when the d.i.P is Activated, while operating in any mode on the surface or underwater, depressing the A (Left) button for 10 seconds will stop NAV Elapsed Dive Time (if running) and after an- other 20 seconds Delete (Clear) all NAV Serial Number (Leg) data.
Your presents the information that you need before, during, and after your Normal (NORM) d.i.P or Navigation (NAV) dives using a combination of easy to read displays and identification icons. • When set to operate in NORM mode, it functions as a digital depth gauge/timer.
ASCENT RATE BAR GRAPH (ASC) The Ascent Rate Bar Graph (Fig. 1c) provides a visual representa- tion of Ascent Speed (i.e., an ascent speedometer). More segments indicate faster Rates of Ascent. The segments of the Ascent Rate Bar Graph represent 2 Scales re- ferred to as Standard and Navy (based on French Navy tables) which can be selected using the associated PC Interface program.
Depth Displays During a dive, the Current Depth display (Fig. 2a), indicates Depths from 0 to 120 M (400 FT) in 0,1 M (1 FT) increments or 1 M increments when greater than 99,9 M. The Maximum Depth reached during that dive will be displayed during the first 5 min- utes on the surface after a NORM (Normal) dive (Fig.
Temperature Display Ambient Temperature identified by the degrees and C (or F) icons (Fig. 4a) is displayed while in the Surface Mode and can be viewed as part of an Alternate Display when the A (Advance/Left) button is pressed while in NORM Dive mode. NOTE: The Informational Displays are described in detail as the various operating modes they appear in are presented throughout this manual.
BACKLIGHT • The Backlight does not operate during a Low Battery condition. If it is ON at the time, it will automatically turn OFF. To turn the Backlight ON while operating in NORM mode when on the Surface or during a dive: >...
POWER SUPPLY The d.i.P utilizes one (1) type CR 2450 Lithium 3 volt cell that will provide a minimum of 50 hours operation with the Backlight ON constantly at 50% in NAV mode. Battery Status Indication The status of the Battery is displayed on an Altitude/Battery Status screen that appears after Activation and the Diagnostic check.
Page 91
• If a button is not pressed to activate the unit prior to a dive, and a Low Battery Condition ex- ists, the Low Battery icon will appear flashing as a warning upon descent to 1,2 M (4 FT) if set for NORM mode operation or 0,6 M (2 FT) if set for NAV mode operation.
NOTE: FO2 applies only to NORM mode. Setting FO2 is described later in NORM SET 1. After Activation, the d.i.P will operate in NORM mode with a de- fault FO2 setting of AIR (Fig. 7) unless the user sets FO2 for a nu- merical value between 21 and 100 % (Fig.
ICONS / SYMBOLS Components: a. S (Select /Right) Button b. A (Advance /Left) Button c. Icon - Chrono, or EDT Alarm d. Icon - Degrees (NAV Heading) e. Icon - Degrees (Temperature) f. Icon - Maximum Depth g. Icon - Set Audible Alarm h.
NOTE: At any time when the d.i.P is Activated, while operating in any mode on the surface or underwater, depressing the A (Left) button for 10 seconds will stop NAV Elapsed Dive Time (if running) and after an- other 20 seconds Delete (Clear) all NAV Serial Number (Leg) data.
PC Interface data port. If the Wet Activation feature is set OFF, the d.i.P will only activate by push button and only if shallower than 1,2 M (4 FT) depth.
Page 96
• During the next 5 seconds, the Altitude Level and Battery Status screen will be displayed. The Altitude icon (Mountain symbol) and graphic ALt appear with the Level number 0 or 2 through 7 (Fig. 10a). The graphic bAtt also appears with the graphic OP indicating that the Battery is operational or the Low Battery icon (Lightning bolt symbol) indicating that the Battery should be re- placed.
WARNING: If a Low Battery condition is displayed after activation as indicated by the Low Battery icon flashing (Fig. 13a), DO NOT attempt to dive with the d.i.P until the Battery is changed. Fig. 13 - SURF MAIN (Low BATT)
Page 98
• NORM SET 1 groups settings that would change more often and NORM SET 2 groups those items not likely to change once they are initially set. • DIP SN is a view only screen in the Sequence that displays the d.i.P's Serial Number and Firm- ware Revision number.
NAV SET MODE This unique Mode is described later in the manual in a separate NAV MODE section (page 53). NORM SET 1 MODE To access NORM SET 1 Mode, press Both buttons simultaneously for 2 seconds while viewing the SET NAV screen, release when the SET 1 screen appears (Fig.
Page 100
To access the Set Max Depth Alarm screen while viewing the SET 1 screen, press/release the A (Advance/Left) button (< 2 seconds). • The Max Depth Alarm value appears flashing with the graphics M or FT and dEEP, the Alarm icon A, and Down Arrow with Bar icon (Fig.
Page 101
SET A - C (ASCENT - CHRONO) MODE The d.i.P is configured with a Chronograph Mode and a Mode that Fig. 17 - SET A - C (BOTH OFF) provides a digital display of Ascent Rate. This setting selects which Mode is to be used and which is to be disabled, or if both are to be disabled.
Page 102
> Press/release the S (Select/Right) button repeatedly (< 2 seconds each time) to step through the 3 selections > Press/release the A (Advance/Left) button to accept the selec- tion displayed and advance to Set GLO (Backlight Duration), or press/hold Both buttons for 2 seconds to revert to the SET 1 screen.
Page 103
> Press/release the S (Select/Right) button repeatedly (< 2 sec- onds each time) to step through the Set Points. > Press/release the A (Advance/Left) button to accept the Set Point displayed and advance to Set NORM PO2 Alarm, or press/hold Both buttons for 2 seconds to revert to the SET 1 screen.
Page 104
Set for AIR (Default value) upon activation, FO2 can also be set to values between 21 and 100% O2 in increments of 1%. FO2 de- faults to the AIR setting whenever the d.i.P shuts OFF. To access the Set FO2 screen while viewing the SET 1 screen, press/release the A (Advance/Left) button 6 times (<...
Page 105
Help for storage and viewing, or NORM and/or NAV Settings are to be portion of the Interface Uploaded from the PC program to the d.i.P. program . To access the PC screen while viewing the NORM SET 1 screen, PC Interface can also be press/release the A (Advance/Left) button 7 times (<...
NORM SET 2 MODE To access NORM SET 2 Mode, press Both buttons simultaneously for 2 seconds while viewing the SET 1 screen, release when the SET 2 screen appears (Fig. 25). NORM SURF MAIN >> SET NAV >> NORM SET 1 >> NORM SET 2 >> SN NORM SET 2 allows you to set/select the following items: •...
Page 107
> Press/release the S (Select/Right) button to toggle between the This same Set Units can selections. also be set in the SET > Press/release the A (Advance/Left) button to accept the setting NAV Mode. and advance to Set HOUR FORMAT, or press/hold Both but- tons for 2 seconds to revert to the SET 2 screen.
Page 108
SET TIME OF DAY Factory set for factory local time in 12 Hour Format, the Time Of Day can be set to values between :01 to 12:00 AM/PM (12 Hour Format) or :00 to 23:59 (24 Hour Format). To access the Set Time screen while viewing the SET 2 screen, press/release the A (Advance/Left) button 3 times (<...
Page 109
SET DATE Factory set for factory local Date, the Date can be set to values between 01.01 2006 and 01.01 2049. If Units are set for Metric, Day appears to the left of Month. If Units are set for Imperial, Month appears to the left of Day.
Page 110
SET NORM PC SAMPLING RATE Factory set for 15 (seconds), the Sampling Rate can be set to val- ues of 2 , 15 , 30 , or 60 (seconds), or 0,5 , 1,5 , or 3 M (2, 5 , or 10 FT).
Page 111
SET WET ACTIVATION Factory set ON, this feature can also be set OFF (disabled). When set ON, the d.i.P will automatically Activate and enter NORM Dive Mode upon descent to 1,5 M (5 FT), or NAV Dive Mode upon descent to 0,6 M (2 FT).
• Operation reverts to NORM SURF MAIN in 2 minutes if no button is pressed. SERIAL NUMBER To access the d.i.P Serial Number screen, press Both buttons si- multaneously for 2 seconds while viewing the SET 2 screen, re- lease when the view only SN screen appears.
Page 113
ASCENT SCALE To access the d.i.P Ascent Scale screen, press Both buttons simul- taneously for 2 seconds while viewing the SN screen, release when the view only ASC screen appears. NORM SURF MAIN >> SET NAV >> SET 1 >> SET 2 >> SN >> ASC •...
NOTE: At any time when the d.i.P is Activated, while operating in any mode on the surface or underwater, depressing the A (Left) button for 10 seconds will stop NAV Elapsed Dive Time (if running) and after an- other 20 seconds Delete (Clear) all NAV Serial Number (Leg) data.
ASCENT RATE INDICATION The Ascent Rate Bar Graph (Fig. 36a) shows how fast you are Ascending. When you exceed the maximum recommended Ascent Rate for the Depth you are at, it will enter the Too Fast zone and you will be alerted by all segments flashing, and an Audible alarm (unless it is set OFF).
NORM DIVE MODE The d.i.P will enter NORM Dive Mode upon Descending to 1,2 M (4 FT) for 3 seconds and display the NORM DIVE MAIN (De- fault) screen. After entry in to NORM Dive Mode, Current Depth will be dis- played until Ascent is made to 0,6 M (2 FT) for 1 second at which time dashes will replace the numeric Depth value.
Page 117
CHRONO START/STOP/RESET Display, (Fig. 38) • Graphics CHR and ON (if running) or OFF (if stopped) • Chrono Time • Clock icon > Press/release the S (Select/Right) button (< 2 seconds) to Stop or Start the Chrono. > Press the S (Select/Right) button for 2 seconds to Reset the Chrono to :00:00 (:min:sec) if Stopped first.
Page 118
3 seconds. MAXIMUM OPERATING DEPTH EXCEEDED If you descend deeper than 120 M (400 FT) which is the d.i.P's Maximum Operating Depth (MOD), the Current Depth and Max Depth will only be displayed as 3 dashes (- - -) (Fig. 41).
Page 119
HIGH PO2 As Depth increases during a dive, the partial pressure of oxygen (PO2) increases. When PO2 increases to 0,20 ATA less than the PO2 Alarm setting (a SET 1 selection), the current PO2 value and graphic PO2 will appear solid as a Warning on the NORM DIVE MAIN Display (Fig.
Page 120
NORM DIVE DEPTH ALARM When Depth exceeds the Alarm value set (a SET 1 selection), the Audible Alarm will sound, unless set OFF (a SET 2 selection), and the Current Depth digits will flash (Fig. 44) until Ascent is made above the Alarm Depth.
Page 121
• The percentage of oxygen (FO2) in the Nitrox mix being used must be 'set before each Nitrox dive'. • Until it has shut itself off, you should not use the d.i.P at a different Al- titude than the Altitude at which it was activated. Doing so will result in an error equal to the difference in barometric pressure, and possibly a false dive mode with erroneous data.
NOTE: At any time when the d.i.P is Activated, while operating in any mode on the surface or underwater, depressing the A (Left) button for 10 seconds will stop NAV Elapsed Dive Time (if running) and after an- other 20 seconds Delete (Clear) all NAV Serial Number (Leg) data.
POST DIVE NORM SURFACE MODE When you ascend to 0,6 M (2 FT), the d.i.P will display 3 dashes for Current Depth, continue to display Max Depth and EDT (Elapsed Dive Time) for that dive, and begin counting your Sur- face Interval time.
MEMO Data will not be recorded in the unit's memory until the 5 minute Transition Period on the surface is completed. If you Descend during the 5 minute Transition Period, EDT (Elapsed Dive Time) will restart from the time that you descend (i.e., a continuation of that dive).
Page 125
Off automatically, at which time the Chrono will Stop and Reset to :00:00 (hr:min:sec). The d.i.P will automatically shut Off 3 hours after surfacing from a last dive. Upon subsequent manual (button) or Wet activation, the NORM SURF MAIN screen will be displayed and Surface Interval time will be displayed as :00:00 (:min:sec) (Fig.
NORM MEMO MODE Information from your latest 24 NORM Dives is stored in the MEMO for viewing. Dives will be numbered sequentially from 1 to 999, regardless of the Date/Time Started or Activation Period. The 1000th dive will be recorded as #1, starting the numbering sequence over. After 24 dives are recorded, each subsequent dive will overwrite the oldest dive in the MEMO (i.e., the most recent dive deletes the oldest).
Page 127
To access MEMO Mode, while viewing NORM SURF MAIN - > press/release the A (Advance/Left) button 2 times (< 2 seconds each time) if Chrono is set ON, or 1 time if Chrono/Ascent is set OFF or Ascent is set ON. The MEMO PREVIEW screen for the most recent dive will be displayed (Fig.
Page 128
Fig. 53 - MEMO O2 DATA NORM HISTORICAL (HISTORY) MODE The d.i.P stores NORM Dive information in the Historical (History) Mode for viewing. NAV Dive information is not recorded or included with the data. Historical information will not be lost when the Battery is removed, but factory service may delete data.
Page 129
To access the Historical Mode screen - Total Dives Total Hours • While viewing the NORM SURF MAIN screen 5 minutes after a NORM Dive, press/release the A (Advance/Left) button 2 times (< 2 seconds each time) - NORM SURF MAIN >> MEMO >> HISTORICAL - or - •...
The Interface Cable will be connected to the Data Port located on the side of the d.i.P housing and a USB port of the PC. Refer to page 26 for access to the d.i.P's PC screen in NORM SET 1 Mode and page 58 for access while in SET NAV Mode.
ALTITUDE SAMPLING/COMPENSATION NOTE: This information relating to Altitude pertains to calibration/compensa- tion and adjustments of Depth readings and calculations of NDLs. It does not affect Altitude levels appearing on operating displays. Atmospheric (barometric) Pressure decreases as Altitude increases above sea level. Weather sys- tems and ambient temperature also affect barometric pressures.
NOTE: At any time when the d.i.P is Activated, while operating in any mode on the surface or underwater, depressing the A (Left) button for 10 seconds will stop NAV Elapsed Dive Time (if running) and after an- other 20 seconds Delete (Clear) all NAV Serial Number (Leg) data.
Page 133
0,0 M (0 FT) instead of as 3 dashes as it is upon surfacing after a NORM Dive. When NAV Mode is set ON, the d.i.P will initially enter NAV Dive Mode upon Descending to 0,6 M (2 FT) for 3 seconds and Fig.
Page 134
Once NAV Mode is set ON, the d.i.P will remain in NAV Mode until NAV Mode is set OFF. Upon reactivation or after selecting NAV Mode ON, if it was previously set OFF, NAV Diagnostic Mode will be displayed then NAV Pre Dive Surface Mode.
NAV DIAGNOSTIC MODE • Upon manual activation (if NAV was previously set ON and the d.i.P shut Off), or if the SET NAV screen is accessed from the NORM SURF MAIN, the unit will enter NAV Diagnostic Mode (Fig. 60), displaying the NAV segments of the LCD.
NAV Serial Number Preview is included in the NAV SET Menu for access when NAV Settings have been Uploaded from the PC program to the d.i.P. Up to 99 NAV SNs (Serial Numbers or Legs) with CDTs (Count Down Times) up to 9:59:59 (hr:min:sec) and polar SN Headings ranging from 0 to 360 degrees can be Uploaded.
PC is the same screen seen in NORM SET 1. It is included in the NAV SET Menu for access when NAV Settings are to be Up- loaded from the PC program to the d.i.P. To access the PC screen while viewing the NAV SET screen, >...
SET MAX DEPTH ALARM This is the same function as the one in the NORM SET 1 menu. Changing either will change the other. Max Depth Alarm can be set for 6, 7, or 8 M (20, 23, or 26 FT) then 9 to 120 M (30 to 400 FT) in increments of 3 M (10 FT).
SET UNITS OF MEASURE This is the same function as the one in the NORM SET 2 menu. Changing either will change the other. Units of Measure can be set for Metric (M, C) or Imperial (FT, F). To access the Set Units screen while viewing the SET NAV screen, press/release the A (Advance/Left) button 4 times (<...
SET NAV BACKLIGHT MODE NAV Backlight Mode controls whether the Backlight remains ON after the S button is released to activate it (i.e., stay ON Con- stantly), or turn OFF after the Time Out Duration set in the NORM SET 1 menu (0, 5, or 10 seconds). •...
NAV DIVE MODE HEADING When NAV Mode is set ON, the d.i.P will enter NAV Dive Mode upon Descending to 0,6 M (2 FT) for 3 seconds and display the NAV DIVE MAIN screen. While operating in NAV Mode, EDT (Elapsed Dive Time) is con- trolled (Started/Stopped) using the A (Advance/Left) button.
Page 142
> press/release the S (Select/Right) button (< 2 seconds) to toggle the Backlight ON/OFF in the Mode set (Constant ON or ON for Time Out set, OFF until turned ON). > press/release (tap) the A (Advance/Left) button (< 1 second) to Start EDT (Elapsed Dive Time), Fig.
Page 143
> if EDT is running, depress the A (Advance/Left) button for 10 seconds to Stop (freeze) EDT. > press/release (tap) the A (Advance/Left) button (< 1 second) to Start EDT. > press the S (Select/Right) button for 2 seconds to Start NAV SN 1 (Leg #1). >...
Page 144
NAV DIVE MAIN (after Surfacing) - Upon ascent above 0,6 M (2 FT), Current Depth will be displayed as 0,0 M (0 FT) (Fig. 72): • Current Depth as 0,0 (or 0) with M (or FT) icon • Battery icon, if a Low Battery Condition exists •...
MAIN Surface screen with dashes (Fig. 73). NAV DELETE (Clear) The d.i.P features a method that allows a diver to completely De- lete (Clear) NAV EDT and all NAV Leg Heading/CDT informa- tion that was uploaded from all screens (Fig. 74) and memory.
NOTE: At any time when the d.i.P is Activated, while operating in any mode on the surface or underwater, depressing the A (Left) button for 10 seconds will stop NAV Elapsed Dive Time (if running) and after an- other 20 seconds Delete (Clear) all NAV Serial Number (Leg) data.
The propellants may chemi- cally attack the plastic. • Soak and rinse the d.i.P in fresh water at the end of each day of diving, and check to ensure that the areas around the low pres- sure (Depth) sensor (Fig. 75a), PC Interface Port (Fig. 75b), and Buttons are free of debris or obstructions.
DO NOT attempt to dive with it until it has been inspected by an Autho- rized d.i.P Service Technician. It is possible to damage the Depth Sensor of the d.i.P if it is not pressure tested properly. Ensure that the Service Technician adheres to the following Warning.
• If there is any sign of moisture in the module, DO NOT use the d.i.P until it receives proper service by an Authorized d.i.P Ser- vice Technician, or the factory. • Locate the Battery Compartment on the back of the Housing.
Page 150
• Lift the Hatch Ring up and away from the Housing. • Remove the Battery Hatch. WARNING: If damage, moisture, or corrosion is found, it is recommended that you return your d.i.P to an Authorized d.i.P Service Technician, and DO NOT attempt to use it until it has received factory Fig.
Page 151
• Lightly lubricate the new Hatch O-ring with silicone grease and place it on the inner rim of the Battery Hatch. Ensure that it is evenly seated. This O-ring must be a genuine d.i.P part. Fig. 79 - BATTERY INSTALLA-...
Page 152
• Slide the Hatch Ring, top portion first (small opening), onto your thumb (Fig. 80). • Carefully place the Battery Hatch (with O-ring) into position on the rim of the Battery Compartment, then press it evenly and completely down into place with your same thumb. •...
SPECIFICATIONS OPERATING MODES NORM DIVE MODE • NORM (Normal Digital Gauge) • Main - default (Current Depth, Max Depth, Elapsed • NAV (Navigational Gauge) Dive Time, Ascent Rate Bar Graph, and if On - Chrono Time or Digital Ascent Rate) •...
Page 154
SPECIFICATIONS (CONTINUED) DISPLAY RANGE/RESOLUTION Numeric Displays: Range: Resolution: • NORM Dive Number 1 to 999 • Depth 0 to 120 M (0 to 400 FT) 0,1 M / 1,0 M > 99,9 M (1 FT) • Max Depth 120 M (400 FT) 0,1 M / 1,0 M >...
Page 155
SPECIFICATIONS (CONTINUED) ASCENT RATE BAR GRAPH (STANDARD) <= 18 M (60 FT) > 18 M (60 FT) segments segments 0 to 3 0 to 10 0 to 6 0 to 20 • Normal Zone 3,5 to 4,5 11 to 15 6,5 to 9 21 to 30 •...
Page 156
SPECIFICATIONS (CONTINUED) Altitude: • Operational from sea level to 4270 meters (14000 feet) elevation • Samples Ambient Pressure every 30 minutes when not activated, when manually activated, and every 15 minutes while activated. Does not sample Ambient Pressure when it is wet. •...
GLOSSARY Air Dive - A dive conducted using air (approximately 21% oxygen & 79% nitrogen) as the breathing gas. Alternate Display - Additional information accessible by pressing a control button. Altitude Dive - A dive made at an elevation above 915 meters (3000 feet) where reduced no decompression and O2 times are used for calculations, and Depth readings are adjusted.
SERVICE RECORD Serial Number _______________________ Firmware Rev Number ________________ Date placed is service _________________ Acquired from _______________________ Date Service Performed Technician...
Need help?
Do you have a question about the d.i.P and is the answer not in the manual?
Questions and answers
