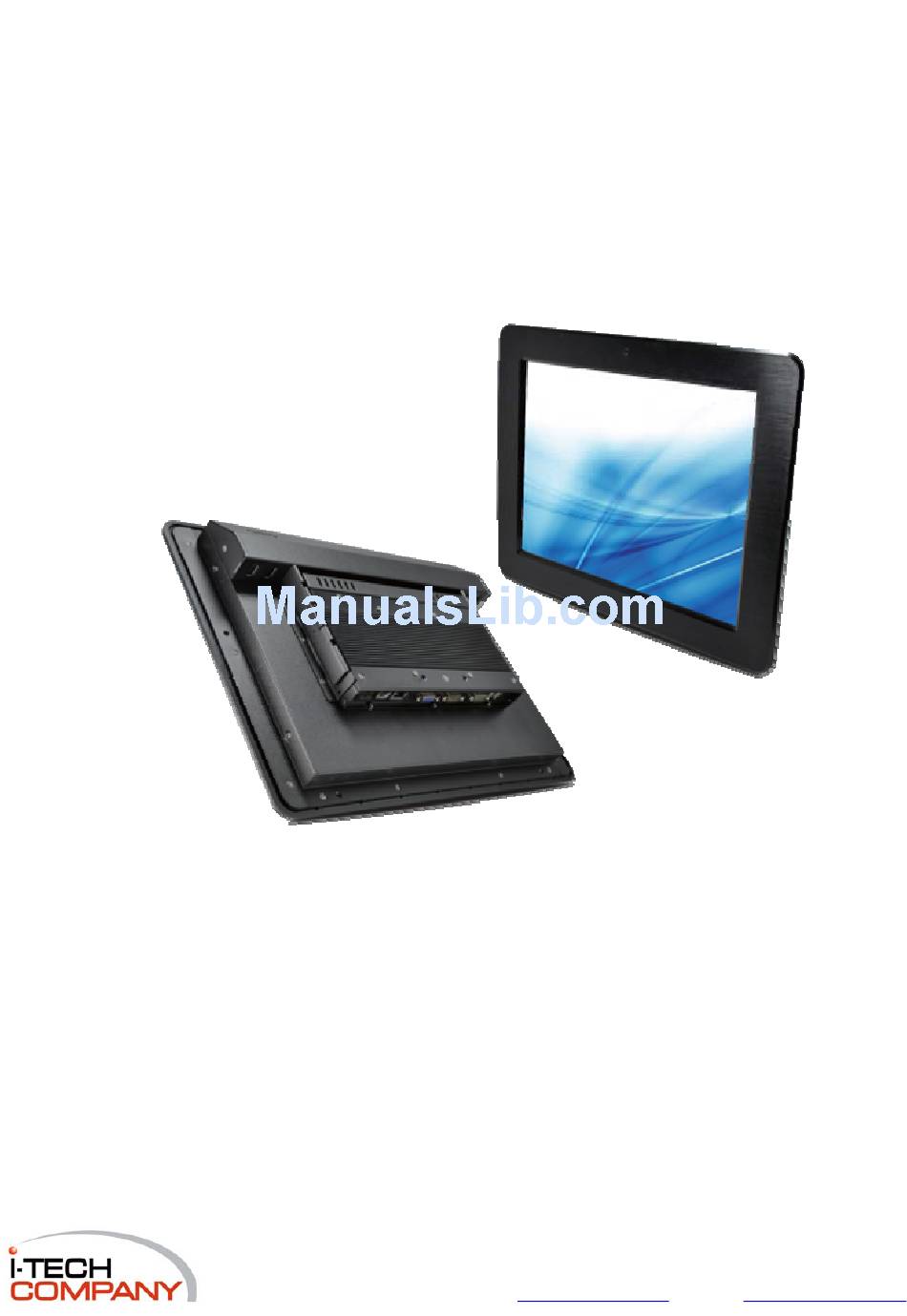

- Page 1 QPC-DC Series User Manual i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
-
Page 2: Fcc Statement
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at him own expense. QPC-DC Series USER MANUAL... -
Page 3: Copyright Notice
Company LLC reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. - Page 4 Unpacking the QPC-DC SERIES After unpacking the QPC-DC SERIES carton, check to make sure all the following items are included and in good condition. QPC-DC SERIES main system Accessories: AC Power Cable Power Adapter User guide CD & driver Wall Mount Bracket (2pc) In Wall Front Mount Locking Beads Make sure that all of the items listed above are present.
- Page 5 Scratches on the touch panel may cause mal-calibration or serious damage to the panel. 13. The LCD panel display is not resistive to shock or vibration. When disassembling the equipment, make sure the LCD panel is properly and securely installed. QPC-DC Series USER MANUAL...
-
Page 6: Table Of Contents
Software Troubleshooting ..............3-16 3.5.4 Hardware Troubleshooting..............3-17 ............4-18 HAPTER NTERFACE External Connector on Main System Box ......4-18 Detach Main System Box from System .........4-19 Install/Upgrade Memory ............4-20 Install/Swap HDD ..............4-21 Install Half Slim SSD (For D2550 only)........4-23 QPC-DC Series USER MANUAL... - Page 7 COM3: RS232 Serial Port Connector: 9 pin D-SUB Connector ..4-26 USB1: USB 2.0/3.0 Port 1,2: USB Type-A Connector ...4-26 4.10 LAN1: Giga bit Ethernet Connector: RD-45 with LED....4-27 4.10.1 LAN2: Giga bit Ethernet Connector: Standard RD-45 with LED..4-27 QPC-DC Series USER MANUAL...
-
Page 8: Chapter 1 Introduction
Specification Dimensions General Information The QPC-DC SERIES is a fanless mini size panel PC with a compact aluminum chassis as a heat sink, which delivers reliable performance and offers easy maintenance when service is required. Featuring Atom Cedar Trail processor, QPC-DC SERIES combines enhanced digital media performance with unique thermal solution, and minimizes power consumption to as little as 24 watts when running at the speed of Dual Core 1.8GHz, bringing up a... -
Page 9: Specifications
• 10.4” LED TFT LCD: 800 x 600 • 12.1” LED TFT LCD: 800 x 600 (Optional 1024 x 768) • 15” LED TFT LCD: 1024 x 768 • 18.5” LED TFT LCD: 1366 x 768 QPC-DC Series USER MANUAL... - Page 10 6 x USB 2.0 ports (2x USB 3.0 & 4X USB 2.0 ports) Serial Ports • QPC-DC A 1500 • 4 x DB-9 (COM1/2/3/4) • RS232: COM1/3/4 • RS232/422/485: COM2 Support pin9 +5V/12V selection by jumper • QPC-DC B 0840/1040/1210, A 0840/1040/1210 QPC-DC Series USER MANUAL...
- Page 11 QPC-DC 150: 5.5 KG • QPC-DC 1850: 6.5 KG ENVIRONMENT EMC & Safety • CE, FCC Temperature & Humidity • QPC-DC 0840/1040/1210/1500/1850 Operating: -10~70°C/Storage: -30~80°C Humidity: 10%~90% Specifications are subject to revision or update without notice. QPC-DC Series USER MANUAL 1-10...
-
Page 12: Chapter 2 Using The System
Chapter 2 U SING THE YSTEM Identifying the System 2.1.1 Back Top view QPC-DC 1500 2.1.2 Back Bottom view QPC-DC 1500 A QPC-DC Series USER MANUAL 2-11... -
Page 13: First Time System Setup
2.2.2 System BIOS Setup If you are a commercial user, the QPC-DC SERIES should have been set up and configured by your distributor already. In the case where you may find it necessary to change some system configuration information, you will need to run the Basic Input Output System (BIOS) setup program. -
Page 14: Operating System And Driver
2.2.3 Operating System and Driver The standard QPC-DC Series system may not be equipped with an operating system (OS). If you are a commercial user, the system is likely to have been pre-installed with a proper operating system and software drivers by your dealer or system integrator. - Page 15 Available DDR3 configurations refer to the table below for available DDR3 configurations on the mainboard. Slot Module Size Total SODIMM1 1GB, 2GB, 4GB 1GB-4GB Maximum supported system memory QPC-DC Series USER MANUAL 2-14...
-
Page 16: Chapter 3 Touch Screen
CREEN Introduction The QPC-DC Series are installed with a 5-wire analog resistive touch screen. The touch screen panel turns the flat-panel display into a dynamic graphical user interface (GUI) and data entry device. The touch screen represents a replacement to needing a keyboard and mouse to interface with the computer. -
Page 17: Touch Screen Care And Clean
Use Touchkit program. 3.5.3 Software Troubleshooting Before beginning software troubleshooting, verify that the touch screen hardware is working normal for serial controllers by running the touchscreen program. If the QPC-DC Series USER MANUAL 3-16... -
Page 18: Hardware Troubleshooting
If the system is reporting touch data at a slow or varying rate, the problem may be caused by a low signal strength or excessive noise in the system. And when the touch screen is not touched but it shows the touch data often caused by excessive system noise. QPC-DC Series USER MANUAL 3-17... -
Page 19: Chapter 4 Interface
Line In is used for external CD player, or other audio devices. Rear-Surround Out in 4/5.1/7.1 channel mode. Line out, is a connector for speakers or headphones. Mic, is a connector for microphones. Center/Subwoofer Out in 5.1/7.1 channel QPC-DC Series USER MANUAL 4-18... -
Page 20: Detach Main System Box From System
2) Remove L and R screw in the side of the system box like shown in the following picture. 3) Once the locking screws are removed, pull the main system box downwards until the connector is separated like the following picture. QPC-DC Series USER MANUAL 4-19... -
Page 21: Install/Upgrade Memory
1) Follow the steps from section 4.2 to remove the main system box. 2) Once removed, flip the main system box to have the back side facing towards you to access the quick maintenance opening for the memory module. (Like shown in the following picture.) QPC-DC Series USER MANUAL 4-20... -
Page 22: Install/Swap Hdd
2) Once removed, flip the main system box to have the back side facing towards you to access the quick maintenance HDD on the left top corner. 3) Remove the HDD bottom screw completely like shown in the following picture. QPC-DC Series USER MANUAL 4-21... - Page 23 4) Slightly Loosen the HDD top locking screw completely like shown in the following picture. 5) Push outward on the top locking screw that was loosened in step 4 to remove HDD. (Like shown in the following pictures.) QPC-DC Series USER MANUAL 4-22...
-
Page 24: Install Half Slim Ssd (For D2550 Only)
1) Follow section 4.2 to detach the main system box from the system. 2) Flip the main system box to the back side to gain access to the quick maintenance opening for the SSD slot. (Like Shown in the following picture) QPC-DC Series USER MANUAL 4-23... - Page 25 2) Flip the main system box to the top side to gain access to the 3GS SIM card slot. (Like shown in the following picture) 3) Insert the SIM card and reverse the steps from section 4.2 to re-attach the main system box to the system. QPC-DC Series USER MANUAL 4-24...
- Page 26 D-SUB Connector RS232 Mode (Select by CMOS setup) Signal Name Signal Name RI (Funtion Select by JP1) RS422 Mode (Select by CMOS setup) Signal Name Signal Name 422TXD- 422RXD+ 422TXD+ 422RXD +12V/+5V(Function Select by JP1) QPC-DC Series USER MANUAL 4-25...
- Page 27 JP1) 4.8.1 COM3: RS232 Serial Port Connector: Standard 9 pin D-SUB Connector RS-232 Mode (Select by CMOS Setup) Signal Name Signal Name RI(Function Select by JP1) USB1: USB 2.0/3.0 Port 1,2: Standard USB Type-A Connector QPC-DC Series USER MANUAL 4-26...
- Page 28 Link & Active Green 10/100M LAN Speed Orange Giga LAN Speed 4.10.1 LAN2: Giga bit Ethernet Connector: Standard RD-45 with LED Signal Name Yellow Link & Active Green 10/100M LAN Speed Orange Giga LAN Speed QPC-DC Series USER MANUAL 4-27...
