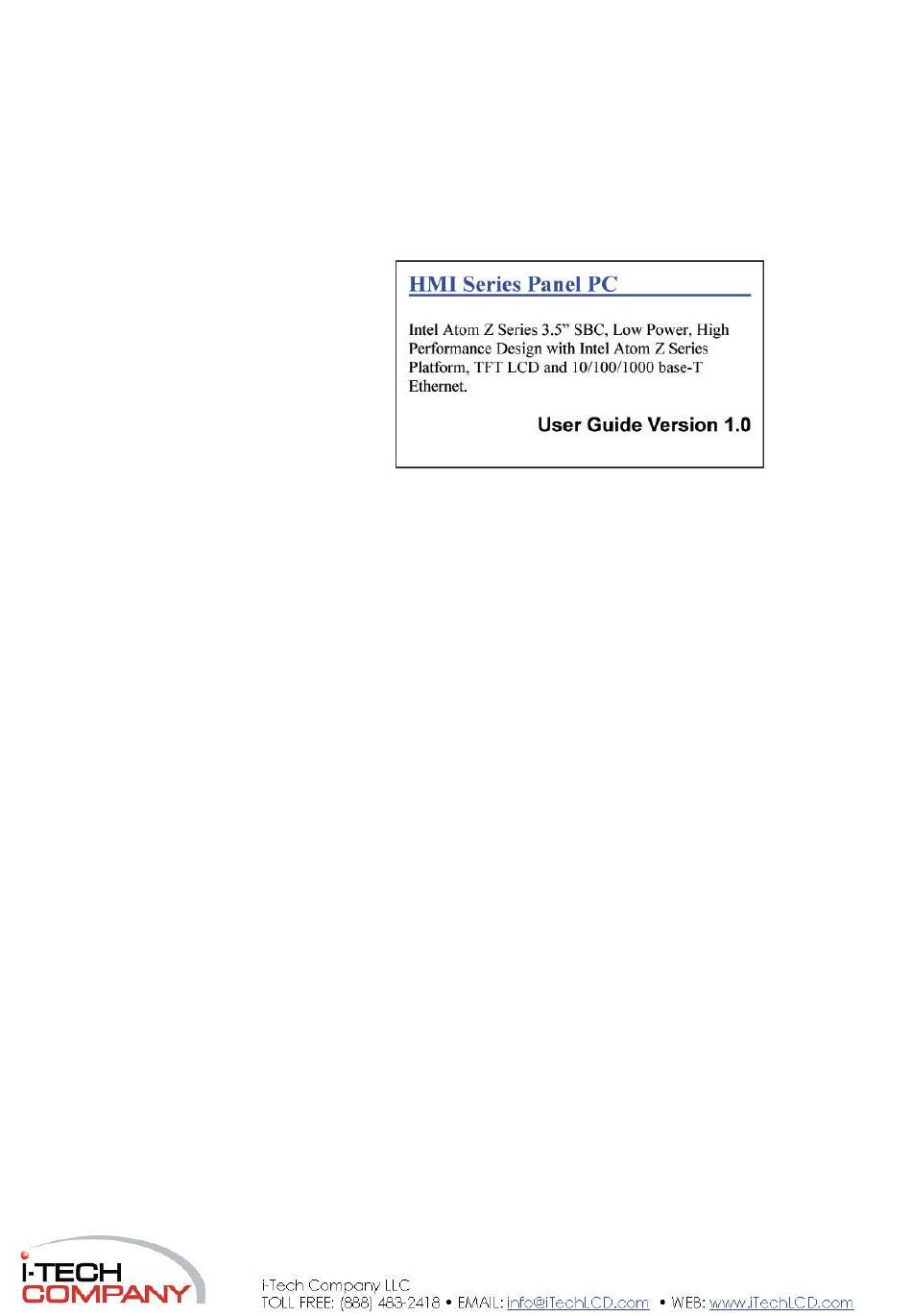

- Page 1 Intel Atom Z Series 3.5" SBC, Low Power, High Performance Design with Intel Atom Z Series Platform, TFT LCD and 10/100/1000 base-T Ethernet. User Guide Version 1.0 i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 FCC Statement ^"*V This device complies with part 15 FCC rules. Operation is subject to the following two conditions : **^r • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "a"...
- Page 3 Copyright Notice ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
- Page 4 Check List Before using this BOX PC, please make sure that all the items listed below are present in your package > 1 x HMI Series PPC unit > 1 x Driver Utility CD > 1 x HMI User Guide >...
- Page 5 Safety Precautions ♦ Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
- Page 6 Safety and Warranty Please read these safety instructions carefully. Please keep this user's manual for later reference. Please disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible.
- Page 7 Revision History Date Note Author Version 2010/9/8 First Version Cage Hsu 2010/9/21 Revise Brightness Control Cage Hsu...
-
Page 8: Table Of Contents
Input / Output Devices Starting the Panel PC& O/S Installation Driver Installation Chapter 3 Driver Installation Touch Driver Installation 3-1-1 Configuration Utility CAN BUS Driver Installation Brightness Adjustment Chapter 4 HMI series Panel PC Mounting Guide VESA Mount: Panel Mount (Clip Design): NOTICES... -
Page 9: Chapter 1 General Information
Chapter 1 GENERAL INFORMATION 1-1 Introduction The Z5xx series Panel PC is high performance, low power PC with Intel® US15W XL Chipset combine with a TFT LCD Panel. The Intel Core Duo high performance Processor delivers the most performance per watt available in the market. The Panel PC is designed to satisfy most of the applications in the industrial market, such as POS, KIOSK, Industrial Automation, HMI and Programmable Control System. -
Page 10: 1931 Sbc And Atom Z5Xx Series Panel Pc System Specifications
1-2 1931 SBC and Atom Z5xx series Panel PC System Specifications CPU Type Intel Atom Z series Processor CPU Speed 1.1GHz/1.6GHz 533MHz CPU FSB Chipset Intel US15W BIOS AMI 4M Flash Intel® GMA500 Integrated Graphics Engine Intel® GMA500 Integrated Graphics Engine built-in, 24 bits LVDS single-channel panel support up to UXGA panel resolution. -
Page 11: Lcd Selection Guide
1-3 LCD Selection Guide The HMI series Panel PCs support form 5.7-inch, 7-inch, lO.l-iinch TFT Panel w/ touchscreen function, please refer the below: Size Model Name Resolution Display Color R05I93S-IPD1HM 262k 5.7" 640 x 480 7" W05I93S-IPA2HM 262k 800 x 480 256k 10.1"... -
Page 12: Chapter 2 Getting Started
Chapter 2 Getting Started 2-1 Input / Output Devices The following figure shows the I/O arrangement of the Panel PC. The backside of the chassis contains most of the connectors (7" for example). I RJ-45 5. RS-232 2. CAN BUS 6.12V DC-IN Terminal Block 3. -
Page 13: Starting The Panel Pc& O/S Installation
2-2 Starting the Panel PC& O/S Installation Connect the power to 12V DC power supply to 3 pins Terminal block (Phoenix Type) Terminal Block Male Part Terminal Block Female Part Connect rminal block on PP □a ^8SJ' Press the power on switch to start the Panel PC. Press "DEL"... -
Page 14: Driver Installation
2-3 Driver Installation The PPC comes with a 1931 User's Manual and Driver CD that contains most of the drivers and utilities of your needs. a) Following the step by step to install Driver (Please refer 1931 SBC User's Manual Chapter 3, 4, 5, 6) include: Chipset, VGA, Audio, and Ethernet b) Following the step by step to install the Touch screen if necessary (Please refer S series PPC User Guide Chapter 3). -
Page 15: Chapter 3 Driver Installation
Chapter 3 Driver Installation 3-1 Touch Driver Installation HMI series default is Premier Touch. The touchscreen system consists of a touchscreen and an electronic touchscreen controller. The attached Driver CD contains drivers of the touch panel controller. Follow the steps as below to install TouchKit: Stepl Put the TouchKit CD to CD-ROM Step2 Open the Win2000_XP directory. - Page 16 Step.2 Enter "General" function and choose the language you need. Step.3 Correct 4 point locations on screen with the Panel. Screen display as follows...
-
Page 17: Can Bus Driver Installation
Step.4 Play "Yes" to continue if 4 points calibration test is fine and finish the test 3-2 CAN BUS Driver Installation HMI Series support 2 channels CAN BUS. HI LI Stepl. Enter CAN BUS floder. Install "dotnetfx2.0.exe" first. -
Page 18: Brightness Adjustment
Step2. Enter CAN BUS Folder. Install "setup.msi". Then finish the installation. I lt»if «M<£i *■■■: OH*» 3-3 Brightness Adjustment In our new product - 10.1" Panel PC, the dimming control has to install drivers and software to work brightness control properly. Please do following steps: Stepl Installing Driver Backlight Control Driver j folder... -
Page 19: Chapter 4 Hmi Series Panel Pc Mounting Guide
Chapter 4 HMI series Panel PC Mounting Guide The Panel PC is suitable for most of the industrial/commercial application, by any kind of mounting approach. Three main mounting approaches, such as VESA Mount/ Panel Mount /IP65 Mount, are very easy for user to install the Panel PC. As the... - Page 20 Application 1 □ (75*75nwi! ot KMilOOmm) PANEL M O U N T WALL M O U N T I N G •mounl with front bezel and thenmounted -mount wilhVESA mount kits into customefspanel. and thenmounted into wall. Application 4 r" A R M M O U N T I N G RACK M O U N T I N G •mount with rack front bezel and...
-
Page 21: Panel Mount (Clip Design)
4-2 Panel Mount (Clip Design): -Panel is aligned with the same height of the front of open frame metal housing. -Touch/Glass is higher than Open frame metal housing. -Customers can fix our Panel PC with their fixture (max. 12mm) -VESA mount holes are also available for mounting from back side. - Touch 3~6 mm VESA mount hole... - Page 22 STEP 1 STEP 2 Customer's fixture (max 12mm) 5mm front bezel Put Panel PC on the dxture(wall.panel..l Panel Mount from the front.with the sides of (5mm front bezel) the front bezel shown on the outside (Front View) (Side View) STEP 3 ¥...
- Page 23 KNOWN ISSUES There might be some image noises displayed at the time of PC boot and Windows start When using an "external display" as CRT or LCD for external mode (Panel & CRT), the resolution of external display may be recommended equal to the CMOS setting for panel [Flat Panel Type].
-
Page 24: Notices
The external Compact Flash socket is NOT A PLUG & PLAY DEVICE, you may remove the CF card only on at POWER-OFF status. I-TECH i-Tech Company LLC C O M P A N Y TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB:...
