Powergen EAGLE HF Instruction Manual

Three phase switching battery charger
Hide thumbs Also See for EAGLE HF:
Table of Contents

Advertisement

Quick Links

Download this manual

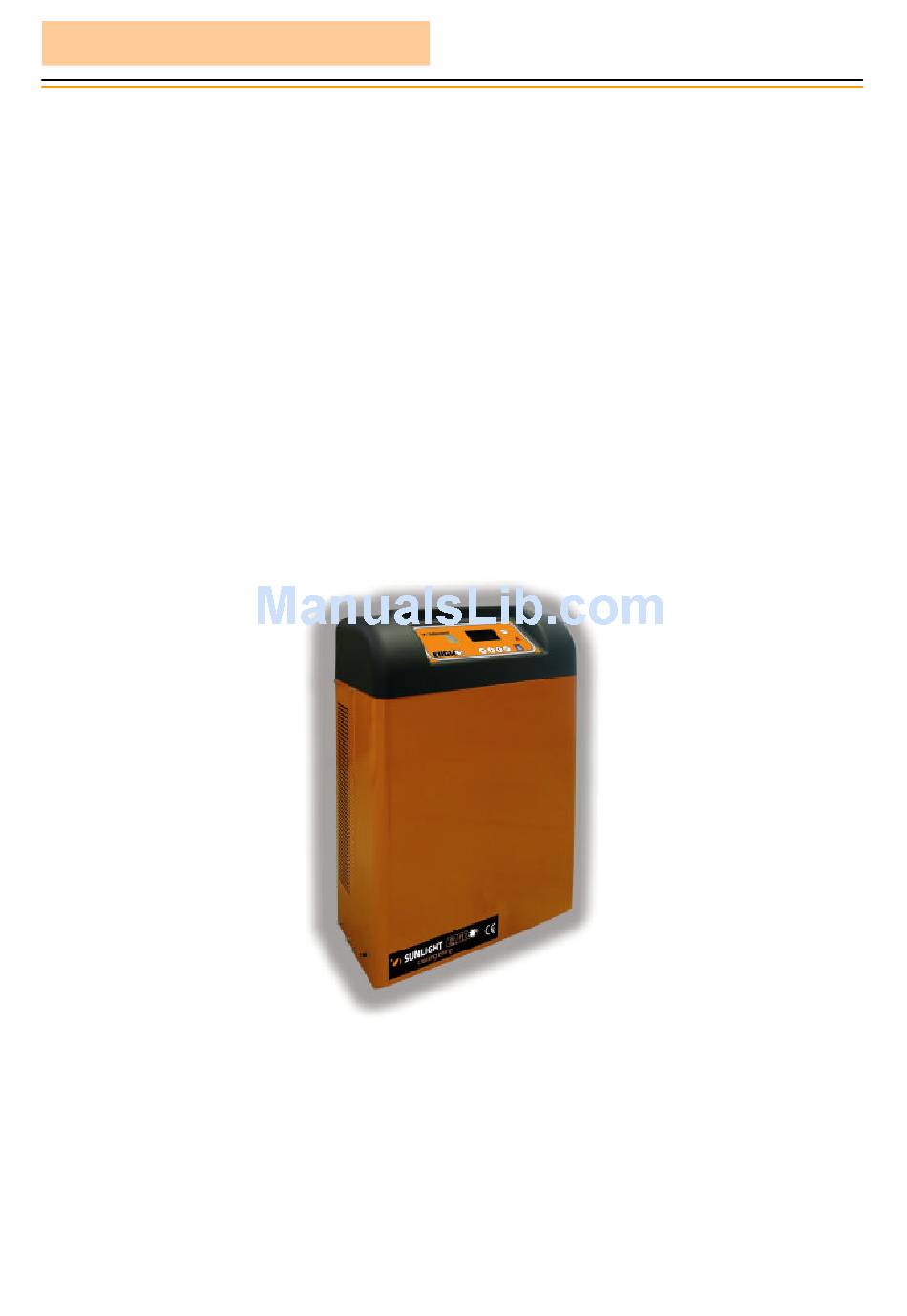

EAGLE HF - I
M
NSTRUCTIONS
ANUAL
EAGLE HF
Three Phase Switching Battery Charger
Instructions manual (UK)
Warranty (UK)
Read the following instructions carefully before connecting the charger to the mains
and to the battery.
- 1 -
R
. N.0_M 13_10_08
ELEASE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAGLE HF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powergen EAGLE HF

Summary of Contents for Powergen EAGLE HF

  • Page 1 EAGLE HF - I NSTRUCTIONS ANUAL EAGLE HF Three Phase Switching Battery Charger Instructions manual (UK) Warranty (UK) Read the following instructions carefully before connecting the charger to the mains and to the battery. - 1 - . N.0_M 13_10_08...

  • Page 2: Table Of Contents

    EAGLE HF - I NSTRUCTIONS ANUAL INDEX 1. INSTALLATION ......................5 2. CONNECTION TO THE MAIN VOLTAGE..............5 3. MAINTENANCE ......................6 4. OPERATION ........................7 5. WARRANTY ......................10 5.1 Problem - Solutions and checks..............11 6. REQUEST OF SPARE PARTS AND/OR SERVICE REQUEST........12 7. TECHNICAL NOTE....................13 CONFORMITY DECLARATION....................
  • Page 3 EAGLE HF - I NSTRUCTIONS ANUAL EAGLE HF Three Phase Switching Battery Charger All EAGLE battery chargers are conform to the following European standard EN 60335–2-29 “Safety of electrical appliances and similar” EN 55014 “E.M.C. standards” “Electric material used within specific voltage limits”, later modified...
  • Page 4 EAGLE HF - I NSTRUCTIONS ANUAL INSTALLATION - USE - OPERATION To use the charger, you have to abide by safety prescriptions contained in law and regulation and in provisions of local authorities. Obligations of the “USER”: conforming to the operating instructions, the “USER” is any natural or juridical person using directly Sunlight S.A.

  • Page 5: Installation

    EAGLE HF - I NSTRUCTIONS ANUAL 1. INSTALLATION q The installation environment shall be capable of ensuring the User’s safety and the conditions for a correct operation. q Sunlight S.A. Processor battery charger is exclusively designed to recharge traction batteries and each unit is assigned to a specific battery.

  • Page 6: Maintenance

    EAGLE HF - I NSTRUCTIONS ANUAL 3. MAINTENANCE q No scheduled maintenance is provided, though control and cleaning inspections may be performed within the battery charger system depending on its work environment. However such operations shall only be carried out by qualified staff.

  • Page 7: Operation

    NSTRUCTIONS ANUAL 4. OPERATION EAGLE HF is a high frequency three phases battery charger developed in switching mode topology. It is controlled and supervised by a microprocessor electronic card engineered with a superficial component assembly SMD (Surface Mount Device). The controller is an electronic card developed and customized for the specific control of battery chargers. It is a flexible and modular unit able to satisfy all requirements connected to the recharging of batteries in general and to specifically resolve all that is necessary for the final utilisation.
  • Page 8 EAGLE HF - I NSTRUCTIONS ANUAL In the Alarms folder it is shown the list of the the alarms present during the charging cycle. Inside the Historical log menu the user can find the relevant data of all the charging cycles.
  • Page 9 EAGLE HF - I NSTRUCTIONS ANUAL The CPU card accommodates a micro-controller at 8-bit based on RISC architecture equipped with 128k memory flash and an extra external memory flash of the capacity equal to 4Mbit. The microprocessor on board is responsible of all the functions and the controls the same controller unit.

  • Page 10: Warranty

    EAGLE HF - I NSTRUCTIONS ANUAL 5. WARRANTY The duration of the battery charger warranty is 12 (twelve) months from its start-up. The warranty covers all proven defects in components, assembly and construction. Any incorrect installation or use of the charger NULLIFIES the warranty.

  • Page 11: Problem - Solutions And Checks

    EAGLE HF - I NSTRUCTIONS ANUAL 5.1 PROBLEM – SOLUTIONS AND CHECKS PROBLEM SOLUTIONS AND CHECKS Check the alarms list Check the battery connection Make sure the battery voltage is suitable for the battery charger voltage The battery charger is not starting Check the efficiency of the d.c.

  • Page 12: Request Of Spare Parts And/Or Service Request

    EAGLE HF - I NSTRUCTIONS ANUAL 6. REQUEST OF SPARE PARTS AND/OR SERVICE REQUEST q We recommend to always advise the serial number of the battery charger. - 12 - . N.0_M 13_10_08 ELEASE...

  • Page 13: Technical Note

    EAGLE HF - I NSTRUCTIONS ANUAL 7 TECHNICAL NOTE: • 400V or 230V three-phase supply (with possibility to request voltages different from the standard ones), adjustable to ± 5% or ± 10% • Microprocessor-controlled programming and measuring via digital gearcase. Such microprocessor control is designed to optimize the charging cycles for any type of battery.

  • Page 14: Conformity Declaration

    EAGLE HF - I NSTRUCTIONS ANUAL CONFORMITY DECLARATION DECLARES that the battery charger type EAGLE______ Serial N° __________ manufacturing year 200__ Complies with the following standards: EN 60335–2-29 : “Safety of electrical appliances and similar”. EN 55014 : “E.M.C. standards”.
  • Page 15 EAGLE HF - I NSTRUCTIONS ANUAL NOTE ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ - 15 - . N.0_M 13_10_08 ELEASE...
  • Page 16 EAGLE HF - I NSTRUCTIONS ANUAL NOTE ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ - 16 - . N.0_M 13_10_08 ELEASE...

  • Page 17: Order For Spare Parts Battery Charger

    EAGLE HF - I NSTRUCTIONS ANUAL ORDER FOR SPARE PARTS BATTERY CHARGER Customer’s stamp and signature Fill in and send to: - 17 - . N.0_M 13_10_08 ELEASE...

  • Page 18: Warranty Certificate

    EAGLE HF - I NSTRUCTIONS ANUAL WARRANTY CERTIFICATE Sunlight S.A. ________________ Serial N° ____________________________ Customer’s stamp and signature Fill in and send to: - 18 - . N.0_M 13_10_08 ELEASE...
  • Page 19 EAGLE HF - I NSTRUCTIONS ANUAL Thank you very much for chosing our product. Congratulations on your decision. This equipment is the result of the most advanced technology and has been manufactured according to the most rigorous quality criteria. WARRANTY RULES 1.
