Powergen Digit 3001 Instruction Manual

Single/three phase
Hide thumbs
Table of Contents

Advertisement

Quick Links

I
M
D
3001
NSTRUCTIONS
ANUAL
IGIT

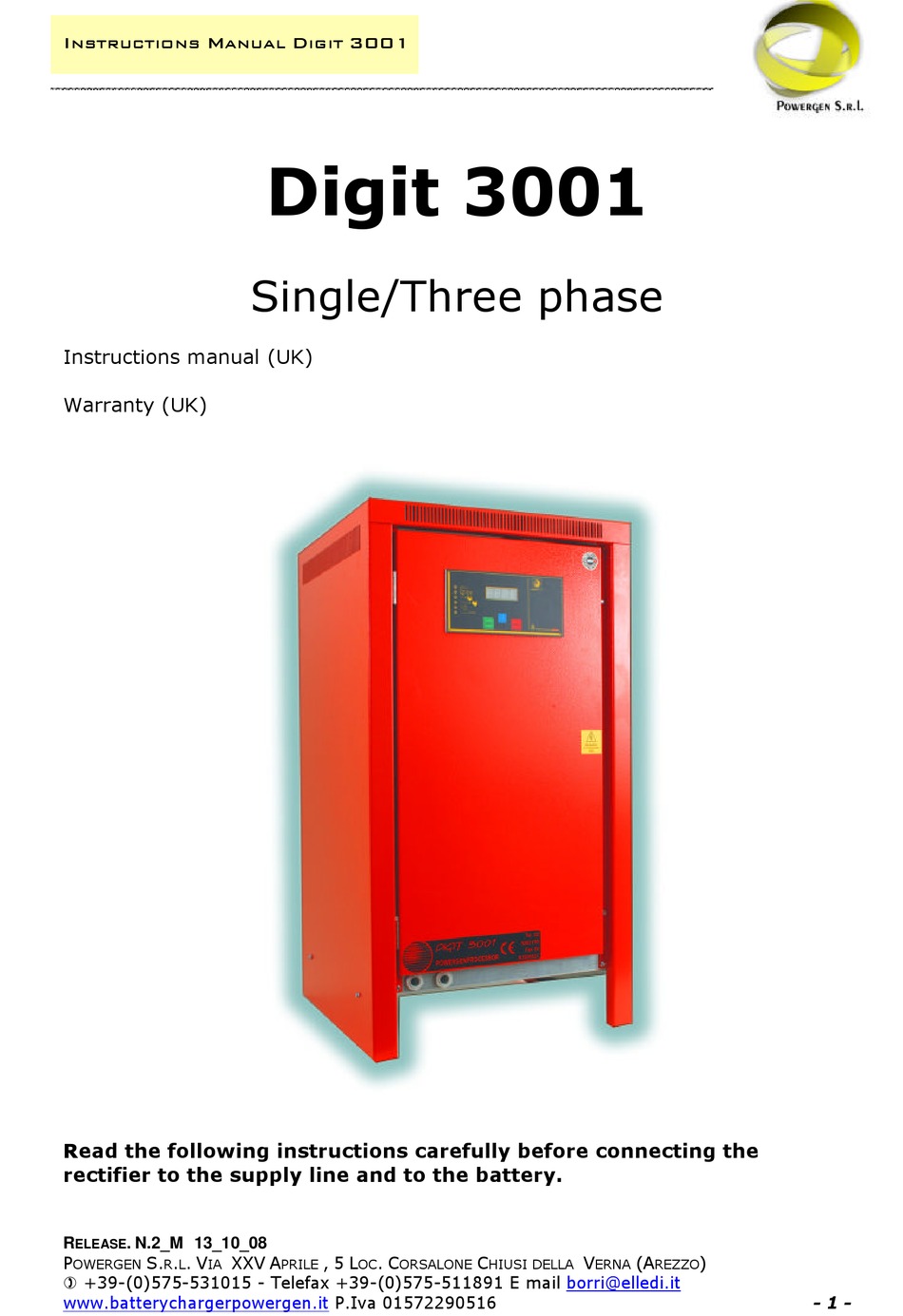

Digit 3001
Single/Three phase
Instructions manual (UK)
Warranty (UK)
Read the following instructions carefully before connecting the
rectifier to the supply line and to the battery.
R
. N.2_M 13_10_08
ELEASE
P
S.
.
. V
XXV A
, 5 L
. C
C
V
(A
)
OWERGEN
R
L
IA
PRILE
OC
ORSALONE
HIUSI DELLA
ERNA
REZZO
) +39-(0)575-531015 - Telefax +39-(0)575-511891 E mail
borri@elledi.it
www.batterychargerpowergen.it
P.Iva 01572290516
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digit 3001 and is the answer not in the manual?

Questions and answers

Related Manuals for Powergen Digit 3001

Summary of Contents for Powergen Digit 3001

  • Page 1 3001 NSTRUCTIONS ANUAL IGIT Digit 3001 Single/Three phase Instructions manual (UK) Warranty (UK) Read the following instructions carefully before connecting the rectifier to the supply line and to the battery. . N.2_M 13_10_08 ELEASE XXV A , 5 L OWERGEN...

  • Page 2: Table Of Contents

    5. OPERATION ....................... 8 6. WARRANTY........................ 9 6.1 Problem - Solutions and checks..............10 7. REQUEST OF SPARE PARTS AND/OR SERVICE REQUEST ....... 11 8. DIGIT 3001 ........................ 11 8.1. Operation mode: PROGRAMMING ............12 8.2. Operation mode: CHARGE..............13 8.2.1.

  • Page 3: Battery Charger

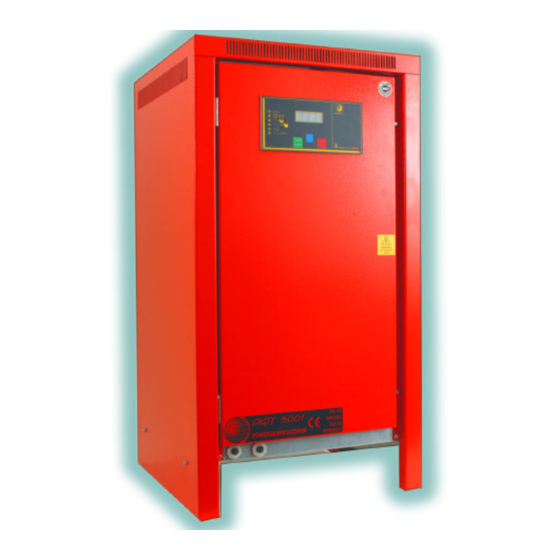

    NSTRUCTIONS ANUAL IGIT Digit 3001 Battery Charger Versions: Single_Phase/Three_Phase All battery chargers Digit 3001 are conform to the following European standard DIN 41772-3-4 “Charging method and curve of transformers”. EN 60335–2-29 “Safety of electrical appliances and similar”. EN 55014 “E.M.C. standards”.
  • Page 4 Obligations of the “USER” : conforming to the operating instructions, the “USER” is any natural or juridical person using directly Powergen srl battery chargers or anyone using them for account of the above mentioned person.

  • Page 5: Installation

    Powergen Processor battery charger is exclusively designed to recharge traction batteries and each unit is assigned to a specific battery. q Powergen Processor battery charger has IP 20 protection degree, therefore it shall be protected from rain and water sprays. It shall be installed away from easily inflammable materials and shall not be used as a supporting top.

  • Page 6: Mains Voltage Setting

    3001 NSTRUCTIONS ANUAL IGIT 3. MAINS VOLTAGE SETTING q During the installation (or after a displacement) we recommend to check the actual value of the mains voltage, if found high or low compared with the rated values, may cause problems due to a higher or lower delivery of current during the charge. q As a result, check this value and adjust it, if needed, via the ADJUSTING PLUGS placed in the terminal board on the transformer.

  • Page 7: Maintenance

    Thus, if used in a garage or a similar environment, place the battery charger in a suitable room. - For indoor use only - do not expose the unit to the rain or similar elements POWERGEN s.r.l. . N.2_M 13_10_08 ELEASE...

  • Page 8: Operation

    FINISHED, OTHERWISE BEFORE DISCONNECTING YOU MUST STOP THE CHARGE MANUALLY, IN ACCORDANCE WITH THE SECURITY STANDARDS. THIS OPERATION GUARANTEES MORE RELIABILITY OF THE INNER ELECTRONIC COMPONENTS OF THE EQUIPEMENT. POWERGEN s.r.l. . N.2_M 13_10_08 ELEASE XXV A , 5 L...

  • Page 9: Warranty

    The warranty is void due to improper use, incorrect installation or tampering q The warranty is void if interventions on the equipment are performed by persons not qualified by Powergen S.r.l. The warranty is NULLIFIES if the 3 thermocouple transformer switch will be by-pass .

  • Page 10: Problem - Solutions And Checks

    3001 NSTRUCTIONS ANUAL IGIT 6.1 PROBLEM – SOLUTIONS AND CHECKS PROBLEM SOLUTIONS AND CHECKS Check the battery connection Make sure the battery voltage is suitable for the battery charger voltage Check the efficiency of the d.c. fuse on the output The battery charger is not starting Make sure the three phases are present in the line voltage Check the efficiency of fuses in the three-pole base...

  • Page 11: Request Of Spare Parts And/Or Service Request

    DIGIT 3001 is provided with a control panel with six LED's displaying the operating status of the battery charger, with a four digit display showing the charging parameters and with a keyboard to programme and read parameters and functions settings.

  • Page 12: Operation Mode: Programming

    CYCLES REALIZED (THE LAST 10) DEFAULT PARAMETERS 8.1. Operation mode: PROGRAMMING DIGIT 3001 is fully programmable in all its functions and widely configurable in every charging parameter. This feature gives the card extreme flexibility, thus facilitating its use in numerous applications.

  • Page 13: Operation Mode: Charge

    In parallel to the described operation logic, which provides a voltage control followed by a time control for the charge, DIGIT 3001 can also automatically activate a charge completion control, if correctly set, which verifies the ampere-hours integrated into the battery (see line no.

  • Page 14: Functions And Displayed Messages

    3001 NSTRUCTIONS ANUAL IGIT 8.2.1. Functions and Displayed Messages After selecting the charge mode and after connecting the mains supply and the battery (the sequence is irrelevant), the charging cycle will be activated. This will start automatically after about 5 seconds. “nor” will be shown on the display.

  • Page 15: Led Bar

    3001 NSTRUCTIONS ANUAL IGIT Once the charging cycle has started, it can be manually interrupted by pressing the left- hand “ON/OFF” button. “StoP” will be shown on the display. By pressing the left-hand "ON/OFF" button again, the charging cycle will be enabled. This will be started again automatically after 5 seconds.

  • Page 16: Equalization

    8.4. Charging Cycle Log DIGIT 3001 includes a filing function of charge end data regarding the latest 10 completed cycles. In particular, a cyclic memory buffer with 10 positions and FIFO filling modality (First In First Out) has been implemented, based on which the first data entered are the first to leave.

  • Page 17: Alarms And Safeties

    “End” 8.5. Alarms and Safeties DIGIT 3001 implements a whole series of alarms and safety functions, thus assuring a reliable operation of the control card. In case of power failures, the charging cycle will not be enabled and, if active, will be interrupted.

  • Page 18: Setting Of Default Parameters

    3001 NSTRUCTIONS ANUAL IGIT 8.6. Setting of Default Parameters DIGIT3001 allows to retrieve the setting of default values based on the following procedure: set dip-switch DSW1 to programming mode. "ProG" will be shown on the display. press the right-hand “EQU” and the left-hand “ON/OFF” buttons simultaneously. "----" will be shown on the display.

  • Page 19: Technical Note

    3001 NSTRUCTIONS ANUAL IGIT TECHNICAL NOTE: These charging systems are capable of charging the battery either with the Wa characteristic according to DIN41774 standard (see table “one charging stage only”) or, alternatively, when the charging time needs to be reduced, according to the WoWa characteristic, based on DIN 41774 standard, see table “Addition of a second charging stage”.

  • Page 20: Conformity Declaration

    3001 NSTRUCTIONS ANUAL IGIT CONFORMITY DECLARATION The Manufacturer Powergen S.r.l. with registered office in Via XXV Aprile, 5 Corsalone Chiusi della Verna (AREZZO) DECLARES that the battery charger of Powergenprocessor type Digit 3001______ Serial N° __________ manufacturing year 200__ Complies with the following standards: DIN 41772-3-4 : “Charging method and curve of transformers”.
  • Page 21 3001 NSTRUCTIONS ANUAL IGIT NOTE ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ . N.2_M 13_10_08 ELEASE XXV A , 5 L OWERGEN PRILE ORSALONE HIUSI DELLA ERNA REZZO ) +39-(0)575-531015 - Telefax +39-(0)575-511891 E mail borri@elledi.it www.batterychargerpowergen.it...
  • Page 22 3001 NSTRUCTIONS ANUAL IGIT NOTE ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ . N.2_M 13_10_08 ELEASE XXV A , 5 L OWERGEN PRILE ORSALONE HIUSI DELLA ERNA REZZO ) +39-(0)575-531015 - Telefax +39-(0)575-511891 E mail borri@elledi.it www.batterychargerpowergen.it...

  • Page 23: Order For Spare Parts Battery Charger

    IGIT ORDER FOR SPARE PARTS BATTERY CHARGER Powergenprocessor Customer’s stamp and signature Fill in and send to: Powergen S.r.l. Via XXV Aprile , 5 Loc Corsalone Chiusi della Verna (AR) tel 0575-531015 - Telefax 0575-511891 www.batterychargerpowergen.it e-mail adress borri@elledi.it info@batterychargerpowergen.it .
  • Page 24 3001 NSTRUCTIONS ANUAL IGIT Thank you very much for choosing our product. Congratulations on your decision. This equipment is the result of the most advanced technology and has been manufactured according to the most rigorous quality criteria. Spare parts Diode bridge AC Fuse DC Fuse Contactor...

  • Page 25: Warranty Certificate

    IGIT WARRANTY CERTIFICATE Powergenprocessor ________________ Serial N° ____________________________ Customer’s stamp and signature Fill in and send to: Powergen S.r.l. Via XXV Aprile , 5 Loc Corsalone Chiusi della Verna (AR) tel 0575-531015 - Telefax 0575-511891 e mail adress www.batterychargerpowergen.it borri@elledi.it info@batterychargerpowergen.it...
  • Page 26 3001 NSTRUCTIONS ANUAL IGIT Thank you very much for chosing our product. Congratulations on your decision. This equipment is the result of the most advanced technology and has been manufactured according to the most rigorous quality criteria. Powergenprocessor WARRANTY RULES 1.
