Smart 3000
Single/three phase
Instructions manual (UK)
Warranty (UK)
Read the following instructions carefully before connecting the
rectifier to the supply line and to the battery.
R
. N.2_M 13_10_08
ELEASE
P
S.
.
. V
XXV A
, 5 L
. C
C
V
(A
)
OWERGEN
R
L
IA
PRILE
OC
ORSALONE
HIUSI DELLA
ERNA
REZZO
) +39-(0)575-531015 - Telefax +39-(0)575-511891 E mail
borri@elledi.it
www.batterychargerpowergen.it
P.Iva 01572290516
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powergen Smart 3000
Summary of Contents for Powergen Smart 3000

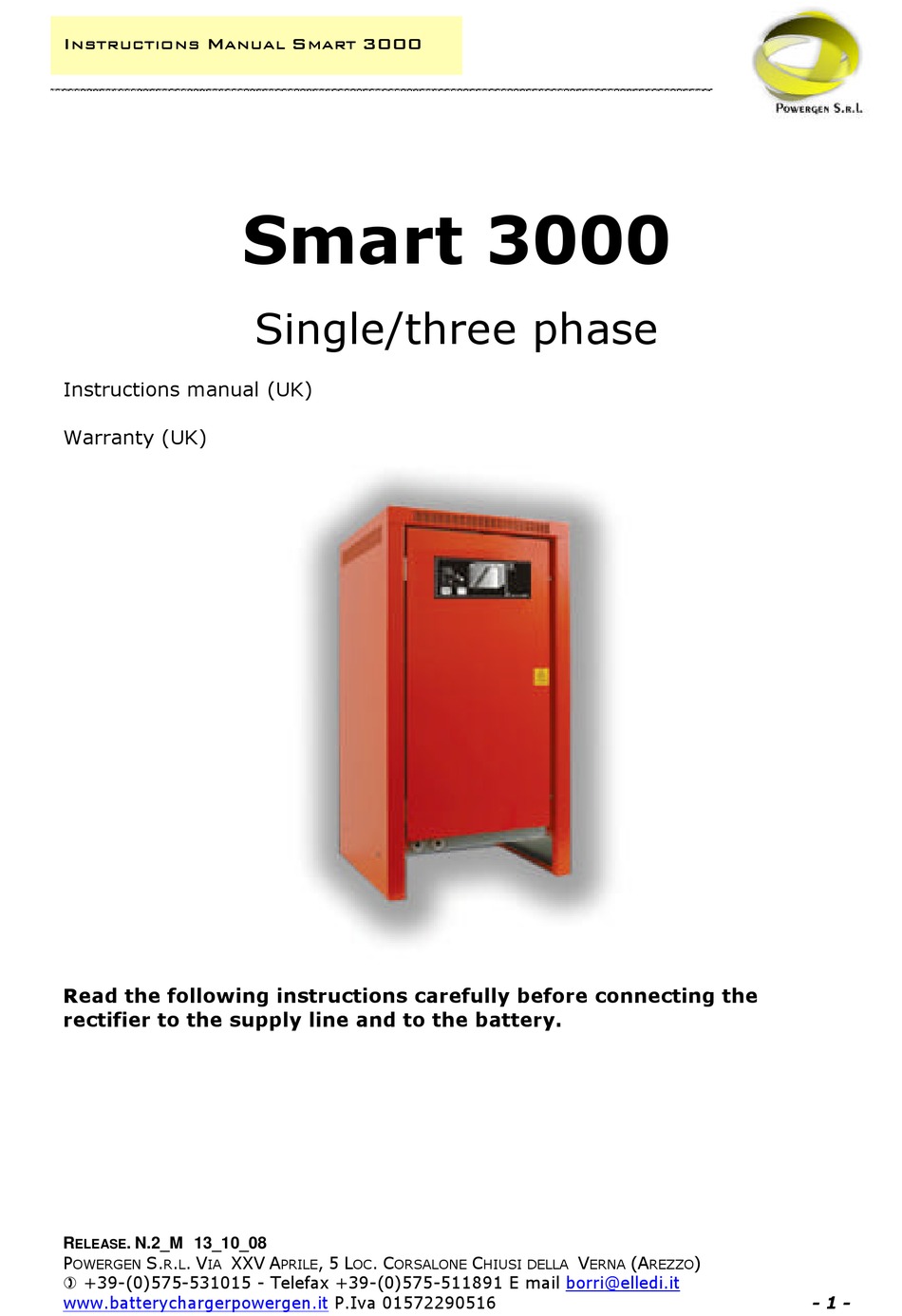

- Page 1 3000 NSTRUCTIONS ANUAL MART Smart 3000 Single/three phase Instructions manual (UK) Warranty (UK) Read the following instructions carefully before connecting the rectifier to the supply line and to the battery. . N.2_M 13_10_08 ELEASE XXV A , 5 L OWERGEN...
-
Page 2: Table Of Contents
3000 NSTRUCTIONS ANUAL MART INDEX 1. INSTALLATION ......................5 2. CONNECTION TO THE SINGLE/THREE-PHASE LINE..........5 3. MAINS VOLTAGE SETTING ..................6 4. MAINTENANCE ......................7 5. OPERATION ....................... 8 6. WARRANTY........................ 9 6.1 Problem - Solutions and checks..............10 7. -
Page 3: Battery Charger
The warranty certificate is attached to the following manual. If not, request it to your dealer. The information contained in the present manual is Powergen s.r.l.’s property. Powergen s.r.l. reserves the right to provide it to its own customers for their exclusive use. No other use is allowed without Powergen s.r.l.’s written authorization. - Page 4 Obligations of the “USER” : conforming to the operating instructions, the “USER” is any natural or juridical person using directly Powergen srl battery chargers or anyone using them for account of the above mentioned person.
-
Page 5: Installation
Powergen Processor battery charger is exclusively designed to recharge traction batteries and each unit is assigned to a specific battery. q Powergen Processor battery charger has IP 20 protection degree, therefore it shall be protected from rain and water sprays. It shall be installed away from easily inflammable materials and shall not be used as a supporting top. -
Page 6: Mains Voltage Setting
3000 NSTRUCTIONS ANUAL MART 3. MAINS VOLTAGE SETTING q During the installation (or after a displacement) we recommend to check the mains voltage of the supply line which, if found high or low compared with the rated values, may cause problems due to a higher or lower delivery of current during the charge. q As a result, check this value and adjust it, if needed, via the ADJUSTING PLUGS placed in the terminal board on the transformer. -
Page 7: Maintenance
For a correct operation we recommend to check the mechanical tightening of electric connections and the good status of wires and connections and to remove the existing dust. Polycarbonate plate with charging data Smart 3000 Pic. (1) - Before charging the unit, read the instruction manual carefully; ATTENTION :... -
Page 8: Operation
FINISHED, OTHERWISE BEFORE DISCONNECTING YOU MUST STOP THE CHARGE MANUALLY, IN ACCORDANCE WITH THE SECURITY STANDARDS. THIS OPERATION GUARANTEES MORE RELIABILITY OF THE INNER ELECTRONIC COMPONENTS OF THE EQUIPEMENT. POWERGEN s.r.l. . N.2_M 13_10_08 ELEASE XXV A , 5 L... -
Page 9: Warranty
The warranty is void due to improper use, incorrect installation or tampering q The warranty is void if interventions on the equipment are performed by persons not qualified by Powergen. S.r.l. The warranty is NULLIFIES if the 3 thermocouple transformer switch will be by-pass . -
Page 10: Problem - Solutions And Checks
3000 NSTRUCTIONS ANUAL MART 6.1 PROBLEM – SOLUTIONS AND CHECKS PROBLEM SOLUTIONS AND CHECKS Check the battery connection Make sure the battery voltage is suitable for the battery charger voltage Check the efficiency of the d.c. fuse on the output The battery charger is not starting Make sure the three phases are present in the line voltage Check the efficiency of fuses in the three-pole base... -
Page 11: Request Of Spare Parts And/Or Service Request
3000 NSTRUCTIONS ANUAL MART 7. REQUEST OF SPARE PARTS AND/OR SERVICE REQUEST q We recommend to always advise the serial number of the battery charger. 8.TECHNICAL NOTE: These charging systems are capable of charging the battery either with the Wa characteristic according to DIN41774 standard (see table “one charging stage only”) or, alternatively, when the charging time needs to be reduced, according to the WoWa characteristic, based on... -
Page 12: Conformity Declaration
3000 NSTRUCTIONS ANUAL MART CONFORMITY DECLARATION The Manufacturer Powergen S.r.l. with registered office in Via XXV Aprile, 5 Corsalone Chiusi della Verna (AREZZO) DECLARES that the battery charger of Powergenprocessor type Smart 3000 Serial N° __________ manufacturing year 200__ Complies with the following standards: DIN 41772-3-4 : “Charging method and curve of transformers”. -
Page 13: Order For Spare Parts Battery Charger
ORDER FOR SPARE PARTS BATTERY CHARGER Powergenprocessor Customer’s stamp and signature Fill in and send to: Powergen Italia S.r.l. Via XXV Aprile , 5 Loc Corsalone Chiusi della Verna (AR) tel 0575-531015 - Telefax 0575-511891 www.batterychargerpowergen.it e-mail adress borri@elledi.it info@batterychargerpowergen.it . - Page 14 3000 NSTRUCTIONS ANUAL MART Thank you very much for choosing our product. Congratulations on your decision. This equipment is the result of the most advanced technology and has been manufactured according to the most rigorous quality criteria. Spare parts Diode bridge AC Fuse DC Fuse Contactor...
-
Page 15: Warranty Certificate
WARRANTY CERTIFICATE Powergenprocessor ________________ Serial N° ____________________________ Customer’s stamp and signature Fill in and send to: Powergen Italia S.r.l. Via XXV Aprile , 5 Loc Corsalone Chiusi della Verna (AR) tel 0575-531015 - Telefax 0575-511891 e mail adress www.batterychargerpowergen.it borri@elledi.it info@batterychargerpowergen.it... - Page 16 3000 NSTRUCTIONS ANUAL MART Thank you very much for chosing our product. Congratulations on your decision. This equipment is the result of the most advanced technology and has been manufactured according to the most rigorous quality criteria. Powergenprocessor WARRANTY RULES 1.
