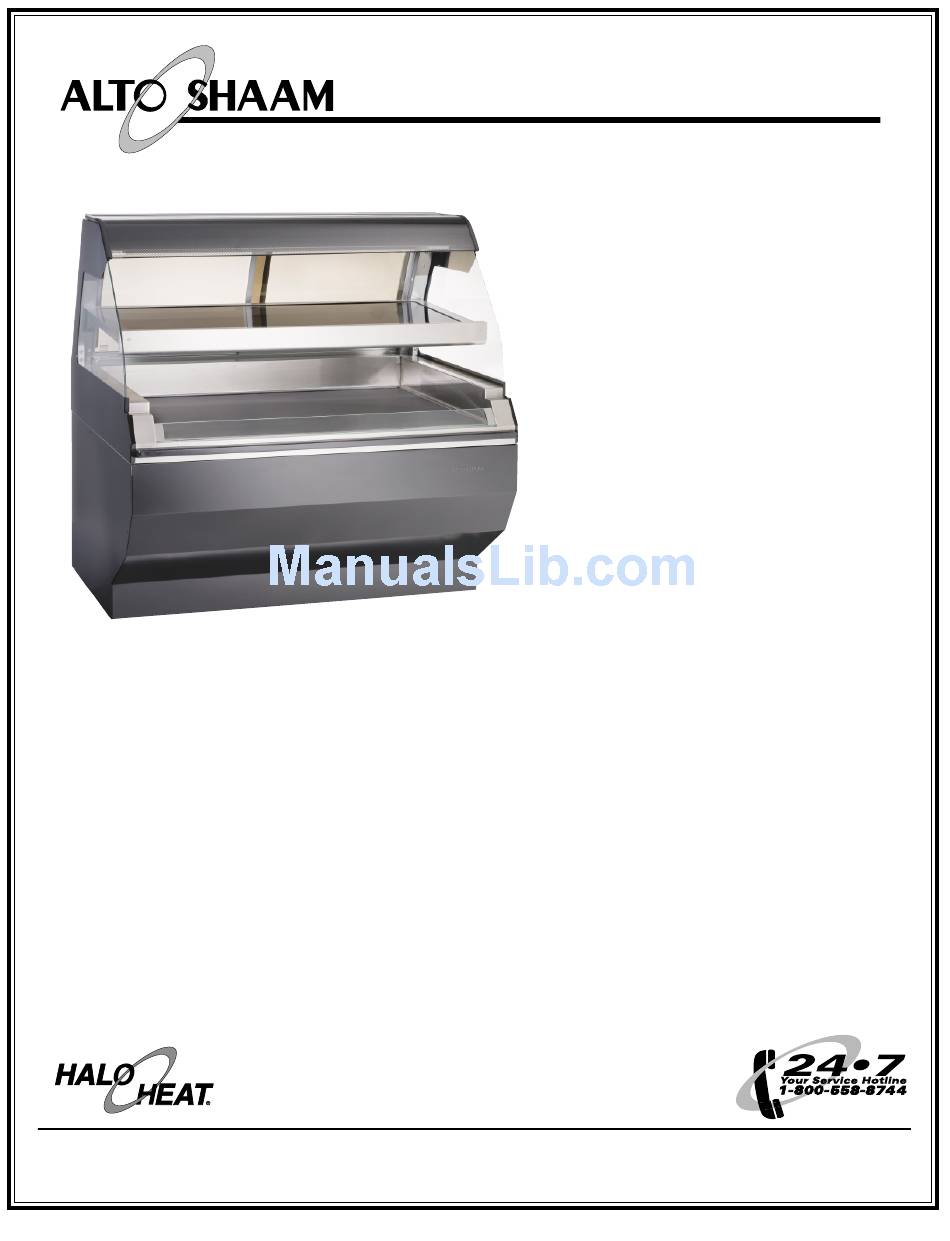

H e a t e d D i s p l a y C a s e s
®
M u l t i - S h e l f H e a t e d D i s p l a y S y s t e m s
Models:
ED2-48/2S
ED2SYS-48/2S
ED2SYS-48/2S
• INSTALLATION
• OPERATION
• MAINTENANCE
W 1 6 4 N 9 2 2 1 W a t e r S t r e e t • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE:
262.251.3800 • 800.558.8744
/
FAX:
262.251.7067 • 800.329.8744
.
.
.
USA
CANADA
U
S
A
ONLY
WEBSITE: www.alto-shaam.com
.
.
.
# 8 7 0 • 0 8 / 0 6
P R I N T E D I N U
S
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED2-48/2S and is the answer not in the manual?

Questions and answers

Summary of Contents for Alto-Shaam ED2-48/2S

  • Page 1 H e a t e d D i s p l a y C a s e s ® M u l t i - S h e l f H e a t e d D i s p l a y S y s t e m s Models: ED2-48/2S ED2SYS-48/2S ED2SYS-48/2S • INSTALLATION •...
  • Page 2 NOTE: All claims for warranty must include the before connecting electrical power. Store any full model number and serial number of accessories in a convenient place for future use. the unit. #870 • ED2-48/2s Series Operation & Care Manual • 1...
  • Page 3: Safety Procedures And Precautions

    Used to notify personnel of NOTE: installation, operation, or maintenance information that is important but not hazard related. #870 • ED2-48/2s Series Operation & Care Manual • 2...
  • Page 4: Installation

    5. Care must be taken when moving this unit into These legs are supplied with the unit. Warranty place because of its glass components. will become null and void if these directions are not followed. #870 • ED2-48/2s Series Operation & Care Manual • 3...
  • Page 5 43" 37" (1448mm x 1092mm x 940mm) NOT AVAILABLE YET NOT AVAILABLE YET ED2SYS-48/2 340 lb (154 kg) 450 lb (187 kg) 58" 50" 56" (1473mm x 1270mm x 1422mm) #870 • ED2-48/2s Series Operation & Care Manual • 4...
  • Page 6 ELECTRICAL ED2-48/2S; ED2SYS-48/2 VOLTAGE PHASE CYCLE HZ AMPS COUNTER TOP MODEL ONLY at 208V 50/60 10.0 2.1 6-20 NEMA 20A, 250V at 240V 50/60 11.7 2.8 PLUG #870 • ED2-48/2s Series Operation & Care Manual • 5...
  • Page 7: Before Initial Use

    Be careful not to overheat as this may cause some containers to melt. Do not stack containers. To avoid personal injury and damage to the unit, treat glass with care. Remember –– glass can shatter. #870 • ED2-48/2s Series Operation & Care Manual • 6...
  • Page 8 When holding food for prolonged periods, it is advisable to periodically check the internal temperature of each item to assure maintenance of the proper temperature range. #870 • ED2-48/2s Series Operation & Care Manual • 7...
  • Page 9: General Holding Guidelines

    1 and 10. Use a metal- stemmed indicating thermometer to measure the internal temperature of the product(s) being held. Adjust the thermostat setting to achieve the best overall setting based on internal product temperature. #870 • ED2-48/2s Series Operation & Care Manual • 8...
  • Page 10: Care And Cleaning

    Always thoroughly rinse surfaces after using a cleaning agent and wipe standing water as quickly as possible after rinsing. #870 • ED2-48/2s Series Operation & Care Manual • 9...
  • Page 11: Equipment Care

    SEVERE DAMAGE OR ELECTRICAL HAZARD NSF standards. DO NOT over-tighten bulbs COULD RESULT. in their receptacles as this can cause WARRANTY BECOMES VOID IF APPLIANCE IS FLOODED. damage to the bulb filament. #870 • ED2-48/2s Series Operation & Care Manual • 10...
  • Page 12 F R O Z E N F O O D S DANGER ZONE ABOVE 32°F (ABOVE 0°C) CRITICAL ZONE 0° TO 32°F (-18° TO 0°C) SAFE ZONE 0°F (-18°C OR BELOW OR BELOW #870 • ED2-48/2s Series Operation & Care Manual • 11...
  • Page 13 Flouresent Bulbs LP-33822 Bulb Receptacles RP-34160 (8 required) Cutting Board Bracket Control Board BT-2342 BA-34294 Flouresent Bulbs LP-33822 #870 • ED2-48/2s Series Operation & Care Manual • 12...
  • Page 14 Glass GL-26028 Heated Glass Assembly 5004203 End Glass (includes: GL-25860) LEFT OR RIGHT GL-25762 Front Guard 1005155 Lexan Guard GD-27170 Bumper Track Bumper 1004980 BM-22720 GFCI Module Cord CI-34104 CD-3607 #870 • ED2-48/2s Series Operation & Care Manual • 13...
  • Page 15 12. HINGE ASSEMBLY, LEFT-HAND HG-26946 HINGE ASSEMBLY, RIGHT-HAND HG-26945 13. INSULATION IN-22364 14. LEGS, 4" (102mm) LG-2044 15. PLUG PG-25536 16. SWITCH, TOGGLE SW-3887 17. TRACK, DOOR, BOTTOM TK-26751 TRACK, DOOR, TOP TK-26752 #870 • ED2-48/2s Series Operation & Care Manual • 14...
  • Page 16 LAMP, (LP-33822) LAMP, (LP-33822) NOTE #1: ALL NUMBERS IN ( ) = ALTO-SHAAM PART NO'S NOTE #2: SEE DRW. #B-XXXX.DWG FOR WIRE ASSEMBLIES HEATED GLASS ASSY (GL-25860) 1100W 240V 106 105 208V 240V 50/60Hz 50/60Hz 2100W 2800W 11.7A LAMP, (LP-33822)
  • Page 17: Limited Warranty

    ALTO-SHAAM, INC. RECORD THE MODEL AND SERIAL NUMBER OF THE APPLIANCE FOR EASY REFERENCE. ALWAYS REFER TO BOTH MODEL AND SERIAL NUMBER IN ANY CONTACT WITH ALTO-SHAAM REGARDING THIS APPLIANCE. Model: Date Installed:...
