H e a t e d D i s p l a y C a s e s
M u l t i - S h e l f H e a t e d D i s p l a y
ED2SYS-48/2S
Models:
ED2-48/2S
ED2SYS-48/2S
ED2-48/2S
ED2-72/2S
ED2SYS-72/2S
ED2SYS-72/2S
ED2-96/2S
ED2SYS-96/2S
ED2-72/2S
ED2SYS-96/2S
• INSTALLATION
• OPERATION
ED2-96/2S
• MAINTENANCE
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: 262.251.3800 • 800.558.8744
/
FAX: 262.251.7067 • 800.329.8744
.
.
.
USA
CANADA
U
S
A
ONLY
www.alto-shaam.com
M N - 2 8 6 2 7 ( R E V 1 ) • 0 7 / 1 3
P R I N T E D I N U . S . A .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED2-48/2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto-Shaam ED2-48/2S

Summary of Contents for Alto-Shaam ED2-48/2S

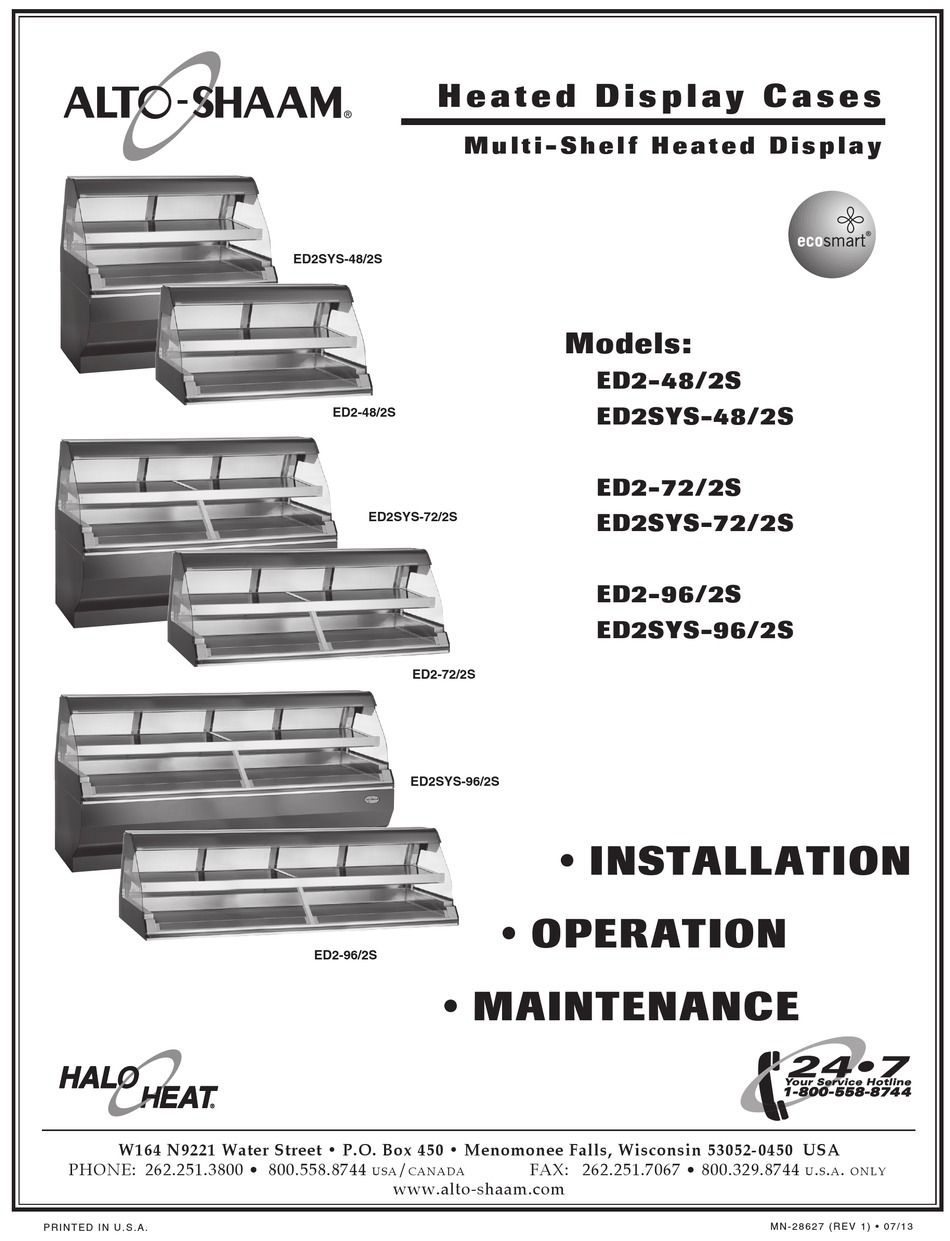

  • Page 1 H e a t e d D i s p l a y C a s e s M u l t i - S h e l f H e a t e d D i s p l a y ED2SYS-48/2S Models: ED2-48/2S ED2SYS-48/2S ED2-48/2S ED2-72/2S...
